Articulated Truck Bare Chassis 725 Bare Chassis

Request A Price Find Dealer

Key Specs

Standard Wheel Base
156.7 in
3979 mm
Rated Payload
30.4 ton (US)
27.6 t
Engine Model
Cat® C9.3
Cat® C9.3

Overview

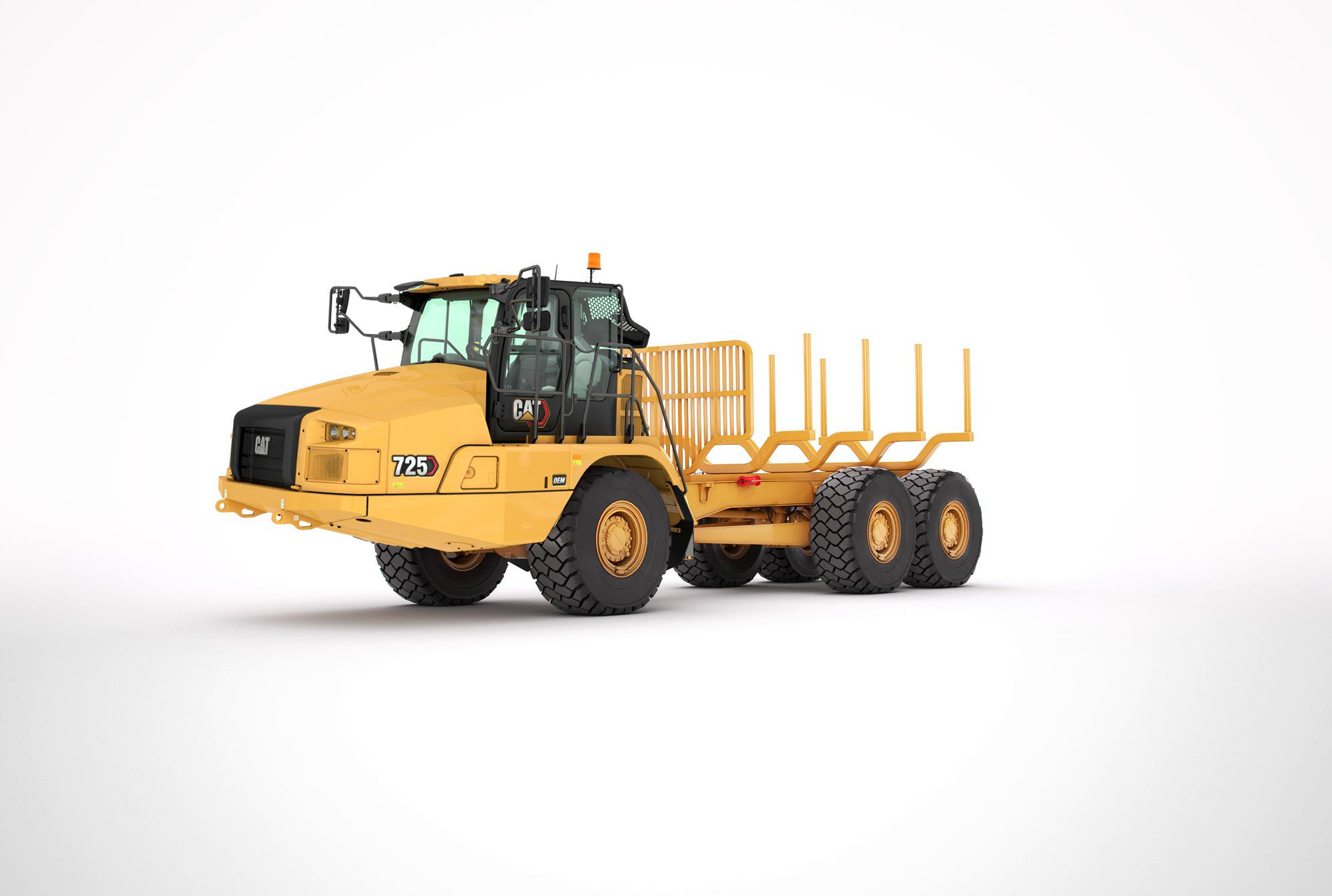

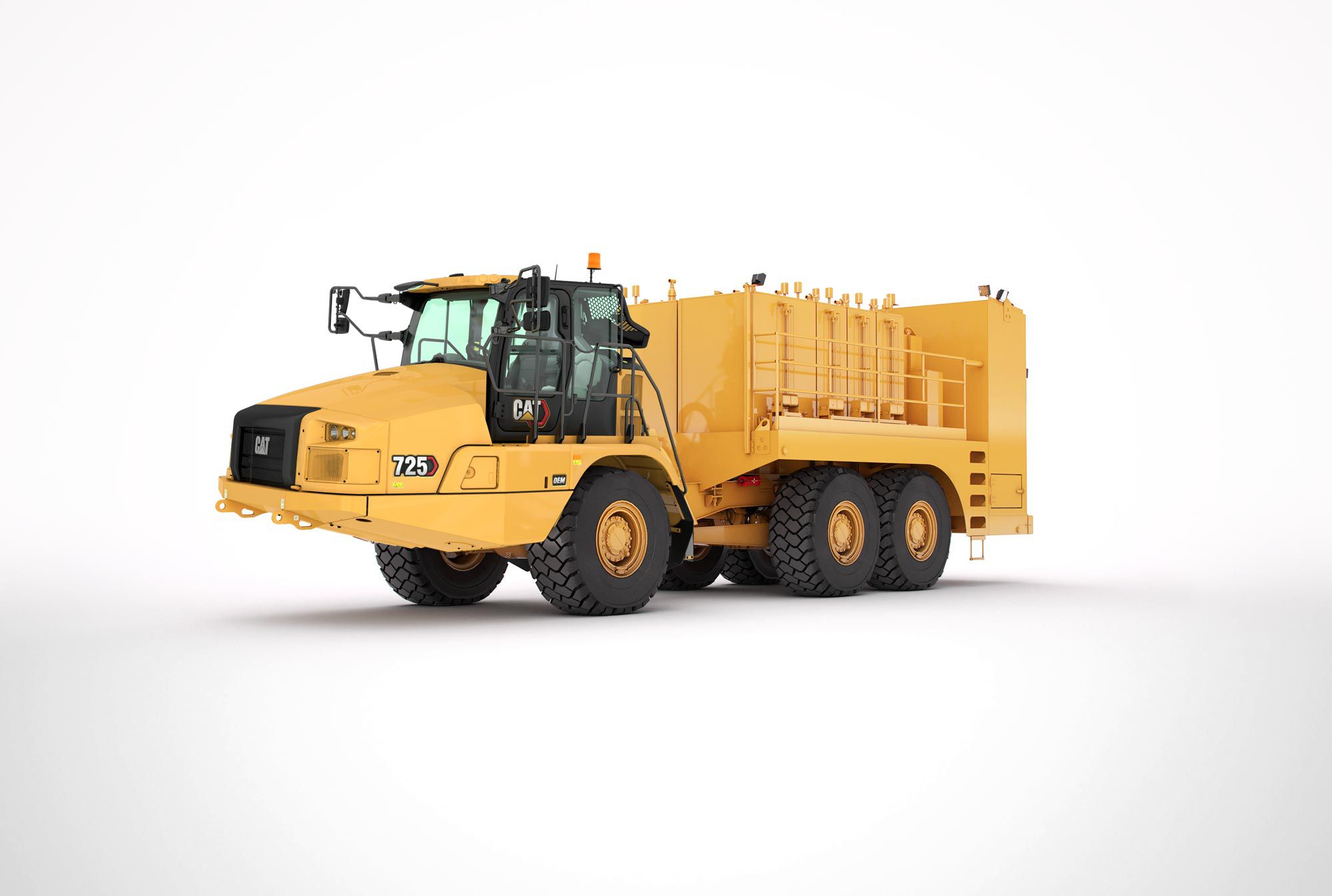

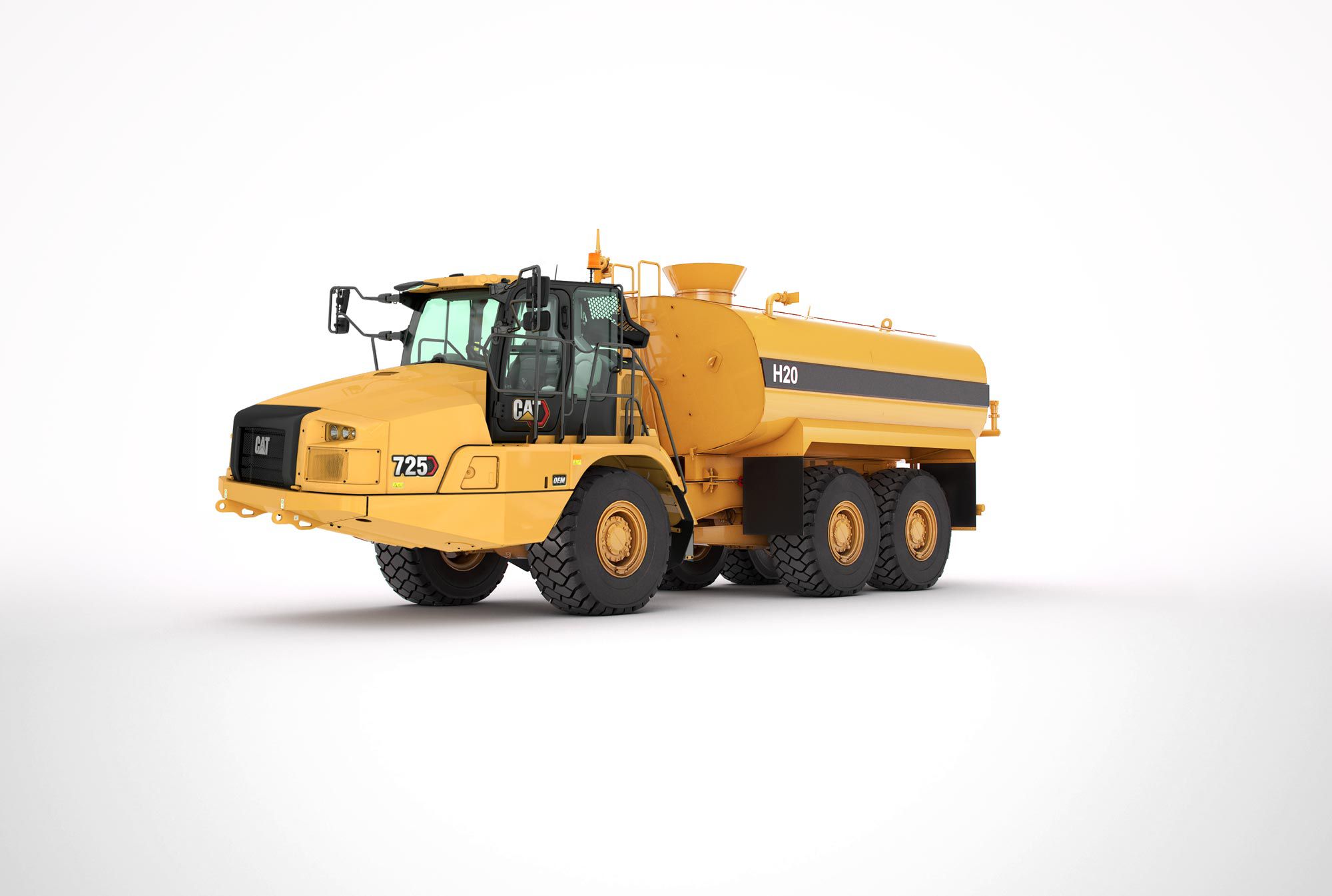

Customized to work for your application.

The Cat® 725 Bare Chassis is a strong, durable Cat C9.3 engine platform with U.S. EPA Tier 4 Final/EU Stage IV engine emission solution. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity.

Benefits

UP TO 50% LESS OPERATOR INPUT

A uniquely combined hoist and transmission lever allows for easy operation which suits a wide range of operator experience.

IMPROVED OPERATOR COMFORT

Quieter, more spacious cab with improved visibility helps operators work more productively throughout the day.

IMPROVED PERFORMANCE

Increased productivity, improved acceleration and speed performance increase on grades lead to improved performance.

Product Specifications for 725 Bare Chassis

Engine Model Cat® C9.3 Cat® C9.3
Gross Power - SAE J1995 342 HP 255 kW
Net Power - SAE J1349 334 HP 249 kW
Net Power - ISO 14396 338 HP 252 kW
Bore 4.5 in 115 mm
Stroke 45.2 in 1149 mm
Displacement 567.5 in³ 9.3 l
Peak Engine Torque Speed 1200 r/min 1200 r/min
Peak Engine Torque Gross (SAE J1995) 1275 lb/ft 1729 N·m
Peak Engine Torque Net (SAE J1349) 1263 ft·lbf 1712 N·m
No Engine De-rating Required Below 3000 ft 914 m
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV Cat® C9.3 Cat® C9.3
Standard Wheel Base 156.7 in 3979 mm
Rated Payload 30.4 ton (US) 27.6 t
Forward - 1 5 mile/h 8.1 km/h
Forward - 2 9.4 mile/h 15.2 km/h
Forward - 3 14.4 mile/h 23.2 km/h
Forward - 4 22.1 mile/h 35.5 km/h
Forward - 5 30.7 mile/h 49.4 km/h
Forward - 6 36.3 mile/h 58.4 km/h
Reverse - 1 5.5 mile/h 8.9 km/h
Fuel Tank 91 gal (US) 412 l
Cooling System 18 gal (US) 83 l
Hydraulic System 24 gal (US) 110 l
Engine Crankcase 8 gal (US) 38 l
Transmission 10 gal (US) 47 l
Output Transfer Gear Box 5 gal (US) 24 l
Final Drives/Differential 33 gal (US) 125 l
Final Drive - Each 1.6 gal (US) 7.5 l
DEF Tank 4 gal (US) 20 l
Brakes ISO 3450:2011 ISO 3450:2011
Cab - FOPS ISO 3449:2005 Level II ISO 3449:2005 Level II
Cab - ROPS ISO 3471:2008 ISO 3471:2008
Steering ISO 5010:2019 ISO 5010:2019
Lock to Lock 4.75 seconds at 60 rpm 4.75 seconds at 60 rpm
Turning Dimensions - SAE Turning Radius 294 in 7470 mm
Turning Dimensions - Inside Radius 153 in 3879 mm
Turning Dimensions - Clearance Radius 318 in 8075 mm
Turning Dimensions - Aisle Width 210 in 5332 mm
Turning Dimensions - Steer Angle - Left/Right 45 ° 45 °
Note Dimensions are for machines equipped with 23.5R25 tires. Dimensions are for machines equipped with 23.5R25 tires.

725 Bare Chassis Standard Equipment

For bare chassis standard and optional equipment, please reference the 725 Articulated Truck.
For more information on 725 Bare Chassis options, please contact Caterpillar OEM Solutions at oemsolutions@cat.com.
