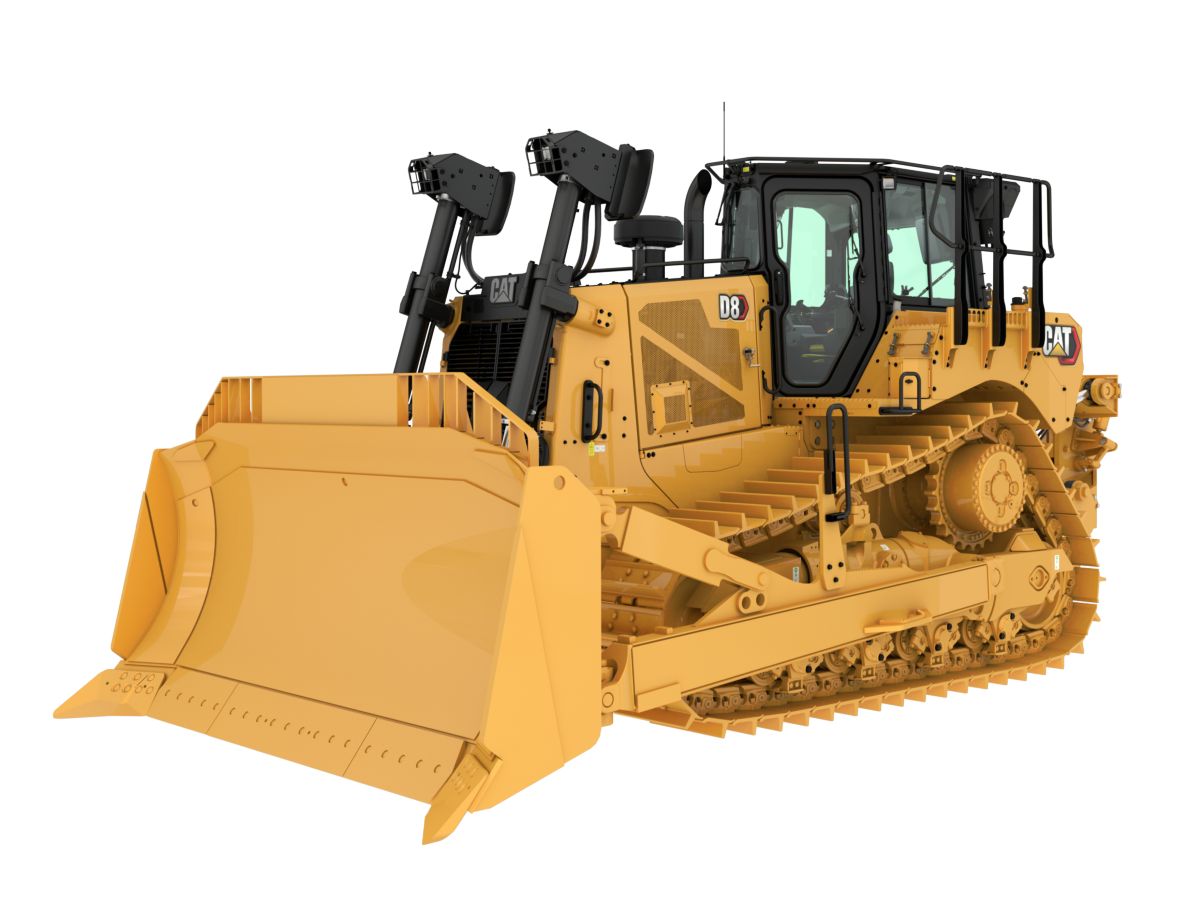

D8

Medium Dozers D8 Tier 3

Request A Price Find Dealer

Key Specs

Engine Model
Cat® C15
Cat® C15
Power - Net
363 hp
271 kW
Operating Weight
85980 lb
39000 kg

Overview

PERFORMANCE AND EFFICIENT OPERATION

The Cat® Next Generation D8 Dozer delivers performance you expect, with next generation technology for easier, more efficient operation. Common interface and controls from the D5 through D8 make it easy to operate machines of different sizes. A proven, fully automatic 4-speed transmission optimizes efficiency. The broad range of technology features helps reduce operator inputs, especially for less experienced operators.

Benefits

Added Comfort and Safety

Common cab, controls, and interface with the D5-D8 dozers and standard ease-of-use aids create an efficient operating environment.

Greater Efficiency

More drawbar power to move more material per hour with a proven, fully automatic 4-speed transmission.

More Productivity with Cat Technology

Assist features help reduce operator inputs, while options from the factory such as Cat Grade with 3D hardware make implementing technologies easier.

Features At A Glance

Displaying 1-6 of 7

NEXT GENERATION PERFORMANCE

NEXT GENERATION PERFORMANCE

  • Fully automatic 4-speed powershift transmission continuously adjusts for maximum efficiency and power to the ground without added operator input.
  • Next Generation cab for the D8 means common controls and interface for all D5-D8 machines, making operators more efficient across multiple dozers.
  • Blades are right-sized to the machine to help you get jobs done in fewer passes.
  • Elevated sprocket gives you better ride and balance, plus more penetration force.
  • Long undercarriage is standard, with more track at the rear of the machine for superior dozing performance.
  • Outfit your dozer from the factory to take on the challenges of slot dozing, ripping, and more.
OPERATOR HELPERS

OPERATOR HELPERS

Assist features help make work easier, especially for less experienced operators. Some blade and steering functions are automated so newer operators can work at productivity levels closer to their veteran counterparts. Seasoned operators can enjoy reduced effort and fatigue, along with faster, more accurate results.

  • Optional Assist features can reduce operator inputs up to 45%.*
    •
  • Cat Assist with Attachment Ready Option (ARO) features include:

    • Stable Blade works seamlessly with operator inputs to help produce a smoother surface when operating manually.
      •
    • Traction Control automatically reduces track slip to save you time, fuel and track wear.**
      •
    • AutoCarry™ automates blade lift to help you maintain consistent blade load and reduce track slip.**
      •
    • Blade Load Monitor gives you real-time feedback on current load versus the optimal blade load based on your ground conditions. Actively monitors machine load and track slip to help you reach optimal pushing capacity. **
      •
    • Cat Grade with Slope Assist™ automatically maintains pre-established blade position without a GNSS/GPS signal – no additional hardware or software needed. For machines with 3D, operators can easily switch back and forth from full 3D automatics to Slope Assist.
      •
    • Steer Assist automates track and blade tilt steering. Helps reduce operator fatigue by automatically maintaining straight travel with light loads or heavy loads on flat ground and side slopes. Helps reduce steering inputs. No GNSS/GPS required.
      •
    • Slope Indicate is included in the main machine display and shows side slope and uphill/downhill grades to help operators with slope work.
      •
    • Attachment Ready Option (ARO) provides wiring and mounting provisions for dealer installation of Grade with 3D, Accugrade, UTS, or other grade control systems.
      •
    • AutoRip automates ripper raise/lower and shank in/out to maximize ripping productivity.
      •

    •
  • Application Profile lets you save machine settings based on application or operator preference. Utilize any of the default profiles defined by our expert operators or customize profiles for various jobs or multiple operators.
    •
  • Operator ID allows you to save custom touchscreen setup, machine settings, and to track individual operator productivity, safety and training opportunities via Product Link™.
    •
  • Machine security – passcode helps prevent theft and unauthorized operation by requiring an operator to enter an ID to start the machine.
* Input reduction based on product testing of a D5 (17B) Next Generation Dozer with and without the use of Slope Assist in a side slope application. Inputs measured as number of times operator adjusts controls, collected and verified by electronic control module (ECM). Test conducted by Caterpillar at Washington, IL, in July 2022.
**Feature not operational indoors or in areas where a GNSS/GPS signal is not available.
UPTIME COUNTS

UPTIME COUNTS


  • Cab can be removed in about 30 minutes.
    •
  • Easy access without tools under the cab floor if needed.
    •
  • Option to install Cat Grade with 3D hardware from the factory eliminates shop time later.
    •
  • Reduce downtime with Read/Write Remote Troubleshoot, allowing dealer technicians to diagnose more issues remotely, saving time on service calls.
    •
  • Additional camera options for enhanced visibility around the machine.
    •
  • Platform with guard rail makes refueling other maintenance points safer to access.
    •
  • Elevated sprocket makes cleanout easier and provides convenient, modular service.
    •
  • Reversing hydraulic demand fan helps remove debris while you work, saving cleanout and maintenance time.
    •
  • Powered bottom guard option provides enhanced method for cleanout.
    •
  • Longer life LED lights help save you time and money.

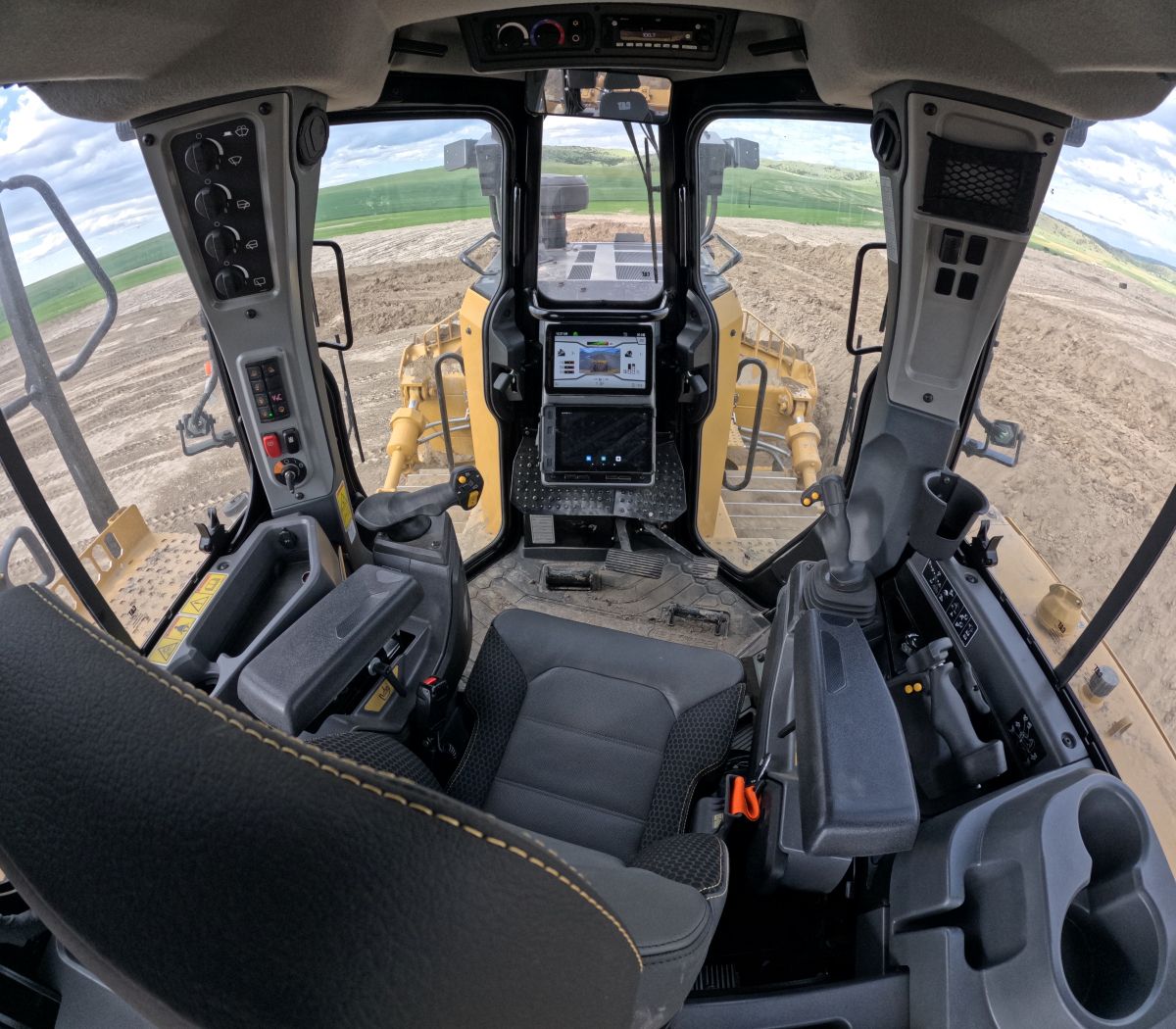

COMFORT AND VISIBILITY

COMFORT AND VISIBILITY


  • Common cab, interface, and controls with D5 through D8, raising the bar for comfort, productivity, and straightforward operation across dozer models.
    •
  • Integrated rollover protective structure (ROPS) and next generation cab design provides 7% improved visibility.*
    •
  • Easy-to-use 254 mm (10 in) touchscreen main display.
    •
  • Optional, high-definition rearview camera with backup lines shows prominently in the main display when in reverse.
    •
  • Key Features Help, built into the display, gives you an overview of machine and technology features and helpful operating tips.
    •
  • Wide air suspension seat has multiple adjustments for personalized comfort. Armrest adjusts independent of the seat.
    •
  • Distributed cab heating/cooling circulates air effectively around the operator and helps reduce window fogging/frosting.
    •
  • Ample storage spaces throughout the cab.
    •
  • Convenient USB and auxiliary power ports in cab.
*Visibility improvement based on virtual visibility analysis. Comparisons made from the D8T/D8 (19B) to the Next Generation D8 (22A).
BUILT-IN DURABILITY

BUILT-IN DURABILITY


  • Elevated sprocket protects major components from shock loads.
    •
  • Heavier frame and structures for added durability.
    •
  • Cat C15 engine eliminates exhaust gas recirculation (EGR) system for greater reliability; simplified with a single engine electronic control module (ECM).
    •
  • Redesigned fuel system provides greater reliability and more accurate fuel delivery.
    •
  • Heavy Duty Extended Life undercarriage – HDXL with DuraLink™ – available option that provides more seal life in high impact conditions.
    •
  • Heavy-duty batteries for more cold-cranking power.

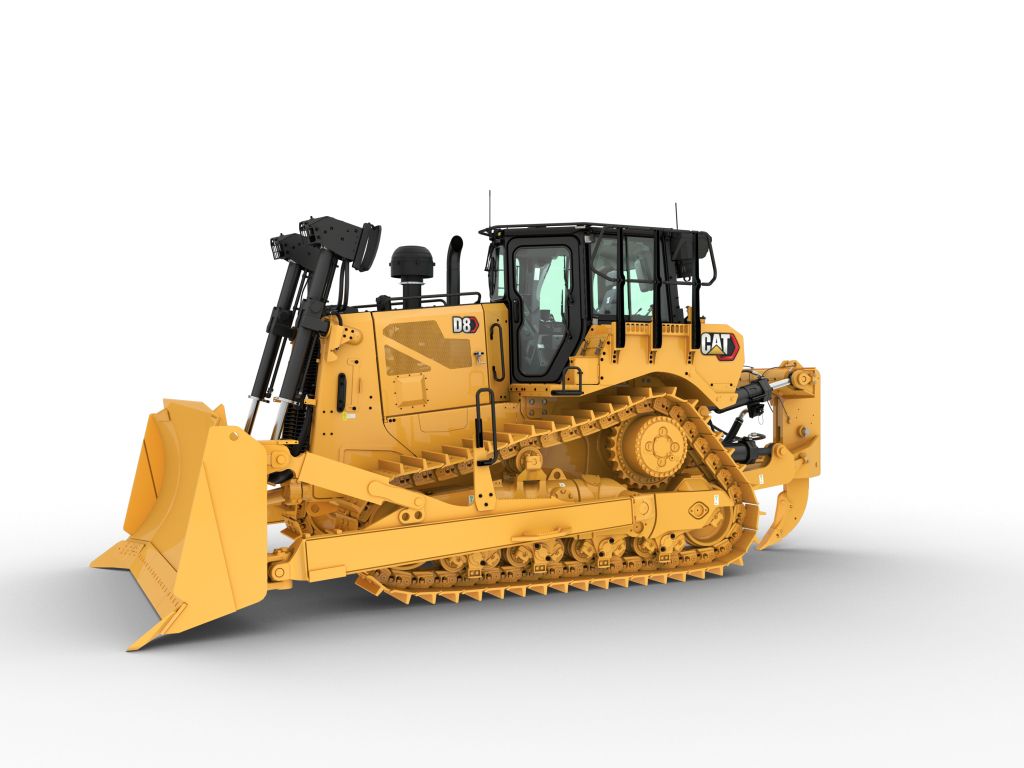

HANDLE THE DESERT HEAT

HANDLE THE DESERT HEAT


  • Choose from a variety of factory options to support machine performance and service life in extremely sandy or abrasive conditions.
    •
  • Cooling system designed for sand application with special fan coating and radiator grid.
    •
  • Turbine precleaner prevents particles from entering the engine system by delivering cleaner air to the powertrain.
    •
  • Sealed bottom guard and added seals help keep fine abrasive particles out of components. Access panels facilitate cleanout without removing bottom guard.
    •
  • Ducted and sealed alternator for longer life.
    •
  • Special seals throughout machine help reduce sand entering machine.
    •
  • Powered air precleaner helps keep cab air cleaner and pressurized for greater operator comfort.
    •
  • Solid-bottom engine enclosure doors help keep sand out for improved cooling and reduced cleanout.
    •
  • Specially coated fan and radiator core protection help resist abrasion. Reversing function is disabled on the hydraulic demand fan.
    •
  • Replaceable wear plates offer longer blade life when working in abrasive conditions.
Specifications Standard Equipment Optional Equipment

Product Specifications for D8

Download Print
Engine Model Cat® C15 Cat® C15
Power - Net 363 hp 271 kW
Net Power - ISO 9249/SAE J1349 363 hp 271 kW
Net Power - ISO 9249 (DIN) 368 mhp 368 mhp
Build Number 22A 22A
Emissions Brazil MAR-1, and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA Brazil MAR-1, and UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3/EU Stage IIIA
Note (1) Net power at 2,050 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power at 2,050 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2) Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer. Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * For use of blends higher than 20% biodiesel, consult your Cat dealer.
Operating Weight 85980 lb 39000 kg
Powertrain Fully-automatic 4-speed transmission with lock-up clutch (LUC) torque divider Fully-automatic 4-speed transmission with lock-up clutch (LUC) torque divider
Fuel Tank 164.8 gal (US) 624 l
Operating Weight 85980 lb 39000 kg
Ground Pressure 12.84 psi 88.5 kPa
Width of Standard Shoe 24 in 610 mm
Blade Semi-Universal Semi-Universal
Blade Capacity 13.47 yd³ 10.3 m³
Operating Weight 82861 lb 37585 kg
Ground Pressure 7.82 psi 53.9 kPa
Width of Standard Shoe 38 in 965 mm
Blade LGP Semi-Universal LGP Semi-Universal
Blade Capacity 12.95 yd³ 9.9 m³
Operating Weight 86531 lb 39250 kg
Ground Pressure 12.92 psi 89.1 kPa
Width of Standard Shoe 24 in 610 mm
Blade Semi-Universal Semi-Universal
Blade Capacity 13.47 yd³ 10.3 m³
Recyclability 98% 98%
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.36 kg (3 lb) of refrigerant which has a CO2 equivalent of 1.95 metric tonnes (2.14 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.36 kg (3 lb) of refrigerant which has a CO2 equivalent of 1.95 metric tonnes (2.14 tons).

D8 Standard Equipment

Print

Note

  • Standard and optional equipment may vary. Consult your Cat® dealer for details.

Powertrain

  • Cat® C15 engine
  • Fully-automatic 4-speed transmission with lock-up clutch (LUC) torque divider
  • Aftercooler, air-to-air (ATAAC)
  • Coolant, extended life
  • Differential steering
  • Engine air filter with electronic service indicator
  • Engine air precleaner with dust ejection
  • Engine idle shutdown
  • Final drives, double reduction – Standard or LGP
  • Fuel water seperator
  • Fuel priming pump, electric
  • Fan, hydraulic demand
  • Fuel lines – B100 compliant (required for Indonesia)
  • Muffler with mitered stack
  • Radiator, aluminum bar plate with debris resistant cores
  • High performance single plane cooling system

Cat Technology

  • Cat Slope Indicate
  • Compatibility with radios and base stations from Trimble, Topcon, and Leica
  • Capability to install 3D grade systems from Trimble, Topcon, and Leica
  • Remote Flash/Troubleshoot
  • Machine security - passcode
  • Remote Control Ready

Operator Environment

  • Standard cab with integrated rollover protective structure (ROPS) and falling objects protective structure (FOPS), laminated safety glass, sliding windows, basic display/non-ARO, standard seat
  • 203 mm (8 in) gauge cluster display
  • Cloth seat with mechanical adjustable lumbar support
  • Electrohydraulic implement and steering controls
  • Decelerator pedal
  • Fresh air filter
  • Cab mounted modular HVAC system with automatic reversing fans. Automatic temperature and blower control with distributed ducting.
  • Rearview mirror
  • Retractable 76 mm (3 in) seat belt
  • Cup holders
  • Dash foot pads
  • Lunchbox storage
  • Wipers
  • Operator presence switch

Undercarriage

  • Standard or Low Ground Pressure (LGP) undercarriage
  • Heavy Duty with Positive Pin Retention (PPR) undercarriage – 44 section track, sealed and lubricated, single grouser shoes
  • Suspension-type undercarriage
  • Carrier rollers
  • Hydraulic track adjusters
  • Lifetime lubricated track and roller
  • Moderate service track shoes
  • Track guide
  • Sprocket rim segments, replaceable
  • 8-roller tubular track roller frame (carrier roller ready)
  • Two-piece master links

Push Arms

  • Standard

Hydraulics

  • Load sensing hydraulics
  • Independent steering and implement pumps
  • Dozer tilt hydraulics – single tilt
  • Guarded blade hydraulic hoses
  • Electronically enabled quick drop valve
  • Rear hydraulics ripper and winch ready

Electrical

  • Standard lights – 4 LED light package
  • Backup alarm
  • Converter: 15 Amp, 12V outlets
  • Forward warning horn

Batteries, Starters, Alternators, and Coolant

  • 95 Amp alternator
  • 24 Volt starter
  • Engine coolant, –37° C (–35° F)
  • Four maintenance free 12-volt batteries (900 cca) (24-volt system)

Service and Maintenance

  • Centralized, remote mounted pressure taps
  • Ecology drains
  • Extended service intervals (500 hours engine, 1,000-hour powertrain)
  • Ground level service center (remote electrical disconnect, secondary shutdown switch)
  • Heavy duty perforated radiator doors, louvered and hinged
  • Removable engine enclosures, perforated and hinged
  • Scheduled Oil Sampling (S·O·S℠) ports
  • Vandalism protection for fluid compartments and battery box

Guarding and Screens

  • Bottom guards – standard

D8 Optional Equipment

Print

Note

  • Standard and optional equipment may vary. Consult your Cat® dealer for details.

Powertrain

  • Desert package with unique engine, precleaner, bottom guards, and seals for application
  • Engine air precleaner desert configuration
  • Engine air precleaner with screen and dust ejector
  • Engine with thermal shield
  • Fan, auto reversing
  • High capacity fuel tank – includes B100 compliant fuel lines
  • Oil change system, high speed
  • Muffler with thermal shield
  • Sound suppression
  • Starting aid, automatic ether
  • Starting aid, jacket water heater (110V or 220V)

Cat Technology

  • Cat Assist with ARO package
  • Cat Grade 3D Ready with Assist package (hardware only)
  • Cat Grade 3D with Assist pacakge
  • Third party Grade Control ready cab
  • Product Link™ – cellular or dual mode
  • Cat Track Wear Sensor (standard in countries where certified)
  • Grade Connectivity
  • Grade Corrections Radio
  • Machine security – Bluetooth
  • Cat Command for Dozing

Operator Environment

  • Premium cab with integrated ROPS and FOPS, laminated safety glass, sliding windows, adjustable armrests. Cab is technology- and remote control-ready.
  • High debris cab with integrated ROPS and FOPS, impact resistant polycarbonate doors, solid side windows for improved sealing, powered precleaner with Cat Advanced Cabin Filtration for improved performance and filter life. Cab is technology- and remote control-ready.
  • Full-color 254 mm (10 in) liquid crystal touchscreen display
  • High definition rearview camera with backup lines
  • In-display key machine features
  • Operator ID/Operator ID with Security
  • Deluxe leather heated/ventilated seat with electronic adjustable lumbar support
  • Armrests adjustable fore-aft and vertically
  • Joystick control – ARO
  • Powered fresh air filter precleaner
  • Communication radio ready
  • Floor plate and pedals for shorter operators
  • Entertainment radio with Bluetooth and microphone
  • USB and AUX ports
  • Emergency hammer
  • Window shades

Undercarriage

  • Heavy Duty Extended Life (HDXL) with PPR undercarriage – 44 section track, sealed and lubricated, single grouser shoes
  • Waste undercarriage
  • Extreme service track shoes

Blades

  • Semi-Universal (SU)
  • Universal (U)
  • Waste/Landfill
  • Angle (A)
  • Rock Guard/Wear Plate
  • Push Plate
  • FirstCut™ cutting edges (SU blades)

Push Arms

  • Extreme

Hydraulics

  • Dozer tilt hydraulics – dual tilt

Electrical

  • Upgraded lights – 6 LED light package
  • Premium lights – 12 LED light package
  • Access/egress lighting with shutdown timer
  • Beacon warning light

Batteries, Starters, Alternators, and Coolant

  • 150 Amp alternator
  • 150 Amp ducted alternator
  • Arctic engine coolant, –51° C (–60° F)

Service and Maintenance

  • 30-minute cab removal
  • Ground level service center (hour meter, jump start)
  • Fast fuel fill
  • High-speed oil change
  • Heavy duty radiator doors for waste
  • Quick access cab floor
  • Under hood work light
  • Shovel holder

Attachments

  • Multi-shank ripper with CapSure™ ripper tips and shank protector
  • Single shank ripper with CapSure ripper tip and shank protector
  • Pin puller (single shank)
  • Rear striker box with striker bar
  • Rear striker bar
  • Rear counterweight
  • Drawbar
  • Winch

Guarding and Screens

  • Bottom guards – heavy duty, powered, sealed, desert
  • Cab rear screen – fixed or hinged
  • Cab side screens – hinged
  • Fuel tank guards
  • HVAC guard
  • Light guards
  • Striker bars, front, suspended
  • Sweeps package

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

1 - 8 of 9 Items items
Previous Next

Cat® Grade with Slope Assist™ for Dozers makes just about any dozing job faster and easier. The system maintains blade cross slope and/or mainfall for better surface quality, even with a less experienced operator.

Explore Technology
1 - 8 of 9 Items items
Previous Next

Cat Command is an advanced remote control system that takes operators off the machine and away from potential dangers when working with hazardous materials or in unsafe conditions. The system's deep integration with machine systems ensures smooth and precise control for optimal efficiency and productivity.

Explore Technology
1 - 8 of 9 Items items
Previous Next

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

See how D8 compares against frequently compared products.

Dozers
Selected
D8 Tier 3
D8
Engine Model
Cat® C15
Cat® C15
Power - Net
363 hp
271 kW
Operating Weight
85980 lb
39000 kg
Dozers
D7 Tier 4 / Stage V
D7
Engine Model
Cat C9.3B
Cat C9.3B
Power - Net
265 hp
197 kW
Operating Weight
65644 lb
29776 kg
View Details
Dozers
D8 Tier 4 / Stage V
D8
Engine Model
Cat® C15
Cat® C15
Power - Net
363 hp
271 kW
Operating Weight
87083 lb
39500 kg
View Details

Tools And Expert Help At Every Turn

Find Dealer
Payment Calculator
Current Offers
Rental Options
Used Options

Product Brochures and More Are Ready to Download!

Media Gallery

D8 Dozer

D8 Dozer

D8 Dozer Working

D8 Dozer Working

D8 Dozer undercarriage

D8 Dozer undercarriage

D8 Dozer Working

D8 Dozer Working

D8 Dozer ripping

D8 Dozer ripping

D8 Dozer
D8 Dozer Working
D8 Dozer undercarriage
D8 Dozer Working
D8 Dozer ripping

360 View
360 View
360 View
360 View
From the D1 to the D11, Cat Dozers now have simpler names but the same reliable performance.

From the D1 to the D11, Cat Dozers now have simpler names but the same reliable performance.

From the D1 to the D11, Cat Dozers now have simpler names but the same reliable performance.

Check out current offers for the D8

View More Offers
warning

Internet Explorer users may experience issues with certain features of our site.
Please try a current version of an alternate browser (i.e. Google Chrome, Microsoft Edge, Mozilla Firefox) for the full Cat.com experience.
