Overview
Vibratory action and dynamic force provides excellent compaction in a compact size.
Vibratory Plate Compactors CVP55
Request A Price Shop NowKey Specs
- Impulse Force
- 12364.5 lb
- 55 kN
- Impact Frequency
- 2200 bpm
- 2200 bpm
- Base Plate Width
- 26 in
- 660 mm
Features At A Glance
Displaying 1-6 of 7
Application
Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.
Superior Compaction Force
These units produce high-power impulses at a rate of 2200 impacts per minute driving soil particles close together for solid, stable compactions.
Common Mounting Solutions
Cat vibratory plate compactors share the same mounting solutions as the Cat B and H model Hammers. Mounting brackets are available for pin on, pin grabber, pin lock, CW, and S type connections.
Protected Hydraulics
Hydraulic hoses are protected inside the frame of the compactor. Jumper lines are routed out the back of the compactor. Hoses are out of the way – even in tight trenches.
Easy Maintenance
Oil changes are simplified with the rear centerline plug. Oil can be changed while the compactor is installed.
Rubber Isolators
A heavy-duty steel frame and solid rubber isolator bushings deliver the maximum amount of power to the ground while minimizing machine impact.
Product Specifications for CVP55
| Impulse Force | 12364.5 lb 55 kN |
| Impact Frequency | 2200 bpm 2200 bpm |
| Base Plate Width | 26 in 660 mm |
| Compaction Area | 5.7 ft² 0.53 m² |
| Base Plate Pressure | 14.9 psi 102.7 kPa |
| Base Plate Length | 41.2 in 1046 mm |
| Optimal Hydraulic Flow | 83-104 lpm (22-27 gpm) 83-104 lpm (22-27 gpm) |
| Minimum Operating Pressure | 13000-17000 kPa (1900-2500 psi) 13000-17000 kPa (1900-2500 psi) |
| Weight | 998.7 lb 453 kg |
See how CVP55 compares against frequently compared products.
Compactors
CVP55
Selected
- Impulse Force
- 12364.5 lb
- 55 kN
- Impact Frequency
- 2200 bpm
- 2200 bpm
- Base Plate Width
- 26 in
- 660 mm
Compactors
CVP40
- Impulse Force
- 8992.36 lb
- 40 kN
- Impact Frequency
- 2200 bpm
- 2200 bpm
- Base Plate Width
- 23.2 in
- 590 mm
Compactors
CVP75
- Impulse Force
- 16508 lb
- 74 kN
- Cycles/Minimum
- 2200
- 2200
- Base Plate Width
- 29 in
- 737 mm
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
360 View
Studio Shot

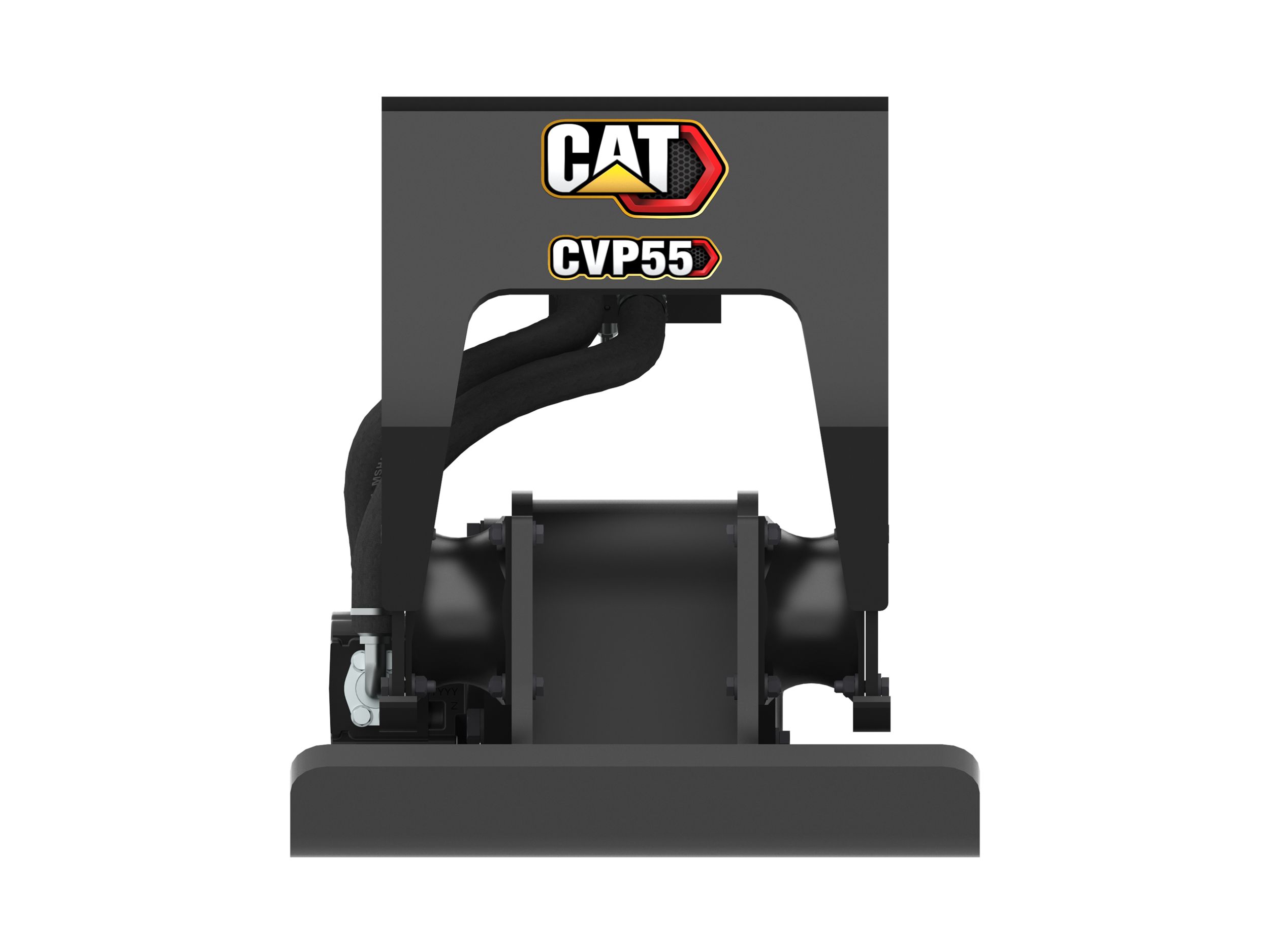

Front View

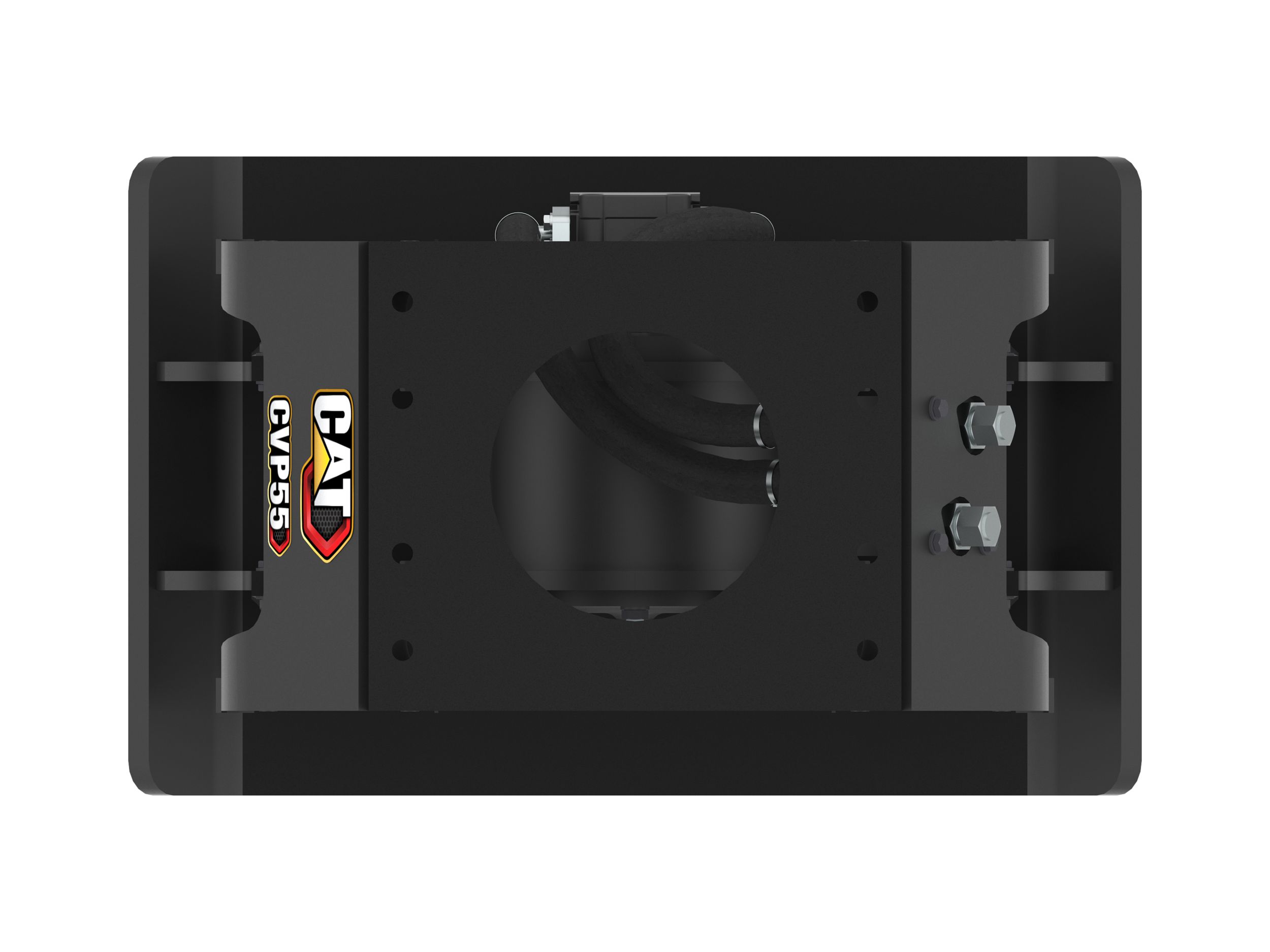

Top View

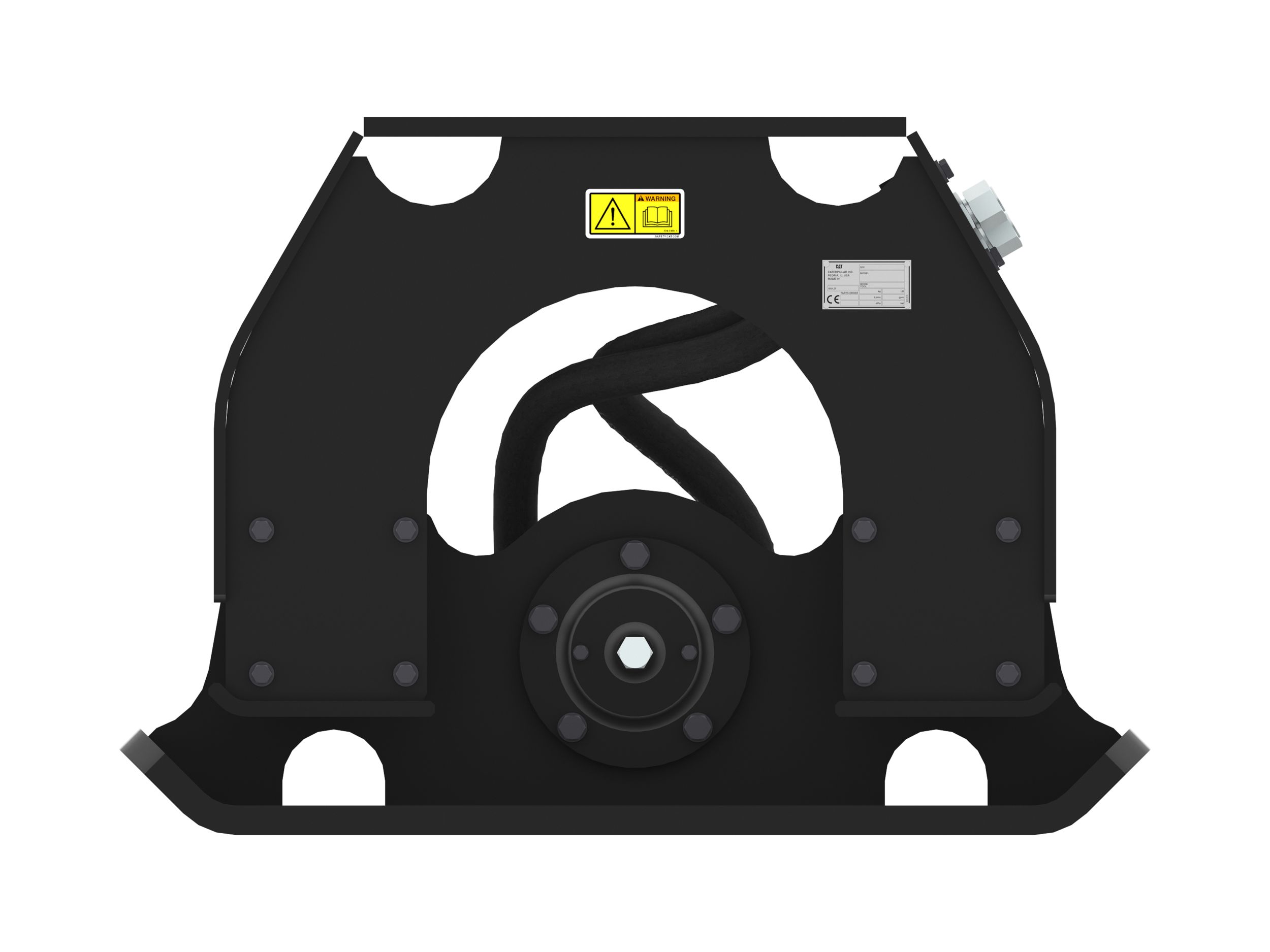

Left View

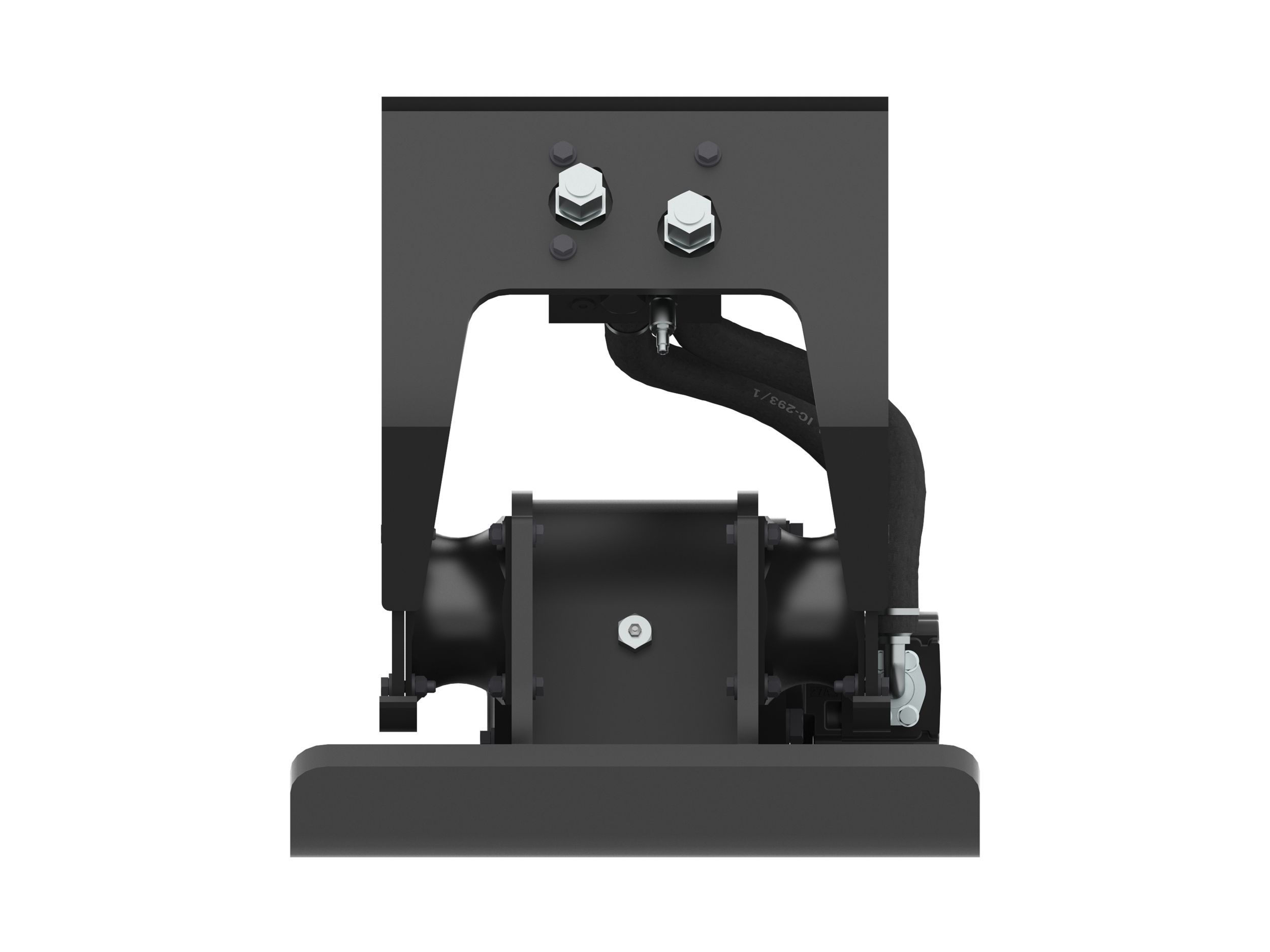

Rear View

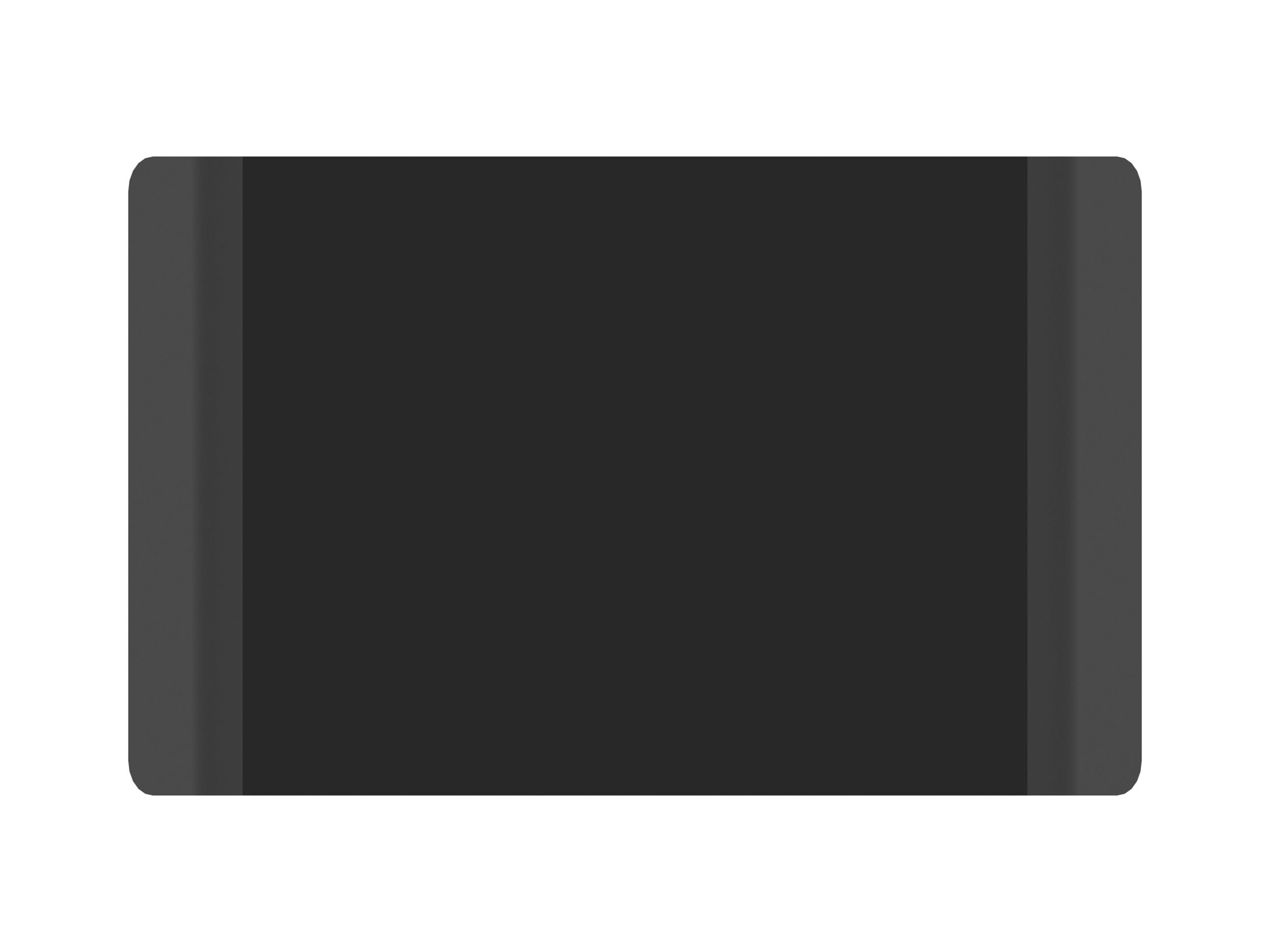

Bottom View

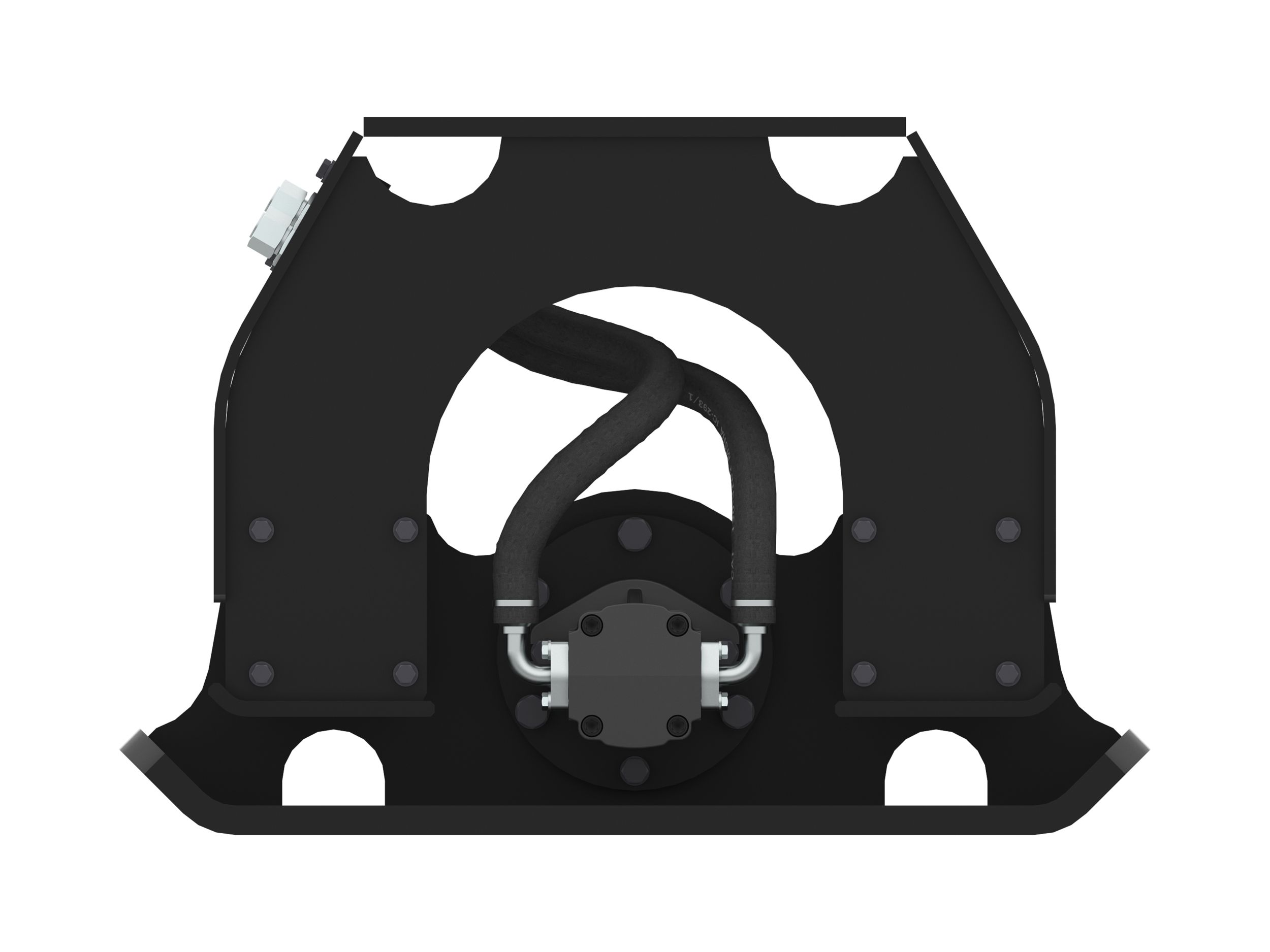

Right View
