Tandem Vibratory Rollers CC2.7

Request A Price Find Dealer

Key Specs

Standard Operating Weight with ROPS: 5718 lb; 2599 kg

Compaction Width: 47.2 in; 1200 mm

Gross Power: 48.2 hp; 36 kW

CC2.7
Change model

Overview

Productive and Efficient

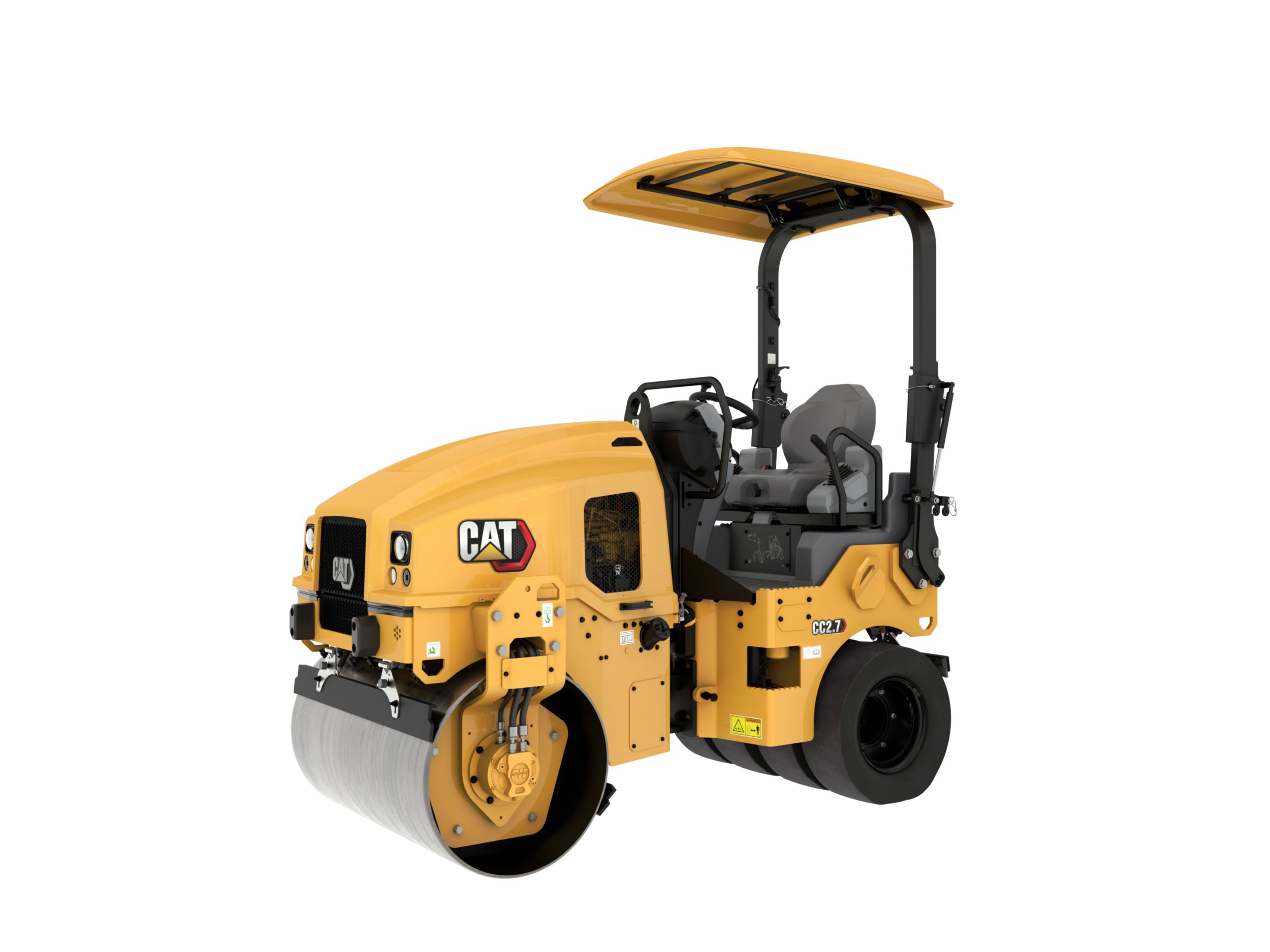

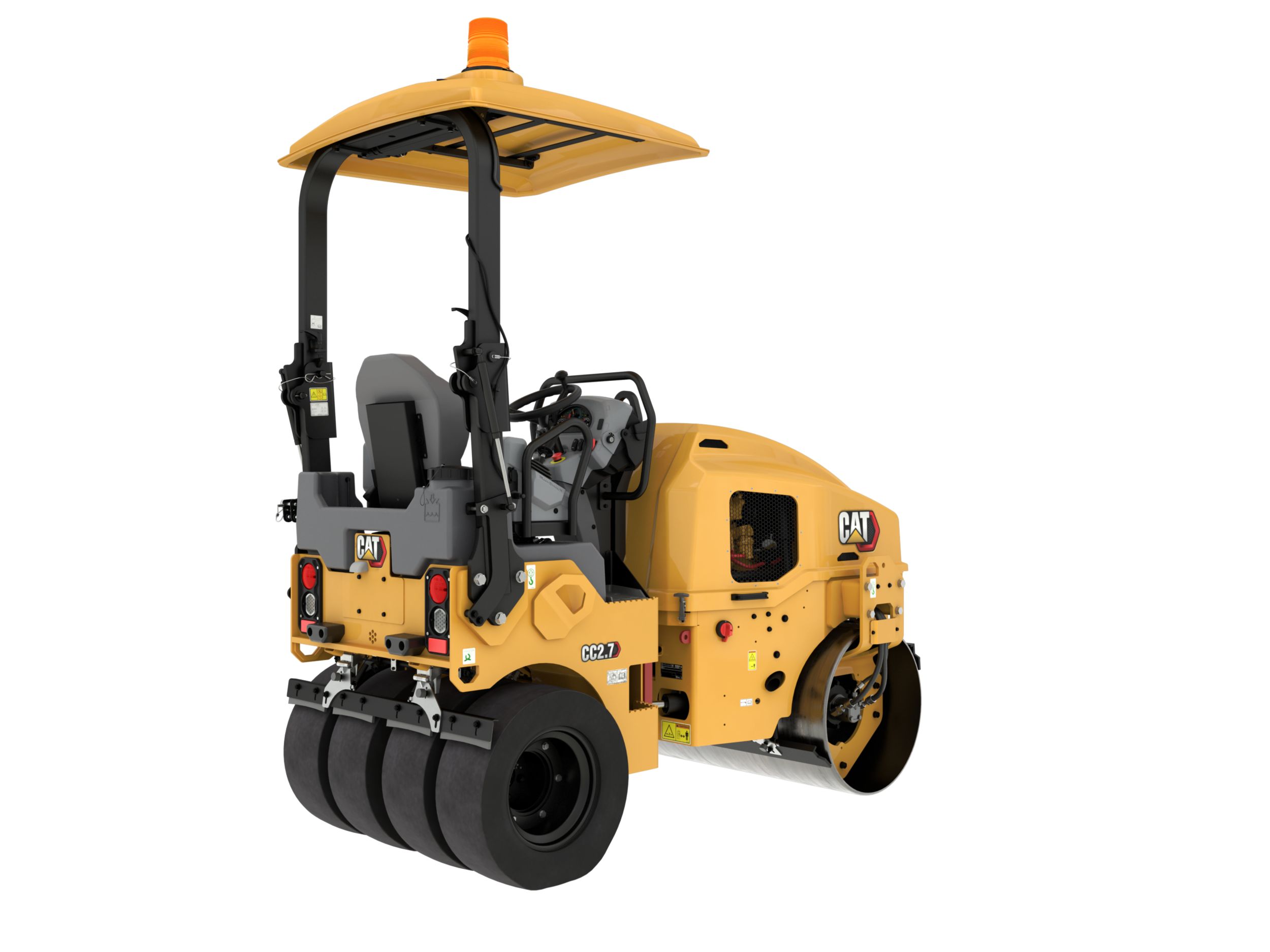

The CC2.7 is a 3 metric ton machine with a 1200 mm (47 in) front drum and 4 rear wheels. The combination compactor offers versatility with its 4 rubber tires that provide a kneading action for a smooth mat surface.

Benefits

Productive

Providing up to 33% more power with Cat C1.7T engine at 48 hp / 36 kW with optimized hydraulics and multiple ballast options.

Easy to Maintain

CC2.7 provides reduced maintenance tasks, troubleshooting through Cat ET, and a 3-year/3000 hour vibe system service interval.

Simple to Operate

This machine has intuitive operator controls, a simple display, and an ergonomic operator station.

Specifications Standard Equipment Optional Equipment

Product Specifications for CC2.7

Weights

Standard Operating Weight with ROPS	5718 lb 2599 kg
Static Linear Load	61 lb/in 13.1 kg/cm
Maximum Operating Weight	6114 lb 2779 kg

Dimensions

Compaction Width	47.2 in 1200 mm
Overall Width	51.7 in 1312 mm
Drum Width	47.2 in 1200 mm
Height - ROPS	109.7 in 2786 mm
Wheel Base	70.9 in 1800 mm
Overall Length	99.2 in 2520 mm
Drum Diameter	28.3 in 720 mm

Operating Specifications

Turning Radius - Inside Drum Edge	100 in 2540 mm
Ground Clearance	11.2 in 285 mm
Curb Clearance	17.8 in 453 mm
Travel Speed - Maximum	6.8 mile/h 11 km/h
Static Linear Load	66.2 lb/in 11.85 kg/cm
Drum Offset	2 in 50 mm
Number of Wheels	4 4
Turning Radius - Outside Drum Edge	147.2 in 3740 mm

Engine

Gross Power	48.2 hp 36 kW
Engine Power (1)	48.2 hp 36 kW
Engine Model	C1.7T C1.7T

Vibratory System

Nominal Amplitude - High	0.02 in 0.52 mm
Minimum Frequency	3180 VPM 53 Hz
Maximum Frequency	3840 VPM 64 Hz
Centrifugal Force per Drum - Maximum	7929 lb/ft 35 kN

Service Refill Capacities

Water Spray Tank Capacity	42.24 gal (US) 160 l
Fuel Tank Capacity	14.37 Gal 55 l

CC2.7 Standard Equipment

OPERATOR ENVIRONMENT

Adjustable Suspension Seat with Operator Presense Switch

ROPS Folding

Seat Belt - 75 mm (3 in) high visibility orange

Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box

12-volt Power Outlet

Horn, Backup Alarm

COMPACTON SYSTEM

Folding Scrapers

Vibe Selection - front, rear, or both

Pressurized, Triple-Filtration Spray System with Test Mode

POWERTRAIN

Auto Engine Off and Auto Warmup

Air Cleaner, Dual Element

Engine Belt Guard

TECHNOLOGY

Telematics

ELECTRICAL

LED Working Lights

OTHER

Vandal Protection - lockable hood, fuel fill, and controls cover

Machine Life and Tiedowns

Offsets Hitch

CC2.7 Optional Equipment

OPERATOR ENVIRONMENT

ROPS Fixed

Sun Canopy

Seat - Side Shift

Dual Propel Levers

COMPACTON SYSTEM

Fixed Scrapers

Cocoa Mats

Edge Cutter Ready

Water Sprayer Antifreeze Kit

Ballast Kit - 100 kg (220 lb)

TECHNOLOGY

Remote Flash / Troubleshoot

CMV - Compaction Measurement Value

ELECTRICAL

Battery Disconnect

LED Roading Lights

Rotating Amber Beacon

OTHER

Biodegradeable Hydraulic Oil

Bumpers

Single Point Lift

Custom Paint

Product Specifications for CC2.7

Download Print

Weights

Standard Operating Weight with ROPS	5718 lb 2599 kg
Static Linear Load	61 lb/in 13.1 kg/cm
Maximum Operating Weight	6114 lb 2779 kg

Dimensions

Compaction Width	47.2 in 1200 mm
Overall Width	51.7 in 1312 mm
Drum Width	47.2 in 1200 mm
Height - ROPS	109.7 in 2786 mm
Wheel Base	70.9 in 1800 mm
Overall Length	99.2 in 2520 mm
Drum Diameter	28.3 in 720 mm

Operating Specifications

Turning Radius - Inside Drum Edge	100 in 2540 mm
Ground Clearance	11.2 in 285 mm
Curb Clearance	17.8 in 453 mm
Travel Speed - Maximum	6.8 mile/h 11 km/h
Static Linear Load	66.2 lb/in 11.85 kg/cm
Drum Offset	2 in 50 mm
Number of Wheels	4 4
Turning Radius - Outside Drum Edge	147.2 in 3740 mm

Engine

Gross Power	48.2 hp 36 kW
Engine Power (1)	48.2 hp 36 kW
Engine Model	C1.7T C1.7T

Vibratory System

Nominal Amplitude - High	0.02 in 0.52 mm
Minimum Frequency	3180 VPM 53 Hz
Maximum Frequency	3840 VPM 64 Hz
Centrifugal Force per Drum - Maximum	7929 lb/ft 35 kN

Service Refill Capacities

Water Spray Tank Capacity	42.24 gal (US) 160 l
Fuel Tank Capacity	14.37 Gal 55 l

CC2.7 Standard Equipment

OPERATOR ENVIRONMENT

Adjustable Suspension Seat with Operator Presense Switch

ROPS Folding

Seat Belt - 75 mm (3 in) high visibility orange

Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box

12-volt Power Outlet

Horn, Backup Alarm

COMPACTON SYSTEM

Folding Scrapers

Vibe Selection - front, rear, or both

Pressurized, Triple-Filtration Spray System with Test Mode

POWERTRAIN

Auto Engine Off and Auto Warmup

Air Cleaner, Dual Element

Engine Belt Guard

TECHNOLOGY

Telematics

ELECTRICAL

LED Working Lights

OTHER

Vandal Protection - lockable hood, fuel fill, and controls cover

Machine Life and Tiedowns

Offsets Hitch

CC2.7 Optional Equipment

OPERATOR ENVIRONMENT

ROPS Fixed

Sun Canopy

Seat - Side Shift

Dual Propel Levers

COMPACTON SYSTEM

Fixed Scrapers

Cocoa Mats

Edge Cutter Ready

Water Sprayer Antifreeze Kit

Ballast Kit - 100 kg (220 lb)

TECHNOLOGY

Remote Flash / Troubleshoot

CMV - Compaction Measurement Value

ELECTRICAL

Battery Disconnect

LED Roading Lights

Rotating Amber Beacon

OTHER

Biodegradeable Hydraulic Oil

Bumpers

Single Point Lift

Custom Paint
