Key Specs
The Cat® CS17 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.
Eco-Mode, no-maintenance hitch with sealed-for-life bearings and extended service intervals help keep your operating and maintenance costs low.
On-board compaction measurement technology indicates when specifications are met helping to eliminate guesswork, reduce unnecessary passes and minimize rework.
A rear vision camera enhances visibility around the machine and a pivoting seat with integrated controls and tiltable steering console provide an ergonomic work environment.
| Operating Weight - With Cab | 38405 lb 17420 kg |
| Weight - Drum with Cab | 26559 lb 12047 kg |
| Note (1) | Operating weights are approximate and consider full fluids, 75 kg (165 lb) operator, cab with heat and air conditioning. Operating weights are approximate and consider full fluids, 75 kg (165 lb) operator, cab with heat and air conditioning. |
| Compaction Width | 84 in 2134 mm |
| Overall Length | 20.1 ft 6.1 m |
| Overall Width | 7.8 ft 2.4 m |
| Maximum Height | 10.1 ft 3.1 m |
| Drum Diameter | 60.4 in 1535 mm |
| Wheel Base | 9.5 ft 2.9 m |
| Gross Power | 174.9 hp 130.4 kW |
| Engine Power - ISO 14396 | 173.5 hp 129.4 kW |
| Net Power - ISO 9249 | 145.8 hp 108.7 kW |
| Net Power - SAE J1349:2011 | 145.1 hp 108.2 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat® C4.4 Cat® C4.4 |
| Emissions | EU Stage V EU Stage V |
| Stroke | 5 in 127 mm |
| Bore | 4.1 in 105 mm |
| Vibratory Frequency - Standard | 1680 VPM 28 Hz |
| Variable Frequency Option Range | 23.3 - 28 Hz (1400-1680 vpm) 23.3 - 28 Hz (1400-1680 vpm) |
| Nominal Amplitude - High | 0.083 in 2.1 mm |
| Nominal Amplitude - Low | 0.039 in 0.98 mm |
| Centrifugal Force - Maximum | 75234 lb 335 kN |
| Centrifugal Force - Minimum | 35163 lb 156 kN |
| Static Linear Load - With Cab | 316.1 lb/in 56.5 kg/cm |
| Ground Clearance | 16.9 in 429 mm |
| Curb Clearance | 20.7 in 526 mm |
| Turning Radius - Inside Drum Edge | 12.1 ft 3.7 m |
| Travel Speed - Maximum | 7.1 mile/h 11.4 km/h |
| Fuel Tank Capacity | 81.1 gal (US) 307 l |
| DEF Tank | 5 gal (US) 19 l |
| Cooling System | 7.4 gal (US) 28.2 l |
| Engine Oil - With Filter | 3.1 gal (US) 11.6 l |
| Eccentric Weight Housings (combined) | 6.9 gal (US) 26 l |
| Axle and Final Drives | 6.3 gal (US) 24 l |
| Hydraulic Tank | 13.2 gal (US) 50 l |
| Recyclability | 99% 99% |
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All ModelsCaterpillar product brochures and other informational documents are available for your growing business.

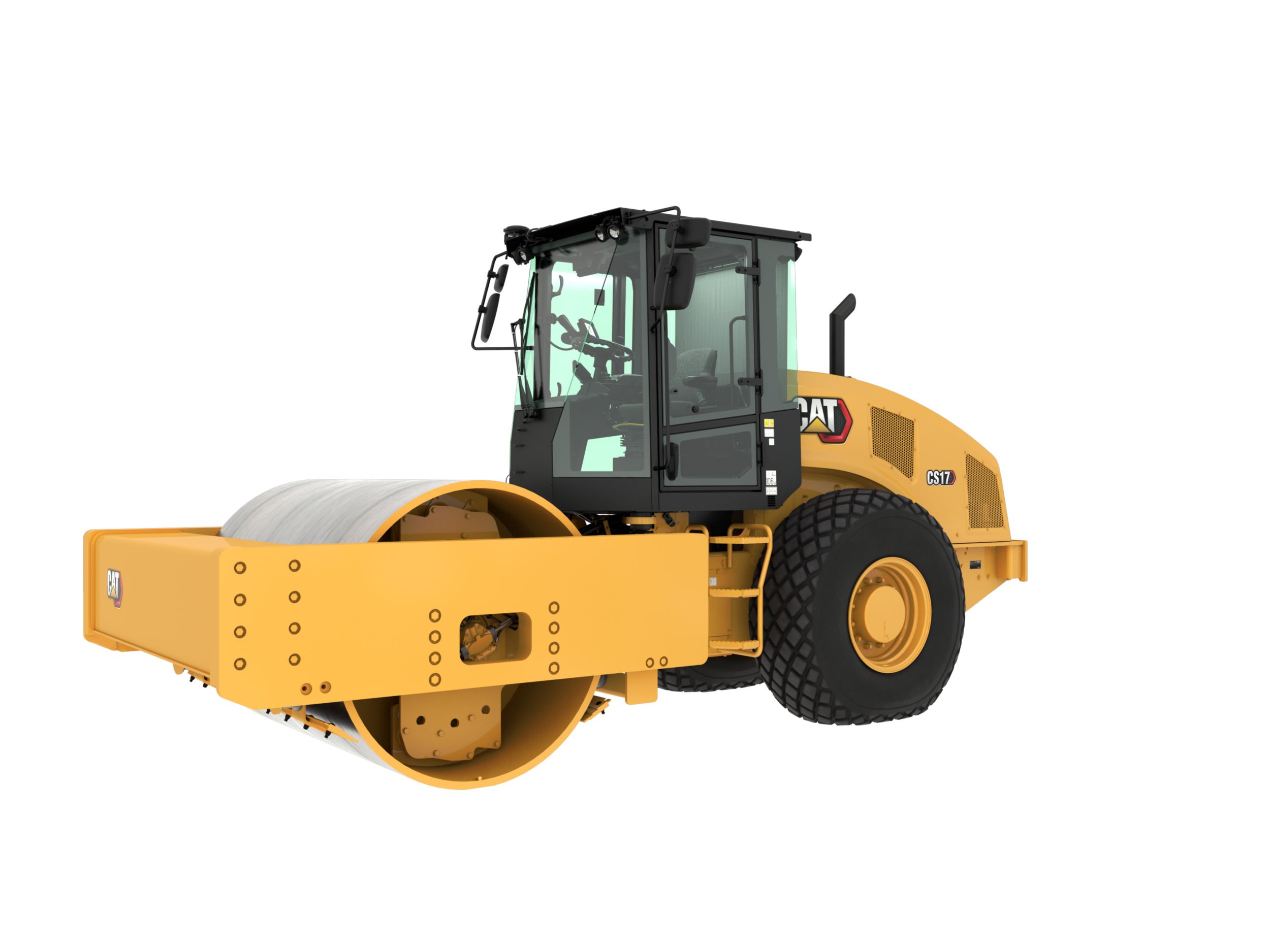

CS17 Vibratory Soil Compactor

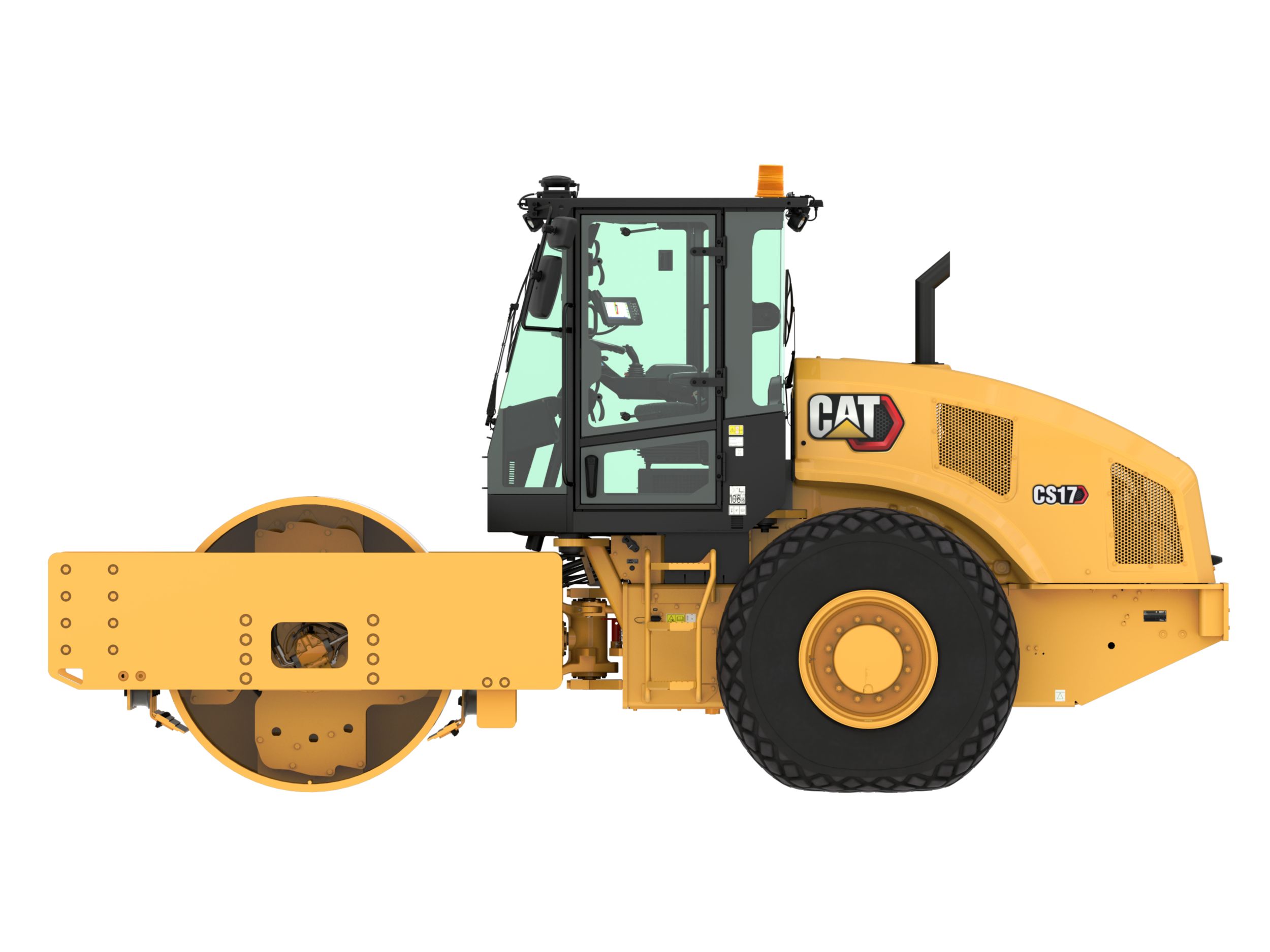

CS17 Vibratory Soil Compactor

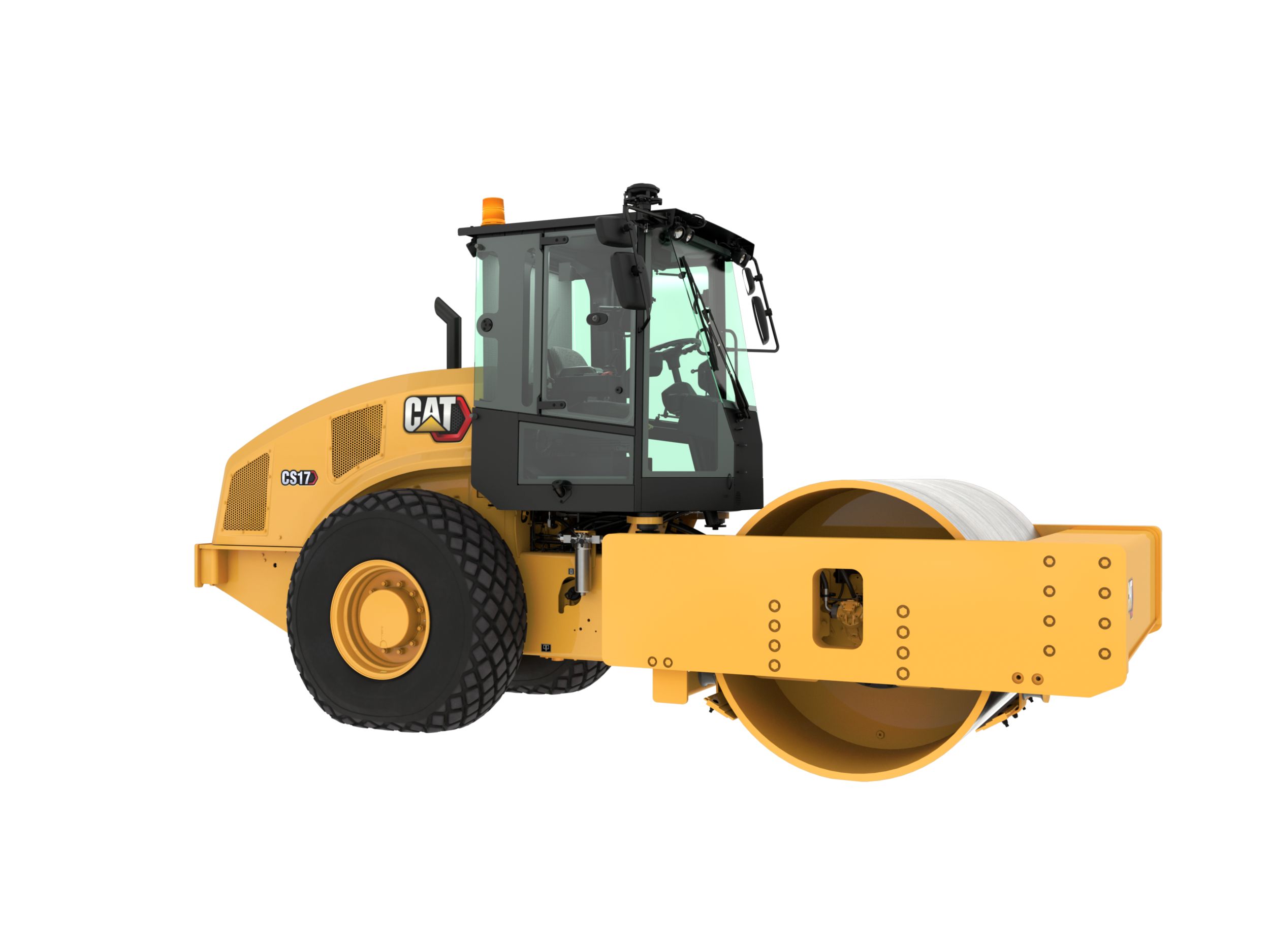

CS17 Vibratory Soil Compactor
CS17 Vibratory Soil Compactor
CS17 Vibratory Soil Compactor
CS17 Vibratory Soil Compactor
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value derived from the recorded data that indicates composite stiffness.
Cat Compact with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.
Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value derived from the recorded data that indicates composite stiffness.
Cat Compact with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.
