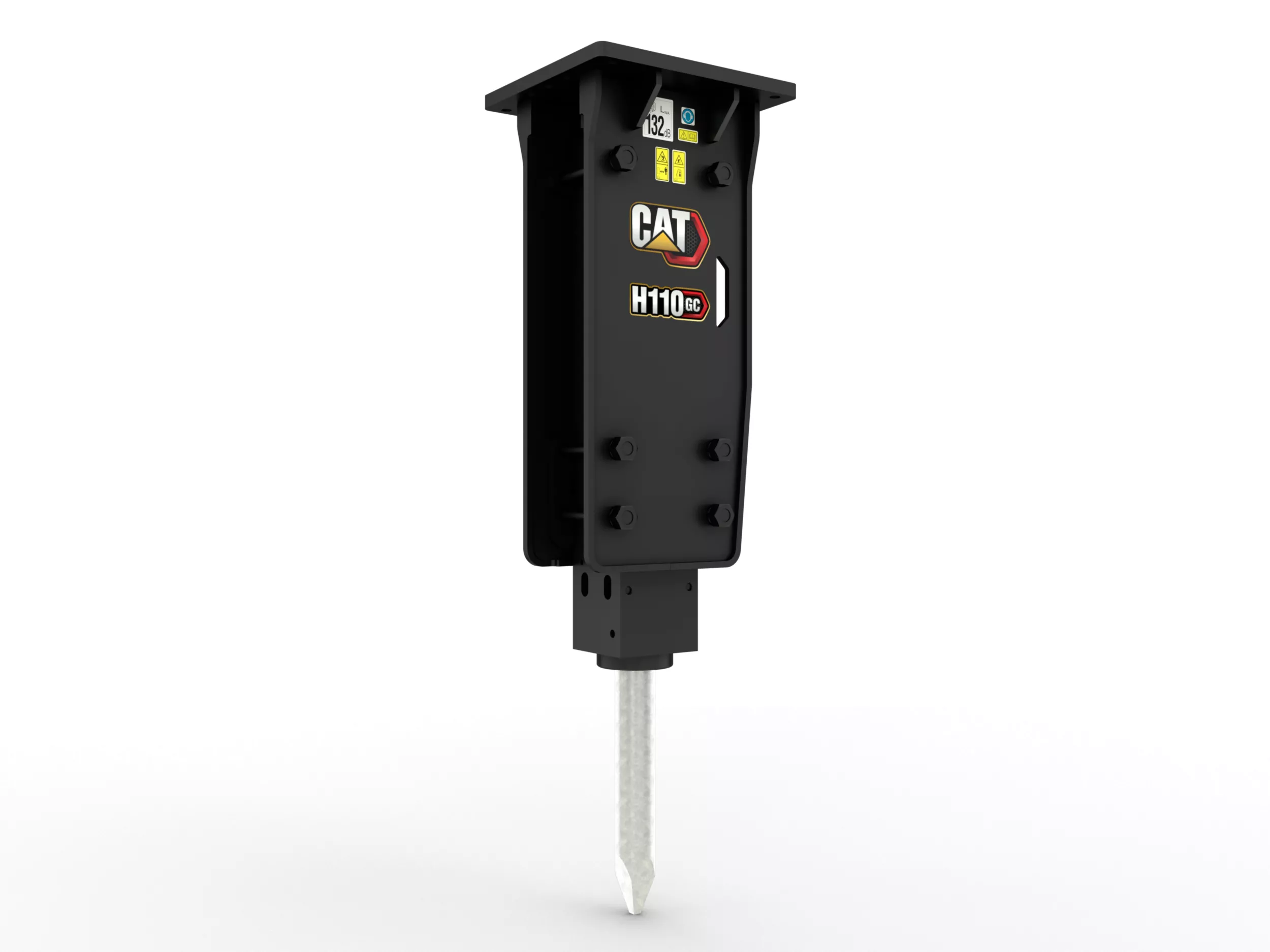

GC Hammers H110 GC

Request A Price Find Dealer

Key Specs

Blows per Minute: 350 to 700; 350 to 700

Minimum Operating Weight: 2022 lb; 917 kg

Minimum Rated Flow: 21 gpm; 80 L/min

H110 GC
Change model

Overview

Cat® GC Hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat GC Hammers help increase overall productivity and reduce maintenance costs. Cat GC Hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Features At A Glance

The large hammer tool diameter has high impact power to help break tough rock and concrete applications on the job site.
Cat GC Hammers are designed with high impact power and fast impact frequency to help break through material quickly to increase efficiency and production.
Cat GC Hammers are fully tested and validated with matched machines, resulting in better performance and compatibility.

The slip-fit and 90-degree rotatable lower bushing allows for easy replacement in the field, helping reduce service time and extend service life.
Quick and easy access to maintenance areas helps make hammer maintenance simple.
Daily tool inspection and grease points are accessible from the ground with the hammer still mounted on the machine.
Reinforced connecting hardware and easy bolt tightening processes help provide strong, durable joints and extend hammer life.

Power cells are made with high-quality alloy steel and two-stage heat treatment to help increase durability and lower service costs.
Hydraulic components are shielded from damage inside the housing, helping decrease downtime on the job site.
The Cat hammer lines kit with independent return oil routing helps prevent contamination of the main hydraulic system.

Product Specifications for H110 GC

Blows per Minute	350 to 700 350 to 700
Minimum Operating Weight	2022 lb 917 kg
Minimum Rated Flow	21 gpm 80 L/min
Maximum Rated Flow	26 gpm 100 L/min
Minimum Operating Pressure	2132 psi 14700 kPa
Maximum Operating Pressure	2408 psi 16600 kPa
Tool Shaft Diameter	3.9 in 100 mm
Minimum Carrier Weight	22046 lb 10 t
Maximum Carrier Weight	39680 lb 18 t

Product Specifications for H110 GC

Download Print

Blows per Minute	350 to 700 350 to 700
Minimum Operating Weight	2022 lb 917 kg
Minimum Rated Flow	21 gpm 80 L/min
Maximum Rated Flow	26 gpm 100 L/min
Minimum Operating Pressure	2132 psi 14700 kPa
Maximum Operating Pressure	2408 psi 16600 kPa
Tool Shaft Diameter	3.9 in 100 mm
Minimum Carrier Weight	22046 lb 10 t
Maximum Carrier Weight	39680 lb 18 t
