Key Specs
The Cat® 140 GC motor grader delivers reliable performance and fuel efficiency for roadwork, site prep, and grading. Easy service access and operator comfort features boost productivity and reduce operating costs.
Extended maintenance cycles and demand fan keep your overall costs down.
Boost productivity and efficiency with cab comfort options.
Get precise, consistent blade movement with the Cat C7.1 engine, hydraulic system, and controls.
Displaying 1-6 of 6
| Net Power - ISO 9249/SAE J1349 | 196 hp 147 kW |
| Displacement | 427.8 in³ 7 l |
| Derating Altitude | 14764 ft 4500 m |
| Note (2) | Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. |
| Stroke | 5.3 in 135 mm |
| Maximum Torque - ISO 9249 | 656 lb/ft 889 N·m |
| Note (4) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes. |
| Standard Capability | 109 °F 43 °C |
| Bore | 4.1 in 105 mm |
| Engine Model | Cat 7.1 Cat 7.1 |
| Torque Rise - ISO 9294 | 40% 40% |
| Engine RPM | 2,200 2,200 |
| Note (1) | Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. |
| Note (3) | Power as declared per ISO 14396 Power as declared per ISO 14396 |
| Emissions | U.S. EPA Tier 3/EU Stage IIIA U.S. EPA Tier 3/EU Stage IIIA |
| Number of Cylinders | 6 6 |
| Operating Weight - Typically Equipped | 38151 lb 17305 kg |
| Blade Width | 12 ft 3.7 m |
| Throat Clearance | 4.4 in 112 mm |
| Arc Radius | 16.3 in 413 mm |
| Blade Height | 20 in 509 mm |
| End Bit | 6 in 152 mm |
| Cutting Edge Width | 6 in 152 mm |
| Note | Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, ROPS closed cab, rear ripper/scarifier, 4.3 m (14 ft) blade, 17.5-25 MP tires on multi-piece rims and other equipment. Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, ROPS closed cab, rear ripper/scarifier, 4.3 m (14 ft) blade, 17.5-25 MP tires on multi-piece rims and other equipment. |
| Weight* | 38,448 lb 17440 kg |
| Maximum Depth of Cut | 29 in 735 mm |
| Moldboard Side Shift Right | 20.2 in 512 mm |
| Maximum Lift Above Ground | 18.9 in 480 mm |
| Moldboard Side Shift Left | 26.1 in 663 mm |
| Circle Center Shift Left | 29.6 in 752 mm |
| Blade Tip Range Forward | 40 40 |
| Blade Tip Range Backward | 5 5 |
| Circle Center Shift Right | 28.7 in 728 mm |
| Maximum Shoulder Reach Left | 69.4 in 1764 mm |
| Maximum Shoulder Reach Right | 76 in 1928 mm |
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes. |
| Width | 95.6 in 2428 mm |
| Length of Machine* | 406.7 in 10322 mm |
| Maximum Height | 151.1 in 3839 mm |
| Note | *Typically equipped with push block and ripper. *Typically equipped with push block and ripper. |
| Circle Drive with Slip Clutch | 2 gal (US) 7.5 l |
| Hydraulic System | 11.9 gal (US) 45 l |
| Transmission | 4.8 gal (US) 18 l |
| Cooling System | 40 l 10.6 gal (US) |
| Circle Drive without Slip Clutch | 0.4 gal (US) 1.5 l |
| Fuel Tank | 78.5 gal (US) 297 l |
| Engine Crankcase | 5.6 gal (US) 21 l |
140 GC
140 GC
140 GC
140 GC
140 GC
The Cat® 140 GC Motor Grader – Performance at Low Cost
Cat® 140 GC Motor Grader Customer Testimonial South Africa
Cat® 140 GC Customer Testimonial South Africa

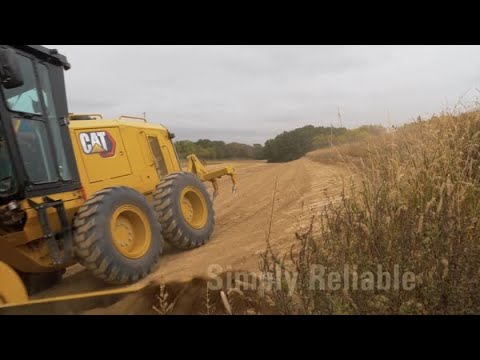

Meet the Reliable 140 GC
