Motor Graders 150 / 150 AWD

Request A Price Find Dealer

Key Specs

Net Power Range (Tier 3): 183 hp; 136 kW

Operating Weight - Typically Equipped: 41868 lb; 18991 kg

Blade Width: 12 ft; 3.7 m

150 / 150 AWD
Change model

Overview

Get More Done Comfortably and Efficiently

With a legendary Cat® motor grader pedigree, the 150/150 AWD models offer peak performance, efficiency, long life and operator comfort. Available with a deep array of technologies to lessen the load on operators and enhance grading performance, the 150 is one high productivity machine.

Benefits

Optimal power train control

The differential lock automatically locks and unlocks for easier operation and helps to protect the power train.

Up To 78% Less Arm Movement

Reduce fatigue from arm movement with joystick controls.

Maximize Machine Performance

Get the work done with a variety of work tools designed to help keep the machine more productive.

Features At A Glance

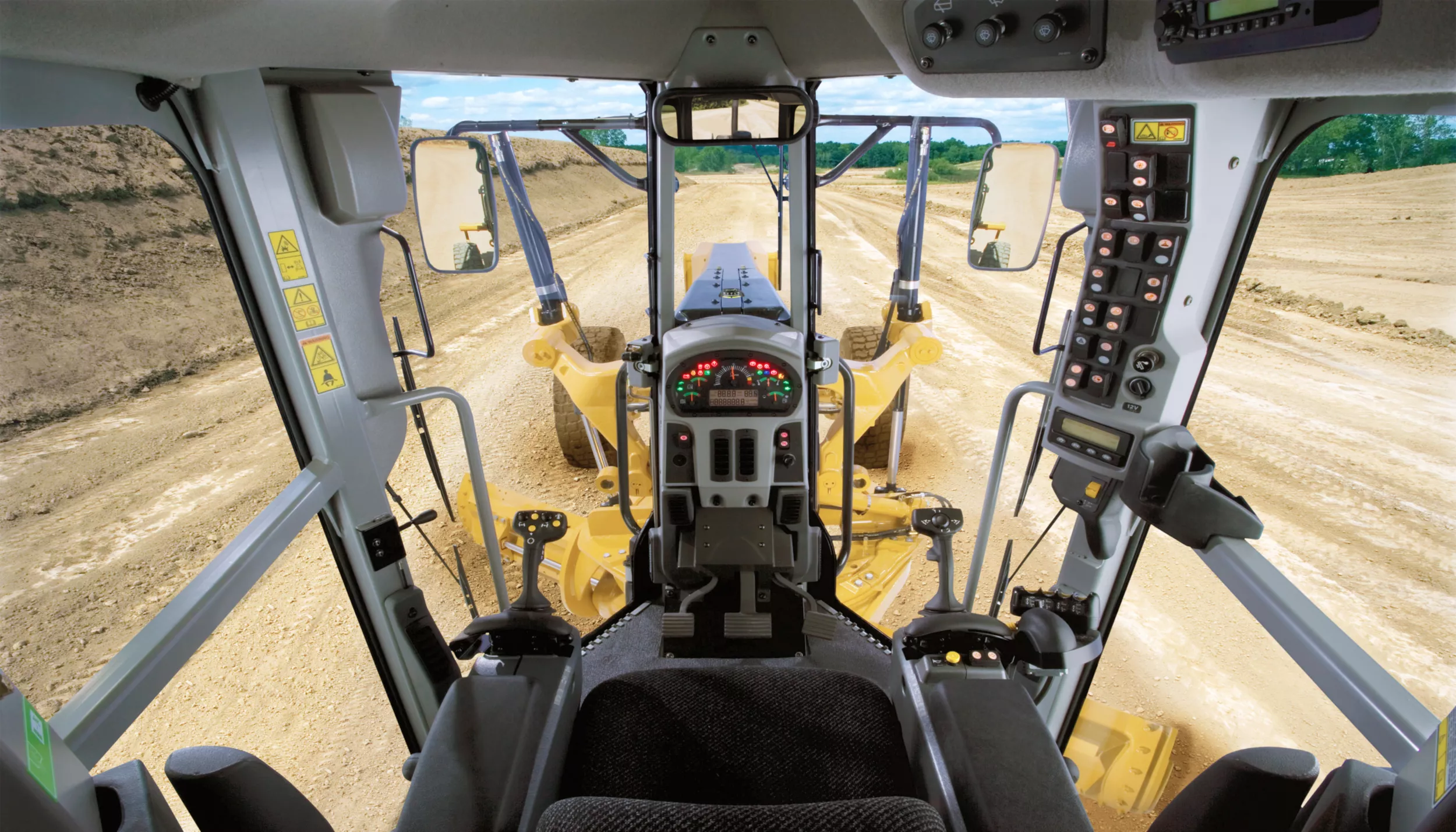

Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Optional rear vision camera further enhances lines of sight all around the machine.
Experience the most spacious, comfortable cab in the industry.
Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced by 78%, helping reduce operator fatigue for better productivity.
Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float.
Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock.
Joystick lean angle mirrors the steer tires' turning angle.
A brake tensioning system holds the joystick in position until the operator moves it.
Steering control automatically reduces sensitivity at higher ground speeds for predictable control.
Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
Control switches are in easy reach.
Standard Cat Comfort Series suspension seat is fully adjustable.
Control pods are electronically positioned allowing each operator to set the ideal operating position.
Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.
High capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
An optional deluxe radio with CD features MP3 and Bluetooth® technology.
Easy-to-read, high-visibility gauges and warning lamps keep you aware of critical system information.
Cat Messenger offers real-time machine performance and diagnostic data to help get the most from your machine.
Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.
Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.

Cat C7 engine delivers the performance needed to maintain consistent grading speeds for maximum productivity. For All-Wheel-Drive, the Cat C9 engine is available fo extra power.
Superior torque and lugging capability provide the power to pull through sudden, short-term increases in loads.
Engine technology lowers combustion chamber temperatures and optimizes fuel combustion to generate more work output for each unit of fuel.
Hydraulic demand fan automatically adjusts speed according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
Engine Idle Shutdown Timer is software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
The Motor Graders to give you efficiency and longevity in your most demanding applications.
Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train.
Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match your application.
Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
Wide operating gear range for maximum productivity.
Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
Sealed spindle keeps front axle bearings lubricated and protected from contaminants. The Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending bearing life.
Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to give you dependable stopping power and longer life.
Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.

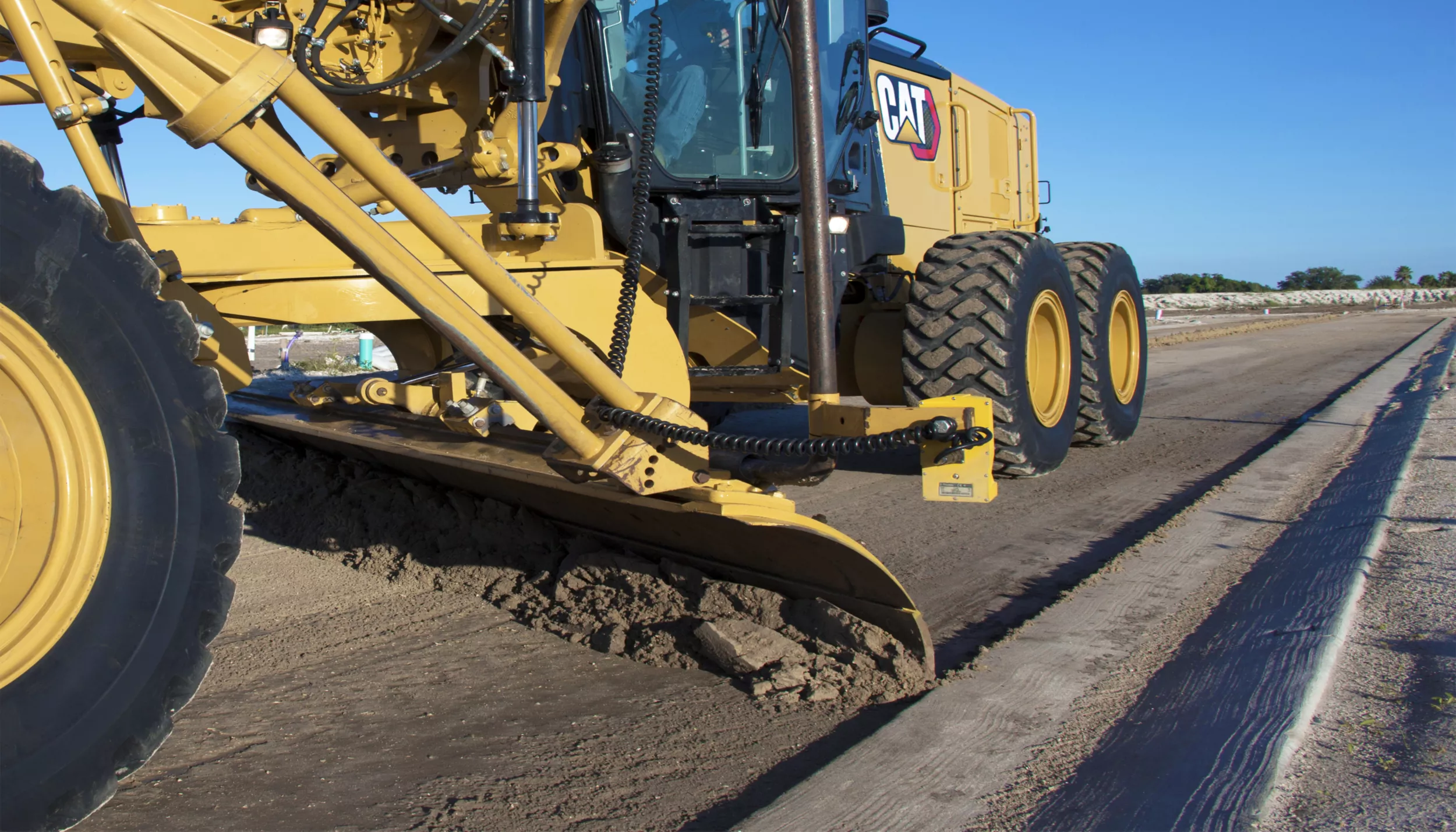

Caterpillar designs motor grader frame and drawbar components to give you performance and durability.

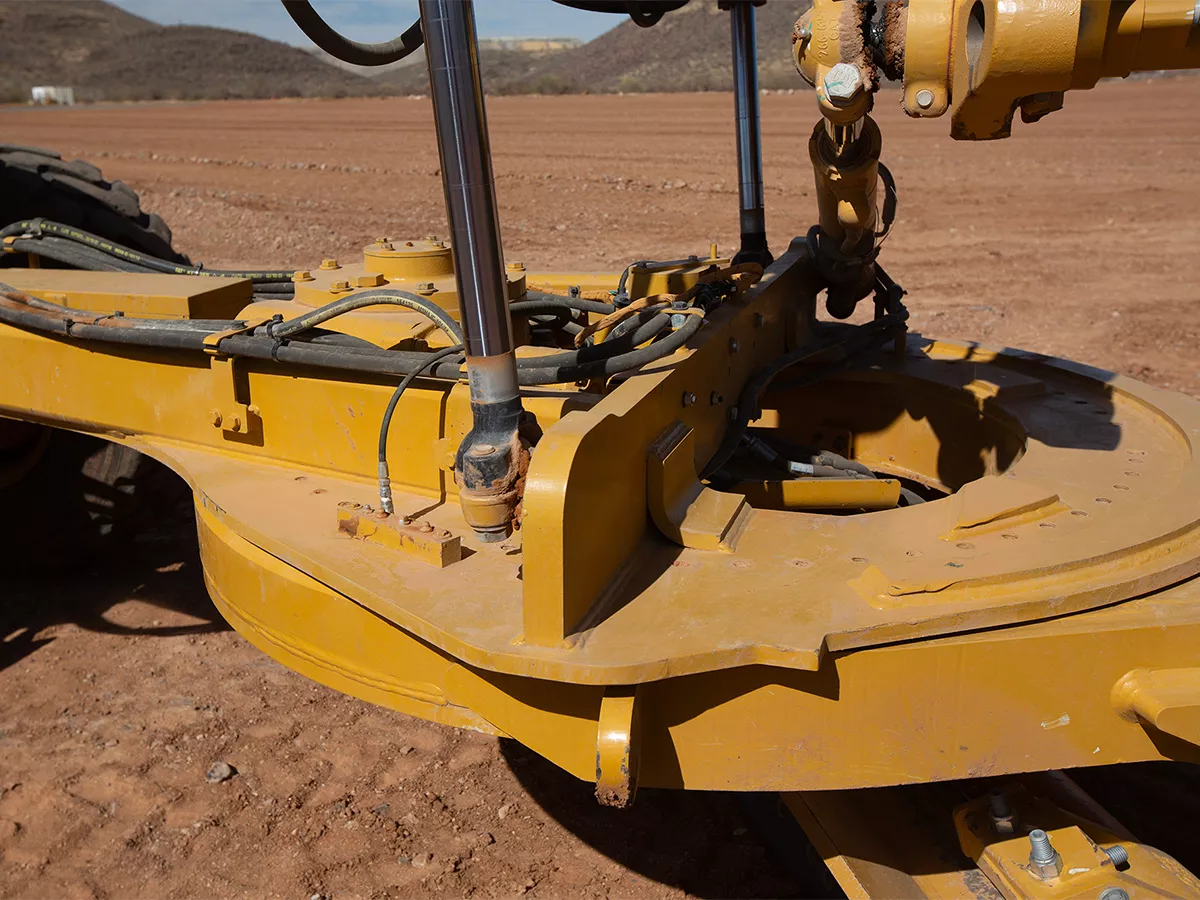

The one-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
Articulation hitch features a large tapered roller bearing to carry loads evenly and smoothly. It is sealed to prevent contamination and a locking pin prevents articulation during service or transport.

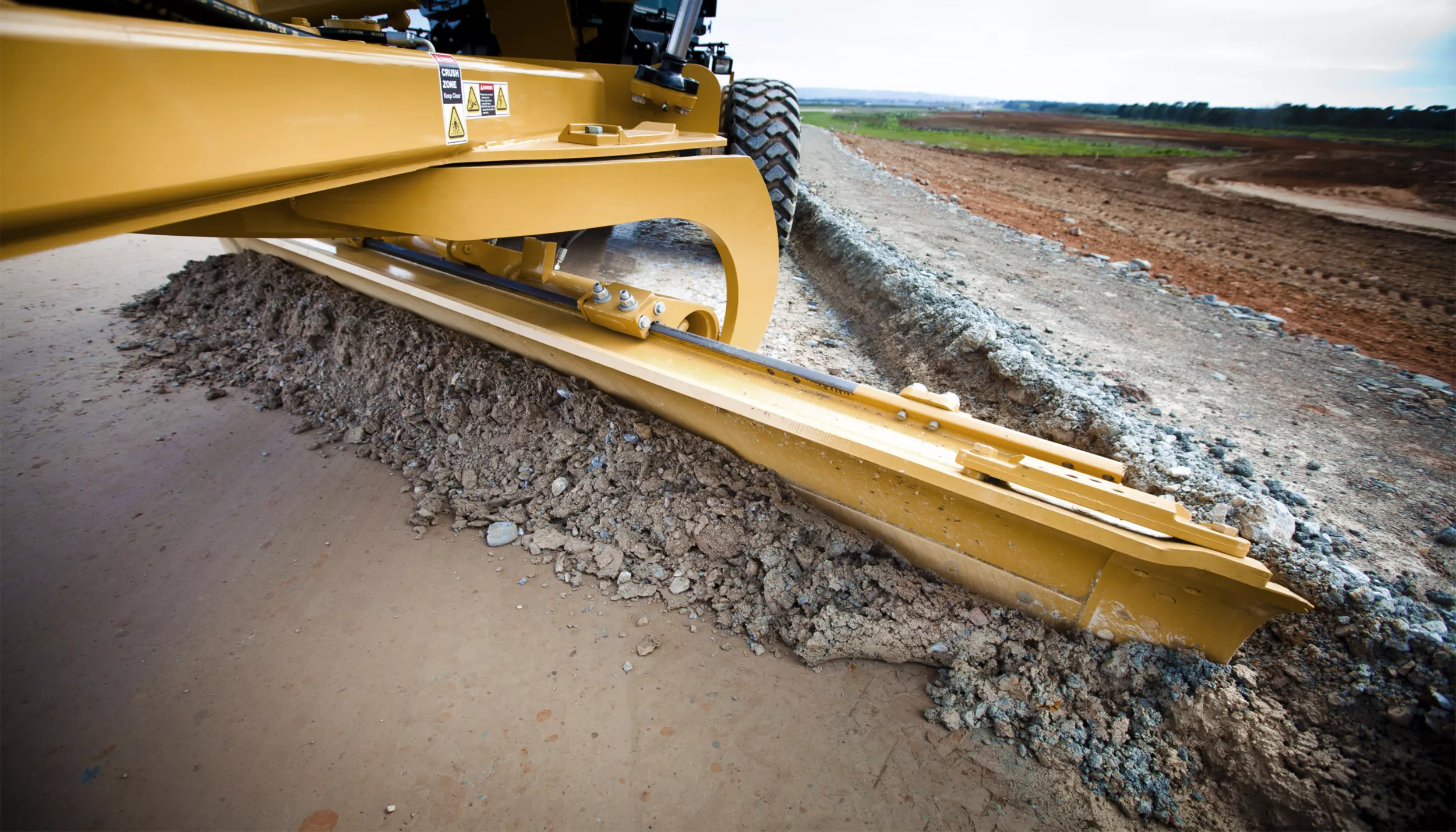

The drawbar, circle and moldboard make it easy for you to keep the components tight.
Shims and patented top-adjust wear strips are easy to add or replace, reducing downtime.
Durable nylon composite wear inserts maximize circle torque and component life.
Sacrificial brass wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
An aggressive blade angle, optimized moldboard curvature and large throat clearance help you work more efficiently by allowing material to roll more freely along the blade.
Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts to give you greater moldboard reliability and long service life.
Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.

Proven load-sensing system and advanced electro-hydraulics give you superior implement control and responsive hydraulic performance. Continuously matching hydraulic flow/pressure to power demands generates less heat and reduces fuel consumption.
Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder. Count on consistent, predictable implement response.
Balanced hydraulic flow is proportioned ensuring implements operate simultaneously without slowing the engine or implement reaction time.
Blade Float allows the blade to move freely under its own weight.
Float both cylinders allowing the blade to follow the ground contours
Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, which reduces heat build-up and extends component life.
Cat XT™ hose allows high pressures for maximum power and reduced downtime.

Cat Technology makes smart use of technology and services to improve job site efficiency. Using the data from technology equipped machines, get more information and insight into equipment and operations
Cat technologies offer improvements in these key areas:
Equipment Management - increase uptime and reduce operating costs.
Productivity - monitor production and manage job site efficiency.
Safety - enhance job site awareness to keep your people and equipment safe.
Featured Cat technologies include -

Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
Cat Product Link Elite is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.

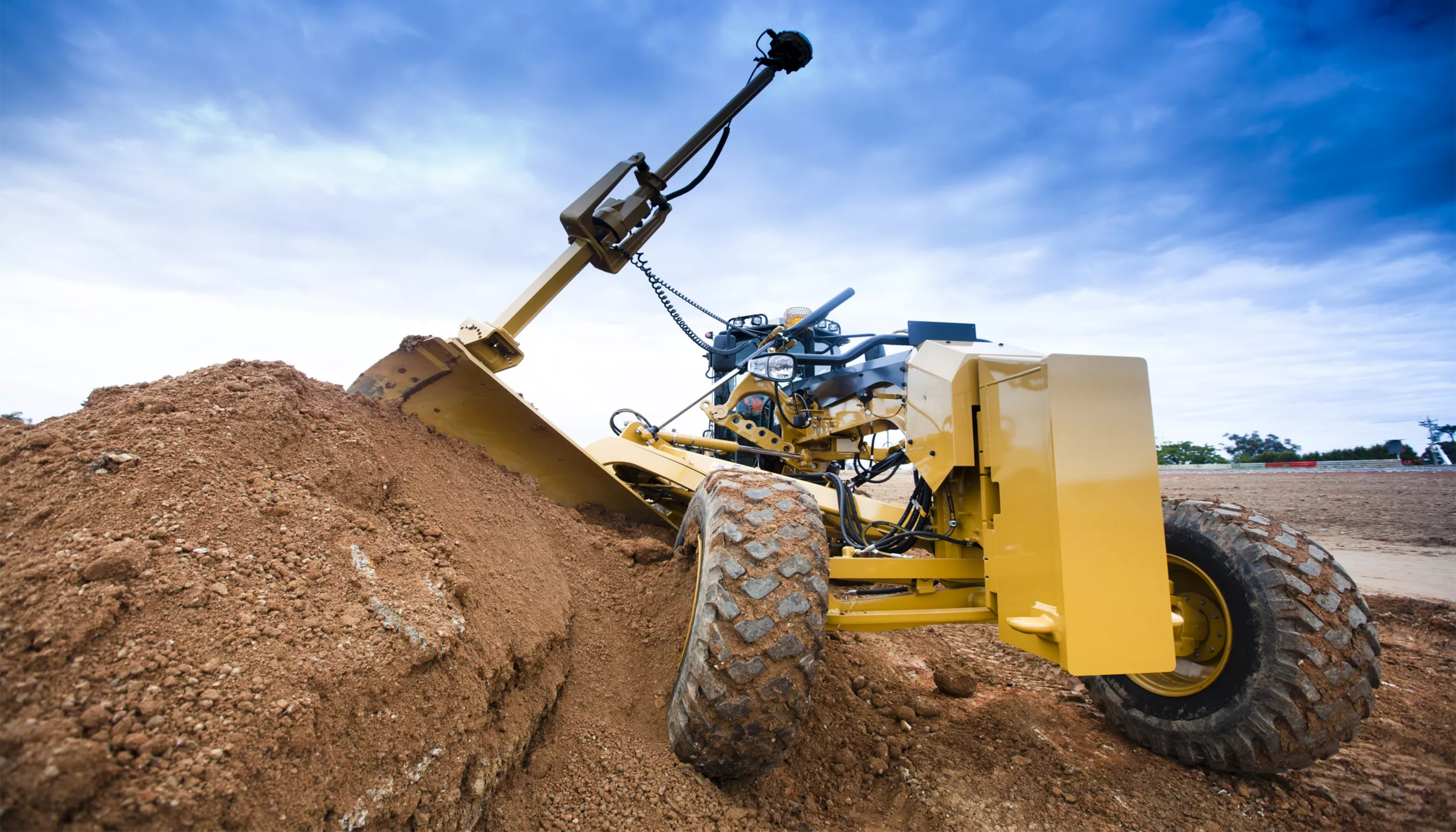

Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
Cat GRADE with Cross Slope is an optional, factory installed system that helps improve grading efficiency and more easily maintain accurate cross slopes. The system automatically controls one side of the blade, reducing manual operator inputs by as much as 50 percent. Experienced operators can maintain peak efficiency levels throughout more of the work day, while less experienced operators can be more productive faster. The system is job-ready from day one, and scalable for the future with AccuGrade™ upgrade kits that provide additional 2D and/or 3D control.

Optional Stable Blade system detects bounce through an accelerometer and reduces engine rpm at 15 percent intervals to stabilize machine bounce. Once the motor grader has stabilized, Stable Blade will increase engine speed back to the initial set level. The throttle will not be reduced below 1,200 rpm.
Optional Auto Articulation is active in gears 1-4F and 1-3R and allows the motor grader to automatically articulate to match the steering angle of the front tires. The system is tuned to allow full articulation at full steering angle and is modulated for maximum performance.
Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.

Operator Presence Monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
Speed Sensitive Steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
Secondary Steering System's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions.
Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
Safety Features -

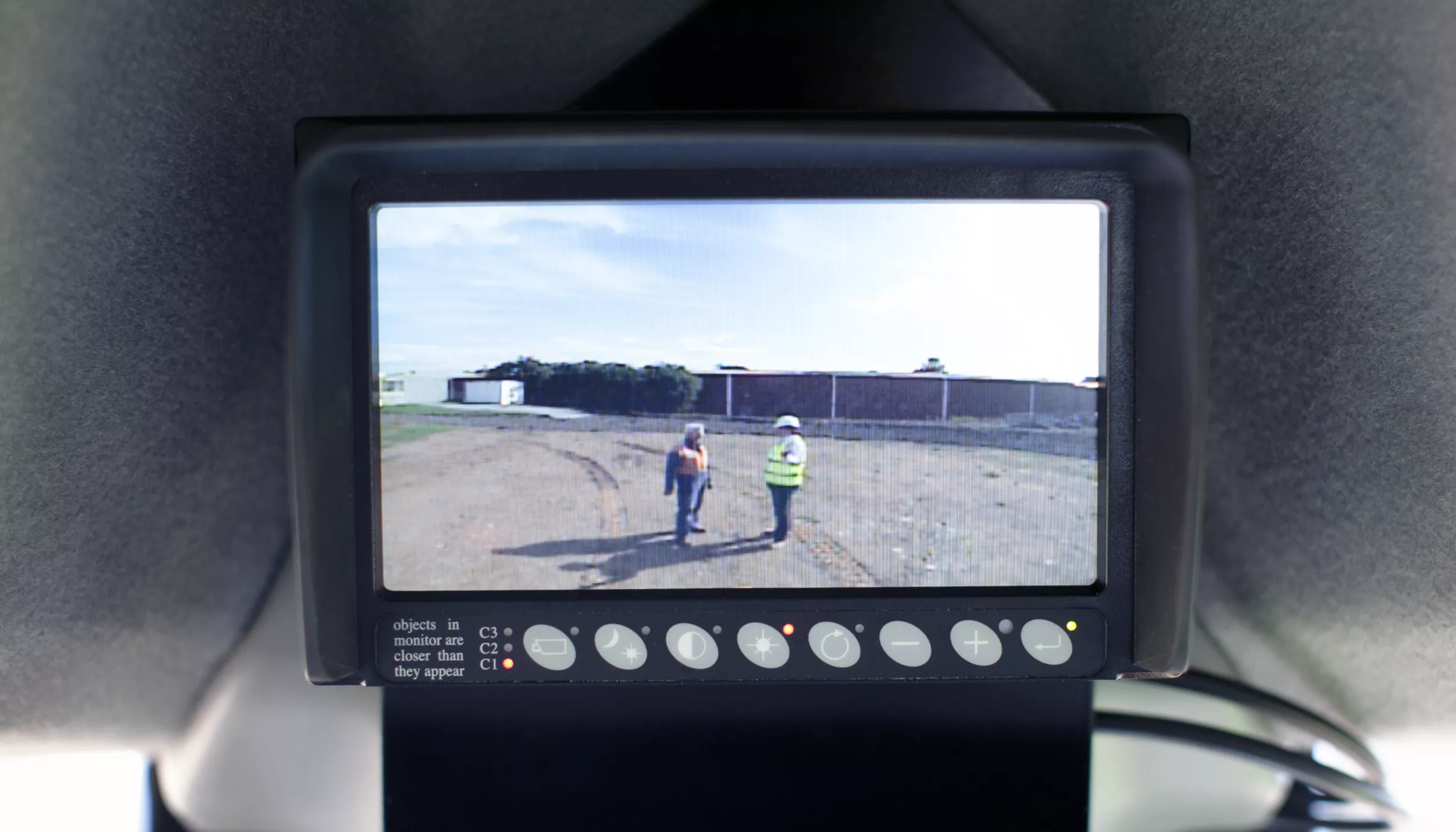

Optional rearview camera with in-cab monitor
Grouped, ground level service points
Laminated front window glass
Optional LED Lighting
Ground-level electrical disconnect switch
Ground-level engine shutoff switch
Anti-glare paint eases night operation
Optional front and rear fenders

Cat motor graders are designed to help you increase uptime and reduce costs.

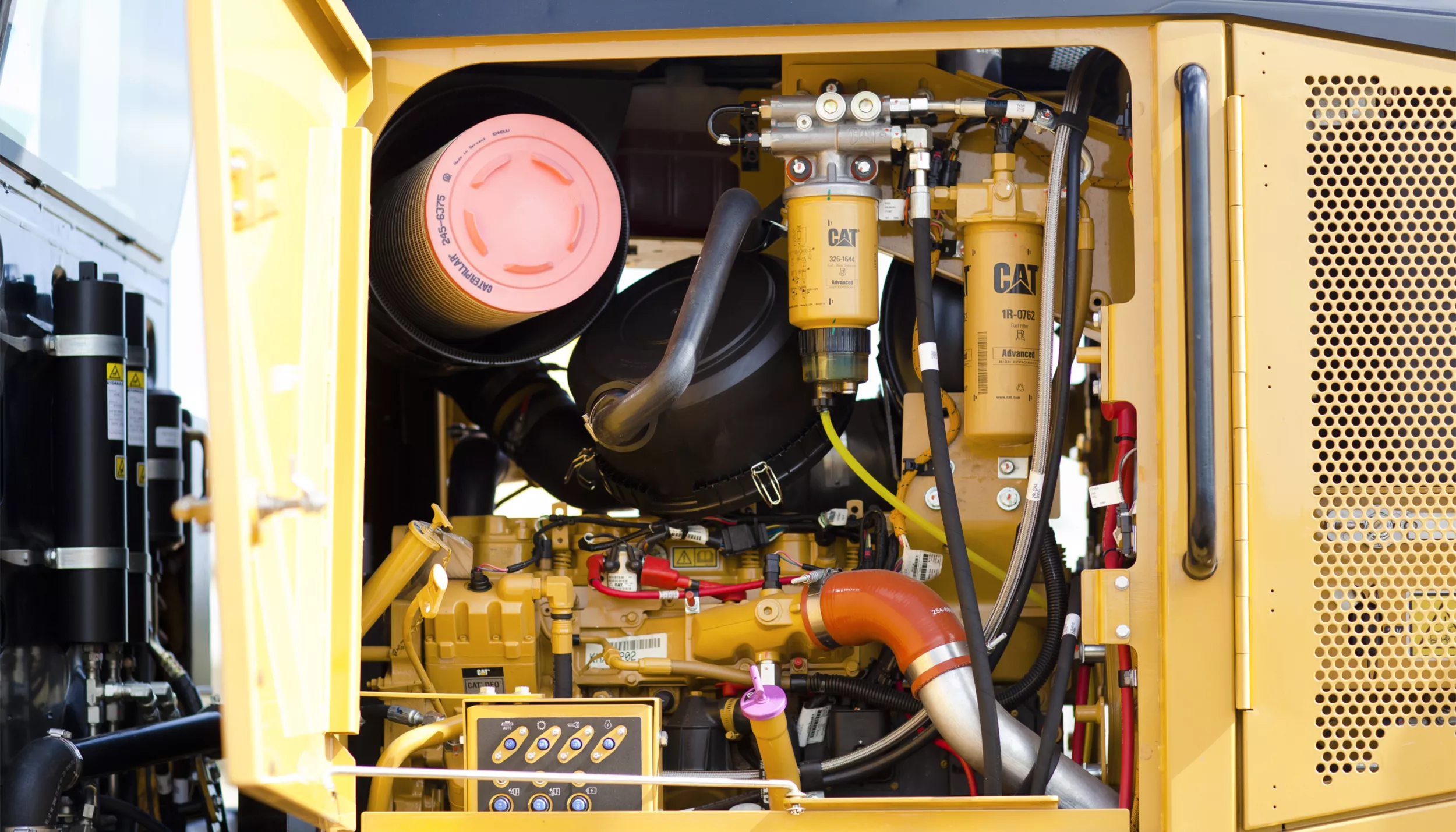

Grouped service points and extended service intervals save maintenance time.
Automatic Lubrication System maintains proper grease on working surfaces, increasing component life and purging contaminants from pins and bushings to help prevent damage.
Fast-Fill allows customers to refuel in less than four minutes enhancing availability.
Cat dealers are second to none. From machine selection and purchase to maintenance support, operator training and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running at peak performance.

Specifications Standard Equipment Optional Equipment

Product Specifications for 150 / 150 AWD

Engine

Net Power Range (Tier 3)	183 hp 136 kW
Engine Model	Cat® C7 / AWD C9 Cat® C7 / AWD C9
Emissions	Emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA. Emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Base Power (1st Gear) - Net - Metric	186 hp 136 kW
VHP Plus Range - Net	136-174 kW (183-233 hp) 136-174 kW (183-233 hp)
VHP Plus Range - Net - Metric	136-174 kW (186-237 hp) 136-174 kW (186-237 hp)
Displacement	439 in³ 7.2 l
Bore	4.3 in 110 mm
Stroke	5 in 127 mm
Torque Rise - VHP Plus	39% 39%
Maximum Torque - VHP Plus	855 lb/ft 1159 N·m
Speed at Rated Power	2,000 rpm 2,000 rpm
Number of Cylinders	6 6
Derating Altitude	10000 ft 3048 m
Standard - Fan Speed - Maximum	1,450 rpm 1,450 rpm
Standard - Fan Speed - Minimum	600 rpm 600 rpm
Standard - Ambient Capability	109 °F 43 °C
High Ambient - Fan Speed - Maximum	1,650 rpm 1,650 rpm
High Ambient - Fan Speed - Minimum	600 rpm 600 rpm
High - Ambient Capability	122 °F 50 °C
Note (1)	Maximum torque (VHP Plus) measured at 1,000 rpm. Maximum torque (VHP Plus) measured at 1,000 rpm.
Note (2)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Note (3)	Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan running at minimum speed, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan running at minimum speed, air cleaner, muffler and alternator.
Note (4)	Power as declared per ISO 14396; Rated Speed = 2,000 rpm; VHP Plus = 175 kW (234 hp) Power as declared per ISO 14396; Rated Speed = 2,000 rpm; VHP Plus = 175 kW (234 hp)
Note (5)	No engine derating required up to 3048 m (10,000 ft). No engine derating required up to 3048 m (10,000 ft).

Weights

Operating Weight - Typically Equipped	41868 lb 18991 kg
Gross Vehicle Weight - Base - Total	36554 lb 16581 kg
Gross Vehicle Weight - Base - Front Axle	9561 lb 4337 kg
Gross Vehicle Weight - Base - Rear Axle	26993 lb 12244 kg
Gross Vehicle Weight - Maximum - Total	51893 lb 23538 kg
Gross Vehicle Weight - Maximum - Front Axle	16606 lb 7532 kg
Gross Vehicle Weight - Maximum - Rear Axle	35287 lb 16006 kg
Gross Vehicle Weight - Typically Equipped	41868 lb 18991 kg
Gross Vehicle Weight - Typically Equipped - Total	41868 lb 18991 kg
Gross Vehicle Weight - Typically Equipped - Front Axle	11716 lb 5314 kg
Gross Vehicle Weight - Typically Equipped - Rear Axle	30152 lb 13677 kg
Note	Base operating weight calculated on standard machine configuration with 14.00R24 tire with multi-piece rim, full fuel tank, coolant, lubricants and operator. Base operating weight calculated on standard machine configuration with 14.00R24 tire with multi-piece rim, full fuel tank, coolant, lubricants and operator.

Power Train

Forward/Reverse Gears	8 Forward/6 Reverse 8 Forward/6 Reverse
Transmission	Direct drive, power shift, countershaft Direct drive, power shift, countershaft
Brakes - Service	Multiple oil disc Multiple oil disc
Brakes - Service - Surface Area	3565 in² 23000 cm²
Brakes - Parking	Multiple oil disc Multiple oil disc
Brakes - Secondary	Dual circuit control system Dual circuit control system

Moldboard

Blade Width	12 ft 3.7 m
Moldboard - Width	12 ft 3.7 m
Moldboard - Height	24 in 610 mm
Moldboard - Thickness	0.87 in 22 mm
Arc Radius	16.3 in 413 mm
Throat Clearance	6.5 in 166 mm
Cutting Edge Width	6 in 152 mm
Cutting Edge Thickness	0.6 in 16 mm
End Bit - Width	6 in 152 mm
End Bit - Thickness	0.6 in 16 mm
Blade Pull - Base GVW	24294 lb 11020 kg
Blade Pull - Maximum GVW	31758 lb 14405 kg
Down Pressure - Base GVW	16410 lb 7444 kg
Down Pressure - Maximum GVW	28503 lb 12929 kg
Note	Blade pull calculated at 0.9 traction coefficient, which is equal to no-slip conditions, and Gross Vehicle Weight (GVW). Blade pull calculated at 0.9 traction coefficient, which is equal to no-slip conditions, and Gross Vehicle Weight (GVW).

Hydraulic System

Circuit Type	Electro-hydraulic load sensing, closed center Electro-hydraulic load sensing, closed center
Pump Type	Variable piston Variable piston
Pump Output	55.7 gal/min 210 l/min
Maximum System Pressure	3500 psi 24150 kPa
Standby Pressure	450 psi 3100 kPa
Note	Pump output measured at 2,150 rpm. Pump output measured at 2,150 rpm.

Operating Specifications

Top Speed - Forward	29 mile/h 46.6 km/h
Top Speed - Reverse	22.9 mile/h 36.8 km/h
Turning Radius - Outside Front Tires	24.93 ft 7.6 m
Steering Range - Left/Right	47.5 degrees 47.5 degrees
Articulation Angle - Left/Right	20 degrees 20 degrees
Forward - 1st	2.5 mile/h 4 km/h
Forward - 2nd	3.4 mile/h 5.5 km/h
Forward - 3rd	5 mile/h 8 km/h
Forward - 4th	6.8 mile/h 11 km/h
Forward - 5th	10.6 mile/h 17.1 km/h
Forward - 6th	14.5 mile/h 23.3 km/h
Forward - 7th	19.9 mile/h 32 km/h
Forward - 8th	29 mile/h 46.6 km/h
Reverse - 1st	2 mile/h 3.2 km/h
Reverse - 2nd	3.7 mile/h 6 km/h
Reverse - 3rd	5.4 mile/h 8.7 km/h
Reverse - 4th	8.4 mile/h 13.5 km/h
Reverse - 5th	15.7 mile/h 25.3 km/h
Reverse - 6th	22.9 mile/h 36.8 km/h

Service Refill

Fuel Capacity	110 gal (US) 416 l
Cooling System	10.6 gal (US) 40 l
Hydraulic System - Tank	16.9 gal (US) 64 l
Engine Oil	6.6 gal (US) 25 l
Transmission - Differential - Final Drives	16.9 gal (US) 64 l
Tandem Housing - Each	16.9 gal (US) 64 l
Front Wheel Spindle Bearing Housing	0.13 gal (US) 0.5 l
Circle Drive Housing	1.8 gal (US) 7 l

Frame

Circle - Diameter	60.2 in 1530 mm
Circle - Blade Beam Thickness	1.6 in 40 mm
Drawbar - Height	6 in 152 mm
Drawbar - Width	3 in 76.2 mm
Front Frame Structure - Height	12 in 305 mm
Front Frame Structure - Width	12 in 305 mm
Front Frame Structure - Thickness	0.6 in 16 mm
Front Axle - Height to Center	23 in 571 mm
Front Axle - Wheel Lean - Left/Right	18 degrees 18 degrees
Front Axle - Total Oscillation per Side	32 degrees 32 degrees

Tandems

Height	19.9 in 506 mm
Width	7.9 in 201 mm
Sidewall Thickness - Inner	0.6 in 16 mm
Sidewall Thickness - Outer	0.7 in 18 mm
Drive Chain Pitch	2 in 50.8 mm
Wheel Axle Spacing	60 in 1523 mm
Tandem Oscillation - Front Up	15 degrees 15 degrees
Tandem Oscillation - Front Down	25 degrees 25 degrees

Blade Range

Circle Centershift - Right	28.7 in 728 mm
Circle Centershift - Left	27.4 in 695 mm
Moldboard Sideshift - Right	26 in 660 mm
Moldboard Sideshift - Left	20.1 in 510 mm
Maximum Blade Position Angle	90 degrees 90 degrees
Blade Tip Range - Forward	40 degrees 40 degrees
Blade Tip Range - Backward	5 degrees 5 degrees
Maximum Shoulder Reach Outside of Tires - Right	77.9 in 1978 mm
Maximum Shoulder Reach Outside of Tires - Left	70.5 in 1790 mm
Maximum Lift Above Ground	18.9 in 480 mm
Maximum Depth of Cut	28.1 in 715 mm

Ripper

Ripping Depth - Maximum	16.8 in 428 mm
Ripper Shank Holders	5 5
Ripper Shank Holder Spacing	21 in 533 mm
Penetration Force	20540 lb 9317 kg
Pry-Out Force	26259 lb 11911 kg
Machine Length Increase, Beam Raised	36.2 in 919 mm

Scarifier

Front, V-Type, 5 or 11 Tooth - Working Width	47.4 in 1205 mm
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum	18.4 in 467 mm
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders	5, 11 5, 11
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing	4.6 in 116 mm
Mid, V-Type - Working Width	46.6 in 1184 mm
Mid, V-Type - Scarifying Depth, Maximum	11.5 in 292 mm
Mid, V-Type - Scarifier Shank Holders	11 11
Mid, V-Type - Scarifier Shank Holder Spacing	4.6 in 116 mm
Rear - Working Width	91 in 2300 mm
Rear - Scarifying Depth, Maximum	10.5 in 266 mm
Rear - Scarifier Shank Holders	9 9
Rear - Scarifier Shank Holder Spacing	10.5 in 267 mm

Dimensions

Height - Top of Cab	130 in 3308 mm
Height - Top of Cab Product Link	133 in 3378 mm
Height - Front Axle Center	23.5 in 596 mm
Length - Between Tandem Axles	60 in 1523 mm
Length - Front Axle to Moldboard	100 in 2552 mm
Length - Front Axle to Mid Tandem	241 in 6123 mm
Length - Front Tire to Rear of Machine	344 in 8754 mm
Length - Push Plate to Ripper	399 in 10136 mm
Length - Push Plate to Ripper Retracted	386 in 9818 mm
Ground Clearance - Rear Axle	13.3 in 339 mm
Height - Top of Cylinders	119 in 3040 mm
Height - Exhaust Stack	121 in 3076 mm
Width - Tire Center Lines	84 in 2140 mm
Width - Outside Rear Tires	98 in 2511 mm
Width - Outside Front Tires	98 in 2511 mm

Standards

ROPS/FOPS	ISO 3471:2008, ISO 3449:2005 Level II ISO 3471:2008, ISO 3449:2005 Level II
Steering	ISO 5010:2007 ISO 5010:2007
Brakes	ISO 3450:1996 ISO 3450:1996
Sound	ISO 6394:2008, ISO 6395:2008 ISO 6394:2008, ISO 6395:2008
Note (1)	The static sound operator pressure level measured according to ISO 6394:2008 for a cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed and hydraulic fan at maximum speed is 74 dB(A). The static sound operator pressure level measured according to ISO 6394:2008 for a cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed and hydraulic fan at maximum speed is 74 dB(A).

Net Power - VHP Plus

Gear - Forward 1st	183 hp 136 kW
Gear - Forward 2nd	188 hp 140 kW
Gear - Forward 3rd	203 hp 151 kW
Gear - Forward 4th	208 hp 155 kW
Gear - Forward 5th	213 hp 159 kW
Gear - Forward 6th	218 hp 163 kW
Gear - Forward 7th	233 hp 174 kW
Gear - Forward 8th	233 hp 174 kW
Gear - Reverse 1st	183 hp 136 kW
Gear - Reverse 2nd	188 hp 140 kW
Gear - Reverse 3rd-6th	203 hp 151 kW

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.

150 / 150 AWD Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger

Air-to-air after cooler (ATAAC)

Belt, serpentine, automatic tensioner

Brakes, oil disc, four-wheel, hydraulic

Demand fan, hydraulic

Differential Lock/Unlock, Automatic

Drain, engine oil, ecology

Electronic over speed protection

Engine Cat C7 diesel with automatic engine derate and idle control. Note: Emissions equivalent to Tier 3 and Stage IIIA.

Engine Idle Shutdown (EIS)

Fuel tank, 416 L (110 gal), ground level access and sediment drain

Fuel-water separator

Muffler, underhood

Parking brake - multi-disc, sealed, oil-cooled

Priming pump, fuel

Rear axle, modular

Sediment drain, fuel tank

Tandem drive

Transmission, 8F/6R, power shift, direct drive

Variable Horsepower Plus (VHP Plus)

ELECTRICAL

Alarm, back up

Alternator, 80 ampere, sealed

Batteries, maintenance free, heavy duty, 1,125 CCA

Breaker panel, ground accessible

Cab harness and electrical hydraulic valves

Electrical system, 24V

Grade Control Ready - Cab harness, software, electrical hydraulic valves, bosses and brackets

Lights, roof-mounted roading, reversing, LED stop and tail

Product Link Ready

Starter, electric

OPERATOR ENVIRONMENT

Accelerator

Air conditioning with heater

Arm and wrist rest, electronically adjustable

Articulation, automatic Return-to-Center

Cat Messenger operator information system

Centershift pin indicator

Coat hook

Cup holder

Display, digital speed and gear

Doors, left and right side with wiper

Gauge, machine level

Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp

Hour meter, digital

Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and steering

Joystick, adjustable armrests

Joystick gear selection

Joystick hydraulic power steering

Ladders, cab, left and right side

Lights, night time cab

Mirror, inside rearview, wide angle

Power port, 12V

Radio Ready, Entertainment

ROPS cab, sound suppressed

Seat, cloth-covered, comfort suspension

Seat belt, retractable 76 mm (3 in)

Storage area for cooler/lunchbox

Throttle control, electronic

Windows, laminated glass: - fixed front with intermittent wiper - side and rear (3)

FLUIDS

Antifreeze

Extended Life Coolant to -35° C (-30° F)

TIRES, RIMS AND WHEELS

Partial allowance for tires on 254 × 607 mm (10 × 24 in) multi-piece rims is included in the base machine price and weight

OTHER STANDARD EQUIPMENT

Anti-glare paint

Bumper, rear, integrated with hitch

CD ROM Parts Book

Clutch, circle drive slip

Cutting edges: - 152 × 16 mm (6 × 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts

Doors (3), engine compartment, locking

Drawbar - 6 shoes, replaceable wear strips

Electrical hydraulic valves, hydraulic lines for base 8 functions

Endbits: - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts

Fluid check, ground level

Frame, articulated, with safety lock

Ground level engine shutdown

Ground level fueling

Hammer (emergency exit)

Horn, electric

Hydraulic lines for base functions

Lockout, hydraulic implement (for roading and servicing)

Moldboard - 3658 × 610 × 22 mm (12 ft × 24 in × 7/8 in)

Mounting, cab roof accessories

Pump, hydraulic, high capacity, 98 cm³ (6 in³)

Radiator, cleanout access

Secondary steering

Serviceability, left-hand side

S·O·S℠ ports: engine, hydraulic, transmission, coolant, fuel

Tandem walkway/guards

Tool box

Tow hitch

150 / 150 AWD Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alternator, 150 ampere - 2 kg (5 lb)

Batteries: extreme duty, 1,400 CCA - 14 kg (30 lb)

Converter, communication (CB) - 5 kg (11 lb)

Lights: Headlights, high - 5 kg (11 lb)

Lights: Headlights, low - 5 kg (11 lb)

Lights: Working lights, basic - 9 kg (20 lb)

Lights: Working lights, plus - 10 kg (22 lb)

Lights: Warning: beacon or strobe - 2 kg (5 lb)

Lights: Mounting for warning light - 5 kg (11 lb)

GUARDS

Articulation guard - 13 kg (30 lb)

Axle hose guard - 7 kg (15 lb)

Fenders, front - 56 kg (123 lb)

Fenders, rear - 156 kg (344 lb)

Sound guard (bottom) - 110 kg (243 lb)

Transmission guard - 141 kg (311 lb)

OPERATOR ENVIRONMENT

Deluxe CD radio with MP3 and Bluetooth technology

Fan, defroster, rear window - 2 kg (4 lb)

Mirrors, outside: heated 24V - 15 kg (33 lb)

Mirrors, outside: mounted - 15 kg (33 lb)

Precleaner, HVAC - 5 kg (10 lb)

Radio ready, AM/FM - 9 kg (20 lb)

Seat, air suspension, cloth - 2 kg (5 lb)

Shade, sun - 2 kg (5 lb)

Wiper/washer, rear - 2 kg (4 lb)

POWER TRAIN

Precleaner, snow/debris - 2 kg (4.4 lb)

Transmission, autoshift - 2 kg (5 lb)

OTHER ATTACHMENTS

AccuGrade ARO - 39 kg (85 lb)

Accumulators, blade lift - 77 kg (170 lb)

Camera, rearview - 9 kg (20 lb)

Cat Grade Control Cross Slope - 75 kg (165 lb)

Cat Product Link 321 (Satellite) - 13 kg (29 lb)

Cat Product Link 522 (Cellular) - 13 kg (29 lb)

Compressor/tank, air - 27 kg (50 lb)

Heater, engine coolant: 120V - 1 kg (3 lb)

Heater, engine coolant: 240V - 1 kg (3 lb)

Hydraulic arrangements with one or more additional hydraulic valves are available for ripper, dozer, snow wings, front lift group, mid-mount scarifier

Security system - 5 kg (11 lb)

Snow wing mounting, frame ready - 111 kg (245 lb)

Sound suppression - 15 kg (33 lb)

Starting aid, ether - 0.5 kg (1 lb)

WORK TOOLS/GROUND ENGAGING TOOLS

Blade extension, left hand, 610 mm (2 ft) - 113 kg (249 lb)

Endbits, overlay - 24 kg (52 lb)

Front lift group, mounting - 5 kg (11 lb)

Front lift group - 680 kg (1,500 lb)

Mid-Mount Scarifier, Package - 942 kg (2,077 lb)

Mid-Mount Scarifier, Mounting - 57 kg (125 lb)

Moldboard: 4267 × 610 × 22 mm (14 ft × 24 in × 7/8 in)- 100 kg (220 lb)

Moldboard: 4267 × 686 × 25 mm (14 ft × 27 in × 1 in) - 257 kg (567 lb)

Push plate - 885 kg (1,950 lb)

Ripper, mounting - 32 kg (70 lb)

Ripper, rear - 962 kg (2,120 lb)

Ripper tooth - 28 kg (61 lb)

Scarifier, front - 434 kg (956 lb)

MACHINE ARRANGEMENTS

Snow Arrangement

OPTIONAL TIRE ARRANGEMENTS

Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.00-24

Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.00R24

Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5R25

Product Specifications for 150 / 150 AWD

Download Print

Engine

Net Power Range (Tier 3)	183 hp 136 kW
Engine Model	Cat® C7 / AWD C9 Cat® C7 / AWD C9
Emissions	Emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA. Emissions equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Base Power (1st Gear) - Net - Metric	186 hp 136 kW
VHP Plus Range - Net	136-174 kW (183-233 hp) 136-174 kW (183-233 hp)
VHP Plus Range - Net - Metric	136-174 kW (186-237 hp) 136-174 kW (186-237 hp)
Displacement	439 in³ 7.2 l
Bore	4.3 in 110 mm
Stroke	5 in 127 mm
Torque Rise - VHP Plus	39% 39%
Maximum Torque - VHP Plus	855 lb/ft 1159 N·m
Speed at Rated Power	2,000 rpm 2,000 rpm
Number of Cylinders	6 6
Derating Altitude	10000 ft 3048 m
Standard - Fan Speed - Maximum	1,450 rpm 1,450 rpm
Standard - Fan Speed - Minimum	600 rpm 600 rpm
Standard - Ambient Capability	109 °F 43 °C
High Ambient - Fan Speed - Maximum	1,650 rpm 1,650 rpm
High Ambient - Fan Speed - Minimum	600 rpm 600 rpm
High - Ambient Capability	122 °F 50 °C
Note (1)	Maximum torque (VHP Plus) measured at 1,000 rpm. Maximum torque (VHP Plus) measured at 1,000 rpm.
Note (2)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 Standards in effect at the time of manufacture.
Note (3)	Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan running at minimum speed, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan running at minimum speed, air cleaner, muffler and alternator.
Note (4)	Power as declared per ISO 14396; Rated Speed = 2,000 rpm; VHP Plus = 175 kW (234 hp) Power as declared per ISO 14396; Rated Speed = 2,000 rpm; VHP Plus = 175 kW (234 hp)
Note (5)	No engine derating required up to 3048 m (10,000 ft). No engine derating required up to 3048 m (10,000 ft).

Weights

Operating Weight - Typically Equipped	41868 lb 18991 kg
Gross Vehicle Weight - Base - Total	36554 lb 16581 kg
Gross Vehicle Weight - Base - Front Axle	9561 lb 4337 kg
Gross Vehicle Weight - Base - Rear Axle	26993 lb 12244 kg
Gross Vehicle Weight - Maximum - Total	51893 lb 23538 kg
Gross Vehicle Weight - Maximum - Front Axle	16606 lb 7532 kg
Gross Vehicle Weight - Maximum - Rear Axle	35287 lb 16006 kg
Gross Vehicle Weight - Typically Equipped	41868 lb 18991 kg
Gross Vehicle Weight - Typically Equipped - Total	41868 lb 18991 kg
Gross Vehicle Weight - Typically Equipped - Front Axle	11716 lb 5314 kg
Gross Vehicle Weight - Typically Equipped - Rear Axle	30152 lb 13677 kg
Note	Base operating weight calculated on standard machine configuration with 14.00R24 tire with multi-piece rim, full fuel tank, coolant, lubricants and operator. Base operating weight calculated on standard machine configuration with 14.00R24 tire with multi-piece rim, full fuel tank, coolant, lubricants and operator.

Power Train

Forward/Reverse Gears	8 Forward/6 Reverse 8 Forward/6 Reverse
Transmission	Direct drive, power shift, countershaft Direct drive, power shift, countershaft
Brakes - Service	Multiple oil disc Multiple oil disc
Brakes - Service - Surface Area	3565 in² 23000 cm²
Brakes - Parking	Multiple oil disc Multiple oil disc
Brakes - Secondary	Dual circuit control system Dual circuit control system

Moldboard

Blade Width	12 ft 3.7 m
Moldboard - Width	12 ft 3.7 m
Moldboard - Height	24 in 610 mm
Moldboard - Thickness	0.87 in 22 mm
Arc Radius	16.3 in 413 mm
Throat Clearance	6.5 in 166 mm
Cutting Edge Width	6 in 152 mm
Cutting Edge Thickness	0.6 in 16 mm
End Bit - Width	6 in 152 mm
End Bit - Thickness	0.6 in 16 mm
Blade Pull - Base GVW	24294 lb 11020 kg
Blade Pull - Maximum GVW	31758 lb 14405 kg
Down Pressure - Base GVW	16410 lb 7444 kg
Down Pressure - Maximum GVW	28503 lb 12929 kg
Note	Blade pull calculated at 0.9 traction coefficient, which is equal to no-slip conditions, and Gross Vehicle Weight (GVW). Blade pull calculated at 0.9 traction coefficient, which is equal to no-slip conditions, and Gross Vehicle Weight (GVW).

Hydraulic System

Circuit Type	Electro-hydraulic load sensing, closed center Electro-hydraulic load sensing, closed center
Pump Type	Variable piston Variable piston
Pump Output	55.7 gal/min 210 l/min
Maximum System Pressure	3500 psi 24150 kPa
Standby Pressure	450 psi 3100 kPa
Note	Pump output measured at 2,150 rpm. Pump output measured at 2,150 rpm.

Operating Specifications

Top Speed - Forward	29 mile/h 46.6 km/h
Top Speed - Reverse	22.9 mile/h 36.8 km/h
Turning Radius - Outside Front Tires	24.93 ft 7.6 m
Steering Range - Left/Right	47.5 degrees 47.5 degrees
Articulation Angle - Left/Right	20 degrees 20 degrees
Forward - 1st	2.5 mile/h 4 km/h
Forward - 2nd	3.4 mile/h 5.5 km/h
Forward - 3rd	5 mile/h 8 km/h
Forward - 4th	6.8 mile/h 11 km/h
Forward - 5th	10.6 mile/h 17.1 km/h
Forward - 6th	14.5 mile/h 23.3 km/h
Forward - 7th	19.9 mile/h 32 km/h
Forward - 8th	29 mile/h 46.6 km/h
Reverse - 1st	2 mile/h 3.2 km/h
Reverse - 2nd	3.7 mile/h 6 km/h
Reverse - 3rd	5.4 mile/h 8.7 km/h
Reverse - 4th	8.4 mile/h 13.5 km/h
Reverse - 5th	15.7 mile/h 25.3 km/h
Reverse - 6th	22.9 mile/h 36.8 km/h

Service Refill

Fuel Capacity	110 gal (US) 416 l
Cooling System	10.6 gal (US) 40 l
Hydraulic System - Tank	16.9 gal (US) 64 l
Engine Oil	6.6 gal (US) 25 l
Transmission - Differential - Final Drives	16.9 gal (US) 64 l
Tandem Housing - Each	16.9 gal (US) 64 l
Front Wheel Spindle Bearing Housing	0.13 gal (US) 0.5 l
Circle Drive Housing	1.8 gal (US) 7 l

Frame

Circle - Diameter	60.2 in 1530 mm
Circle - Blade Beam Thickness	1.6 in 40 mm
Drawbar - Height	6 in 152 mm
Drawbar - Width	3 in 76.2 mm
Front Frame Structure - Height	12 in 305 mm
Front Frame Structure - Width	12 in 305 mm
Front Frame Structure - Thickness	0.6 in 16 mm
Front Axle - Height to Center	23 in 571 mm
Front Axle - Wheel Lean - Left/Right	18 degrees 18 degrees
Front Axle - Total Oscillation per Side	32 degrees 32 degrees

Tandems

Height	19.9 in 506 mm
Width	7.9 in 201 mm
Sidewall Thickness - Inner	0.6 in 16 mm
Sidewall Thickness - Outer	0.7 in 18 mm
Drive Chain Pitch	2 in 50.8 mm
Wheel Axle Spacing	60 in 1523 mm
Tandem Oscillation - Front Up	15 degrees 15 degrees
Tandem Oscillation - Front Down	25 degrees 25 degrees

Blade Range

Circle Centershift - Right	28.7 in 728 mm
Circle Centershift - Left	27.4 in 695 mm
Moldboard Sideshift - Right	26 in 660 mm
Moldboard Sideshift - Left	20.1 in 510 mm
Maximum Blade Position Angle	90 degrees 90 degrees
Blade Tip Range - Forward	40 degrees 40 degrees
Blade Tip Range - Backward	5 degrees 5 degrees
Maximum Shoulder Reach Outside of Tires - Right	77.9 in 1978 mm
Maximum Shoulder Reach Outside of Tires - Left	70.5 in 1790 mm
Maximum Lift Above Ground	18.9 in 480 mm
Maximum Depth of Cut	28.1 in 715 mm

Ripper

Ripping Depth - Maximum	16.8 in 428 mm
Ripper Shank Holders	5 5
Ripper Shank Holder Spacing	21 in 533 mm
Penetration Force	20540 lb 9317 kg
Pry-Out Force	26259 lb 11911 kg
Machine Length Increase, Beam Raised	36.2 in 919 mm

Scarifier

Front, V-Type, 5 or 11 Tooth - Working Width	47.4 in 1205 mm
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum	18.4 in 467 mm
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders	5, 11 5, 11
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing	4.6 in 116 mm
Mid, V-Type - Working Width	46.6 in 1184 mm
Mid, V-Type - Scarifying Depth, Maximum	11.5 in 292 mm
Mid, V-Type - Scarifier Shank Holders	11 11
Mid, V-Type - Scarifier Shank Holder Spacing	4.6 in 116 mm
Rear - Working Width	91 in 2300 mm
Rear - Scarifying Depth, Maximum	10.5 in 266 mm
Rear - Scarifier Shank Holders	9 9
Rear - Scarifier Shank Holder Spacing	10.5 in 267 mm

Dimensions

Height - Top of Cab	130 in 3308 mm
Height - Top of Cab Product Link	133 in 3378 mm
Height - Front Axle Center	23.5 in 596 mm
Length - Between Tandem Axles	60 in 1523 mm
Length - Front Axle to Moldboard	100 in 2552 mm
Length - Front Axle to Mid Tandem	241 in 6123 mm
Length - Front Tire to Rear of Machine	344 in 8754 mm
Length - Push Plate to Ripper	399 in 10136 mm
Length - Push Plate to Ripper Retracted	386 in 9818 mm
Ground Clearance - Rear Axle	13.3 in 339 mm
Height - Top of Cylinders	119 in 3040 mm
Height - Exhaust Stack	121 in 3076 mm
Width - Tire Center Lines	84 in 2140 mm
Width - Outside Rear Tires	98 in 2511 mm
Width - Outside Front Tires	98 in 2511 mm

Standards

ROPS/FOPS	ISO 3471:2008, ISO 3449:2005 Level II ISO 3471:2008, ISO 3449:2005 Level II
Steering	ISO 5010:2007 ISO 5010:2007
Brakes	ISO 3450:1996 ISO 3450:1996
Sound	ISO 6394:2008, ISO 6395:2008 ISO 6394:2008, ISO 6395:2008
Note (1)	The static sound operator pressure level measured according to ISO 6394:2008 for a cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed and hydraulic fan at maximum speed is 74 dB(A). The static sound operator pressure level measured according to ISO 6394:2008 for a cab offered by Caterpillar, when properly installed, maintained and tested with doors and windows closed and hydraulic fan at maximum speed is 74 dB(A).

Net Power - VHP Plus

Gear - Forward 1st	183 hp 136 kW
Gear - Forward 2nd	188 hp 140 kW
Gear - Forward 3rd	203 hp 151 kW
Gear - Forward 4th	208 hp 155 kW
Gear - Forward 5th	213 hp 159 kW
Gear - Forward 6th	218 hp 163 kW
Gear - Forward 7th	233 hp 174 kW
Gear - Forward 8th	233 hp 174 kW
Gear - Reverse 1st	183 hp 136 kW
Gear - Reverse 2nd	188 hp 140 kW
Gear - Reverse 3rd-6th	203 hp 151 kW

Air Conditioning System

Air Conditioning

150 / 150 AWD Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger

Air-to-air after cooler (ATAAC)

Belt, serpentine, automatic tensioner

Brakes, oil disc, four-wheel, hydraulic

Demand fan, hydraulic

Differential Lock/Unlock, Automatic

Drain, engine oil, ecology

Electronic over speed protection

Engine Cat C7 diesel with automatic engine derate and idle control. Note: Emissions equivalent to Tier 3 and Stage IIIA.

Engine Idle Shutdown (EIS)

Fuel tank, 416 L (110 gal), ground level access and sediment drain

Fuel-water separator

Muffler, underhood

Parking brake - multi-disc, sealed, oil-cooled

Priming pump, fuel

Rear axle, modular

Sediment drain, fuel tank

Tandem drive

Transmission, 8F/6R, power shift, direct drive

Variable Horsepower Plus (VHP Plus)

ELECTRICAL

Alarm, back up

Alternator, 80 ampere, sealed

Batteries, maintenance free, heavy duty, 1,125 CCA

Breaker panel, ground accessible

Cab harness and electrical hydraulic valves

Electrical system, 24V

Grade Control Ready - Cab harness, software, electrical hydraulic valves, bosses and brackets

Lights, roof-mounted roading, reversing, LED stop and tail

Product Link Ready

Starter, electric

OPERATOR ENVIRONMENT

Accelerator

Air conditioning with heater

Arm and wrist rest, electronically adjustable

Articulation, automatic Return-to-Center

Cat Messenger operator information system

Centershift pin indicator

Coat hook

Cup holder

Display, digital speed and gear

Doors, left and right side with wiper

Gauge, machine level

Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp

Hour meter, digital

Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and steering

Joystick, adjustable armrests

Joystick gear selection

Joystick hydraulic power steering

Ladders, cab, left and right side

Lights, night time cab

Mirror, inside rearview, wide angle

Power port, 12V

Radio Ready, Entertainment

ROPS cab, sound suppressed

Seat, cloth-covered, comfort suspension

Seat belt, retractable 76 mm (3 in)

Storage area for cooler/lunchbox

Throttle control, electronic

Windows, laminated glass: - fixed front with intermittent wiper - side and rear (3)

FLUIDS

Antifreeze

Extended Life Coolant to -35° C (-30° F)

TIRES, RIMS AND WHEELS

Partial allowance for tires on 254 × 607 mm (10 × 24 in) multi-piece rims is included in the base machine price and weight

OTHER STANDARD EQUIPMENT

Anti-glare paint

Bumper, rear, integrated with hitch

CD ROM Parts Book

Clutch, circle drive slip

Cutting edges: - 152 × 16 mm (6 × 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts

Doors (3), engine compartment, locking

Drawbar - 6 shoes, replaceable wear strips

Electrical hydraulic valves, hydraulic lines for base 8 functions

Endbits: - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts

Fluid check, ground level

Frame, articulated, with safety lock

Ground level engine shutdown

Ground level fueling

Hammer (emergency exit)

Horn, electric

Hydraulic lines for base functions

Lockout, hydraulic implement (for roading and servicing)

Moldboard - 3658 × 610 × 22 mm (12 ft × 24 in × 7/8 in)

Mounting, cab roof accessories

Pump, hydraulic, high capacity, 98 cm³ (6 in³)

Radiator, cleanout access

Secondary steering

Serviceability, left-hand side

S·O·S℠ ports: engine, hydraulic, transmission, coolant, fuel

Tandem walkway/guards

Tool box

Tow hitch

150 / 150 AWD Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alternator, 150 ampere - 2 kg (5 lb)

Batteries: extreme duty, 1,400 CCA - 14 kg (30 lb)

Converter, communication (CB) - 5 kg (11 lb)

Lights: Headlights, high - 5 kg (11 lb)

Lights: Headlights, low - 5 kg (11 lb)

Lights: Working lights, basic - 9 kg (20 lb)

Lights: Working lights, plus - 10 kg (22 lb)

Lights: Warning: beacon or strobe - 2 kg (5 lb)

Lights: Mounting for warning light - 5 kg (11 lb)

GUARDS

Articulation guard - 13 kg (30 lb)

Axle hose guard - 7 kg (15 lb)

Fenders, front - 56 kg (123 lb)

Fenders, rear - 156 kg (344 lb)

Sound guard (bottom) - 110 kg (243 lb)

Transmission guard - 141 kg (311 lb)

OPERATOR ENVIRONMENT

Deluxe CD radio with MP3 and Bluetooth technology

Fan, defroster, rear window - 2 kg (4 lb)

Mirrors, outside: heated 24V - 15 kg (33 lb)

Mirrors, outside: mounted - 15 kg (33 lb)

Precleaner, HVAC - 5 kg (10 lb)

Radio ready, AM/FM - 9 kg (20 lb)

Seat, air suspension, cloth - 2 kg (5 lb)

Shade, sun - 2 kg (5 lb)

Wiper/washer, rear - 2 kg (4 lb)

POWER TRAIN

Precleaner, snow/debris - 2 kg (4.4 lb)

Transmission, autoshift - 2 kg (5 lb)

OTHER ATTACHMENTS

AccuGrade ARO - 39 kg (85 lb)

Accumulators, blade lift - 77 kg (170 lb)

Camera, rearview - 9 kg (20 lb)

Cat Grade Control Cross Slope - 75 kg (165 lb)

Cat Product Link 321 (Satellite) - 13 kg (29 lb)

Cat Product Link 522 (Cellular) - 13 kg (29 lb)

Compressor/tank, air - 27 kg (50 lb)

Heater, engine coolant: 120V - 1 kg (3 lb)

Heater, engine coolant: 240V - 1 kg (3 lb)

Hydraulic arrangements with one or more additional hydraulic valves are available for ripper, dozer, snow wings, front lift group, mid-mount scarifier

Security system - 5 kg (11 lb)

Snow wing mounting, frame ready - 111 kg (245 lb)

Sound suppression - 15 kg (33 lb)

Starting aid, ether - 0.5 kg (1 lb)

WORK TOOLS/GROUND ENGAGING TOOLS

Blade extension, left hand, 610 mm (2 ft) - 113 kg (249 lb)

Endbits, overlay - 24 kg (52 lb)

Front lift group, mounting - 5 kg (11 lb)

Front lift group - 680 kg (1,500 lb)

Mid-Mount Scarifier, Package - 942 kg (2,077 lb)

Mid-Mount Scarifier, Mounting - 57 kg (125 lb)

Moldboard: 4267 × 610 × 22 mm (14 ft × 24 in × 7/8 in)- 100 kg (220 lb)

Moldboard: 4267 × 686 × 25 mm (14 ft × 27 in × 1 in) - 257 kg (567 lb)

Push plate - 885 kg (1,950 lb)

Ripper, mounting - 32 kg (70 lb)

Ripper, rear - 962 kg (2,120 lb)

Ripper tooth - 28 kg (61 lb)

Scarifier, front - 434 kg (956 lb)

MACHINE ARRANGEMENTS

Snow Arrangement

OPTIONAL TIRE ARRANGEMENTS

Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.00-24

Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.00R24

Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5R25

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Equipment Management

Grade

Cat Inspect

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat Product Link

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology
Cat Remote Flash

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
Cat Remote Troubleshooting

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology
VisionLink®

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Grade with Cross Slope for Motor Graders

Cat® Grade with Cross Slope is an integrated system that enables motor grader operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time. Other cost-saving benefits of the system include lower fuel consumption and up to 40% less material usage.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Grade with Cross Slope is an integrated system that enables motor grader operators to achieve grade faster and more accurately by automating the cross slope of the blade, allowing the operator to do more in the same amount of time. Other cost-saving benefits of the system include lower fuel consumption and up to 40% less material usage.

Explore Technology

See how 150 / 150 AWD compares against frequently compared products.

Motor Graders

Selected

150 / 150 AWD

Net Power Range (Tier 3): 183 hp; 136 kW
Operating Weight - Typically Equipped: 41868 lb; 18991 kg
Blade Width: 12 ft; 3.7 m

Motor Graders

140 GC / 140 GC AWD 140 GC Motor Grader

Net Power Range (Tier 3): 176 hp; 131 kW
Operating Weight - Typically Equipped: 38151 lb; 17305 kg
Blade Width: 12 ft; 3.7 m

View Details

Motor Graders

160 / 160 AWD JOY

Base Power (1st Gear) - Net: 221 hp; 165 kW
Operating Weight - Typically Equipped: 45547 lb; 20660 kg
Blade Width: 14 ft; 4.2 m

View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

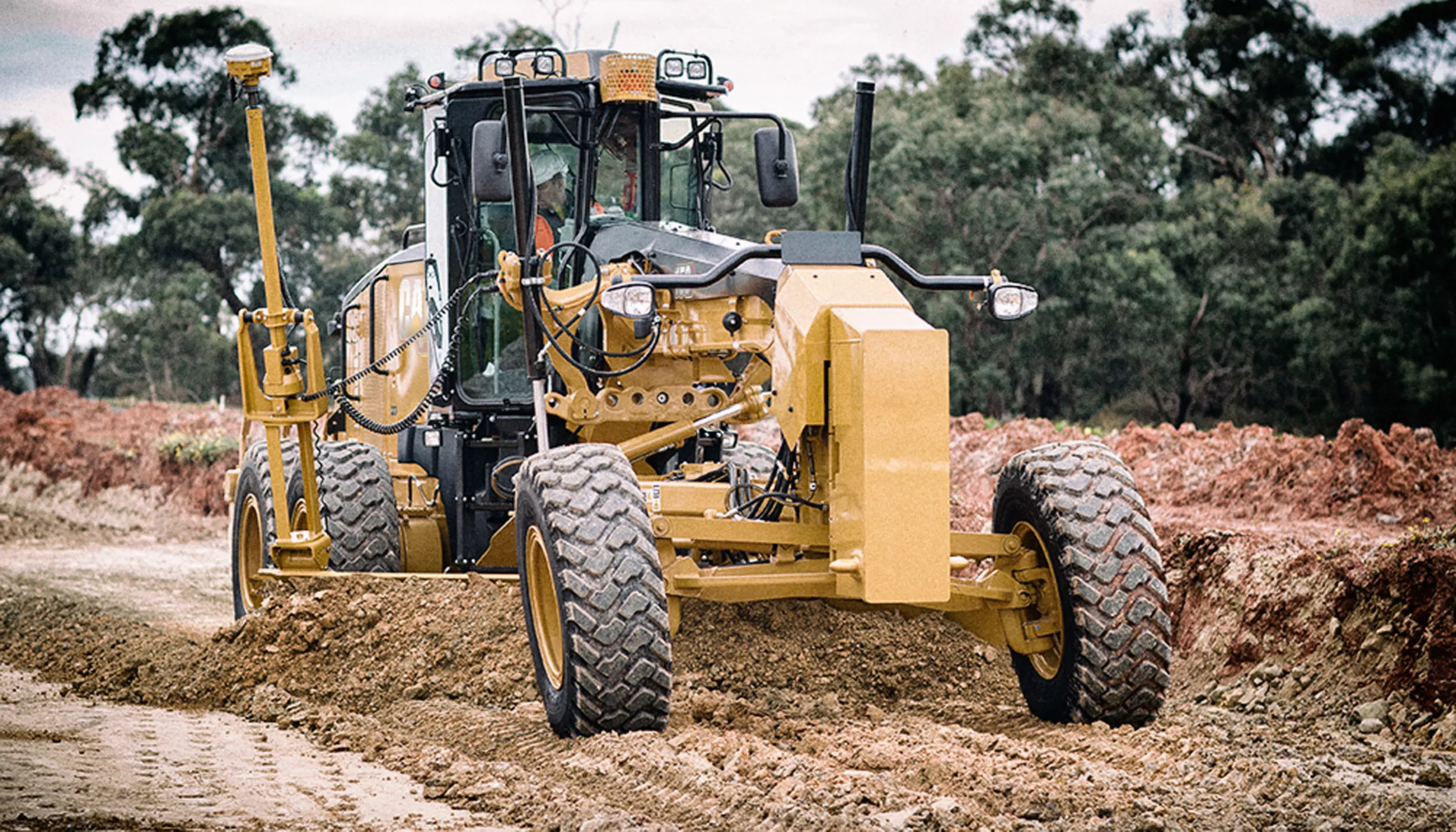

150 (140M) Motor Grader

150 (140M)

Motor Graders 150 / 150 AWD

Overview

Get More Done Comfortably and Efficiently

Benefits

Optimal power train control

Up To 78% Less Arm Movement

Maximize Machine Performance

Features At A Glance

Product Specifications for 150 / 150 AWD

Engine

Weights

Power Train

Moldboard

Hydraulic System

Operating Specifications

Service Refill

Frame

Tandems

Blade Range

Ripper

Scarifier

Dimensions

Standards

Net Power - VHP Plus

Air Conditioning System

150 / 150 AWD Standard Equipment

NOTE

POWER TRAIN

ELECTRICAL

OPERATOR ENVIRONMENT

FLUIDS

TIRES, RIMS AND WHEELS

OTHER STANDARD EQUIPMENT

150 / 150 AWD Optional Equipment

NOTE

ELECTRICAL

GUARDS

OPERATOR ENVIRONMENT

POWER TRAIN

OTHER ATTACHMENTS

WORK TOOLS/GROUND ENGAGING TOOLS

MACHINE ARRANGEMENTS

OPTIONAL TIRE ARRANGEMENTS

Product Specifications for 150 / 150 AWD

Engine

Weights

Power Train

Moldboard

Hydraulic System

Operating Specifications

Service Refill

Frame

Tandems

Blade Range

Ripper

Scarifier

Dimensions

Standards

Net Power - VHP Plus

Air Conditioning System

150 / 150 AWD Standard Equipment

NOTE

POWER TRAIN

ELECTRICAL

OPERATOR ENVIRONMENT

FLUIDS

TIRES, RIMS AND WHEELS

OTHER STANDARD EQUIPMENT

150 / 150 AWD Optional Equipment

NOTE

ELECTRICAL

GUARDS

OPERATOR ENVIRONMENT

POWER TRAIN

OTHER ATTACHMENTS

WORK TOOLS/GROUND ENGAGING TOOLS

MACHINE ARRANGEMENTS

OPTIONAL TIRE ARRANGEMENTS

Compatible Technology and Services

Cat Inspect

Product Brochures and More Are Ready to Download!
