Overview

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Units:
Drive Shaft Torque @ Max Pressure 3037.0 lb.ft 4118.0 N·m Less
Drive Method Gerotor Motor - Single Planetary Reduction Gerotor Motor - Single Planetary Reduction Less
Mounting Bracket Design Skid Steer Loader, Compact Wheel Loader Skid Steer Loader, Compact Wheel Loader Less
Required Hydraulics Standard Flow Standard Flow Less
Required Hydraulic Flow 11-22 gpm (42-83 L/min) 11-22 gpm (42-83 L/min) Less
Optimal Hydraulic Pressure 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi) Less
Overall Width w/ bracket 45.0 in 1152.0 mm Less
Overall Length w/ bracket 24.0 in 598.0 mm Less
Overall Drive Unit Height 37.0 in 934.0 mm Less
Housing Diameter 10.0 in 252.0 mm Less
Swing Range 102 degrees 102 degrees Less
Mounting Frame Weight (w/clevis) 201.0 lb 91.0 kg Less
Drive Unit Weight (w/o Bits) 366.0 lb 166.0 kg Less
Motor Displacement 15.0 in3 250.0 cm3/rev Less
Bit Speed @ Max Flow 71 rpm 71 rpm Less

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Multiple Drive Systems

Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.

  • A14B features a variable speed, bi-directional, gerotor style hydraulic motor that generates optimal bit speed and output torque for light to moderate duty work.
  • A19B features a variable speed, bi-directional, single reduction planetary drive gerotor style hydraulic motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty applications.
  • A26B features variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

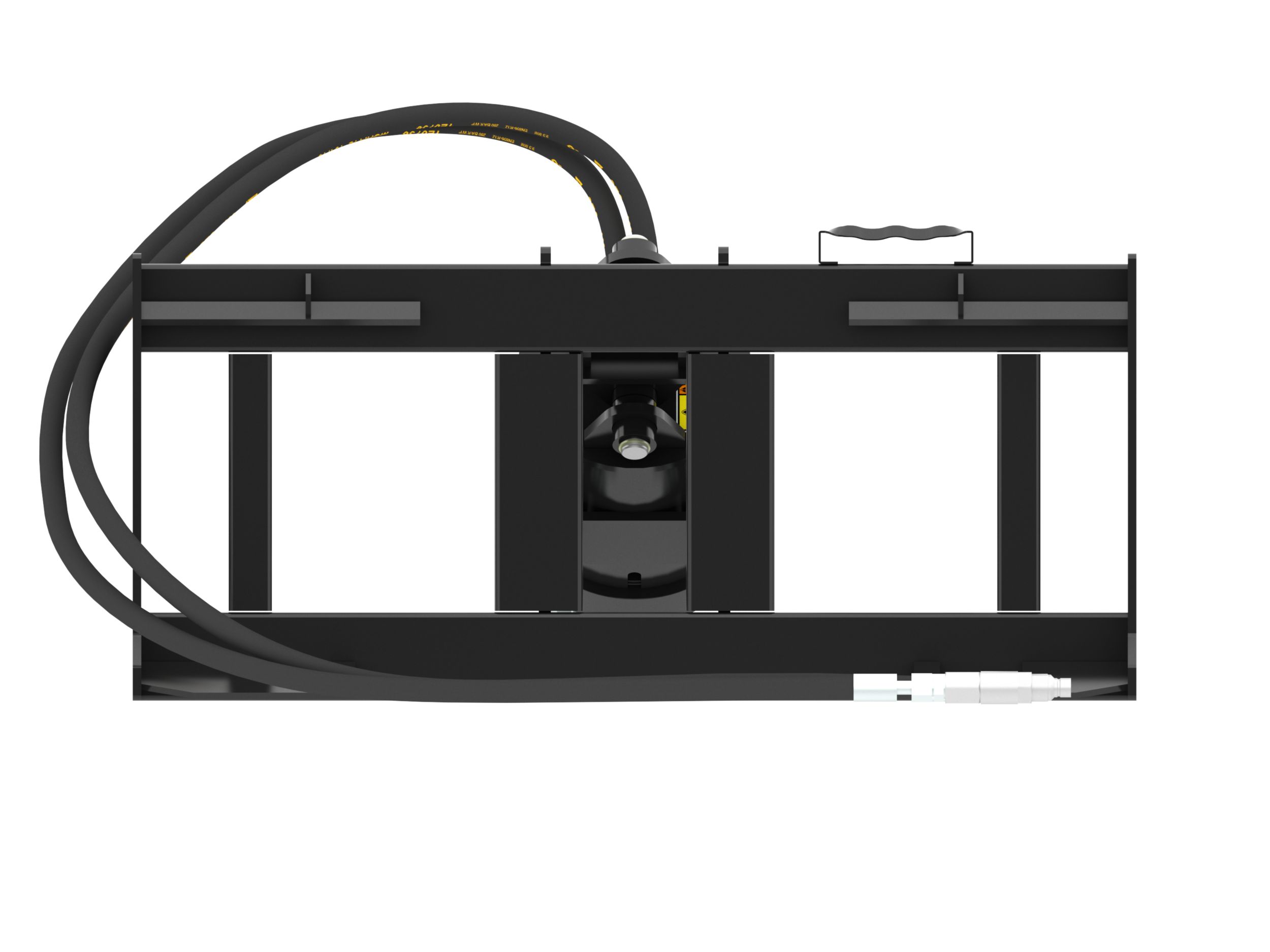

Rugged Mounting Bracket

Exclusive Cat® mounting bracket for superior structural reinforcement, positioning flexibility, easy transportation, and near vertical storage. Also includes serrated step to allow safer and easier access into the cab.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.
