The Cat® FM538 forest machine can load trucks, process logs, build roads, and more with a choice of configurations and attachments.

Forest Machines FM538 GF/FM538 LL Tier 4 / Stage V

Request A Price Find Dealer

Key Specs

Engine Model: Cat C7.1; Cat C7.1

Net Power - ISO 9249: 172 hp; 129 kW

Engine Power - ISO 14396: 174 hp; 129 kW

View Product Availability by Country

FM538 GF/FM538 LL
Change model

Overview

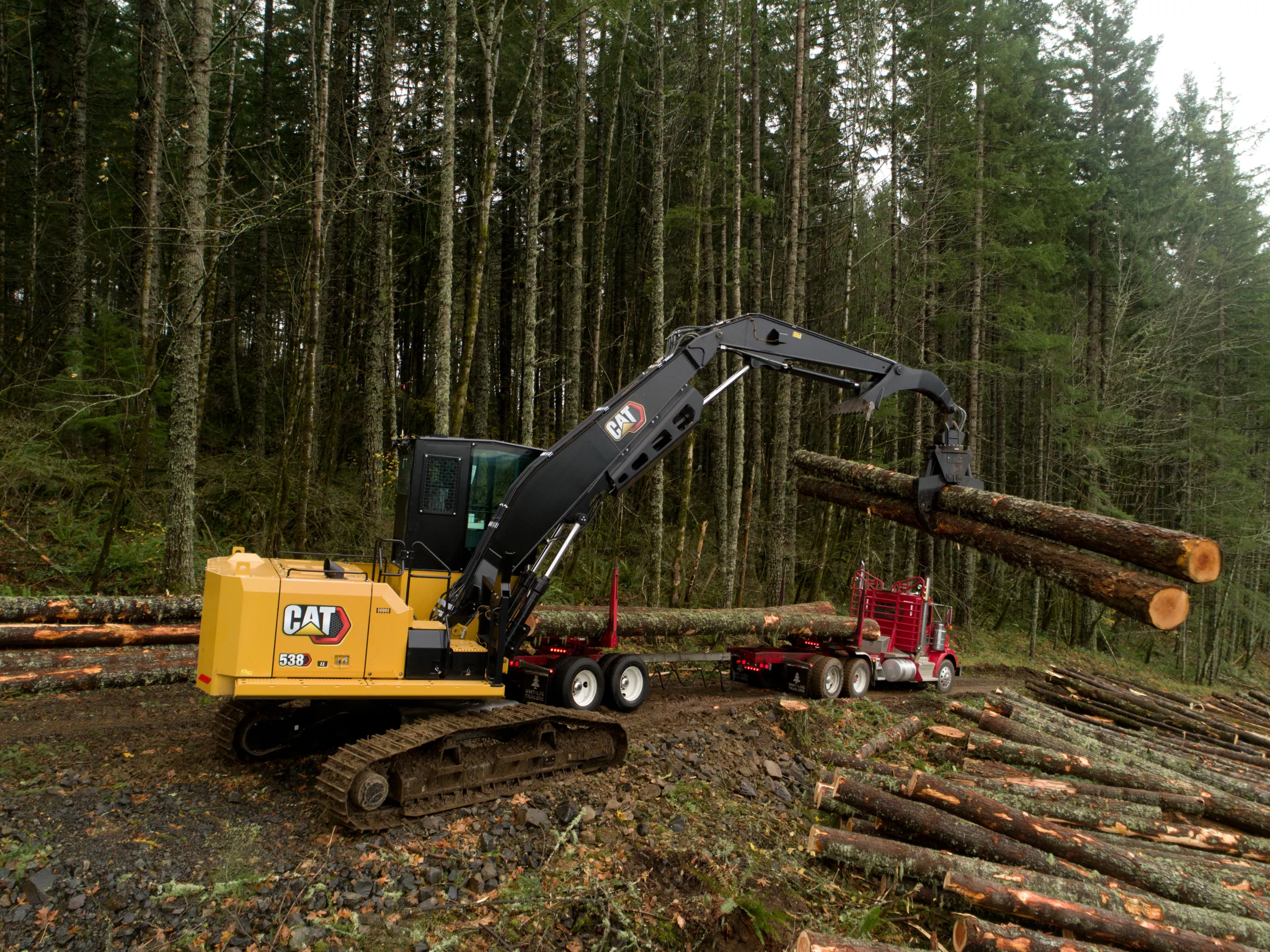

Purpose-Built Strength for Log Loading

The Cat® FM538 forestry machine is built for log loading , Processing, and forestry roadbuilding. Operators get smooth control and visibility, while Cat forestry grapples and mulchers maximize efficiency.

Benefits

Designed for Comfort and Ease

Forestry ROPS cab with clear sightlines, low noise, and ergonomic controls makes logging safer and easier.

Boosts Production

High swing torque, heavy-lift mode, and fast travel move timber faster. Cat forestry tools expand capability.

Saves Time and Money

Extended-life filters and simplified hydraulics mean less maintenance and more uptime.

Features At A Glance

Machine Setup Simplification

At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.

Foot Pedal Swing Control Kit

The FM538 offers powerful, reliable performance optimized for challenging forestry tasks, and now, operators can enhance productivity and ease of operation with the optional Foot Pedal Swing Control Kit. This attachment integrates seamlessly with Caterpillar's customizable joystick pattern software, enabling operators to personalize controls based on their preferences or job requirements. With the kit's two auxiliary pedals, operators can control the upper rotation of the machine using their feet, providing knuckleboom loader style of operation. The Foot Pedal Swing Control Kit is ideal for those looking to maximize control and efficiency in demanding forestry environments.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area. Build Number: 07H

Take the Guesswork Out of Managing Your Equipment

The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It's all about making informed, data-based decisions to help reduce operating costs.
Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink so you can keep a close eye on your fleet.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help resolve issues quickly and with less downtime.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
The Cat PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition** feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.
** Recognition feature available on select excavator models. Consult your Cat dealer for details.

The Cat® C7.1 engine is fuel efficient and can run on biodiesel and other renewable fuels.
Smart mode helps reduce fuel consumption by automatically matching engine and hydraulic power to working conditions.
Pick and place logs with precision and power with the electrohydraulic control system.
Heavy lift mode with more swing torque helps you confidently move big logs.
Get to work faster with up to a 12% increase in travel speed*.
Auxiliary hydraulic options let you use Cat grapples and various other attachments.
Work in extreme environments with a standard high-ambient capability of 52° C (126° F) and cold start capability of -32° C (-25° F).

*All percentages are compared to the 2020 model year 538.

Operators can choose the rear or side entry cab more space and a tilt-up console.
The dual HVAC system keeps operators comfortable in cold and warm weather.

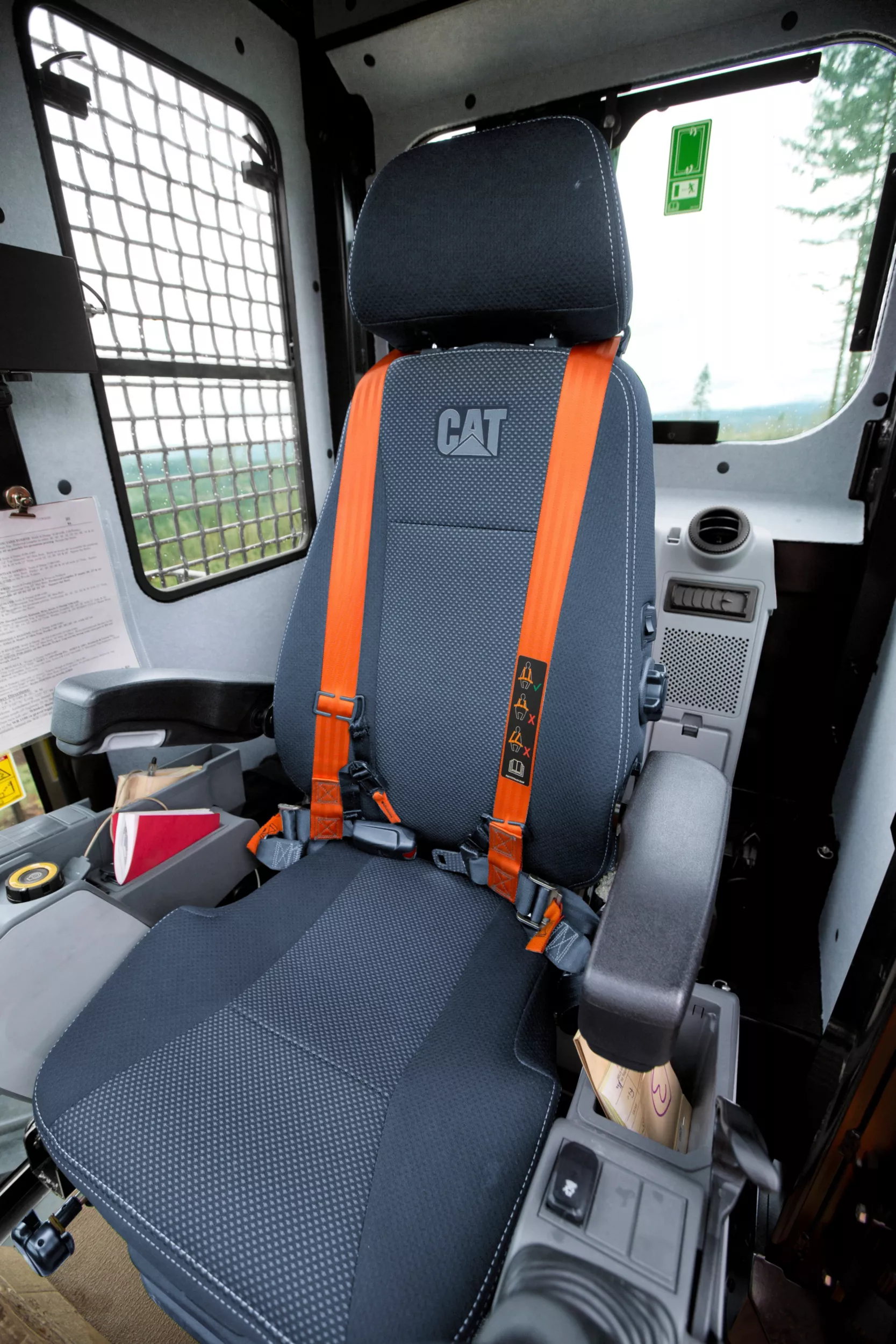

A wider heated and cooled air-suspension seat makes year-round work more pleasant.
All controls are within easy reach to reduce twisting and turning and keep you focused on the work area.
Cab risers — 165 mm (6.5”) fixed or 1219 mm (48”) hydraulic tilt — are available to meet your work needs.
Stow your gear with in-cab storage beneath, behind the seat, and in the consoles.
Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

Cat® continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
The Cat PL161 attachment locator is a Bluetooth device designed to let users know where their attachments are across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The PL161 integrates easily into VisionLink™ for full fleet management of machines and attachments from one smartphone or tablet dashboard to view location and tracking details.
The keyless push-button engine start adds security by using operator ID codes to limit and track machine access. Codes can be entered manually or via an optional Bluetooth key fob.

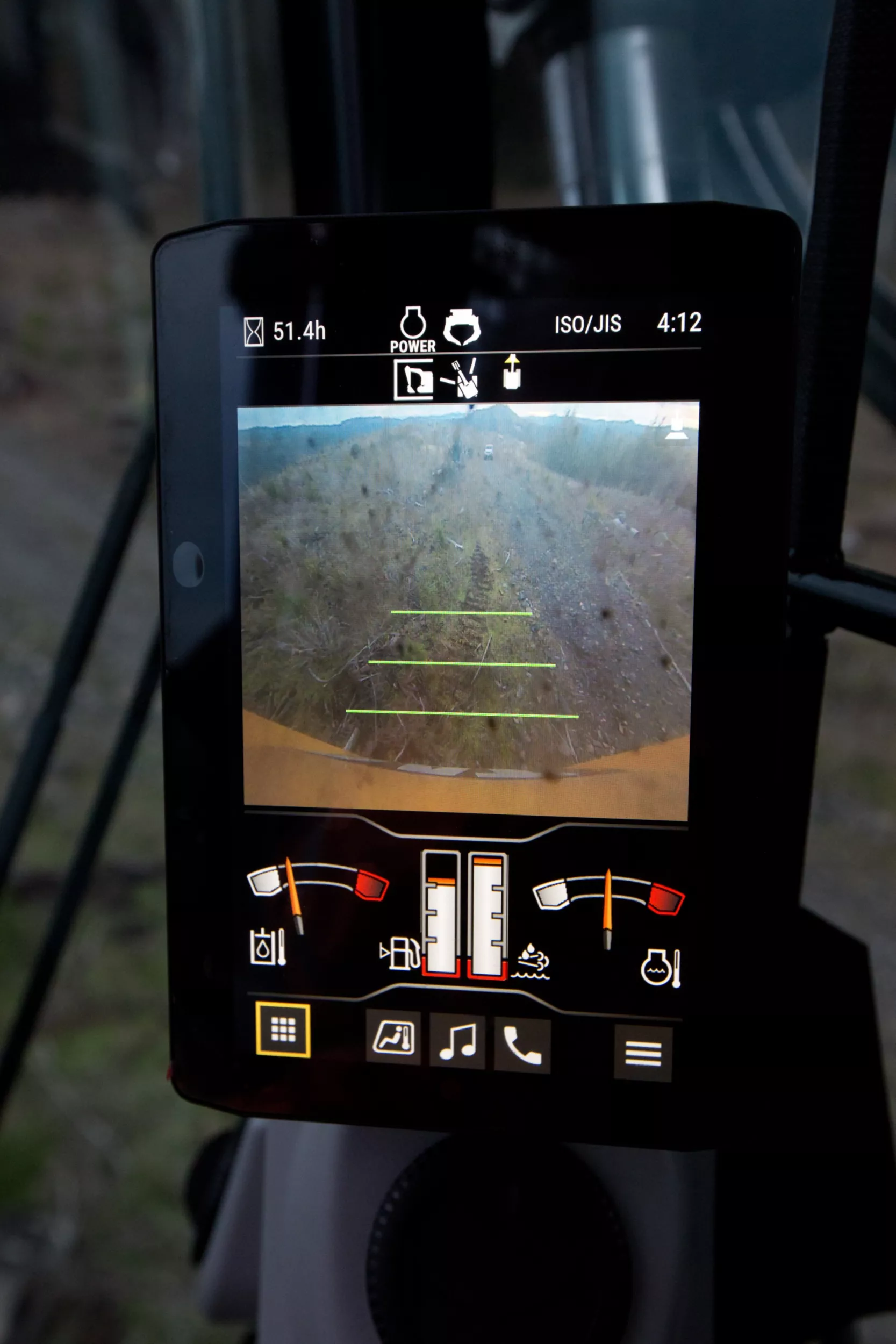

Navigate quickly on the standard high-resolution 254 mm (10 in) touchscreen monitor.
Make moving the excavator much easier with the optional Cat® Stick Steer. Push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
Not sure how a function works or how to maintain the machine? Always have the operator’s manual at your fingertips in the touchscreen monitor.
Optional auxiliary relay powers on and turns off CB radios and other attachments without you taking your hands off the joysticks.

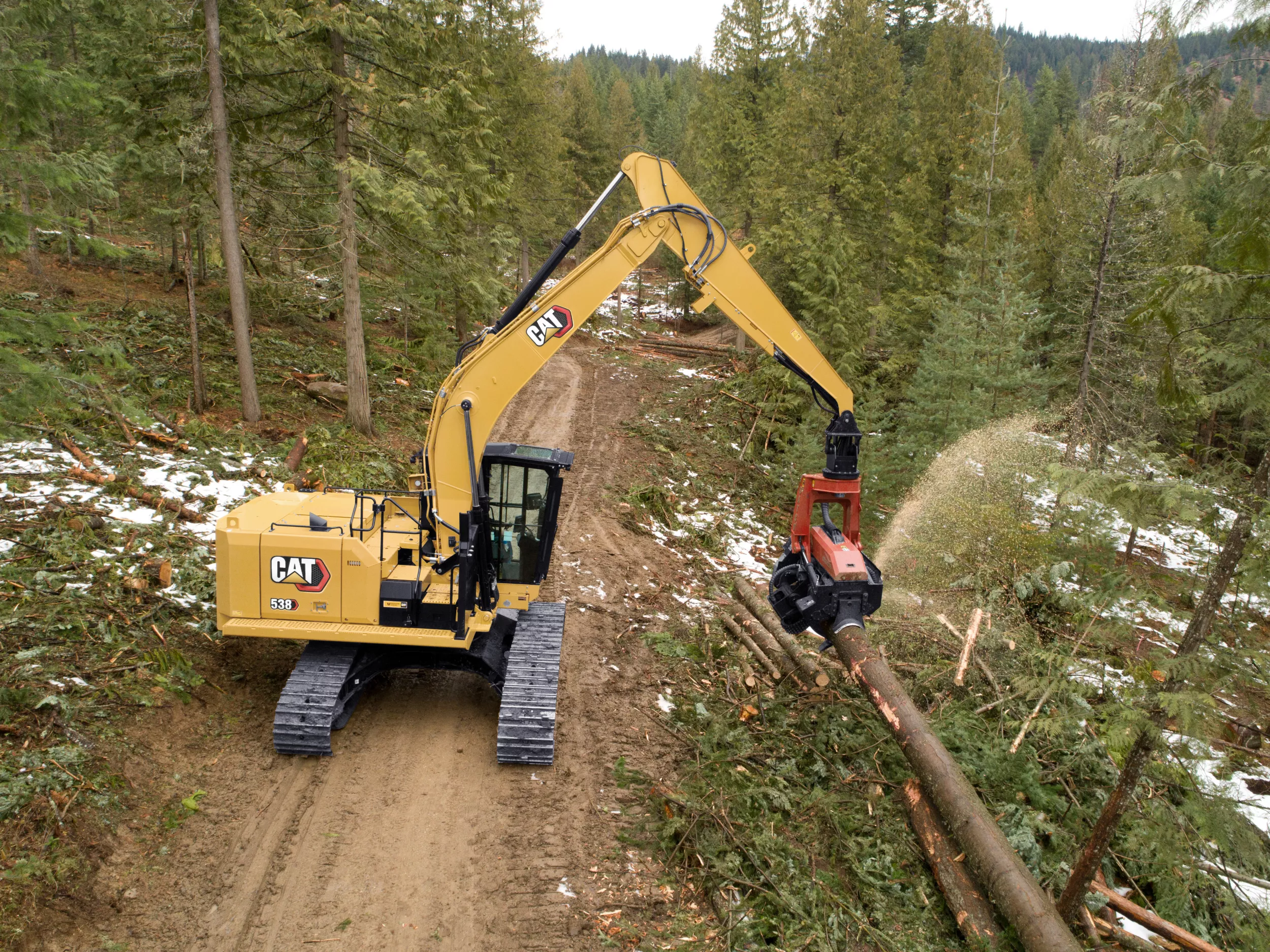

General Forestry

The General Forestry model is ideal for road work, grappling, processing, and delimbing.
With a reach boom and quick coupler, you can equip the FM538 with a processor, bucket, thumb, mulcher, and other attachments to get work done quickly and efficiently.
A frontless option allows you to customize the machine to fit your applications.

Log Loader

The log loader configuration is ideal for truck loading, Butt-n-Top loading, power clam applications, and millyard work.
An under-mounted heel cylinder provides maximum force for shovel logging with a Cat grapple. A variable displacement pump delivers high-flow rotating capability for heel and log grapples and Power Clam and Butt-n-Top grapples.
An overmounted heel cylinder provides maximum clearance to load trucks and increases lift height for millyard applications.

Rugged, reliable, simple-to-service Cat forestry grapples range in size from 1322 mm (52") to 1524 mm (60").
Special Tri Link shoes are available for lower ground pressure and extra flotation in soft, wet, underfoot conditions.

Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance and the parts needed so you don't experience unnecessary downtime.
Expect to spend less on maintenance costs compared to the previous model.
The engine’s regeneration system functions automatically with no operator input or interruption to work.
Using Cat® genuine oil and filters and doing typical S∙O∙S^SM monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work.
S·O·S ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.
The diesel particulate filter requires no maintenance.
Replace fuel filters at 1,000 hours – twice the interval from the previous filters.
The latest hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3000-hour replacement interval.
The high-efficiency cooling fan runs only when needed; program intervals so the fan automatically reverses to keep cores clean without interrupting your work.

The cab meets applicable industry standards for Rollover Protective Structure (ROPS)/Falling Object Protective Structure (FOPS)/Operator Protective Guards (OPG) and protects the operator inside the cab.

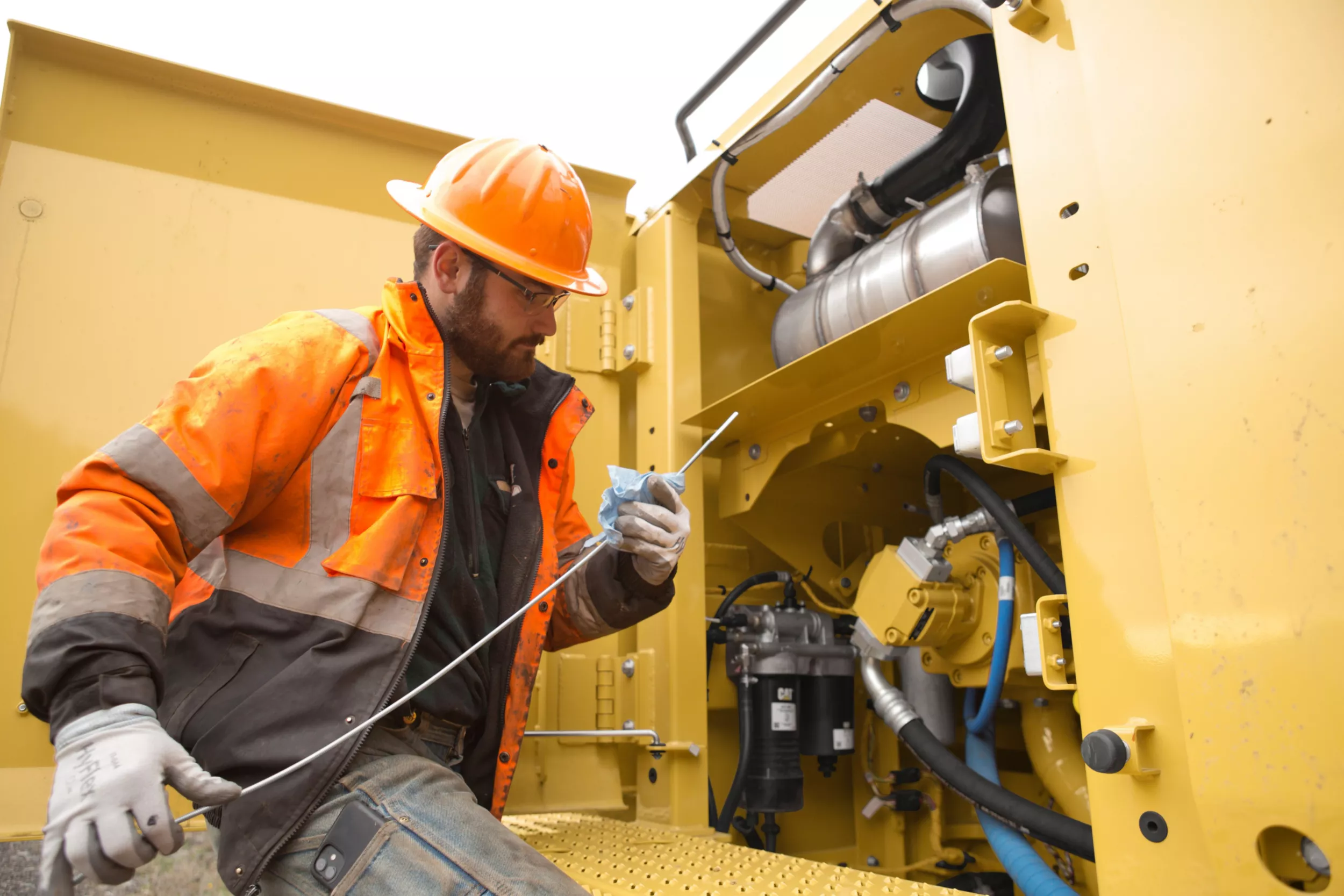

Access most routine maintenance points at ground level.

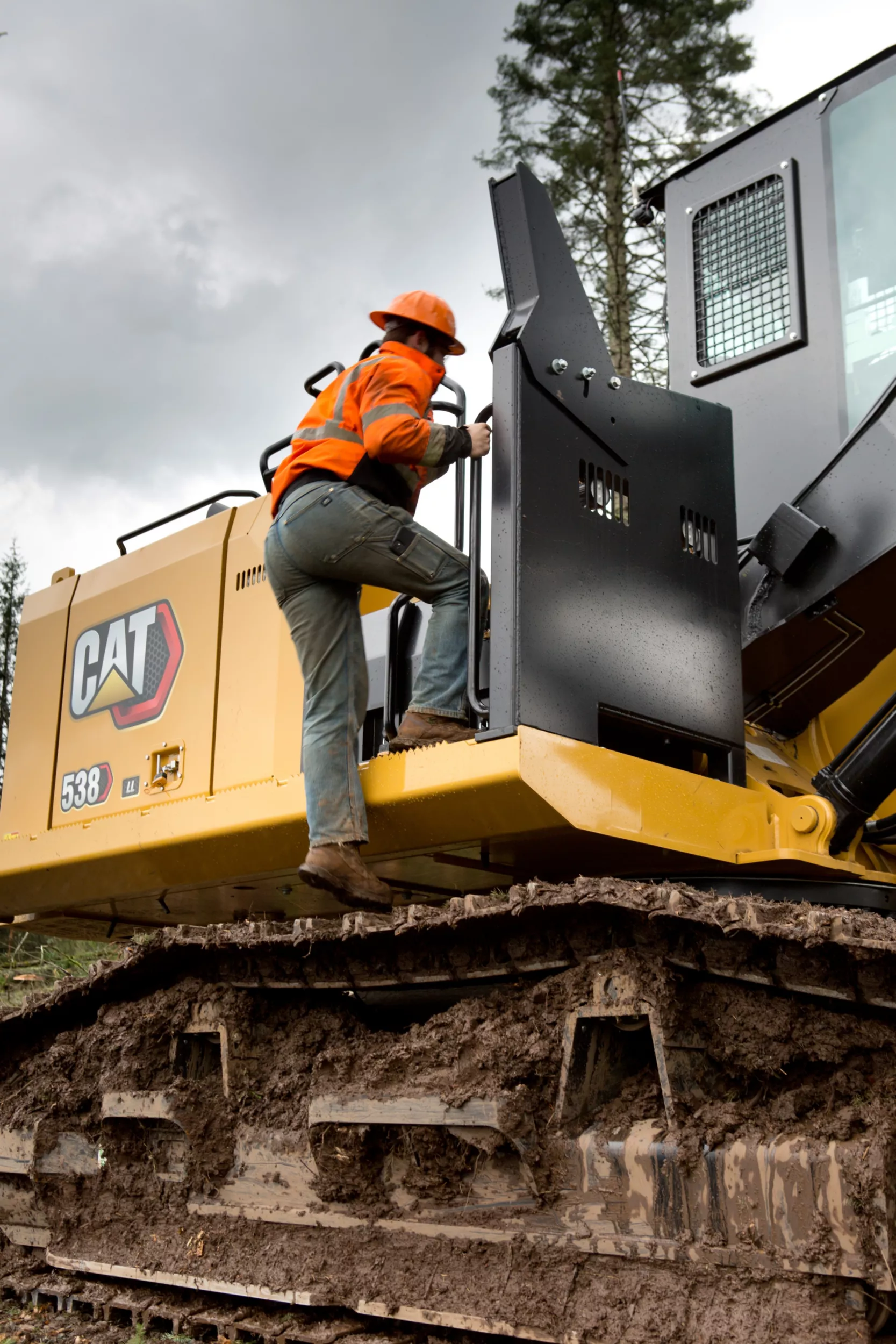

The right-hand service platform design provides easy, safe, and quick access to the upper service platform; the service platform steps use an anti-skid punch plate to prevent slipping. Handrails are provided for easy access.
Larger 32 mm (1 1/4”) polycarbonate front window, smaller cab pillars, and a flat engine hood improve visibility.
Standard rearview camera enhances jobsite visibility; right-hand-sideview camera is optional.
The monitor’s slope and grade indicator tell you the machine's position to help optimize its performance.
A signaling/warning horn and travel alarm enhance jobsite safety.
Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as:

Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.
Pin Grabber: Offer fast, secure attachment changes and are compatible with a wide range of tools. Ideal for operators who need flexibility on the job site, they allow switching between buckets, hammers, and grapples. Features a redundant locking system to keep your attachments in place and protect them from damage.
CW Quick Couplers: Rugged, wedge-style quick couplers built to increase the utilization of your excavator. Designed to fit your machine and application needs, Caterpillar® offers a series of CW couplers in mechanical and hydraulic versions. Ideal for contractors who prioritize a strong, simple locking system for frequent attachment changes.
S-Type Couplers: A pin grabber-style dedicated coupler, S-Type Couplers feature a narrow, lightweight design for improved performance. They offer precision, flexibility, and are ideal for fleets needing consistent attachment interchangeability.
Hydraulic Connecting S-Type (HCS) Couplers: HCS Couplers offer automatic hydraulic connection with the compact, low-profile design of the S-Type. With advanced functionality such as full hydraulic and electronic connection, hydromechanical attachments are connected and ready to operate in seconds.
Performance Hammers: Built for high-demand applications, performance hammers deliver maximum impact energy and fast cycle times for breaking concrete, rock, and asphalt. Ideal for heavy-duty demolition, quarrying, and production environments where speed and power are critical.
GC S Hammers: Simplified, silenced models designed for noise-sensitive environments. They maintain solid performance while reducing sound levels, making them ideal for urban job sites, residential areas, and regulated zones. Ideal for site prep, light demolition, foundry and quarry applications.

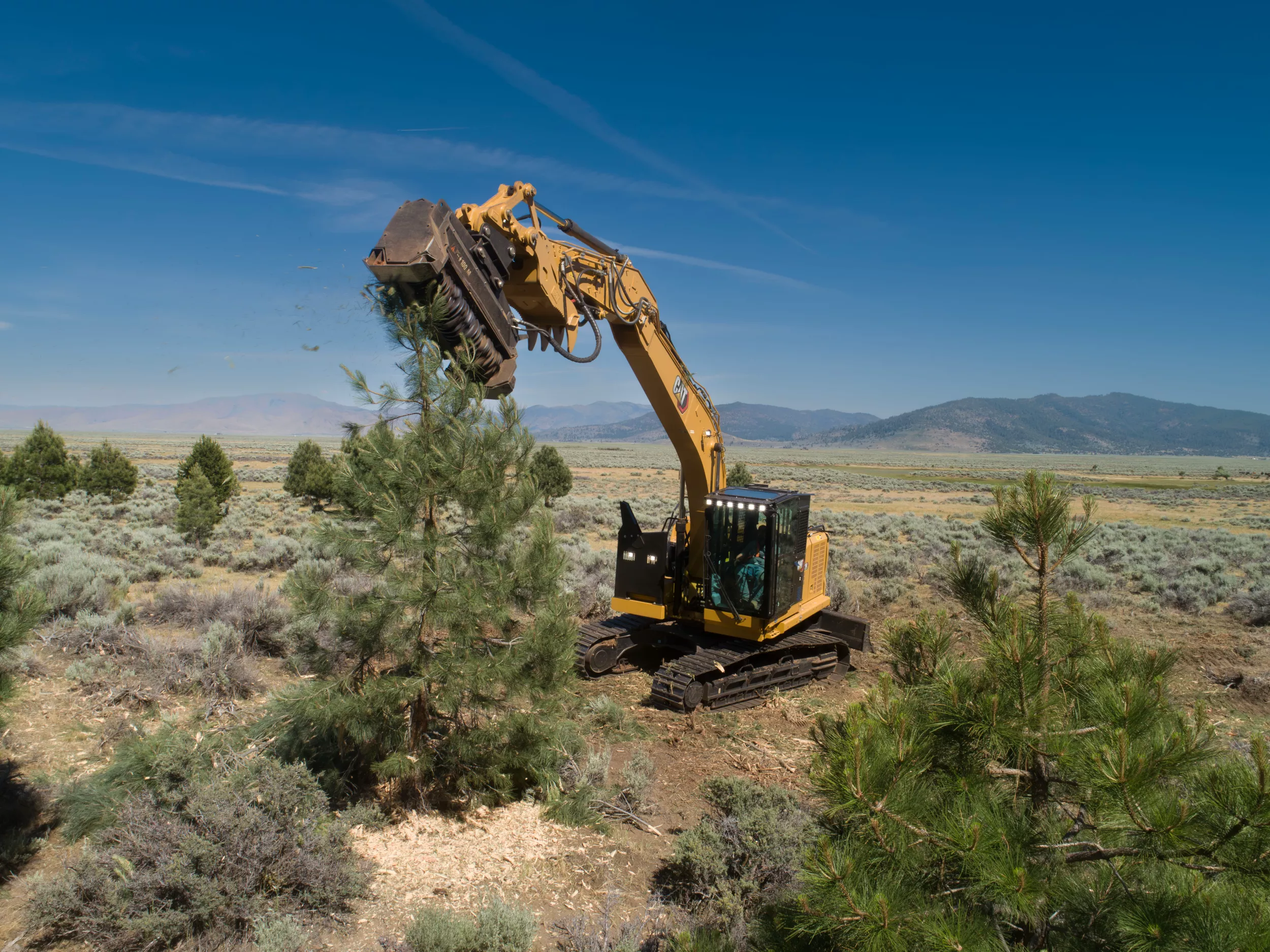

Mulchers: Ideal for forestry and agriculture applications. Mulchers clear land and manage vegetation by shredding brush, trees, and undergrowth into fine mulch. Their high-speed rotors deliver fast, consistent results, with interchangeable teeth to suit different materials and desired final mulch size.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.

Not all attachments are available in all regions. Contact your Cat Dealer for details.

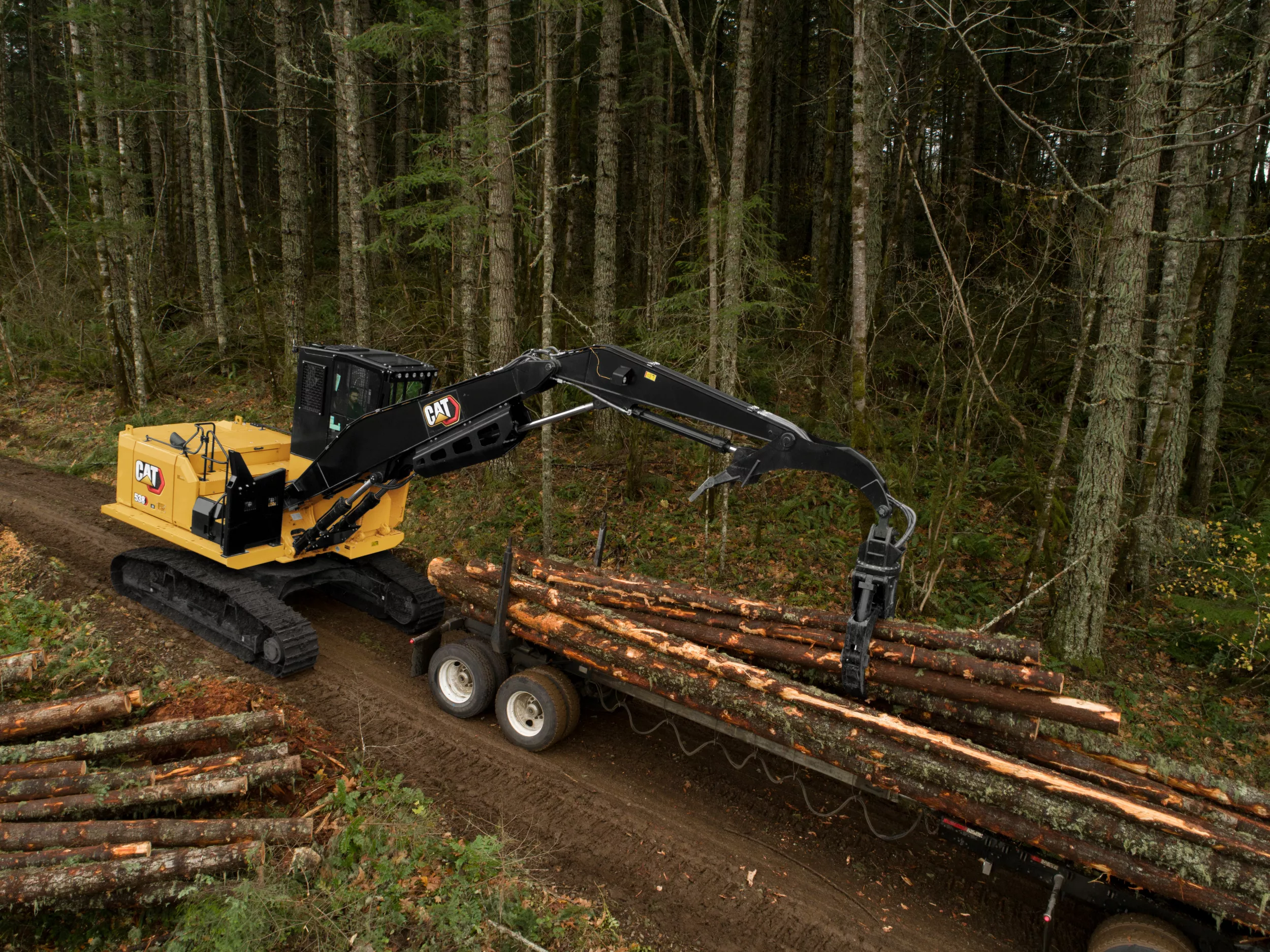

The Cat® 7.1 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Extended maintenance intervals reduce downtime and decrease the amount of fluid and filters that are replaced over the machine's life.
Cat® VisionLink displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running at maximum efficiency. Alerts for machine updates are sent virtually from your Cat® dealer, and updates can be deployed without a dealer technician needing to be onsite.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Specifications Standard Equipment Optional Equipment

Product Specifications for FM538 GF/FM538 LL

Engine

Engine Model	Cat C7.1 Cat C7.1
Net Power - ISO 9249	172 hp 129 kW
Engine Power - ISO 14396	174 hp 129 kW
Net Power - ISO 9249 (DIN)	175 hp (metric) 175 hp (metric)
Engine Power - ISO 14396 (DIN)	176 hp (metric) 176 hp (metric)
Bore	4 in 105 mm
Stroke	5 in 135 mm
Displacement	428 in³ 7 l
Biodiesel Capability	B20¹ B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Drive

Maximum Travel Speed	3 mile/h 4.9 km/h
Maximum Drawbar Pull	57,551 lbf 256 kN

Hydraulic System

Main System - Maximum Flow	124 gpm 468 L/min
Maximum Pressure - Equipment	5076 psi 35000 kPa
Maximum Pressure - Equipment - Lift Mode	5511 psi 38000 kPa
Maximum Pressure - Travel	5076 psi 35000 kPa
Maximum Pressure - Swing	4351 psi 30000 kPa

Swing Mechanism

Swing Speed	11 r/min 11 r/min
Maximum Swing Torque	72,281 lbf·ft 98 kN·m

Weights

General Forestry	66,140 lb 30000 kg
Note (1)	High Wide undercarriage, 165 mm (6.5") riser, Reach boom, R3.7 m (12'2") Drop Nose stick, 700 mm (28") double grouser shoes, no processor head. High Wide undercarriage, 165 mm (6.5") riser, Reach boom, R3.7 m (12'2") Drop Nose stick, 700 mm (28") double grouser shoes, no processor head.
Log Loader (U/U)	69,640 lb 31590 kg
Note (2)	High Wide undercarriage, 1219 mm (48") riser, Log Loader boom, 3.5 m (11'6") Under/Under stick with live heel, 700 mm (28") double grouser shoes, no grapple. High Wide undercarriage, 1219 mm (48") riser, Log Loader boom, 3.5 m (11'6") Under/Under stick with live heel, 700 mm (28") double grouser shoes, no grapple.

Service Refill Capacities

Fuel Tank	262 gal (US) 990 l
Cooling System	5 gal (US) 17.5 l
Engine Oil	7 gal (US) 25 l
Swing Drive	3 gal (US) 11.5 l
Final Drive - Each	1 gal (US) 4.5 l
Hydraulic System - Including Tank	69 gal (US) 262 l
Hydraulic Tank	38 gal (US) 143 l
DEF Tank	11 gal (US) 41 l

Dimensions

Note (1)	General Forestry with 5.7 m (18'7") Reach boom and 2.9 m (9'7") Thumb ready stick General Forestry with 5.7 m (18'7") Reach boom and 2.9 m (9'7") Thumb ready stick
Shipping Height - Tilted Cab	11.2 ft 3400 mm
Handrail Height	10.8 ft 3270 mm
Length: General Forestry - Boom Stretched Out	42.2 ft 12840 mm
Length: Log Loader - Boom Stretched Out	44.9 ft 13690 mm
Tail Swing Radius	10.3 ft 3130 mm
Counterweight Clearance	4.2 ft 1280 mm
Ground Clearance	2.5 ft 750 mm
Track Length	15.3 ft 4670 mm
Track Length to Center of Rollers	158 ft 4020 mm
Track Gauge	9.2 ft 2790 mm
Transport Width	11.4 ft 3490 mm

Working Ranges

Max Reach at Stick Nose at Ground Level - General Forestry Road Builder	28.8 ft 8800 mm
Max Reach at Grapple Mount on Heel at Ground Level - Log Loader Under/Under	35.9 ft 10960 mm

Air Conditioning System

Note (1)

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 (FIX CAB)/2 (48" Riser CAB) kg of refrigerant, which as a CO2 equivalent of 2.574/2.860 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 (FIX CAB)/2 (48" Riser CAB) kg of refrigerant, which as a CO2 equivalent of 2.574/2.860 metric tonnes.

FM538 GF/FM538 LL Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

ROPS Forestry cab with polycarbonate windows

Operator Protective Guards (OPG)

32 mm (1.25") polycarbonate front window

Four-point harness seat belt

Heated and cooled seat with air-adjustable suspension

Integrated joysticks

Tilt-up left-side console (side-entry cab only)

High-resolution touchscreen monitor

Bluetooth® integrated radio (including USB, aux port and microphone)

12V DC outlets

Keyless push-to-start engine control

Automatic bi-level air conditioner

LED dome and floor lights

Windshield wiper and washer

Behind seat storage

Retractable sunshade

CAT TECHNOLOGIES

VisionLink™

Remote Flash

Remote Troubleshoot

ELECTRICAL SYSTEM

Centralized electrical disconnect switch

Maintenance-free 1000 CCA batteries (x4)

Centralized electrical disconnect switch

LED chassis light

115-amp alternator

24-volt electric starting

Pre-start monitoring system

Tool control software

Secondary engine shut off switch

ENGINE

Electric fuel priming pump

Three selectable modes: Power, Smart, Eco

Automatic engine speed control

Automatic engine idle shutdown

Up to 4600m (15,092 ft) altitude capability

48° C (118° F) high-ambient cooling capacity

-32° C (-25° F) cold start capability

Hydraulic reverse fan

Two-stage fuel filter system

Double element air filter with integrated pre-cleaner

HYDRAULIC SYSTEM

Boom and stick regeneration circuits

Boom and stick drift reduction valve

Electronic main control valve

Automatic hydraulic oil warm up

Automatic swing parking brake

High performance hydraulic return filter

Automatic two speed travel

Bio hydraulic oil capability

High torque swing drive

Swing cushion valve

Tool control software

SAFETY AND SECURITY

Caterpillar One Key security system

Lockable service doors

Lockable external tool/storage box

Lockable fuel cap and hydraulic tank

Lockable disconnect switch

Right-hand rail and hand hold

Service platforms with anti-skid plate and countersunk bolts

Signaling/warning horn

Travel alarm

Ground-level secondary engine shutoff switch

Reaview camera

SERVICE AND MAINTENANCE

Integrated vehicle health management system

Side-entry service platform

Grouped location for engine oil and fuel filters

Ground level dipstick for engine oil

Scheduled Oil Sampling (S·O·S℠) ports

UNDERCARRIAGE AND STRUCTURES

High Wide undercarriage

203 mm (8") pitch Cat grease lubricated track chain with PPR3 positive pin retention

Catwalks

Tie down points

Counterweight fuel tank

Heavy-duty track rollers and frames

Heavy-duty travel motor guards

Heavy-duty bottom guards

Track guiding guards

High drawbar final drives

Heavy-duty recoil springs

Heavy-duty hydraulic swivel

Heavy-duty hydraulic swivel guard

FM538 GF/FM538 LL Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOMS AND STICKS

5.7 m (18'7") Reach boom

5.9 m (19'6") Log Loader boom

2.9 m (9'6") Thumb-ready stick

3.7 m (12'2") Drop Nose stick

3.5 m (11'6") Under/Under stick

3.8 m (12'6") Over/Under stick

3.8 m (12'6") Power Clam stick

4.2 m (13'9") Under/Under Extended Reach stick

B1 family bucket linkage

CAB

Side entry with 165 mm (6.5") fixed riser

Side entry with 1219 mm (48") tilting riser

Rear entry with 1219 mm (48") tilting riser

CB radio mounts

Cat Stick Steer

Auxiliary relay

ELECTRICAL SYSTEM

Premium lighting - General Forestry - 6 additional LED lights

Premium lighting - Log Loader - 10 additional LED lights

ENGINE

Cold start package with block heaters and ether assist

HYDRAULIC SYSTEM

Medium pressure circuit

SAFETY AND SECURITY

Easy lock cab tilting system

Cab riser light

Inspection lighting

Swing alarm

Right-hand sideview camera

UNDERCARRIAGE AND STRUCTURES

900 mm (36") triple grouser Tri Link shoes

800 mm (31") triple grouser shoes

700 mm (28") double grouser shoes

600 mm (24") double and single grouser shoes

600 mm (24") double and single grouser shoes

Product Specifications for FM538 GF/FM538 LL

Download Print

Engine

Engine Model	Cat C7.1 Cat C7.1
Net Power - ISO 9249	172 hp 129 kW
Engine Power - ISO 14396	174 hp 129 kW
Net Power - ISO 9249 (DIN)	175 hp (metric) 175 hp (metric)
Engine Power - ISO 14396 (DIN)	176 hp (metric) 176 hp (metric)
Bore	4 in 105 mm
Stroke	5 in 135 mm
Displacement	428 in³ 7 l
Biodiesel Capability	B20¹ B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,800 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Drive

Maximum Travel Speed	3 mile/h 4.9 km/h
Maximum Drawbar Pull	57,551 lbf 256 kN

Hydraulic System

Main System - Maximum Flow	124 gpm 468 L/min
Maximum Pressure - Equipment	5076 psi 35000 kPa
Maximum Pressure - Equipment - Lift Mode	5511 psi 38000 kPa
Maximum Pressure - Travel	5076 psi 35000 kPa
Maximum Pressure - Swing	4351 psi 30000 kPa

Swing Mechanism

Swing Speed	11 r/min 11 r/min
Maximum Swing Torque	72,281 lbf·ft 98 kN·m

Weights

General Forestry	66,140 lb 30000 kg
Note (1)	High Wide undercarriage, 165 mm (6.5") riser, Reach boom, R3.7 m (12'2") Drop Nose stick, 700 mm (28") double grouser shoes, no processor head. High Wide undercarriage, 165 mm (6.5") riser, Reach boom, R3.7 m (12'2") Drop Nose stick, 700 mm (28") double grouser shoes, no processor head.
Log Loader (U/U)	69,640 lb 31590 kg
Note (2)	High Wide undercarriage, 1219 mm (48") riser, Log Loader boom, 3.5 m (11'6") Under/Under stick with live heel, 700 mm (28") double grouser shoes, no grapple. High Wide undercarriage, 1219 mm (48") riser, Log Loader boom, 3.5 m (11'6") Under/Under stick with live heel, 700 mm (28") double grouser shoes, no grapple.

Service Refill Capacities

Fuel Tank	262 gal (US) 990 l
Cooling System	5 gal (US) 17.5 l
Engine Oil	7 gal (US) 25 l
Swing Drive	3 gal (US) 11.5 l
Final Drive - Each	1 gal (US) 4.5 l
Hydraulic System - Including Tank	69 gal (US) 262 l
Hydraulic Tank	38 gal (US) 143 l
DEF Tank	11 gal (US) 41 l

Dimensions

Note (1)	General Forestry with 5.7 m (18'7") Reach boom and 2.9 m (9'7") Thumb ready stick General Forestry with 5.7 m (18'7") Reach boom and 2.9 m (9'7") Thumb ready stick
Shipping Height - Tilted Cab	11.2 ft 3400 mm
Handrail Height	10.8 ft 3270 mm
Length: General Forestry - Boom Stretched Out	42.2 ft 12840 mm
Length: Log Loader - Boom Stretched Out	44.9 ft 13690 mm
Tail Swing Radius	10.3 ft 3130 mm
Counterweight Clearance	4.2 ft 1280 mm
Ground Clearance	2.5 ft 750 mm
Track Length	15.3 ft 4670 mm
Track Length to Center of Rollers	158 ft 4020 mm
Track Gauge	9.2 ft 2790 mm
Transport Width	11.4 ft 3490 mm

Working Ranges

Max Reach at Stick Nose at Ground Level - General Forestry Road Builder	28.8 ft 8800 mm
Max Reach at Grapple Mount on Heel at Ground Level - Log Loader Under/Under	35.9 ft 10960 mm

Air Conditioning System

Note (1)

FM538 GF/FM538 LL Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

ROPS Forestry cab with polycarbonate windows

Operator Protective Guards (OPG)

32 mm (1.25") polycarbonate front window

Four-point harness seat belt

Heated and cooled seat with air-adjustable suspension

Integrated joysticks

Tilt-up left-side console (side-entry cab only)

High-resolution touchscreen monitor

Bluetooth® integrated radio (including USB, aux port and microphone)

12V DC outlets

Keyless push-to-start engine control

Automatic bi-level air conditioner

LED dome and floor lights

Windshield wiper and washer

Behind seat storage

Retractable sunshade

CAT TECHNOLOGIES

VisionLink™

Remote Flash

Remote Troubleshoot

ELECTRICAL SYSTEM

Centralized electrical disconnect switch

Maintenance-free 1000 CCA batteries (x4)

Centralized electrical disconnect switch

LED chassis light

115-amp alternator

24-volt electric starting

Pre-start monitoring system

Tool control software

Secondary engine shut off switch

ENGINE

Electric fuel priming pump

Three selectable modes: Power, Smart, Eco

Automatic engine speed control

Automatic engine idle shutdown

Up to 4600m (15,092 ft) altitude capability

48° C (118° F) high-ambient cooling capacity

-32° C (-25° F) cold start capability

Hydraulic reverse fan

Two-stage fuel filter system

Double element air filter with integrated pre-cleaner

HYDRAULIC SYSTEM

Boom and stick regeneration circuits

Boom and stick drift reduction valve

Electronic main control valve

Automatic hydraulic oil warm up

Automatic swing parking brake

High performance hydraulic return filter

Automatic two speed travel

Bio hydraulic oil capability

High torque swing drive

Swing cushion valve

Tool control software

SAFETY AND SECURITY

Caterpillar One Key security system

Lockable service doors

Lockable external tool/storage box

Lockable fuel cap and hydraulic tank

Lockable disconnect switch

Right-hand rail and hand hold

Service platforms with anti-skid plate and countersunk bolts

Signaling/warning horn

Travel alarm

Ground-level secondary engine shutoff switch

Reaview camera

SERVICE AND MAINTENANCE

Integrated vehicle health management system

Side-entry service platform

Grouped location for engine oil and fuel filters

Ground level dipstick for engine oil

Scheduled Oil Sampling (S·O·S℠) ports

UNDERCARRIAGE AND STRUCTURES

High Wide undercarriage

203 mm (8") pitch Cat grease lubricated track chain with PPR3 positive pin retention

Catwalks

Tie down points

Counterweight fuel tank

Heavy-duty track rollers and frames

Heavy-duty travel motor guards

Heavy-duty bottom guards

Track guiding guards

High drawbar final drives

Heavy-duty recoil springs

Heavy-duty hydraulic swivel

Heavy-duty hydraulic swivel guard

FM538 GF/FM538 LL Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOMS AND STICKS

5.7 m (18'7") Reach boom

5.9 m (19'6") Log Loader boom

2.9 m (9'6") Thumb-ready stick

3.7 m (12'2") Drop Nose stick

3.5 m (11'6") Under/Under stick

3.8 m (12'6") Over/Under stick

3.8 m (12'6") Power Clam stick

4.2 m (13'9") Under/Under Extended Reach stick

B1 family bucket linkage

CAB

Side entry with 165 mm (6.5") fixed riser

Side entry with 1219 mm (48") tilting riser

Rear entry with 1219 mm (48") tilting riser

CB radio mounts

Cat Stick Steer

Auxiliary relay

ELECTRICAL SYSTEM

Premium lighting - General Forestry - 6 additional LED lights

Premium lighting - Log Loader - 10 additional LED lights

ENGINE

Cold start package with block heaters and ether assist

HYDRAULIC SYSTEM

Medium pressure circuit

SAFETY AND SECURITY

Easy lock cab tilting system

Cab riser light

Inspection lighting

Swing alarm

Right-hand sideview camera

UNDERCARRIAGE AND STRUCTURES

900 mm (36") triple grouser Tri Link shoes

800 mm (31") triple grouser shoes

700 mm (28") double grouser shoes

600 mm (24") double and single grouser shoes

600 mm (24") double and single grouser shoes

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Equipment Management

Payload

Productivity

Cat® Remote Flash

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
Cat® Remote Troubleshooting

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Payload for Excavators

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Next generation excavators take on all kinds of tasks - loading, stockpiling, material handling, and more. Cat® Payload technology provides on-the-go weighing to help operators hit exact targets every time and avoid overloading, underloading, or misloading materials.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Next generation excavators take on all kinds of tasks - loading, stockpiling, material handling, and more. Cat® Payload technology provides on-the-go weighing to help operators hit exact targets every time and avoid overloading, underloading, or misloading materials.

Explore Technology

VisionLink™ Productivity

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

See how FM538 GF/FM538 LL compares against frequently compared products.

Forest Machines

Selected

FM538 GF/FM538 LL Tier 4 / Stage V

Engine Model: Cat C7.1; Cat C7.1
Net Power - ISO 9249: 172 hp; 129 kW
Engine Power - ISO 14396: 174 hp; 129 kW

Forest Machines

FM528 GF/FM528 LL Tier 4 / Stage V

Engine Model: Cat C4.4; Cat C4.4
Net Power - ISO 9249: 170 hp; 127 kW
Engine Power - ISO 14396: 173 hp; 129 kW

View Details

Forest Machines

FM548 GF/FM548 LL Tier 4 / Stage V

Engine Model: Cat C7.1; Cat C7.1
Net Power - ISO 9249: 271 hp; 202.4 kW
Engine Power - ISO 14396: 275 hp; 205 kW

View Details

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

All

Internet Explorer users may experience issues with certain features of our site.
Please try a current version of an alternate browser (i.e. Google Chrome, Microsoft Edge, Mozilla Firefox) for the full Cat.com experience.

Forest Machines FM538 GF/FM538 LL Tier 4 / Stage V

Overview

Purpose-Built Strength for Log Loading

Benefits

Designed for Comfort and Ease

Boosts Production

Saves Time and Money

Features At A Glance

Product Specifications for FM538 GF/FM538 LL

Engine

Drive

Hydraulic System

Swing Mechanism

Weights

Service Refill Capacities

Dimensions

Working Ranges

Air Conditioning System

FM538 GF/FM538 LL Standard Equipment

NOTE

CAB

CAT TECHNOLOGIES

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

SERVICE AND MAINTENANCE

UNDERCARRIAGE AND STRUCTURES

FM538 GF/FM538 LL Optional Equipment

NOTE

BOOMS AND STICKS

CAB

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

UNDERCARRIAGE AND STRUCTURES

Product Specifications for FM538 GF/FM538 LL

Engine

Drive

Hydraulic System

Swing Mechanism

Weights

Service Refill Capacities

Dimensions

Working Ranges

Air Conditioning System

FM538 GF/FM538 LL Standard Equipment

NOTE

CAB

CAT TECHNOLOGIES

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

SERVICE AND MAINTENANCE

UNDERCARRIAGE AND STRUCTURES

FM538 GF/FM538 LL Optional Equipment

NOTE

BOOMS AND STICKS

CAB

ELECTRICAL SYSTEM

ENGINE

HYDRAULIC SYSTEM

SAFETY AND SECURITY

UNDERCARRIAGE AND STRUCTURES

Compatible Technology and Services

Cat® Remote Flash

Cat® Remote Troubleshooting

VisionLink™

Cat Payload for Excavators

VisionLink™ Productivity

See how FM538 GF/FM538 LL compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

assignment Product Brochures and More Are Ready to Download!

Product Brochures and More Are Ready to Download!
