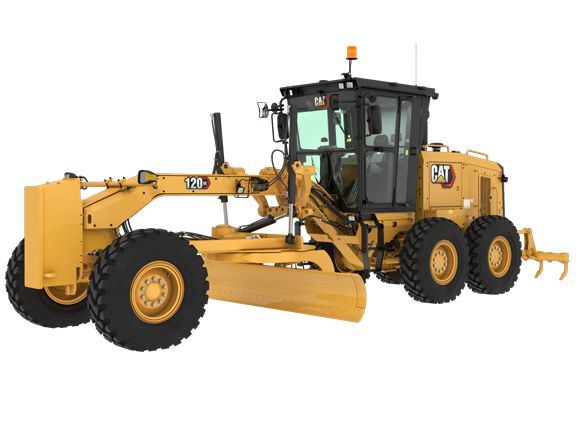

120 GC Motor Grader

Motor Graders 120 GC

Request A Price Find Dealer

Key Specs

Net Power - ISO 9249/SAE J1349
171 hp
128 kW
Operating Weight - Typically Equipped
31958 lb
14496 kg
Blade Width
12 ft
3.7 m

Overview

Reliable and Comfortable at Lower Cost

The Cat® 120 GC Motor Grader is easy to own and operate. A demand fan and standard Eco mode reduces fuel consumption while open access to maintenance points makes service quick and simple. Control the blade with consistent precision using lever controls from the comfort of the cab.

Benefits

Operate in Comfort

Boost productivity and comfort with adjustable seat and a ventilation system option.

Low Cost-Per-Hour Operation

Keep costs down with extended maintenance cycles and reversing fan option while saving on fuel with Eco mode.

Reliable Performance

Precise blade movement and power with the C4.4 engine helps to get the job finished on-time and budget.

Product Specifications for 120 GC

Net Power - ISO 9249/SAE J1349 171 hp 128 kW
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 268.5 in³ 4.4 l
Engine Power AWD (ISO 14396) 128 kW 171 hp
Maximum Torque 544 lb/ft 738 N·m
Derating Altitude 9842 ft 3000 m
Engine Model Cat® C4.4 Cat® C4.4
Torque Rise - ISO 9294 21% 21%
Note (1) Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler, and alternator. Power as declared per ISO 14396. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler, and alternator. Power as declared per ISO 14396.
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V emission standards Meets U.S. EPA Tier 4 Final, EU Stage V emission standards
Operating Weight - Typically Equipped 31958 lb 14496 kg
Note * Typically equipped machine weight is calculated with full fluids, ROPS HVAC CAB, 12' basic blade, push plate, ripper, 14-24 tires on multi-piece rims and operator. * Typically equipped machine weight is calculated with full fluids, ROPS HVAC CAB, 12' basic blade, push plate, ripper, 14-24 tires on multi-piece rims and operator.
Operating Weight - Typically Equipped - Front Axle 8708 lb 3950 kg
Operating Weight - Typically Equipped - Rear Axle 23250 lb 10546 kg
All-Wheel Drive (AWD) Weight 36376 lb 16500 kg
Blade Width 12 ft 3.7 m
Cutting Edge Width 6 in 152 mm
End Bit - Width 152 in 6 mm
Arc Radius 16.3 in 413 mm
Blade Height 20 in 580 mm
Throat Clearance 4.7 in 112 mm
Length of Machine* 391.4 in 9941 mm
Width 94.6 in 2402 mm
Maximum Height 149.1 in 3787.8 mm
Note *Typically equipped with push block and ripper. *Typically equipped with push block and ripper.
Moldboard Sideshift - Right 26.1 in 663 mm
Circle Centershift - Left 25.8 in 656 mm
Blade Tip Range - Forward 40° 40°
Circle Centershift - Right 25.8 in 656 mm
Moldboard Sideshift - Left 20.2 in 512 mm
Maximum Lift Above Ground 16.1 in 410 mm
Blade Tip Range - Backward
Maximum Depth of Cut 30.5 in 775 mm
Engine Crankcase 2 gal (US) 7.6 l
Hydraulic System 11.9 gal (US) 45 l
Fuel Tank 71 gal (US) 269 l
Diesel Exhaust Fluid Tank (Tier 4 Only) 3.2 gal (US) 12 l
Circle Drive without Slip Clutch 0.4 gal (US) 1.5 l
Transmission 4 gal (US) 15 l
Cooling System 10.3 gal (US) 39 l
Circle Drive with Slip Clutch 1.8 gal (US) 7 l
Recyclability 92% 92%
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.
Transmission Countershaft Torque, Converter Powershift Countershaft Torque, Converter Powershift
Forward/Reverse Gears 6 Forward / 3 Reverse 6 Forward / 3 Reverse
Steering Range - Left/Right 47.5° left or right 47.5° left or right
Articulation Angle - Left/Right 20� left or right 20� left or right

120 GC Standard Equipment

CAB

  • Standard Vinyl Seat
  • Adjustable Steering Wheel/Lever Controls
  • Seat Belt
  • Electric Throttle Control
  • ROPS/FOPS
  • Cab Storage
  • Halogen Lighting
  • Cup Holder
  • Dome Interior Light
  • Coat Hook
  • Product Link

POWERTRAIN

  • Cat C4.4 Engine
  • Eco mode
  • On-Demand Fan
  • 43� C (109� F) Ambient Capacity
  • No-Spin Differential
  • Engine Idle Shutdown Timer

SAFETY

  • Parking Brake
  • Signaling/Warning Horn
  • Rearview Mirror
  • Hydraulic Brakes
  • Side View Mirrors
  • Walkways and Grab Rails

DRAWBAR CIRCLE MOLDBOARD

  • Standard

ELECTRICAL

  • Sealed Alternator
  • Reversing Lights
  • Breaker Panel
  • 750 CCA Standard Duty Batteries
  • Electric Starter

SERVICE AND MAINTENANCE

  • Grouped Location for Engine Oil and Fuel Filters
  • Extended Life Coolant

GUARDS

  • Transmission Guard

120 GC Optional Equipment

CAB

  • Mechanical Suspension Seat
  • Air Suspension Seat
  • Heating/Cooling Cab System
  • Defrost Fans
  • Rear Wiper
  • Base Cab
  • Canopy
  • Cab Plus
  • Entertainment Radio Ready
  • Rear Window Screen
  • Front Wipers
  • Digital Blade Slope Meter

POWERTRAIN

  • Reversing Fan
  • Heavy Duty Starter
  • 50� C (122� F) Ambient Capacity
  • All-Wheel Drive (AWD) - available on Stage V machines only
  • Transmission, Autoshift

SAFETY

  • Rear Vision Camera
  • Warning Beacon
  • Secondary Steering System

DRAWBAR CIRCLE MOLDBOARD

  • Circle Drive Slip Clutch
  • Circle Saver

ELECTRICAL

  • 900 CCA Heavy Duty Batteries
  • 1400 CCA Extreme Duty Batteries

SERVICE AND MAINTENANCE

  • Reversing Fan

GUARDS

  • Fender Guard
  • Cover, Under Cab Platform

ATTACHMENTS

  • Push Block
  • Ripper
  • Scarifier
  • Front Blade
  • Towing Hitch
  • Front Lift Group From Factory

See how 120 GC compares against frequently compared products.

Product Brochures and More Are Ready to Download!

Full specifications, product brochures and more. Sign up below for additional information. Or for instant access, you can skip this form.

By sharing your information you’re giving Caterpillar permission to process your data to appropriately fulfill your request. Depending on your request, we may need to share your data with applicable dealers, within the Caterpillar group of companies, and applicable service providers operating on Caterpillar's behalf. Taking care of your information is a responsibility we take seriously. Our Website Privacy Notice details our data privacy practices and your rights to control your personal data.

*Marketing Consent

Media Gallery

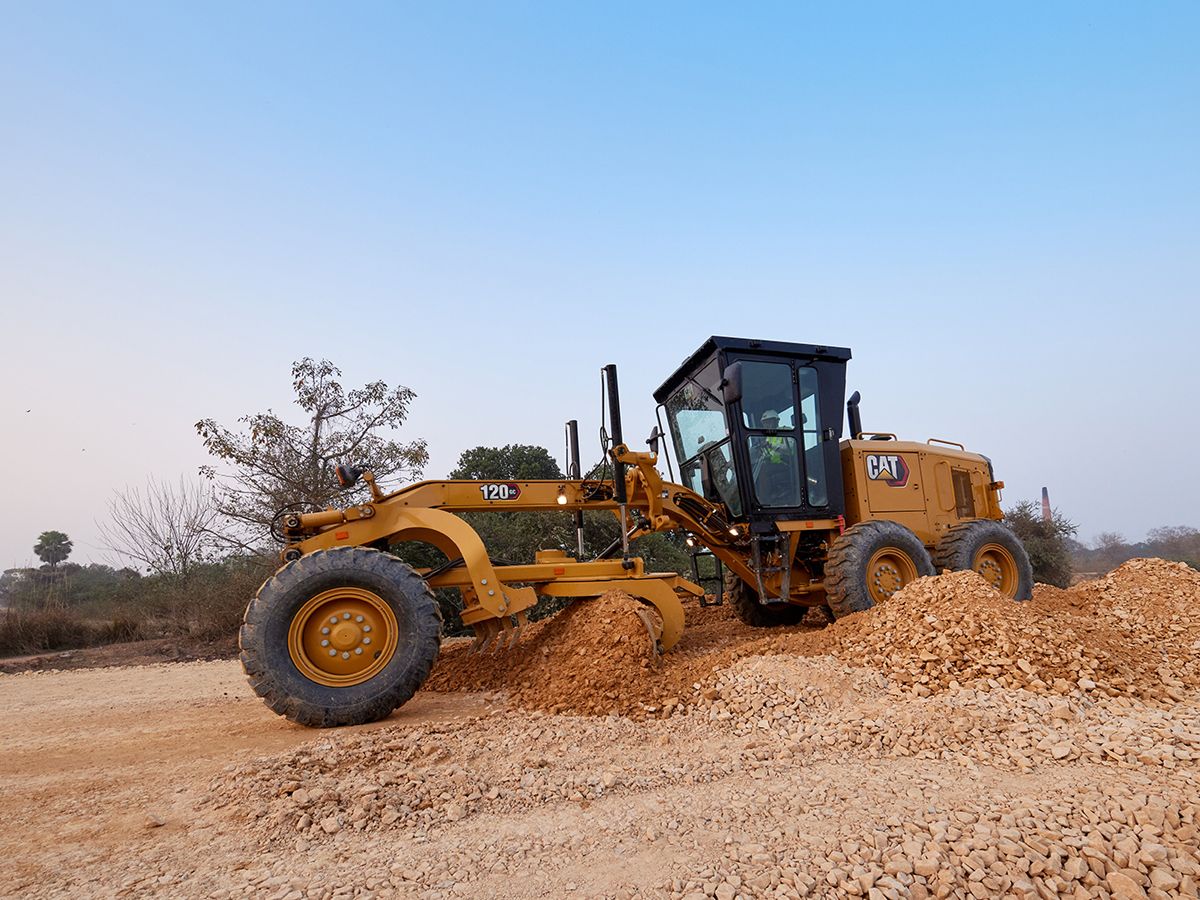

120 GC Motor Grader
