Motor Graders 160 / 160 AWD Tier 4 / Stage V

Request A Price Find Dealer

Key Specs

Base Power (1st Gear) - Net: 221 hp; 165 kW

Operating Weight - Typically Equipped: 45547 lb; 20660 kg

Blade Width: 14 ft; 4.2 m

160 / 160 AWD
Change model

Overview

High-Performance Grading and Efficiency

The Cat® 160/160 AWD motor graders deliver power, efficiency, operating finesse and operator comfort to the job. This high-performance machine minimizes emissions with the latest control technologies, without loss of productivity.

Benefits

Integrated Technologies

Using Cat® Grade technologies can increase your overall productivity with better accuracy, reduced rework, and lower costs.

Up To 10% Fuel savings

Using with Eco mode without loss of productivity.

More traction on slopes

All-Wheel Drive (AWD) assists with traction and maneuvering the machine, so you can work in any environment.

Features At A Glance

Displaying 1-6 of 8

DESIGNED FOR OPERATORS

Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Optional rear vision camera further enhances lines of sight all around the machine.
Experience the most spacious, comfortable cab in the industry.
Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced by 78%, helping reduce operator fatigue for better productivity.
Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float.
Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock.
Joystick lean angle mirrors the steer tires' turning angle.
A brake tensioning system holds the joystick in position until the operator moves it.
Steering control automatically reduces sensitivity at higher ground speeds for predictable control.
Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
Control switches are in easy reach.
Updated seat offers softer cushions, three-position tilt and optional heated and heated/cooled cushions.
Control pods are electronically positioned allowing each operator to set the ideal operating position.
Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.
High capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
An optional deluxe radio with CD features MP3 and Bluetooth® technology.
New Message Display shows machine performance and diagnostic information. Located in center console, it also displays Grade Control Cross Slope readings.
Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.
Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.
Select Fine, Normal or Coarse blade lift modulation to best fit application or operator preference.

Introducing the High Performance Circle

The optional High Performance Circle (HPC) improves machine performance, efficiency, and uptime through increased service intervals and longer life. Meeting grade elevation tolerance in road design efficiently is important to reduce rework on the job. With the HPC, you have greater confidence in meeting grade elevation tolerance design due to reduced wear between circle and drawbar.

POWERFUL EFFICIENCY

Cat C9.3 engine delivers the performance needed to maintain consistent grading speeds for maximum productivity.
Latest engine technology optimize productivity, fuel efficiency, reliability, life and minimize emissions.
Hydraulic demand fan automatically adjusts speed according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
Engine Idle Shutdown Timer is software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
Optional Reversing Fan, clears debris on-the-go.
The Motor Gradersgive you efficiency and longevity in your most demanding applications.
Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train.
Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match your application.
Eco Mode can be engaged for up to 10% fuel savings depending upon application.
Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
Wide operating gear range for maximum productivity.
Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
Sealed spindle keeps front axle bearings lubricated and protected from contaminants. The Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending bearing life.
Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to give you dependable stopping power and longer life.
Emissions technology is transparent with no action required from the operator or need to stop. Regeneration runs automatically at cold start-up and, if needed, in the background while you work.
Reaching Tier 4 Final standards only required one additional system to the proven Cat emission strategy - Selective Catalytic Reduction (SCR).
SCR utilizes Diesel Exhaust Fluid (DEF), conveniently filled from ground level when re-fueling.
A gauge on the dash shows your fluid level.
At shutdown, a pump automatically purges the DEF lines.
If the engine/aftertreatment temperatures are high, a Delayed Engine Shutdown will activate automatically to cool the machine and then purge the lines.

HEAVY DUTY CONSTRUCTION

Caterpillar designs motor grader frame and drawbar components to give you performance and durability.
The one-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
Articulation hitch features a large tapered roller bearing to carry loads evenly and smoothly. It is sealed to prevent contamination and a locking pin prevents articulation during service or transport.
The drawbar, circle and moldboard make it easy for you to keep the components tight.
Shims and patented top-adjust wear strips are easy to add or replace, reducing downtime.
Durable nylon composite wear inserts maximize circle torque and component life.
Sacrificial brass wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
An aggressive blade angle, optimized moldboard curvature and large throat clearance help you work more efficiently by allowing material to roll more freely along the blade.
Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts to give you greater moldboard reliability and long service life.
Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.
Proven load-sensing hydraulic system and advanced electro-hydraulics give you superior implement control and responsive performance that makes operator's jobs easier. Continuously matching hydraulic flow/pressure to power demands creates less heat and reduces power consumption.
Consistent, Predictable Movement - Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder, so you can count on consistent, predictable implement response.
Balanced Flow - Hydraulic flow is proportioned to give you confidence that all implements will operate simultaneously without slowing the engine or speed of some implements.
Blade can float freely under its own weight. By floating both cylinders, the blade can follow the contours of the ground. Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, reducing heat build-up and extending component life.
Cat XT™ hose allows high pressures for maximum power and reduced downtime.

TECHNOLOGY THAT GETS WORK DONE

Cat technologies makes smart use of technology and services to improve job site efficiency. Using the data from technology equipped machines, get more information and insight into equipment and operations
Cat technologies offer improvements in these key areas:
Equipment Management - increase uptime and reduce operating costs.
Productivity - monitor production and manage job site efficiency.
Safety - enhance job site awareness to keep your people and equipment safe.
Featured Cat technologies include -

Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
Cat Product Link/VisionLink is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
Cat Grade with Cross Slope is an optional, factory installed system that helps improve grading efficiency and more easily maintain accurate cross slopes. The system automatically controls one side of the blade, reducing manual operator inputs by as much as 50 percent. Experienced operators can maintain peak efficiency levels throughout more of the work day, while less experienced operators can be more productive faster. The system is job-ready from day one, and scalable for the future with upgrade kits that provide additional 2D and/or 3D control.

Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.

SAFETY FIRST

Operator Presence Monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
Speed Sensitive Steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
Secondary Steering System's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions.
Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
Safety Features -

Optional rearview camera with in-cab monitor
New, optional seat belt indicator light reminds operator to fasten safety belt
Grouped, ground level service points
Laminated front window glass
Optional LED Lighting
Ground-level electrical disconnect switch
Ground-level engine shutoff switch
Anti-glare paint eases night operation
Optional front and rear fenders

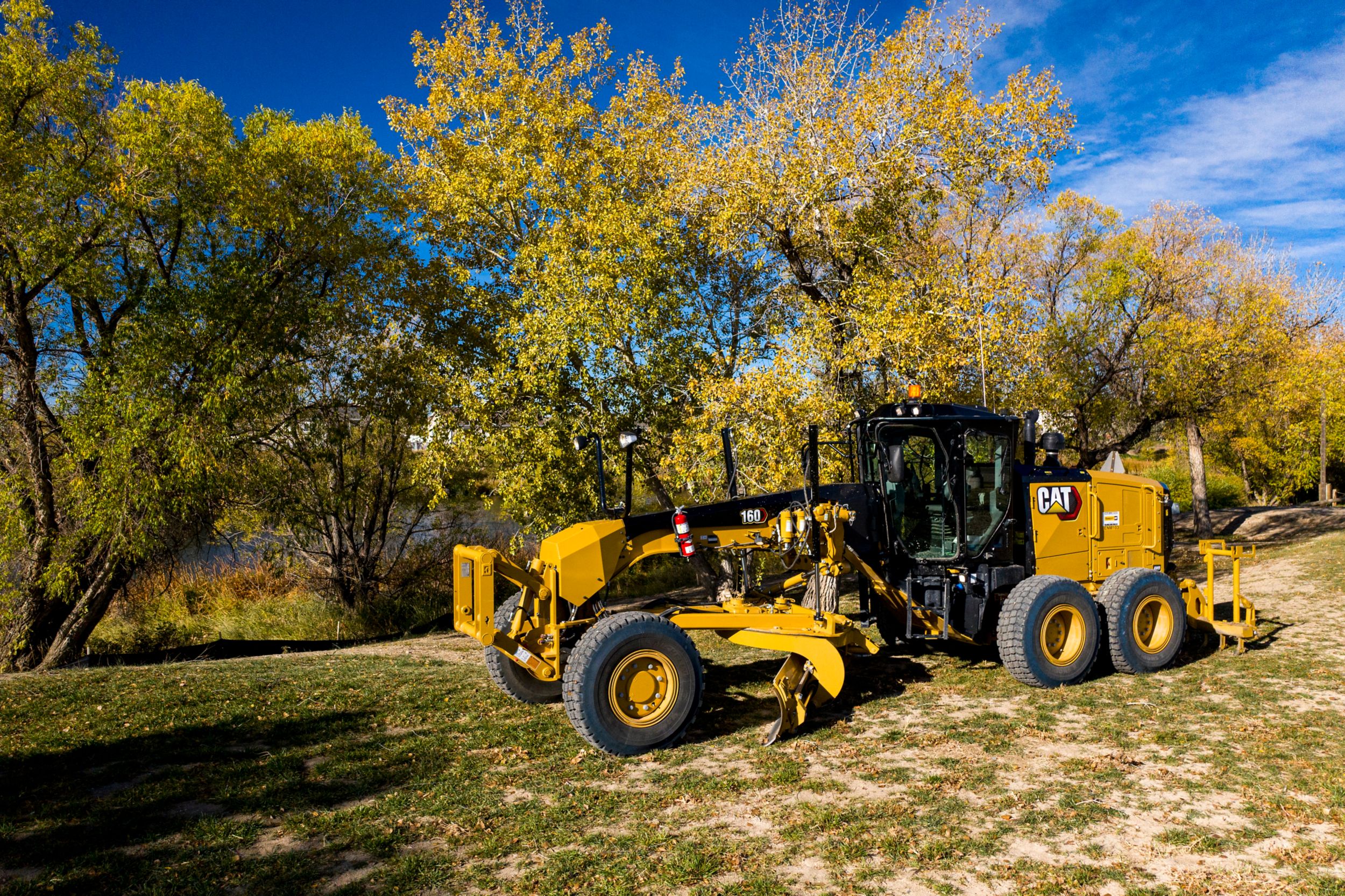

SUSTAINABILITY

The Cat® C9.3 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cat® Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured — not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Good visibility is key to safety and efficiency. Angled cab doors, tapered engine enclosure and a sloped rear window make it easy to see the moldboard and tires, as well as behind the machine. Optional rear vision camera further enhances lines of sight all around the machine.
Experience the most spacious, comfortable cab in the industry.
Easy-to-learn joystick controls replace levers, so hand and arm movement is reduced by 78%, helping reduce operator fatigue for better productivity.
Left joystick controls steering, articulation, return-to-center, wheel lean, gear selection, left moldboard lift cylinder and float.
Right joystick controls drawbar, circle and moldboard functions as well as electronic throttle control and manual differential lock/unlock.
Joystick lean angle mirrors the steer tires' turning angle.
A brake tensioning system holds the joystick in position until the operator moves it.
Steering control automatically reduces sensitivity at higher ground speeds for predictable control.
Infinitely variable roller switches control the rear ripper and/or front lift group (when equipped).
Control switches are in easy reach.
Updated seat offers softer cushions, three-position tilt and optional heated and heated/cooled cushions.
Control pods are electronically positioned allowing each operator to set the ideal operating position.
Multiple isolation mounts reduce sound and vibration for a more relaxed work environment.
High capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear.
An optional deluxe radio with CD features MP3 and Bluetooth® technology.
New Message Display shows machine performance and diagnostic information. Located in center console, it also displays Grade Control Cross Slope readings.
Electronic Throttle Control helps improve productivity by providing the best match of horsepower and torque for the demands of the application.
Articulation Return-to-Center automatically returns the machine to a straight frame position from any angle with the touch of a button.
Select Fine, Normal or Coarse blade lift modulation to best fit application or operator preference.

Cat C9.3 engine delivers the performance needed to maintain consistent grading speeds for maximum productivity.
Latest engine technology optimize productivity, fuel efficiency, reliability, life and minimize emissions.
Hydraulic demand fan automatically adjusts speed according to engine cooling requirements. When cooling demand is reduced, you benefit from more power to the ground and improved fuel efficiency.
Engine Idle Shutdown Timer is software-enabled by your Cat dealer to shut down the engine after a set period of time to save you fuel and help reduce emissions.
Optional Reversing Fan, clears debris on-the-go.
The Motor Gradersgive you efficiency and longevity in your most demanding applications.
Standard Automatic Differential Lock/Unlock unlocks the differential during a turn and re-locks when straight for easier operation and to help protect the power train.
Full Electronic Clutch Pressure Control system optimizes inching modulation for smooth shifts and directional changes, reducing stress on gears.
Programmable AutoShift option simplifies operation by allowing the operator to program the transmission to shift at optimal points to match your application.
Eco Mode can be engaged for up to 10% fuel savings depending upon application.
Power Shift Countershaft Transmission is matched to the Cat engine to maximize power to the ground.
Wide operating gear range for maximum productivity.
Engine Over-Speed Protection prevents downshifting until an acceptable safe travel speed has been established.
Sealed spindle keeps front axle bearings lubricated and protected from contaminants. The Cat “Live Spindle” design places the larger tapered roller bearing on the outside, where the load is greater, extending bearing life.
Bolt-on modular rear axle improves serviceability and contamination control with easy access to differential components.
Oil-bath, multi-disc service brakes are hydraulically actuated for smooth, predictable braking and lower operating costs. Brakes are located at each tandem wheel and have a large total brake surface area to give you dependable stopping power and longer life.
Emissions technology is transparent with no action required from the operator or need to stop. Regeneration runs automatically at cold start-up and, if needed, in the background while you work.
Reaching Tier 4 Final standards only required one additional system to the proven Cat emission strategy - Selective Catalytic Reduction (SCR).
SCR utilizes Diesel Exhaust Fluid (DEF), conveniently filled from ground level when re-fueling.
A gauge on the dash shows your fluid level.
At shutdown, a pump automatically purges the DEF lines.
If the engine/aftertreatment temperatures are high, a Delayed Engine Shutdown will activate automatically to cool the machine and then purge the lines.

Caterpillar designs motor grader frame and drawbar components to give you performance and durability.
The one-piece forged steel circle stands up to high stress loads, and a sacrificial wear system helps keep your service time and costs down.
Articulation hitch features a large tapered roller bearing to carry loads evenly and smoothly. It is sealed to prevent contamination and a locking pin prevents articulation during service or transport.
The drawbar, circle and moldboard make it easy for you to keep the components tight.
Shims and patented top-adjust wear strips are easy to add or replace, reducing downtime.
Durable nylon composite wear inserts maximize circle torque and component life.
Sacrificial brass wear strips between the blade mounting group and moldboard can be easily adjusted and replaced.
Shim less Moldboard Retention System uses vertical and horizontal adjusting screws to keep moldboard wear strips aligned for reduced blade chatter and precise blade control.
An aggressive blade angle, optimized moldboard curvature and large throat clearance help you work more efficiently by allowing material to roll more freely along the blade.
Heat-treated rails, hardened cutting edges and end bits, and heavy duty bolts to give you greater moldboard reliability and long service life.
Link bar allows extreme moldboard positioning for easier bank sloping and ditch cutting/cleaning.
Proven load-sensing hydraulic system and advanced electro-hydraulics give you superior implement control and responsive performance that makes operator's jobs easier. Continuously matching hydraulic flow/pressure to power demands creates less heat and reduces power consumption.
Consistent, Predictable Movement - Proportional Priority Pressure-Compensating (PPP-C) valves have different flow rates for the head and rod ends of the cylinder, so you can count on consistent, predictable implement response.
Balanced Flow - Hydraulic flow is proportioned to give you confidence that all implements will operate simultaneously without slowing the engine or speed of some implements.
Blade can float freely under its own weight. By floating both cylinders, the blade can follow the contours of the ground. Floating only one cylinder permits the toe of the blade to follow a hard surface while the operator controls the slope with the other lift cylinder.
Large, separate hydraulic oil supplies prevent cross-contamination and provide proper oil cooling, reducing heat build-up and extending component life.
Cat XT™ hose allows high pressures for maximum power and reduced downtime.

Cat technologies makes smart use of technology and services to improve job site efficiency. Using the data from technology equipped machines, get more information and insight into equipment and operations
Cat technologies offer improvements in these key areas:
Equipment Management - increase uptime and reduce operating costs.
Productivity - monitor production and manage job site efficiency.
Safety - enhance job site awareness to keep your people and equipment safe.
Featured Cat technologies include -

Link technologies that provide wireless capability to machines enabling two-way transfer of information collected by on-board sensors, control modules, and other Cat technologies using off-board apps, such as Cat VisionLink® software.
Cat Product Link/VisionLink is deeply integrated, helping take guesswork out of equipment management. Easy access to timely information like machine location, hours, fuel usage, idle time and event codes via the online VisionLink user interface helps effectively manage fleet and lower operating costs.
Grade technologies combine digital design data, in-cab guidance, and automatic blade controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.
Cat Grade with Cross Slope is an optional, factory installed system that helps improve grading efficiency and more easily maintain accurate cross slopes. The system automatically controls one side of the blade, reducing manual operator inputs by as much as 50 percent. Experienced operators can maintain peak efficiency levels throughout more of the work day, while less experienced operators can be more productive faster. The system is job-ready from day one, and scalable for the future with upgrade kits that provide additional 2D and/or 3D control.

Cat Messenger, combined with full systems integration, enhances diagnostic capability for quick analysis of critical data.
Electronic Technician (Cat ET) lets service technicians access stored diagnostic data and configure machine parameters through the Cat Data Link.
Low Battery Elevated Idle raises idle speed when low system voltage is detected, ensuring adequate system voltage and improving battery reliability.
Automatic Engine Deration protects the engine by automatically lowering engine torque output and alerting the operator if critical conditions are detected.
Manage your fleet of machines while reducing fuel burn with Cat Production Measurement System option. The Efficiency Coach and Application Segmentation work together to monitor operators and machines simultaneously. Measure your jobsite’s efficiency and productivity from anywhere on the website.

Operator Presence Monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
Speed Sensitive Steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
Secondary Steering System's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
Circle Drive Slip Clutch protects the drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions.
Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
Safety Features -

Optional rearview camera with in-cab monitor
New, optional seat belt indicator light reminds operator to fasten safety belt
Grouped, ground level service points
Laminated front window glass
Optional LED Lighting
Ground-level electrical disconnect switch
Ground-level engine shutoff switch
Anti-glare paint eases night operation
Optional front and rear fenders

Cat motor graders are designed to help you increase uptime and reduce costs.
Grouped service points and extended service intervals save maintenance time.
New, optional LED lights in the left hand compartments make it more convenient to service the machine in low light.
Cat dealers are second to none. From machine selection and purchase to maintenance support, operator training and rebuilds, Cat dealers have the experience and capabilities to help keep you up and running at peak performance.

The Cat® C9.3 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cat® Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured — not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Specifications Standard Equipment Optional Equipment

Product Specifications for 160 / 160 AWD

Engine

Base Power (1st Gear) - Net	221 hp 165 kW
Engine Model	Cat® C9.3 Cat® C9.3
Bore	4.5 in 115 mm
Stroke	5.9 in 149 mm
Speed at Rated Power	2,000 rpm 2,000 rpm
VHP Plus - Gear - Net Power - Forward 1st	221 hp 165 kW
Standard Capability	109 °F 43 °C
Torque Rise	39% 39%
VHP Plus - Gear - Net Power - Forward 8th	272 hp 203 kW
VHP Plus - Gear - Net Power - Forward 3rd	241 hp 180 kW
VHP Plus - Gear - Net Power - Forward 4th	252 hp 188 kW
VHP Plus - Gear - Net Power - Forward 2nd	231 hp 172 kW
VHP Plus - Gear - Net Power - Forward 6th	262 hp 195 kW
Maximum Torque - VHP Plus	1000 lb/ft 1355 N·m
VHP Plus Range - Net	165-203 kW (221-272 hp) 165-203 kW (221-272 hp)
VHP Plus - Gear - Net Power - Forward 7th	267 hp 199 kW
VHP Plus - Gear - Net Power - Reverse 1st	221 hp 165 kW
Base Power (1st Gear) - Net - Metric	224 hp 165 kW
High Ambient - Fan Speed - Standard	1,400 rpm 1,400 rpm
VHP Plus - Gear - Net Power - Forward 5th	257 hp 191 kW
VHP Plus - Gear - Net Power - Reverse 2nd	231 hp 172 kW
VHP Plus Range - Net - Metric	165-203 kW (224-276 hp) 165-203 kW (224-276 hp)
Emissions	U.S. EPA Tier 4 Final/EU Stage V U.S. EPA Tier 4 Final/EU Stage V
VHP Plus - Gear - Net Power - Reverse 3rd-6th	241 hp 180 kW
Displacement	567.5 in³ 9.3 l
Number of Cylinders	6 6
Derating Altitude	10000 ft 3050 m
High Ambient - Fan Speed - Maximum	1,550 rpm 1,550 rpm
High Ambient - Fan Speed - Minimum	500 rpm 500 rpm
High - Ambient Capability	122 °F 50 °C

Weights

Operating Weight - Typically Equipped	45547 lb 20660 kg
Gross Vehicle Weight - Maximum - Rear Axle	38069 lb 17268 kg
Gross Vehicle Weight - Base - Front Axle	9907 lb 4494 kg
Gross Vehicle Weight - Base - Rear Axle	28812 lb 13069 kg
Gross Vehicle Weight - Maximum - Total	55144 lb 25013 kg
Operating Weight - Typically Equipped - Front Axle	13237 lb 6004 kg
Gross Vehicle Weight - Base - Total	38719 lb 17563 kg
Gross Vehicle Weight - Maximum - Front Axle	17075 lb 7745 kg
Operating Weight - Typically Equipped - Total	45547 lb 20660 kg
Operating Weight - Typically Equipped - Rear Axle	32310 lb 14656 kg

Moldboard

Blade Width	14 ft 4.2 m
Moldboard - Height	24 in 610 mm
Moldboard - Thickness	0.87 in 22 mm
Arc Radius	16.3 in 413 mm
Throat Clearance	6.5 in 166 mm
Cutting Edge Width	6 in 152 mm
Cutting Edge Thickness	0.6 in 16 mm
End Bit - Width	6 in 152 mm
End Bit - Thickness	0.6 in 16 mm
Blade Pull - Base GVW	25931 lb 11762 kg
Blade Pull - Maximum GVW	34262 lb 15541 kg
Blade Down Pressure - Base GVW	17004 lb 7713 kg
Blade Down Pressure - Maximum GVW	29308 lb 13294 kg
Moldboard - Blade Width	14 ft 4.2 m

Operating Specifications

Top Speed - Forward	29.5 mile/h 47.4 km/h
Top Speed - Reverse	23.3 mile/h 37.4 km/h
Turning Radius - Outside Front Tires	25.59 ft 7.8 m
Steering Range - Left/Right	50° 50°
Articulation Angle - Left/Right	20° 20°
Forward - 1st	2.6 mile/h 4.1 km/h
Forward - 2nd	3.5 mile/h 5.6 km/h
Forward - 3rd	5.1 mile/h 8.1 km/h
Forward - 4th	7 mile/h 11.2 km/h
Forward - 5th	10.8 mile/h 17.4 km/h
Forward - 6th	14.7 mile/h 23.7 km/h
Forward - 7th	20.3 mile/h 32.6 km/h
Forward - 8th	29.5 mile/h 47.4 km/h
Reverse - 1st	2 mile/h 3.3 km/h
Reverse - 2nd	3.8 mile/h 6.1 km/h
Reverse - 3rd	5.5 mile/h 8.8 km/h
Reverse - 4th	8.5 mile/h 13.7 km/h
Reverse - 5th	16 mile/h 25.7 km/h
Reverse - 6th	23.3 mile/h 37.4 km/h

Service Refill

Fuel Capacity	104 gal (US) 394 l
Cooling System	15 gal (US) 57 l
Hydraulic System - Total	26.4 gal (US) 100 l
Hydraulic System - Tank	16.9 gal (US) 64 l
Transmission - Differential - Final Drives	18.5 gal (US) 70 l
Diesel Exhaust Fluid	5.8 gal (US) 22 l
Engine Oil	7.9 gal (US) 30 l
Tandem Housing - Each	22.9 gal (US) 87 l
Front Wheel Spindle Bearing Housing	0.13 gal (US) 0.5 l
Circle Drive Housing	1.8 gal (US) 7 l

Power Train

Forward/Reverse Gears	8 Forward/6 Reverse 8 Forward/6 Reverse
Transmission	APECS, Direct Drive, Powershift APECS, Direct Drive, Powershift
Brakes - Service	Multiple Oil Disc Multiple Oil Disc
Brakes - Service - Surface Area	3565 in² 23000 cm²
Brakes - Parking	Multiple Oil Disc Multiple Oil Disc
Brakes - Secondary	Dual Circuit Control Dual Circuit Control

Hydraulic System

Circuit Type	Parallel Parallel
Pump Type	Variable Piston Variable Piston
Pump Output	55.5 gpm 210 L/min
Maximum System Pressure	3503 psi 24150 kPa
Reservoir Tank Capacity	16.9 gal (US) 64 l
Standby Pressure	885 psi 6100 kPa

Frame

Drawbar - Width	3 in 76.2 mm
Circle - Diameter	61.1 in 1553 mm
Circle - Blade Beam Thickness	1.6 in 40 mm
Drawbar - Height	6 in 152 mm
Front Frame Structure - Width	12 in 305 mm
Circle - Height	6.3 in 160 mm
Front Frame Structure - Height	12.6 in 321 mm
Drawbar - Thickness	0.5 in 12.7 mm
Front-Top/Bottom Plate - Width	12 in 305 mm
Front-Top/Bottom Plate - Thickness	0.87 in 22 mm
Front Axle - Height to Center	23.5 in 596 mm
Front Axle - Wheel Lean - Left/Right	18° 18°
Front Axle - Total Oscillation per Side	32° 32°

Blade Range

Circle Centershift - Right	28.7 in 728 mm
Circle Centershift - Left	27.4 in 695 mm
Moldboard Sideshift - Right	26 in 660 mm
Moldboard Sideshift - Left	20.1 in 510 mm
Maximum Blade Position Angle	90° 90°
Blade Tip Range - Forward	40° 40°
Blade Tip Range - Backward	5° 5°
Maximum Lift Above Ground	17.8 in 452 mm
Maximum Depth of Cut	29.5 in 750 mm
Maximum Shoulder Reach Outside of Tires - Left	82.3 in 2090 mm
Maximum Shoulder Reach Outside of Tires - Right	89.7 in 2278 mm

Ripper

Ripping Depth - Maximum	16.8 in 426 mm
Ripper Shank Holder Spacing	21 in 533 mm
Ripper Shank Holders	5 5
Penetration Force	20812 lb 9440 kg
Pry-Out Force	28493 lb 12924 kg
Machine Length Increase, Beam Raised	40.6 in 1031 mm

Scarifier

Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing	4.6 in 116 mm
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum	18.4 in 467 mm
Mid, V-Type - Working Width	46.6 in 1184 mm
Rear - Scarifying Depth, Maximum	16.8 in 426 mm
Front, V-Type - Working Width	47.4 in 1205 mm
Mid, V-Type - Scarifier Shank Holder Spacing	4.6 in 116 mm
Mid, V-Type - Scarifying Depth, Maximum	11.5 in 292 mm
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders	5/11 5/11
Front, V-Type, 5 or 11 Tooth - Working Width	40.6 in 1031 mm
Mid, V-Type - Scarifier Shank Holders	11 11
Rear - Working Width	84 in 2133 mm
Rear - Scarifier Shank Holders	9 9
Rear - Scarifier Shank Holder Spacing	10.5 in 267 mm

Standards

Brakes	ISO 3450 ISO 3450
ROPS/FOPS	ISO 3471; ISO 3449 ISO 3471; ISO 3449
Steering	ISO 5010 ISO 5010
Sound	ISO 6394; ISO 6395 ISO 6394; ISO 6395

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas.

Tandems

Height	22.5 in 572 mm
Width	8 in 204 mm
Sidewall Thickness - Inner	0.69 in 17.5 mm
Sidewall Thickness - Outer	0.71 in 18 mm
Drive Chain Pitch	2 in 50.8 mm
Wheel Axle Spacing	60 in 1523 mm
Tandem Oscillation - Front Up	15° 15°
Tandem Oscillation - Front Down	25° 25°

Dimensions

Height - Top of Cab	130 in 3308 mm
Length - Counterweight to Ripper	399 in 10136 mm
Width - Outside Front Tires	98.9 in 2511 mm
Length - Front Axle to Mid Tandem	241 in 6123 mm
Length - Front Tire to Rear of Machine	351 in 8912 mm
Length - Front Axle to Moldboard	100 in 2552 mm
Length - Between Tandem Axles	60 in 1523 mm
Width - Outside Rear Tires	98.9 in 2511 mm
Width - Tire Center Lines	84.3 in 2140 mm
Height - Front Axle Center	23.5 in 596 mm
Height - Exhaust Stack	128 in 3256 mm
Height - Top of Cylinders	120 in 3040 mm
Ground Clearance - Rear Axle	13.3 in 339 mm

160 / 160 AWD Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger

Air-to-air after cooler (ATAAC)

Belt, serpentine, automatic tensioner

Brakes, oil disc, four-wheel, hydraulic

Demand fan, hydraulic, swing-out

Diesel exhaust fluid tank, 22.0 L (5.8 gal) ground level access, and sediment drain

Differential Lock/Unlock, Automatic

Drain, engine oil, ecology

Economy mode

Electronic over speed protection

Engine, C9.3 U.S. EPA Tier 4 Final/EU Stage V emission standards

Fuel tank, 394 L (104 gal), ground level access and sediment drain

Parking brake - multi-disc, sealed, oil-cooled

Priming pump, fuel

Rear axle, modular

Sediment drain, fuel tank

Tandem drive

Transmission, 8F/6R, powershift, direct drive, Advanced Productivity Electronic Control Strategy (APECS)

ELECTRICAL

Alarm, back up

Alternator, 150 ampere, sealed

Batteries, maintenance free, heavy duty, 1125 CCA

Breaker panel, ground accessible

Cab harness and electrical hydraulic valves

Electrical system, 24V

Grade Control Ready - Cab harness, software, electrical hydraulic valves, bosses and brackets

Lights, roof-mounted roading, reversing, LED stop and tail

Product Link

Starter, electric

OPERATOR ENVIRONMENT

Accelerator

Air conditioning with heater

Arm and wrist rest, electronically adjustable

Articulation, automatic Return-to-Center

Cat Messenger operator information system

Centershift pin indicator

Coat hook

Cup holder

Display, digital speed and gear

Doors, left and right side with wiper

Gauge, machine level

Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp, regen, DEF

Hour meter, digital

Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and power steering

Joystick, adjustable armrests

Joystick gear selection

Joystick hydraulic power steering

Ladders, cab, left and right side

Lights, night time cab

Mirror, inside rearview, wide angle

Power port, 12V

Radio Ready, Entertainment

ROPS cab, sound suppressed 70 dB(A)

Seat, cloth-covered, comfort suspension

Seat belt, retractable 76 mm (3 in)

Storage area for cooler/lunchbox

Throttle control, electronic

Windows, laminated glass: - fixed front with intermittent wiper - door with intermittent wipers (3)

Windows: tempered: - left and right side wipers - rear and intermittent wiper

FLUIDS

Antifreeze

Extended Life Coolant to -35° C (-30° F)

TIRES, RIMS AND WHEELS

Partial allowance for tires on 254 — 607 mm (10 — 24 in) multi-piece rims is included in the base machine price and weight

OTHER STANDARD EQUIPMENT

Accumulators, brake, dual certified

Anti-glare paint

Bumper, rear, integrated with hitch

CD ROM Parts Book

Clutch, circle drive slip

Cutting edges: - 152 — 16 mm (6 — 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts

Doors (3), engine compartment, locking

Drawbar - 6 shoes, replaceable wear strips

Electrical hydraulic valves, hydraulic lines for base 8 functions

Endbits: - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts

Fluid check, ground level

Frame, articulated, with safety lock

Ground level engine shutdown

Hammer (emergency exit)

Horn, electric

Hydraulic lines for base functions

Lockout, hydraulic implement (for roading and servicing)

Moldboard

Mounting, cab roof accessories

Pump, hydraulic, high capacity

Radiator, cleanout access (both sides with swing doors)

Secondary steering

Serviceability, LH side

S·O·S ports: engine, hydraulic, transmission, coolant, fuel

Tandem walkway/guards

Tool box

160 / 160 AWD Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alternator, 280 ampere

Batteries: extreme duty, 1,400 CCA

Lights: Headlights, high

Lights: Headlights, low

Lights: Working lights, basic

Lights: Working lights, plus, LED

Lights: Warning: beacon or strobe

Lights: Mounting for warning light

GUARDS

Articulation guard

Fenders, front

Fenders, rear

Front axle guard

Sound suppression (bottom)

Sound suppression (enclosure)

Transmission

OPERATOR ENVIRONMENT

Mirrors, outside: heated 24V

Mirrors, outside: mounted

Comfort Plus Arrangement

Comfort Premium Arrangement

POWER TRAIN

All Wheel Drive

Precleaner, snow

Starter, extreme duty, 1,000 Amps

Transmission, autoshift

OTHER ATTACHMENTS

Attachment Ready Option ARO

Integrated cross slope

Accumulators, blade lift

Camera, rearview

Cat Product Link 321SR

Cat Product Link 522

Drain, ecology, engine Wiggins

Heater, engine coolant: 120V

Heater, engine coolant: 240V

Hydraulic arrangements with one or more additional hydraulic valves are available for rear ripper, dozer, snow plow and snow wing.

Snow wing mounting, frame ready

Starting aid, ether

Reversing fan, automatic or manual

Cat Grade with 3D

WORK TOOLS/G.E.T.

Blade extension, left hand, 610 mm (2 ft)

Blade extension, right hand, 610 mm (2 ft)

Counterweight

Cutting edges, curved

Endbits, overlay

Front lift group, mounting

Front lift group, mechanical

Grader bit, narrow and super penetration

Mid-Mount Scarifier, Package

Moldboard: 4267 mm — 610 mm — 22 mm (14 ft — 24 in — 7/8 in)

Moldboard: 4267 mm — 686 mm — 25 mm (14 ft — 27 in — 1 in)

Moldboard: 4877 mm — 686 mm — 25 mm (16 ft — 27 in — 1 in)

Push plate

Ripper, rear

Ripper tooth

Scarifier, front

Snow Arrangement

Snow Wing Ready Package

Tow hitch

MACHINE ARRANGEMENTS

Canadian Arrangement

European Arrangement

TUV Roading Arrangement

OPTIONAL TIRE ARRANGEMENTS

Rim Size - 9 × 24; Wheel Group - Single-Piece; Tires - 14.0R24

Rim Size - 13 × 25; Wheel Group - Single-Piece; Tires - 17.5R25

Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.0R24

Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.0-24

Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5R25

Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5-25

Note: Consult your dealer for individual tire width, size and brand.

Product Specifications for 160 / 160 AWD

Download Print

Engine

Base Power (1st Gear) - Net	221 hp 165 kW
Engine Model	Cat® C9.3 Cat® C9.3
Bore	4.5 in 115 mm
Stroke	5.9 in 149 mm
Speed at Rated Power	2,000 rpm 2,000 rpm
VHP Plus - Gear - Net Power - Forward 1st	221 hp 165 kW
Standard Capability	109 °F 43 °C
Torque Rise	39% 39%
VHP Plus - Gear - Net Power - Forward 8th	272 hp 203 kW
VHP Plus - Gear - Net Power - Forward 3rd	241 hp 180 kW
VHP Plus - Gear - Net Power - Forward 4th	252 hp 188 kW
VHP Plus - Gear - Net Power - Forward 2nd	231 hp 172 kW
VHP Plus - Gear - Net Power - Forward 6th	262 hp 195 kW
Maximum Torque - VHP Plus	1000 lb/ft 1355 N·m
VHP Plus Range - Net	165-203 kW (221-272 hp) 165-203 kW (221-272 hp)
VHP Plus - Gear - Net Power - Forward 7th	267 hp 199 kW
VHP Plus - Gear - Net Power - Reverse 1st	221 hp 165 kW
Base Power (1st Gear) - Net - Metric	224 hp 165 kW
High Ambient - Fan Speed - Standard	1,400 rpm 1,400 rpm
VHP Plus - Gear - Net Power - Forward 5th	257 hp 191 kW
VHP Plus - Gear - Net Power - Reverse 2nd	231 hp 172 kW
VHP Plus Range - Net - Metric	165-203 kW (224-276 hp) 165-203 kW (224-276 hp)
Emissions	U.S. EPA Tier 4 Final/EU Stage V U.S. EPA Tier 4 Final/EU Stage V
VHP Plus - Gear - Net Power - Reverse 3rd-6th	241 hp 180 kW
Displacement	567.5 in³ 9.3 l
Number of Cylinders	6 6
Derating Altitude	10000 ft 3050 m
High Ambient - Fan Speed - Maximum	1,550 rpm 1,550 rpm
High Ambient - Fan Speed - Minimum	500 rpm 500 rpm
High - Ambient Capability	122 °F 50 °C

Weights

Operating Weight - Typically Equipped	45547 lb 20660 kg
Gross Vehicle Weight - Maximum - Rear Axle	38069 lb 17268 kg
Gross Vehicle Weight - Base - Front Axle	9907 lb 4494 kg
Gross Vehicle Weight - Base - Rear Axle	28812 lb 13069 kg
Gross Vehicle Weight - Maximum - Total	55144 lb 25013 kg
Operating Weight - Typically Equipped - Front Axle	13237 lb 6004 kg
Gross Vehicle Weight - Base - Total	38719 lb 17563 kg
Gross Vehicle Weight - Maximum - Front Axle	17075 lb 7745 kg
Operating Weight - Typically Equipped - Total	45547 lb 20660 kg
Operating Weight - Typically Equipped - Rear Axle	32310 lb 14656 kg

Moldboard

Blade Width	14 ft 4.2 m
Moldboard - Height	24 in 610 mm
Moldboard - Thickness	0.87 in 22 mm
Arc Radius	16.3 in 413 mm
Throat Clearance	6.5 in 166 mm
Cutting Edge Width	6 in 152 mm
Cutting Edge Thickness	0.6 in 16 mm
End Bit - Width	6 in 152 mm
End Bit - Thickness	0.6 in 16 mm
Blade Pull - Base GVW	25931 lb 11762 kg
Blade Pull - Maximum GVW	34262 lb 15541 kg
Blade Down Pressure - Base GVW	17004 lb 7713 kg
Blade Down Pressure - Maximum GVW	29308 lb 13294 kg
Moldboard - Blade Width	14 ft 4.2 m

Operating Specifications

Top Speed - Forward	29.5 mile/h 47.4 km/h
Top Speed - Reverse	23.3 mile/h 37.4 km/h
Turning Radius - Outside Front Tires	25.59 ft 7.8 m
Steering Range - Left/Right	50° 50°
Articulation Angle - Left/Right	20° 20°
Forward - 1st	2.6 mile/h 4.1 km/h
Forward - 2nd	3.5 mile/h 5.6 km/h
Forward - 3rd	5.1 mile/h 8.1 km/h
Forward - 4th	7 mile/h 11.2 km/h
Forward - 5th	10.8 mile/h 17.4 km/h
Forward - 6th	14.7 mile/h 23.7 km/h
Forward - 7th	20.3 mile/h 32.6 km/h
Forward - 8th	29.5 mile/h 47.4 km/h
Reverse - 1st	2 mile/h 3.3 km/h
Reverse - 2nd	3.8 mile/h 6.1 km/h
Reverse - 3rd	5.5 mile/h 8.8 km/h
Reverse - 4th	8.5 mile/h 13.7 km/h
Reverse - 5th	16 mile/h 25.7 km/h
Reverse - 6th	23.3 mile/h 37.4 km/h

Service Refill

Fuel Capacity	104 gal (US) 394 l
Cooling System	15 gal (US) 57 l
Hydraulic System - Total	26.4 gal (US) 100 l
Hydraulic System - Tank	16.9 gal (US) 64 l
Transmission - Differential - Final Drives	18.5 gal (US) 70 l
Diesel Exhaust Fluid	5.8 gal (US) 22 l
Engine Oil	7.9 gal (US) 30 l
Tandem Housing - Each	22.9 gal (US) 87 l
Front Wheel Spindle Bearing Housing	0.13 gal (US) 0.5 l
Circle Drive Housing	1.8 gal (US) 7 l

Power Train

Forward/Reverse Gears	8 Forward/6 Reverse 8 Forward/6 Reverse
Transmission	APECS, Direct Drive, Powershift APECS, Direct Drive, Powershift
Brakes - Service	Multiple Oil Disc Multiple Oil Disc
Brakes - Service - Surface Area	3565 in² 23000 cm²
Brakes - Parking	Multiple Oil Disc Multiple Oil Disc
Brakes - Secondary	Dual Circuit Control Dual Circuit Control

Hydraulic System

Circuit Type	Parallel Parallel
Pump Type	Variable Piston Variable Piston
Pump Output	55.5 gpm 210 L/min
Maximum System Pressure	3503 psi 24150 kPa
Reservoir Tank Capacity	16.9 gal (US) 64 l
Standby Pressure	885 psi 6100 kPa

Frame

Drawbar - Width	3 in 76.2 mm
Circle - Diameter	61.1 in 1553 mm
Circle - Blade Beam Thickness	1.6 in 40 mm
Drawbar - Height	6 in 152 mm
Front Frame Structure - Width	12 in 305 mm
Circle - Height	6.3 in 160 mm
Front Frame Structure - Height	12.6 in 321 mm
Drawbar - Thickness	0.5 in 12.7 mm
Front-Top/Bottom Plate - Width	12 in 305 mm
Front-Top/Bottom Plate - Thickness	0.87 in 22 mm
Front Axle - Height to Center	23.5 in 596 mm
Front Axle - Wheel Lean - Left/Right	18° 18°
Front Axle - Total Oscillation per Side	32° 32°

Blade Range

Circle Centershift - Right	28.7 in 728 mm
Circle Centershift - Left	27.4 in 695 mm
Moldboard Sideshift - Right	26 in 660 mm
Moldboard Sideshift - Left	20.1 in 510 mm
Maximum Blade Position Angle	90° 90°
Blade Tip Range - Forward	40° 40°
Blade Tip Range - Backward	5° 5°
Maximum Lift Above Ground	17.8 in 452 mm
Maximum Depth of Cut	29.5 in 750 mm
Maximum Shoulder Reach Outside of Tires - Left	82.3 in 2090 mm
Maximum Shoulder Reach Outside of Tires - Right	89.7 in 2278 mm

Ripper

Ripping Depth - Maximum	16.8 in 426 mm
Ripper Shank Holder Spacing	21 in 533 mm
Ripper Shank Holders	5 5
Penetration Force	20812 lb 9440 kg
Pry-Out Force	28493 lb 12924 kg
Machine Length Increase, Beam Raised	40.6 in 1031 mm

Scarifier

Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing	4.6 in 116 mm
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum	18.4 in 467 mm
Mid, V-Type - Working Width	46.6 in 1184 mm
Rear - Scarifying Depth, Maximum	16.8 in 426 mm
Front, V-Type - Working Width	47.4 in 1205 mm
Mid, V-Type - Scarifier Shank Holder Spacing	4.6 in 116 mm
Mid, V-Type - Scarifying Depth, Maximum	11.5 in 292 mm
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders	5/11 5/11
Front, V-Type, 5 or 11 Tooth - Working Width	40.6 in 1031 mm
Mid, V-Type - Scarifier Shank Holders	11 11
Rear - Working Width	84 in 2133 mm
Rear - Scarifier Shank Holders	9 9
Rear - Scarifier Shank Holder Spacing	10.5 in 267 mm

Standards

Brakes	ISO 3450 ISO 3450
ROPS/FOPS	ISO 3471; ISO 3449 ISO 3471; ISO 3449
Steering	ISO 5010 ISO 5010
Sound	ISO 6394; ISO 6395 ISO 6394; ISO 6395

Air Conditioning System

Air Conditioning

Tandems

Height	22.5 in 572 mm
Width	8 in 204 mm
Sidewall Thickness - Inner	0.69 in 17.5 mm
Sidewall Thickness - Outer	0.71 in 18 mm
Drive Chain Pitch	2 in 50.8 mm
Wheel Axle Spacing	60 in 1523 mm
Tandem Oscillation - Front Up	15° 15°
Tandem Oscillation - Front Down	25° 25°

Dimensions

Height - Top of Cab	130 in 3308 mm
Length - Counterweight to Ripper	399 in 10136 mm
Width - Outside Front Tires	98.9 in 2511 mm
Length - Front Axle to Mid Tandem	241 in 6123 mm
Length - Front Tire to Rear of Machine	351 in 8912 mm
Length - Front Axle to Moldboard	100 in 2552 mm
Length - Between Tandem Axles	60 in 1523 mm
Width - Outside Rear Tires	98.9 in 2511 mm
Width - Tire Center Lines	84.3 in 2140 mm
Height - Front Axle Center	23.5 in 596 mm
Height - Exhaust Stack	128 in 3256 mm
Height - Top of Cylinders	120 in 3040 mm
Ground Clearance - Rear Axle	13.3 in 339 mm

160 / 160 AWD Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

Air cleaner, dual stage, dry type, diesel, with automatic engine derate and automatic dust ejector, service indicator through Cat Messenger

Air-to-air after cooler (ATAAC)

Belt, serpentine, automatic tensioner

Brakes, oil disc, four-wheel, hydraulic

Demand fan, hydraulic, swing-out

Diesel exhaust fluid tank, 22.0 L (5.8 gal) ground level access, and sediment drain

Differential Lock/Unlock, Automatic

Drain, engine oil, ecology

Economy mode

Electronic over speed protection

Engine, C9.3 U.S. EPA Tier 4 Final/EU Stage V emission standards

Fuel tank, 394 L (104 gal), ground level access and sediment drain

Parking brake - multi-disc, sealed, oil-cooled

Priming pump, fuel

Rear axle, modular

Sediment drain, fuel tank

Tandem drive

Transmission, 8F/6R, powershift, direct drive, Advanced Productivity Electronic Control Strategy (APECS)

ELECTRICAL

Alarm, back up

Alternator, 150 ampere, sealed

Batteries, maintenance free, heavy duty, 1125 CCA

Breaker panel, ground accessible

Cab harness and electrical hydraulic valves

Electrical system, 24V

Grade Control Ready - Cab harness, software, electrical hydraulic valves, bosses and brackets

Lights, roof-mounted roading, reversing, LED stop and tail

Product Link

Starter, electric

OPERATOR ENVIRONMENT

Accelerator

Air conditioning with heater

Arm and wrist rest, electronically adjustable

Articulation, automatic Return-to-Center

Cat Messenger operator information system

Centershift pin indicator

Coat hook

Cup holder

Display, digital speed and gear

Doors, left and right side with wiper

Gauge, machine level

Gauge cluster (analog) - fuel, articulation, engine coolant temp, engine RPM, hydraulic oil temp, regen, DEF

Hour meter, digital

Joystick hydraulic controls right/left blade lift with float position, circle drive, blade sideshift and tip, centershift, front wheel lean, articulation and power steering

Joystick, adjustable armrests

Joystick gear selection

Joystick hydraulic power steering

Ladders, cab, left and right side

Lights, night time cab

Mirror, inside rearview, wide angle

Power port, 12V

Radio Ready, Entertainment

ROPS cab, sound suppressed 70 dB(A)

Seat, cloth-covered, comfort suspension

Seat belt, retractable 76 mm (3 in)

Storage area for cooler/lunchbox

Throttle control, electronic

Windows, laminated glass: - fixed front with intermittent wiper - door with intermittent wipers (3)

Windows: tempered: - left and right side wipers - rear and intermittent wiper

FLUIDS

Antifreeze

Extended Life Coolant to -35° C (-30° F)

TIRES, RIMS AND WHEELS

Partial allowance for tires on 254 — 607 mm (10 — 24 in) multi-piece rims is included in the base machine price and weight

OTHER STANDARD EQUIPMENT

Accumulators, brake, dual certified

Anti-glare paint

Bumper, rear, integrated with hitch

CD ROM Parts Book

Clutch, circle drive slip

Cutting edges: - 152 — 16 mm (6 — 5/8 in) - curved DH-2 steel - 19 mm (3/4 in) mounting bolts

Doors (3), engine compartment, locking

Drawbar - 6 shoes, replaceable wear strips

Electrical hydraulic valves, hydraulic lines for base 8 functions

Endbits: - 16 mm (5/8 in) DH-2 steel - 19 mm (3/4 in) mounting bolts

Fluid check, ground level

Frame, articulated, with safety lock

Ground level engine shutdown

Hammer (emergency exit)

Horn, electric

Hydraulic lines for base functions

Lockout, hydraulic implement (for roading and servicing)

Moldboard

Mounting, cab roof accessories

Pump, hydraulic, high capacity

Radiator, cleanout access (both sides with swing doors)

Secondary steering

Serviceability, LH side

S·O·S ports: engine, hydraulic, transmission, coolant, fuel

Tandem walkway/guards

Tool box

160 / 160 AWD Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alternator, 280 ampere

Batteries: extreme duty, 1,400 CCA

Lights: Headlights, high

Lights: Headlights, low

Lights: Working lights, basic

Lights: Working lights, plus, LED

Lights: Warning: beacon or strobe

Lights: Mounting for warning light

GUARDS

Articulation guard

Fenders, front

Fenders, rear

Front axle guard

Sound suppression (bottom)

Sound suppression (enclosure)

Transmission

OPERATOR ENVIRONMENT

Mirrors, outside: heated 24V

Mirrors, outside: mounted

Comfort Plus Arrangement

Comfort Premium Arrangement

POWER TRAIN

All Wheel Drive

Precleaner, snow

Starter, extreme duty, 1,000 Amps

Transmission, autoshift

OTHER ATTACHMENTS

Attachment Ready Option ARO

Integrated cross slope

Accumulators, blade lift

Camera, rearview

Cat Product Link 321SR

Cat Product Link 522

Drain, ecology, engine Wiggins

Heater, engine coolant: 120V

Heater, engine coolant: 240V

Hydraulic arrangements with one or more additional hydraulic valves are available for rear ripper, dozer, snow plow and snow wing.

Snow wing mounting, frame ready

Starting aid, ether

Reversing fan, automatic or manual

Cat Grade with 3D

WORK TOOLS/G.E.T.

Blade extension, left hand, 610 mm (2 ft)

Blade extension, right hand, 610 mm (2 ft)

Counterweight

Cutting edges, curved

Endbits, overlay

Front lift group, mounting

Front lift group, mechanical

Grader bit, narrow and super penetration

Mid-Mount Scarifier, Package

Moldboard: 4267 mm — 610 mm — 22 mm (14 ft — 24 in — 7/8 in)

Moldboard: 4267 mm — 686 mm — 25 mm (14 ft — 27 in — 1 in)

Moldboard: 4877 mm — 686 mm — 25 mm (16 ft — 27 in — 1 in)

Push plate

Ripper, rear

Ripper tooth

Scarifier, front

Snow Arrangement

Snow Wing Ready Package

Tow hitch

MACHINE ARRANGEMENTS

Canadian Arrangement

European Arrangement

TUV Roading Arrangement

OPTIONAL TIRE ARRANGEMENTS

Rim Size - 9 × 24; Wheel Group - Single-Piece; Tires - 14.0R24

Rim Size - 13 × 25; Wheel Group - Single-Piece; Tires - 17.5R25

Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.0R24

Rim Size - 10 × 24; Wheel Group - Multi-Piece; Tires - 14.0-24

Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5R25

Rim Size - 14 × 25; Wheel Group - Multi-Piece; Tires - 17.5-25

Note: Consult your dealer for individual tire width, size and brand.
