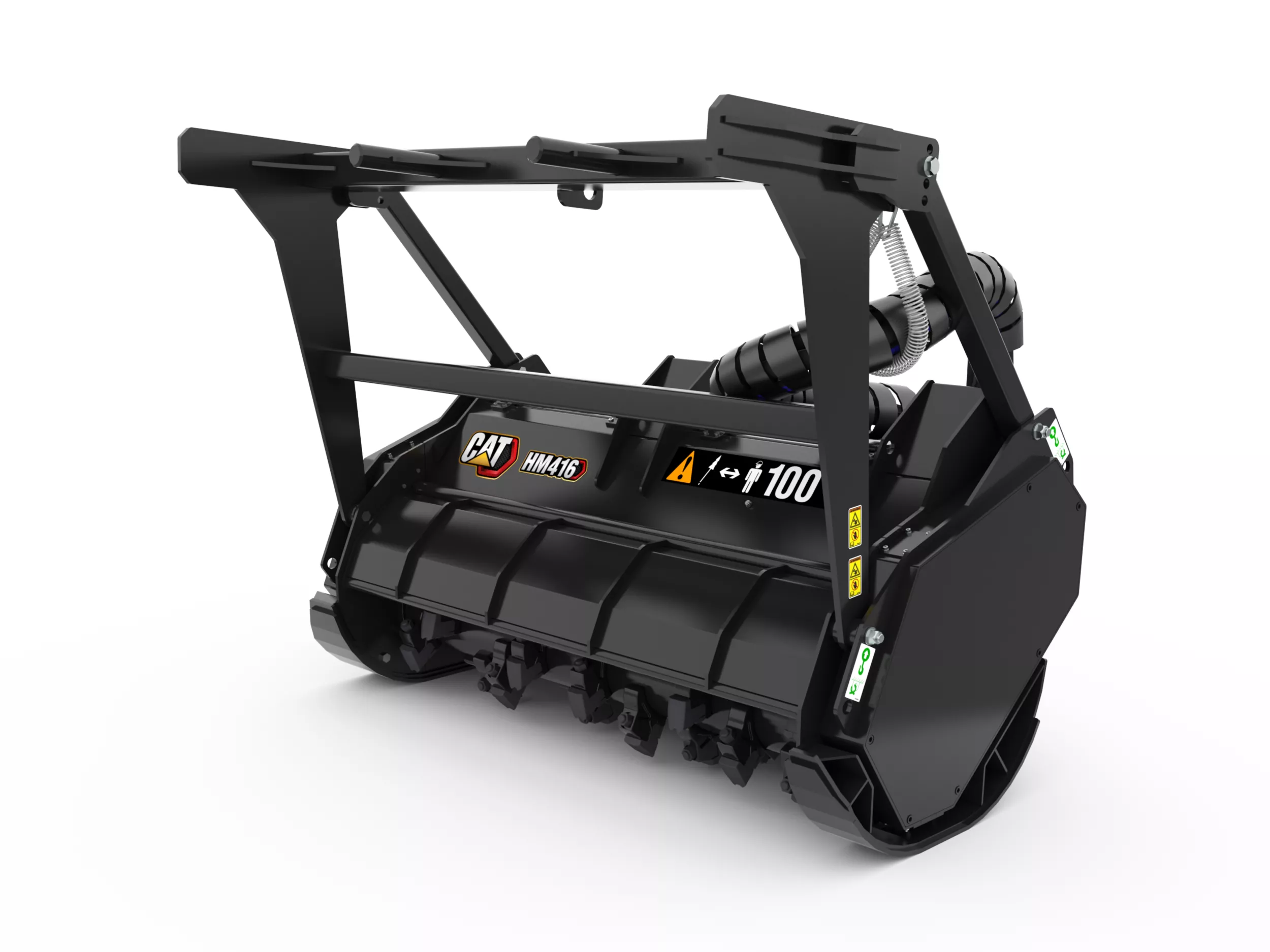

Studio Shot

Mulchers HM416

Request A Price Click for Price

Key Specs

Overall Width
74.1 in
1882 mm
Working Width
58.6 in
1488 mm
Length
53.3 in
1355 mm

Overview

High-performance cutting and mulching of vegetation and overgrowth.

Product Specifications for HM416

Overall Width 74.1 in 1882 mm
Working Width 58.6 in 1488 mm
Length 53.3 in 1355 mm
Overall Height 58.3 in 1481 mm
Weight 2960.8 lb 1343 kg
Drive Method Polychain Belt Polychain Belt
Motor Axial Piston Dual Speed Axial Piston Dual Speed
Required Hydraulics XHP / XE XHP / XE
Optimal Hydraulic Flow 135-155 L/min (36-41 gpm) 135-155 L/min (36-41 gpm)
Optimal Hydraulic Pressure 200-350 bar (2900-5077 psi) 200-350 bar (2900-5077 psi)
Drum Speed 1900-2200 RPM 1900-2200 RPM
Fixed Teeth per Drum 34 34
Maximum Cutting Diameter 7.9 in 200 mm
Maximum Cutting Depth 4.1 in 105 mm

See how HM416 compares against frequently compared products.
