Mulchers HM208

Request A Price Shop Now

Key Specs

Overall Width: 40.4 in; 1026 mm

Working Width: 32.2 in; 818 mm

Length: 28.1 in; 714 mm

HM208
Change model

Overview

High-performance cutting and mulching of vegetation and overgrowth.

Features At A Glance

Displaying 1-6 of 9

Application

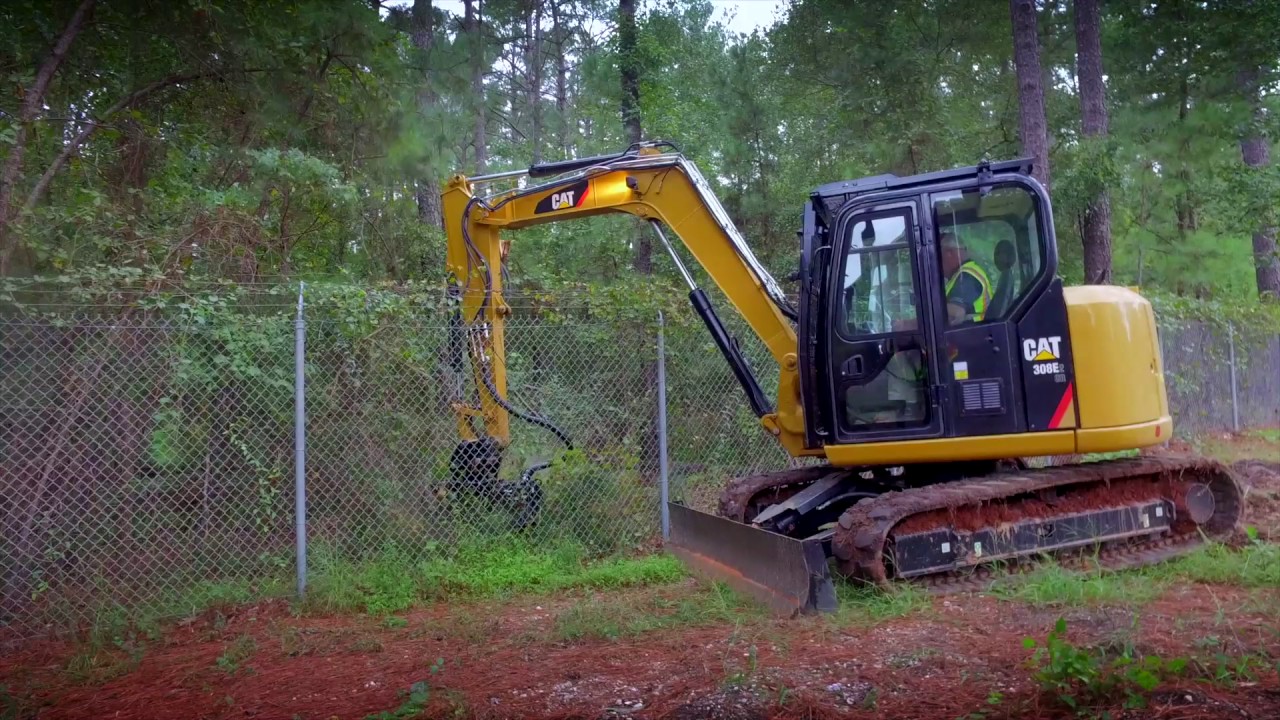

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

Variable Displacement Piston Motor

When motor pressure approaches a stall condition, the motor displacement will change to provide high torque at low speed to power through material with reduced risk of stalling. The motor automatically switches the displacement back for high speed operation once the material is cleared.

Balanced Drum

Mulching drum weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

Cat® XTC Hydraulic Hoses

Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components. Spiral wrapped hose protection helps protects the hydraulic lines during use.

Dual Hydraulic Doors

Standard dual hydraulic doors (front and back) allow for debris to be recirculated through drum longer for a finer finished product.

Integrated Stand

Integrated stand eases access for attachment and removal. Allows mulcher to sit flat for storage.

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

Mulching drum weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

Standard dual hydraulic doors (front and back) allow for debris to be recirculated through drum longer for a finer finished product.

Integrated stand eases access for attachment and removal. Allows mulcher to sit flat for storage.

Rear chain guard limits the amount of debris thrown behind the machine.

Bolt-On replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Product Specifications for HM208

Overall Width	40.4 in 1026 mm
Working Width	32.2 in 818 mm
Length	28.1 in 714 mm
Overall Height	41.9 in 1065 mm
Weight	1080.3 lb 490 kg
Drive Method	V-Belt Drive V-Belt Drive
Motor	Dual Speed Axial Piston Dual Speed Axial Piston
Required Hydraulics	Standard Flow Standard Flow
Optimal Hydraulic Flow	70-130 L/min (18-34 gpm) 70-130 L/min (18-34 gpm)
Optimal Hydraulic Pressure	150-250 bar (2175-3626 psi) 150-250 bar (2175-3626 psi)
Drum Speed	2770-2890 RPM 2770-2890 RPM
Fixed Teeth per Drum	15 15
Maximum Cutting Diameter	120-200 mm (5-8 in) 120-200 mm (5-8 in)

Product Specifications for HM208

Download Print

Overall Width	40.4 in 1026 mm
Working Width	32.2 in 818 mm
Length	28.1 in 714 mm
Overall Height	41.9 in 1065 mm
Weight	1080.3 lb 490 kg
Drive Method	V-Belt Drive V-Belt Drive
Motor	Dual Speed Axial Piston Dual Speed Axial Piston
Required Hydraulics	Standard Flow Standard Flow
Optimal Hydraulic Flow	70-130 L/min (18-34 gpm) 70-130 L/min (18-34 gpm)
Optimal Hydraulic Pressure	150-250 bar (2175-3626 psi) 150-250 bar (2175-3626 psi)
Drum Speed	2770-2890 RPM 2770-2890 RPM
Fixed Teeth per Drum	15 15
Maximum Cutting Diameter	120-200 mm (5-8 in) 120-200 mm (5-8 in)
