Specifications
Overview
Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
| Overall Width | 104.0 in 2637.0 mm | More |
| Sweeping Width | 83.0 in 2119.0 mm | More |
| Brush Diameter | 32.0 in 815.0 mm | More |
| Required Hydraulics | Standard Flow Standard Flow | More |
| Height | 36.0 in 918.0 mm | More |
| Length | 69.0 in 1741.0 mm | More |
| Weight | 905.0 lb 411.0 kg | More |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm) | More |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi) | More |
| Motor Displacement | 25.0 in³/rev 405.0 cm³/rev | More |
| Brush Speed at Maximum Flow | 199 rpm 199 rpm | More |
| Sweeping Width - Angled (± 30 Degrees) | 73.0 in 1849.0 mm | More |
| Overall Width - Angled (± 30 Degrees) | 99.0 in 2508.0 mm | More |
| Drive Method | Direct Drive Direct Drive | More |
| Interface Type | Skid Steer Coupler Skid Steer Coupler | More |
| Optional Hood Extension | 40.0 lb 18.0 kg | More |
Benefits & Features

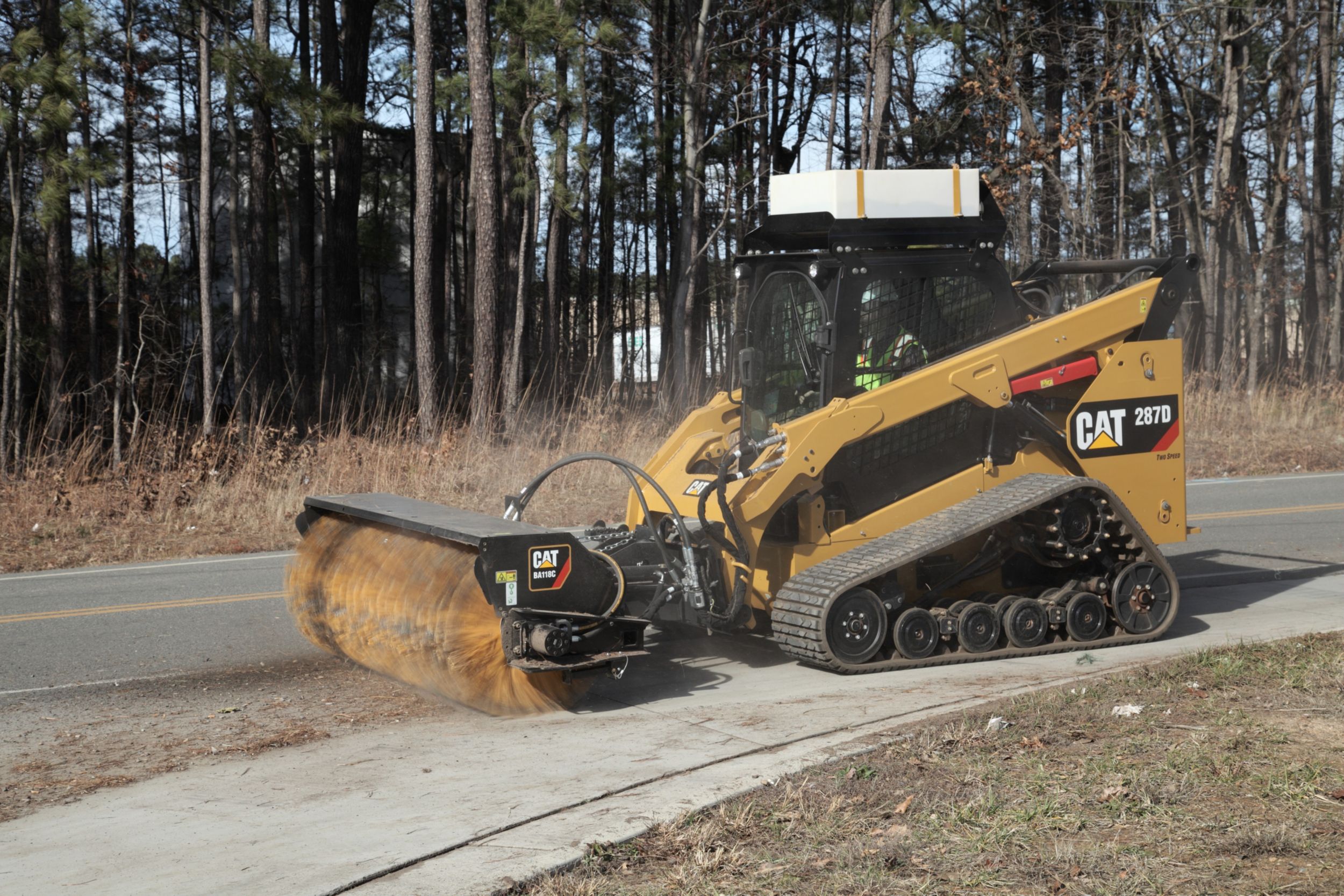

Application
Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Variable Sweeping Angle
Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

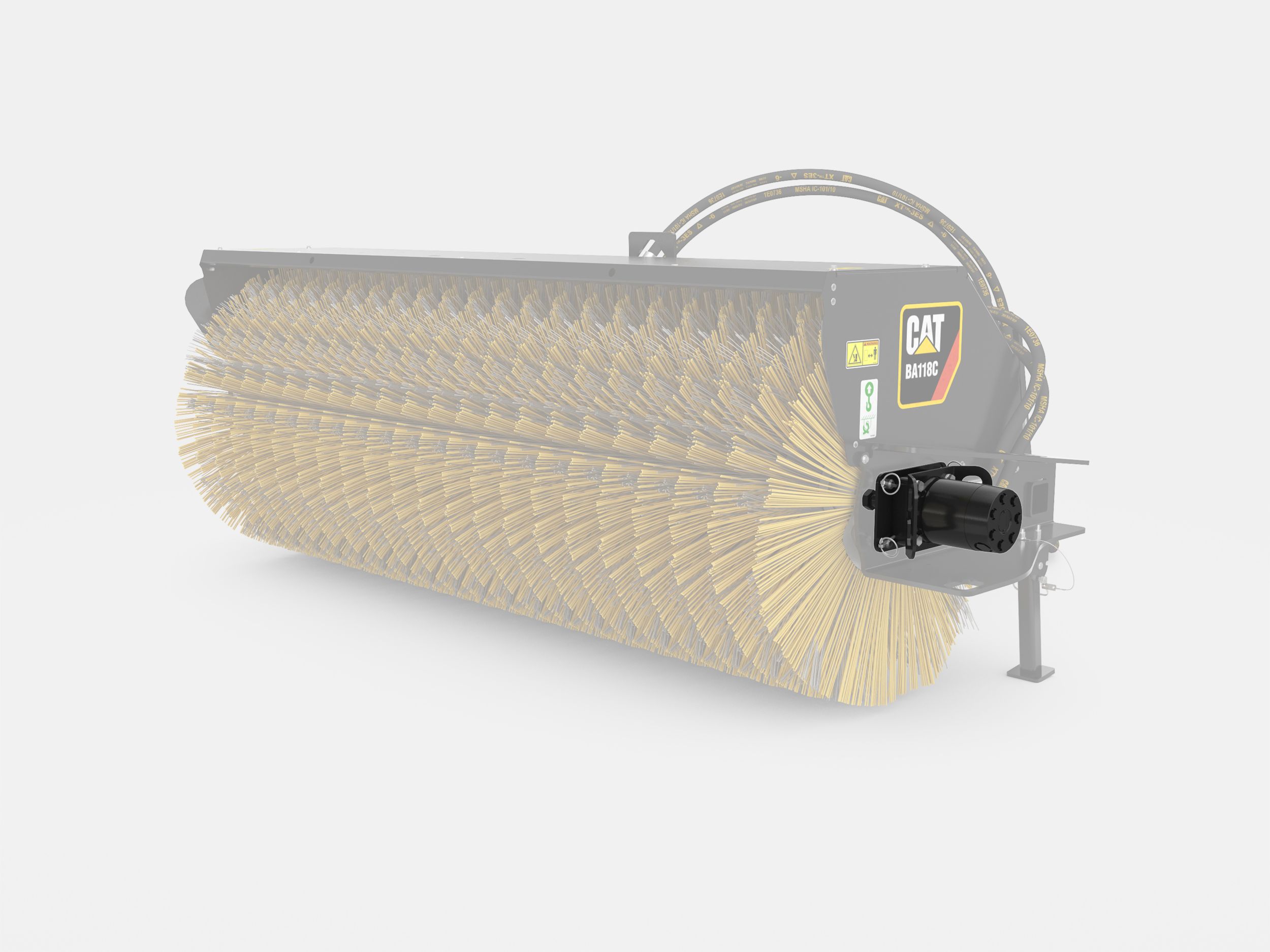

Reliable Hydraulic Motor
Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines. The motor is easily removed using quick release pins for bristle wafer replacement.

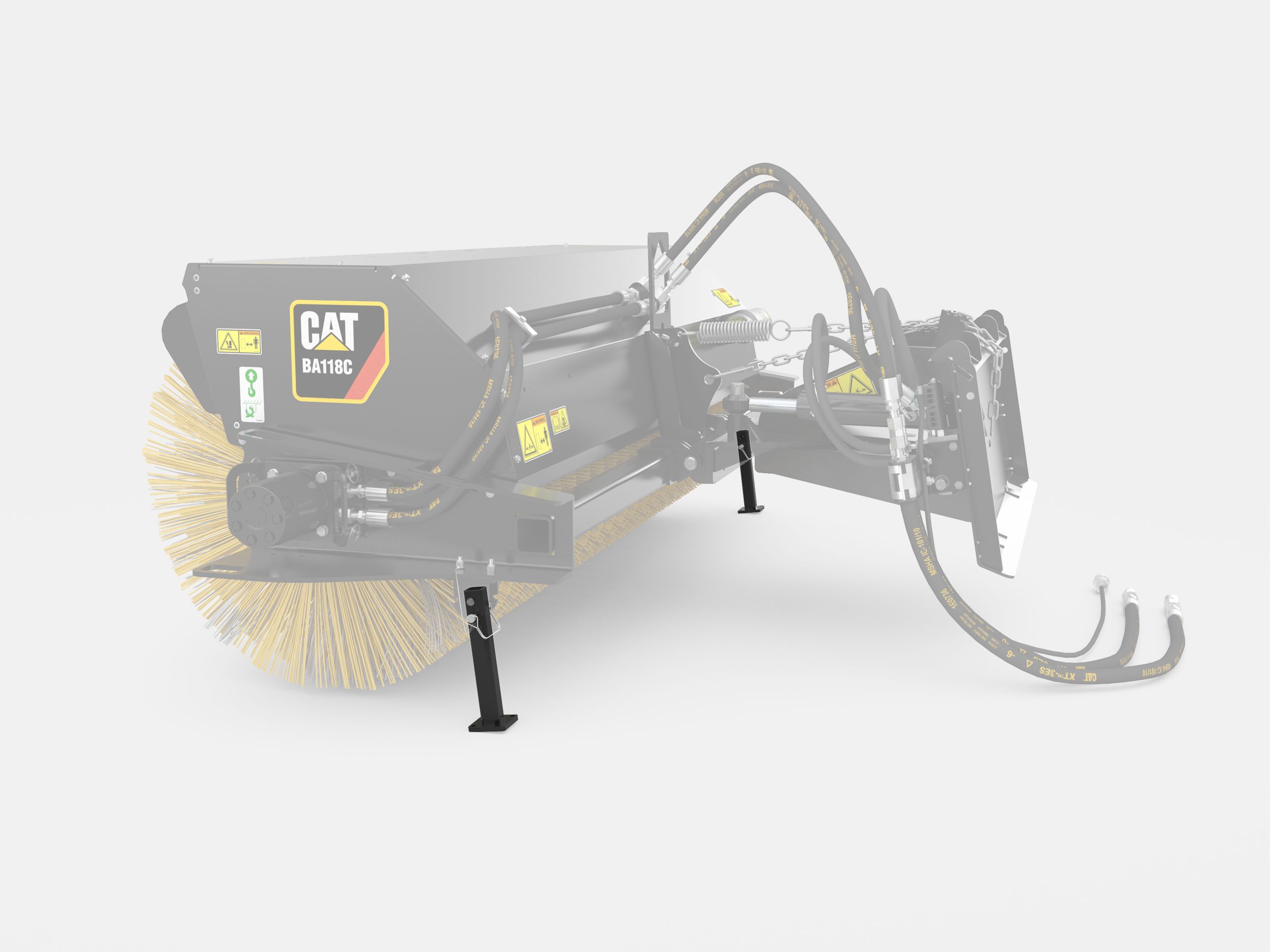

Parking Supports
Parking supports provide stable and secure parking of the broom when not in use.
Optional Water Kit
An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.
Polypropylene and Wire Bristle Options
Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle sections can be converted to all wire or all poly for special applications.
