Pickup Brooms BP118C

Request A Price Click for Price

Key Specs

Overall Width: 90.4 in; 2295 mm

Sweeping Width: 72 in; 1829 mm

Brush Diameter: 26 in; 660 mm

BP118C
Change model

Overview

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Features At A Glance

Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.

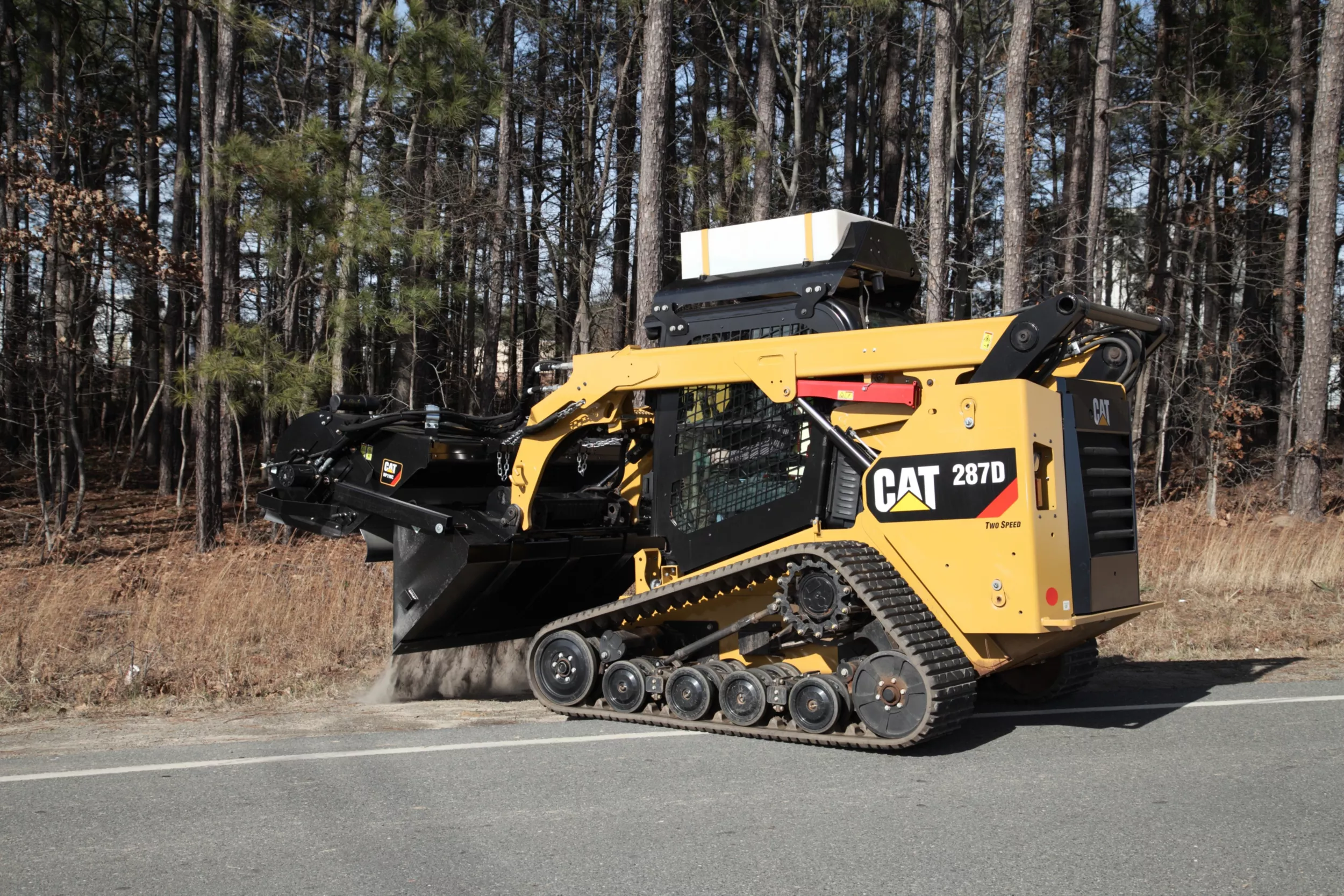

Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening permits fast, efficient dumping.

Adjustable volumizer allows more material retention in hopper, giving operator more sweeps before stopping to empty material.

Heavy-duty low profile pneumatic guide wheel supports the hood during sweeping.

Optional all-steel wire gutter brush mounted on the left or right side of the broom assists in removing material from gutters and pavement edges.

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.

Standard broom material is made of replaceable polypropylene and steel wire sections. Optional replacement brushes include all polypropylene and all steel wire.

Interior deflectors, rear bucket seal, and side brush stripping direct dirt and dust into the bucket, reducing spillage and air-borne contaminants.

Dual chain and loader arm bracket system holds broom housing horizontally when emptying the hopper.

Bristle height adjustments have been simplified with the use of handle and a tool-less locking feature.

Motor serviceability is enhanced with a handle shaped motor bracket, core connection is close to broom wall and single retention pins allow for quick brush change and less downtime.

Replaceable bolt-on cutting edges increase wear life of hopper bucket.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Product Specifications for BP118C

Overall Width	90.4 in 2295 mm
Sweeping Width	72 in 1829 mm
Brush Diameter	26 in 660 mm
Required Hydraulics	Standard Flow Standard Flow
Height	34.3 in 872 mm
Length	72.3 in 1837 mm
Weight	1256.6 lb 570 kg
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement	24.7 in³/rev 405 cm³/rev
Brush Speed at Maximum Flow	199 rpm 199 rpm
Hopper Capacity	0.6 yd³ 0.49 m³
Drive Method	Direct Drive Direct Drive

Product Specifications for BP118C

Download Print

Overall Width	90.4 in 2295 mm
Sweeping Width	72 in 1829 mm
Brush Diameter	26 in 660 mm
Required Hydraulics	Standard Flow Standard Flow
Height	34.3 in 872 mm
Length	72.3 in 1837 mm
Weight	1256.6 lb 570 kg
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement	24.7 in³/rev 405 cm³/rev
Brush Speed at Maximum Flow	199 rpm 199 rpm
Hopper Capacity	0.6 yd³ 0.49 m³
Drive Method	Direct Drive Direct Drive

See how BP118C compares against frequently compared products.

Brooms

Selected

BP118C

Overall Width: 90.4 in; 2295 mm
Sweeping Width: 72 in; 1829 mm
Brush Diameter: 26 in; 660 mm

Brooms

BP115C

Overall Width: 78.3 in; 1990 mm
Sweeping Width: 60 in; 1524 mm
Brush Diameter: 26 in; 660 mm

View Details

Brooms

BP25, 12V or 24V

Overall Width: 106.3 in; 2700 mm
Sweeping Width: 98.4 in; 2500 mm
Brush Diameter: 27.6 in; 700 mm

View Details
