Overview

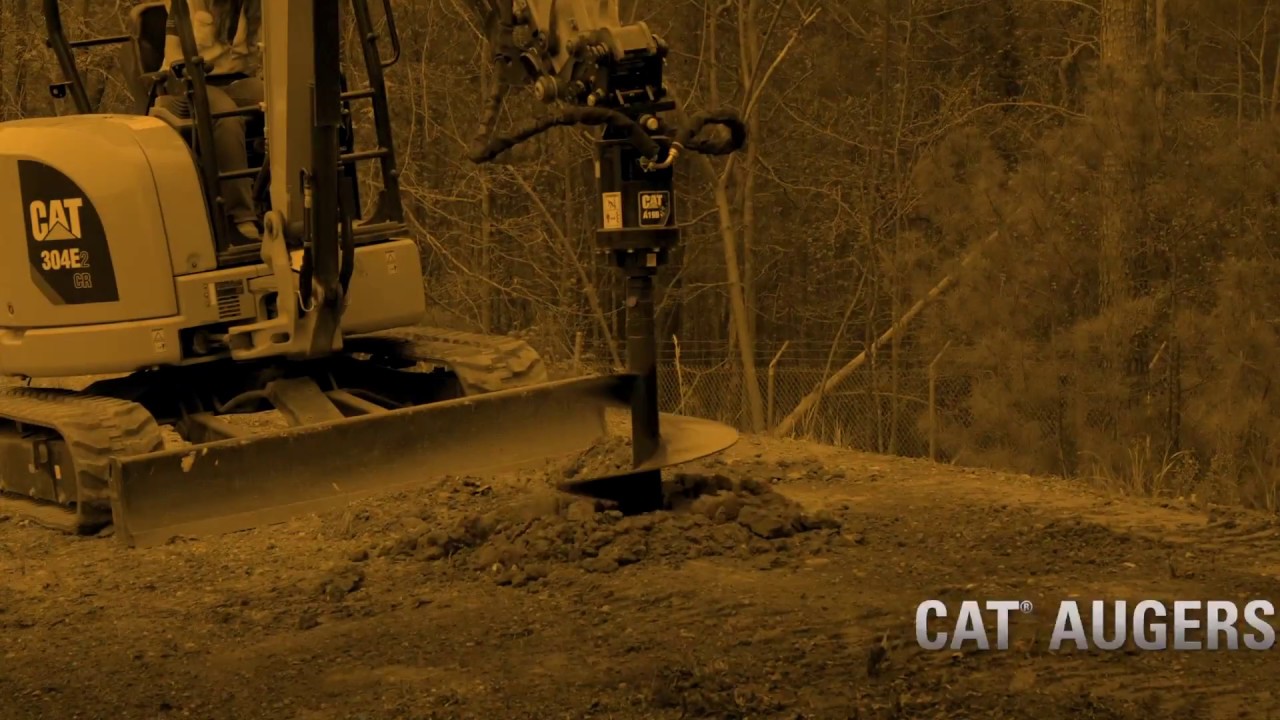

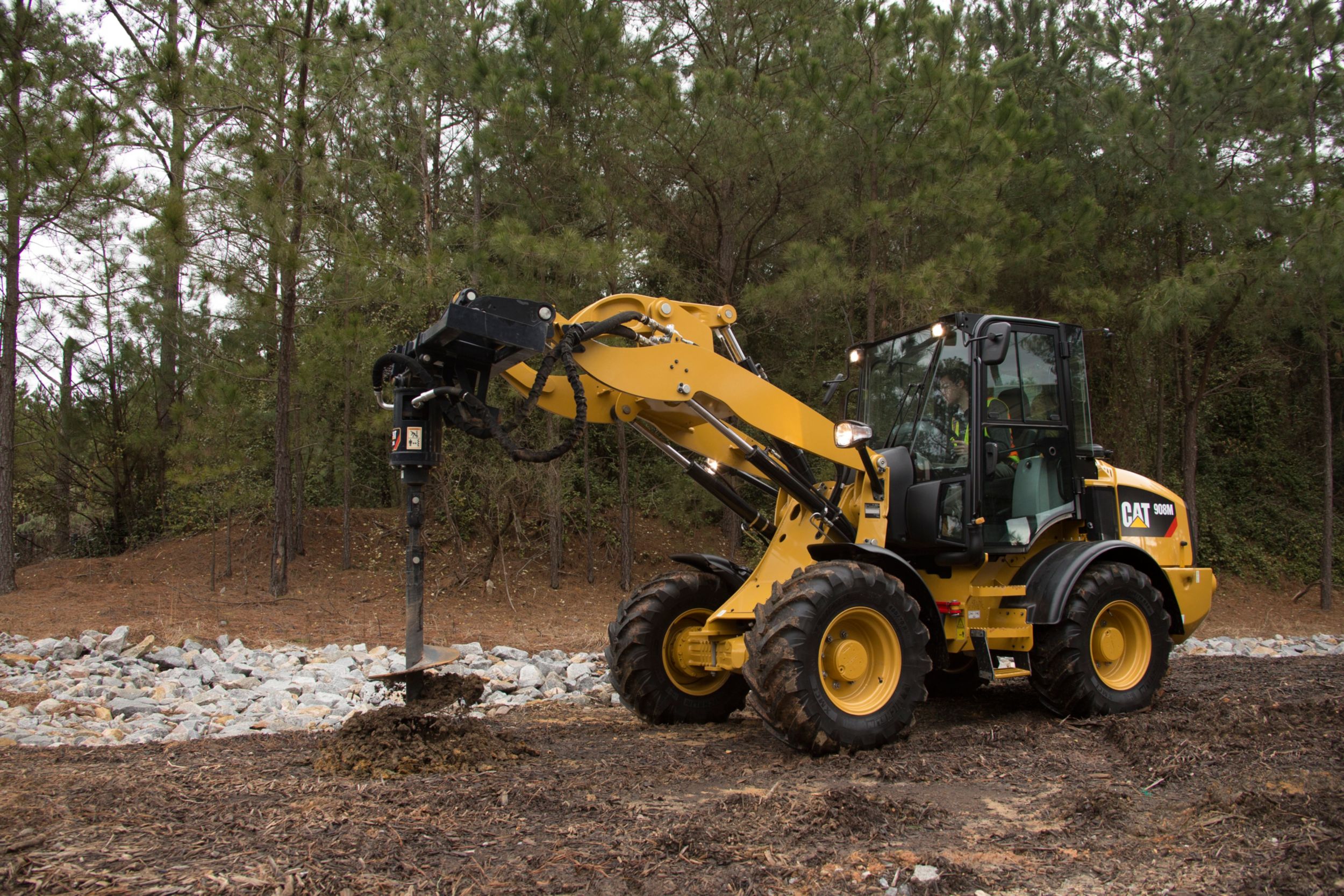

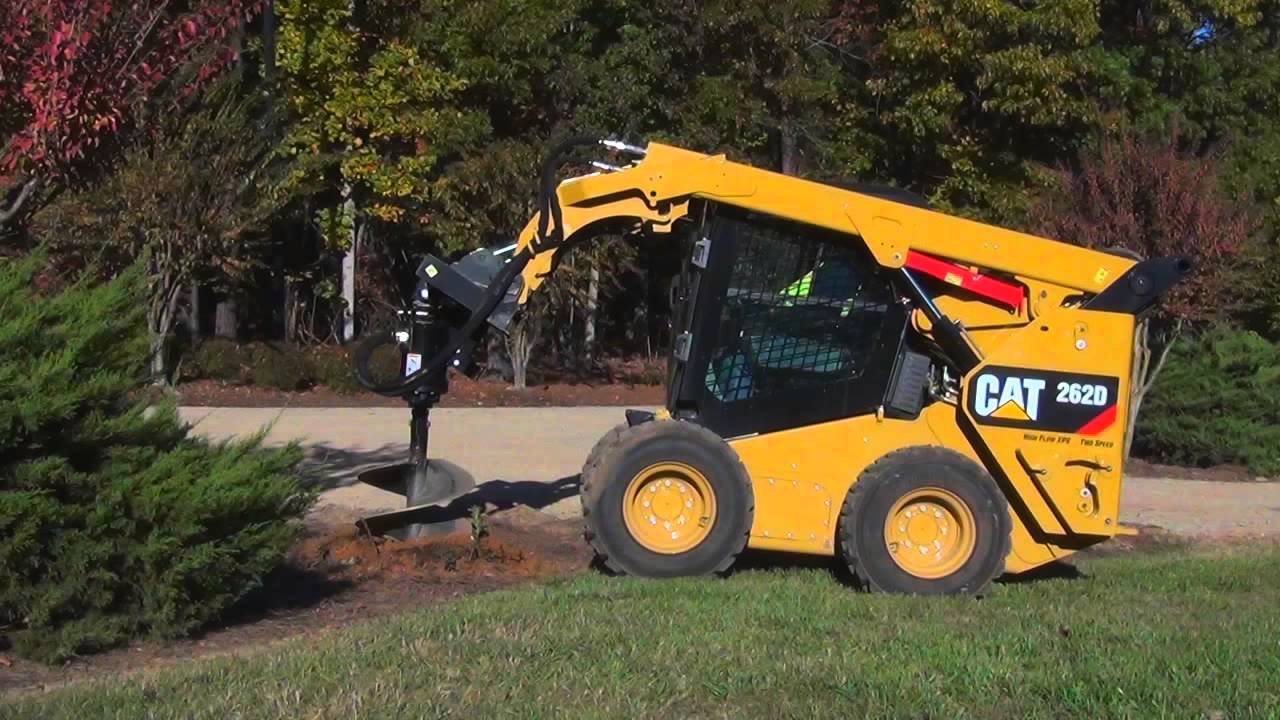

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Units:
Drive Shaft Torque at Maximum Pressure 5040.0 lb/ft 6830.0 N·m Less
Drive Method Gear Motor - Double Planetary Reduction Gear Motor - Double Planetary Reduction Less
Mounting Bracket Design Backhoe Loader Pin-On Backhoe Loader Pin-On Less
Required Hydraulics High Flow XPS High Flow XPS Less
Optimal Hydraulic Flow 95-130 L/min (25-34 gpm) 95-130 L/min (25-34 gpm) Less
Optimal Hydraulic Pressure 207-290 bar (3002-4206 psi) 207-290 bar (3002-4206 psi) Less
Overall Width - With Bracket 14.0 in 358.0 mm Less
Overall Length - With Bracket 26.0 in 650.0 mm Less
Overall Height 40.0 in 1006.0 mm Less
Housing Diameter 11.0 in 280.0 mm Less
Swing Range (fore/aft) 117 degrees 117 degrees Less
Swing Range (left/right) 76 degrees 76 degrees Less
Weight 404.0 lb 183.0 kg Less
Motor Displacement 2.67 in³ 44.0 cm³ Less
Bit Speed at Maximum Flow 81 rpm 81 rpm Less
Hex Output Shaft Size 2.0 in 51.0 mm Less

Application

Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.

Variable Speed

Variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal bit speed and output torque for moderate to heavy-duty, high performance drilling requirements.

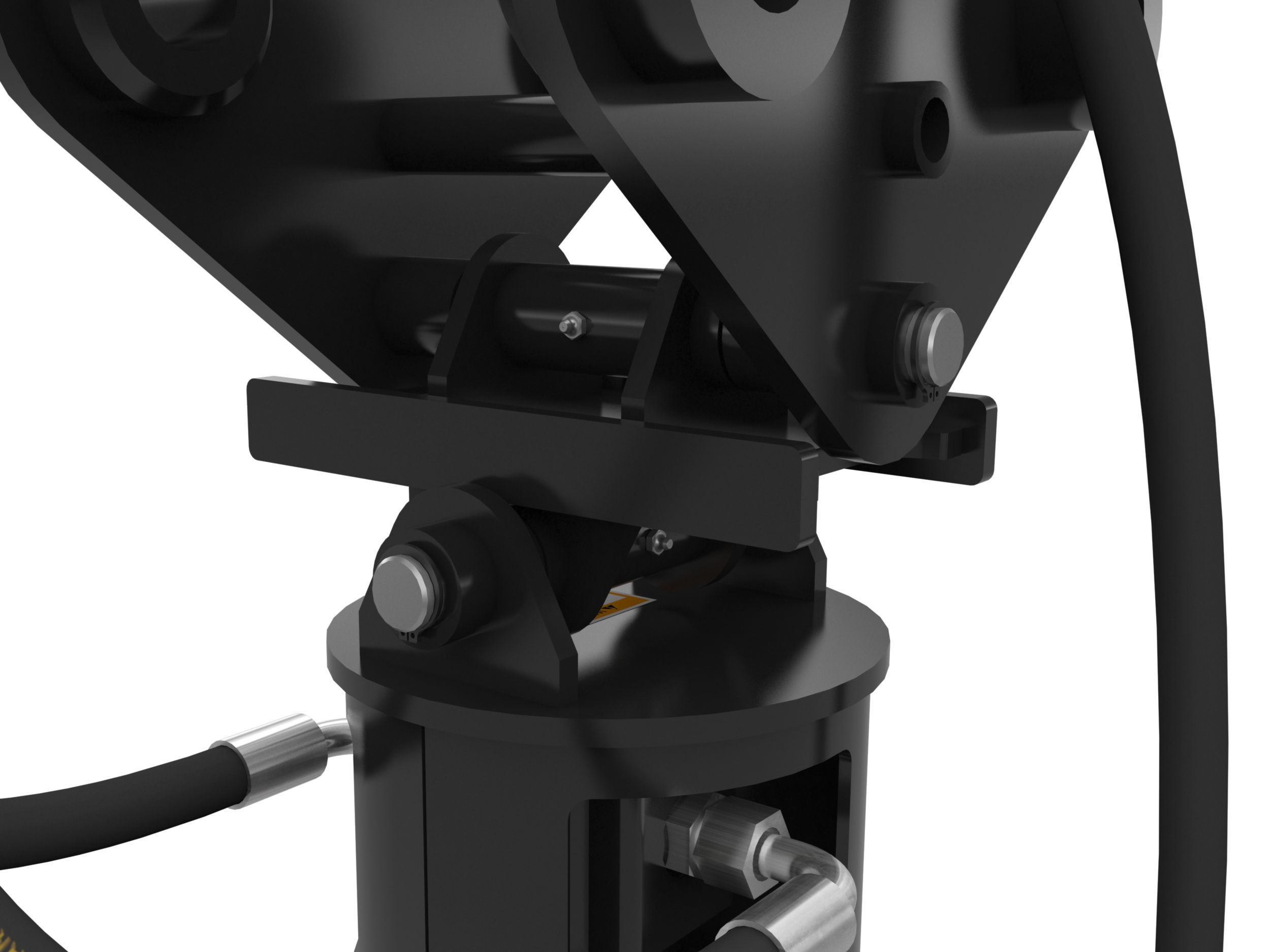

Articulated Joint

Articulated joint ensures auger hangs straight, independent of machine positioning.

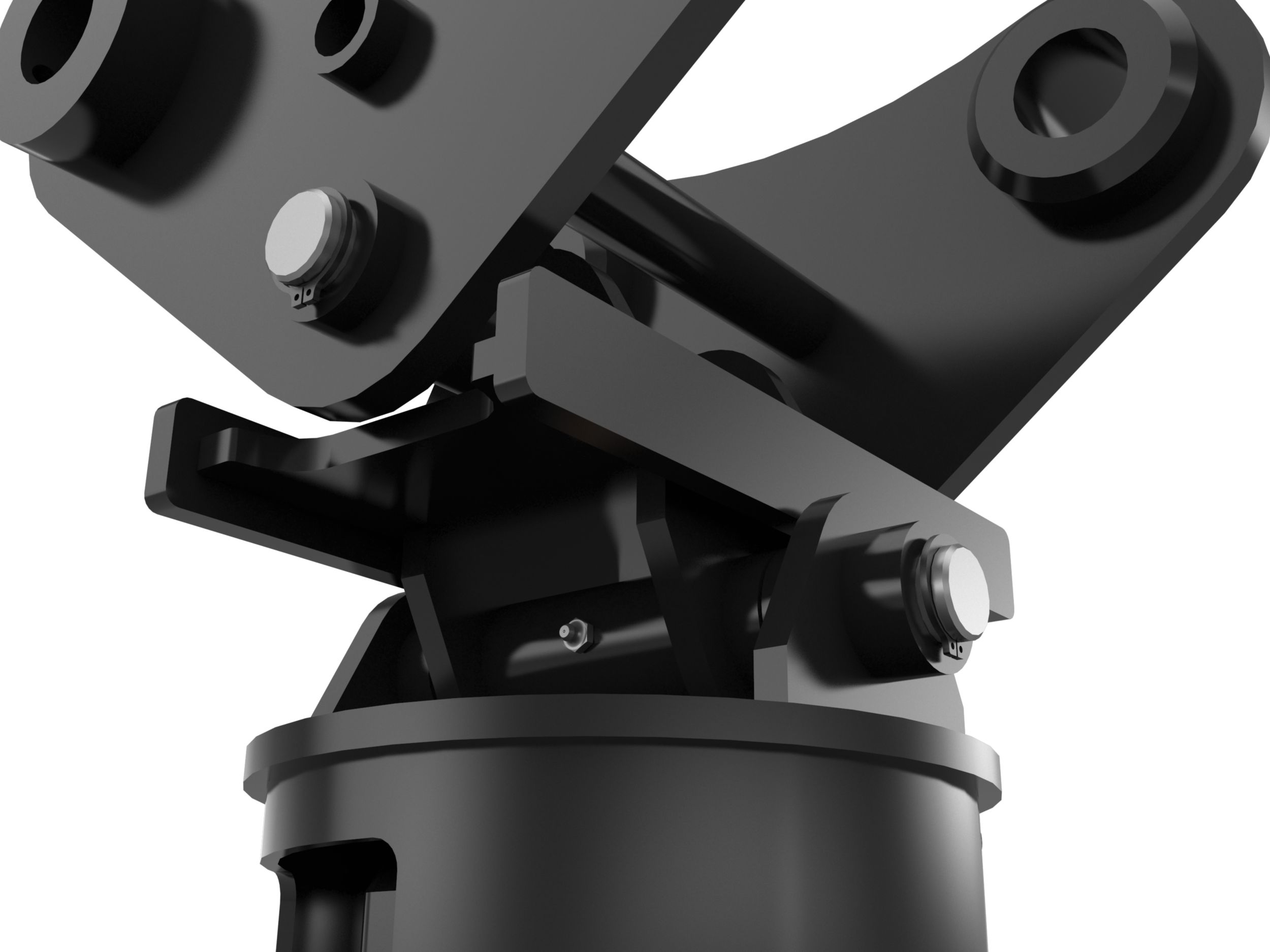

Mechanical Swing Stops

Mechanical swing stops protect from auger over swing.

Rugged Bits for Every Application

Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (bolt-on) are offered to cover a wide variety of applications and ground conditions.

Bit Extensions and Adapters

Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger flight changes.
