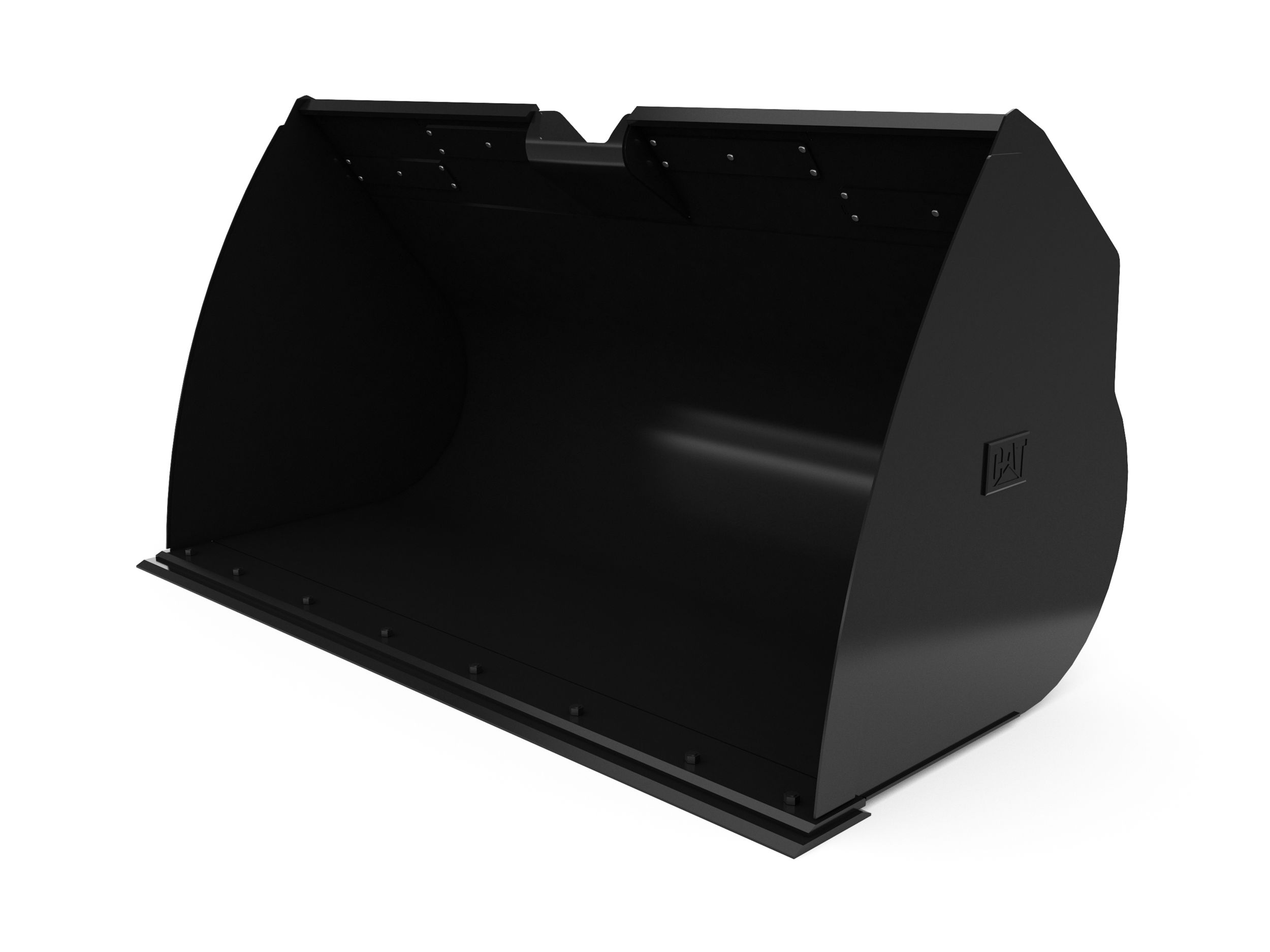

Light Material Buckets - Performance Series 3.0 m3 (3.9 yd3), IT Coupler, Bolt-On Cutting Edge

Request A Price Shop Now

Key Specs

Width: 100.4 in; 2549 mm

Weight: 1882.7 lb; 854 kg

Height: 55.3 in; 1404 mm

3.0 m3 (3.9 yd3), IT Coupler, Bolt-On Cutting Edge
Change model

Overview

High capacity increases productivity in handling light materials.

Features At A Glance

Designed to handle low density materials such as mulch, wood chips, dry topsoil, fertilizer, livestock feed and snow. Performance Series Light Material Buckets are designed with larger capacity for light density material applications in Agriculture, Waste and other segments. These applications generally require moderate to light breakout forces. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

High capacity increases productivity in handling light materials. Optimal bucket shape for loading light materials up to 1150 kg/ltr (1600 lb/yd3).

Long bucket floor length, combined with large radius back wrapper, provides superior material loading and dumping, resulting in greater payloads and quicker cycle times.

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Integrated visibility to the cutting edge while operating. Visibility slots can be closed while working with loose material with small particle sizes to increase capacity and prevent material loss.

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Product Specifications for 3.0 m3 (3.9 yd3), IT Coupler, Bolt-On Cutting Edge

Width	100.4 in 2549 mm
Weight	1882.7 lb 854 kg
Height	55.3 in 1404 mm
Length	59.7 in 1517 mm
Capacity	3.9 yd³ 3 m³
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.7 in 19 mm
Interface Type	IT Coupler IT Coupler

Product Specifications for 3.0 m3 (3.9 yd3), IT Coupler, Bolt-On Cutting Edge

Download Print

Width	100.4 in 2549 mm
Weight	1882.7 lb 854 kg
Height	55.3 in 1404 mm
Length	59.7 in 1517 mm
Capacity	3.9 yd³ 3 m³
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.7 in 19 mm
Interface Type	IT Coupler IT Coupler
