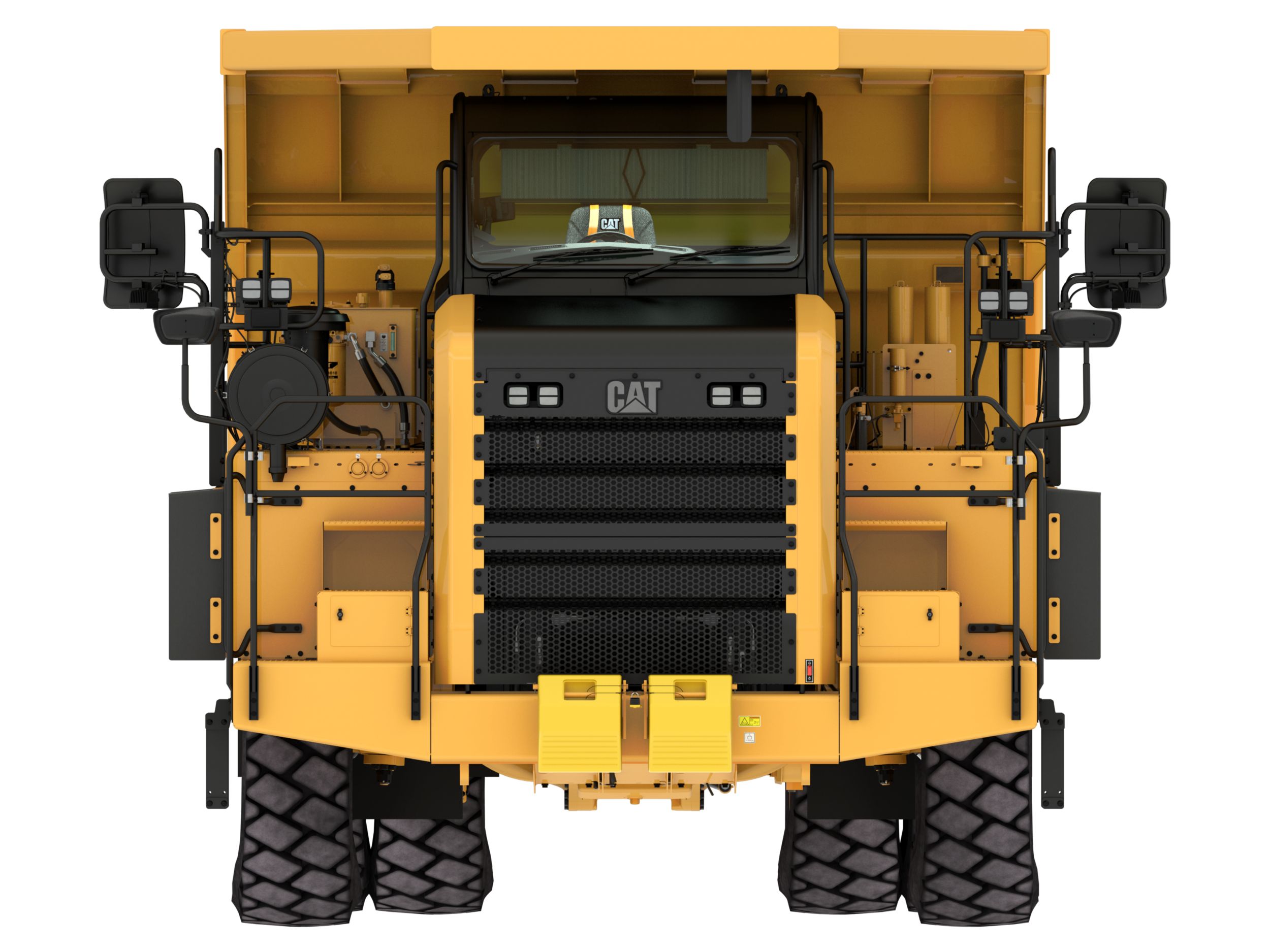

Off-Highway Trucks 770 (07)

Request A Price Find Dealer

Key Specs

Nominal Payload Class (100%): 42.1 ton (US); 38.2 t

Engine Model: Cat® C15; Cat® C15

Top Speed - Loaded: 45.8 mile/h; 73.7 km/h

770 (07)
Change model

Overview

Performance and productivity

Cat’s 770 40-ton payload sets the standard for haul performance in construction and quarry industries. We’ve taken the best of our rugged, dependable Off-Highway Truck lineup and integrated it with technologies that help our environment, make operators more productive, and dramatically improve the economics of haul fleets. An optimal pass match for the 770 is the Cat 986K or 988K Wheel Loader or the 374F or 390F Hydraulic Excavators. No matter your business type, the 770 is designed to help you move materials safely and efficiently through every haul.

Benefits

Up To 11% Less CO2 Emissions

The 770 emits up to 11% less CO2 than the previous 770.

Improved Performance

Achieve maximum performance with increased travel speed for faster cycle times, 7% more torque, and Improved traction control.

Up To 10% Less Fuel Consumption

Designed to be more efficient with two economy mode options, APECS transmission controls, and auto neutral idle.

Expanded Service Access

Equipped with safety features for easy access to engine air cleaner housing, lockable ground level service centers, and convenient fill locations for fuel an DEF tanks.

Features At A Glance

ACHIEVE GREATER PRODUCTIVITY

Haul your materials faster with an accelerated travel speed.
Put more power to the ground with increased torque.
Enjoy greater productivity while using a more responsive Traction
Control System (TCS).
Reduce tire wear with maximum by engaging TCS early in the slip.
Strong, predictable performance helps operators achieve the lowest cost per ton.

BOOST FUEL EFFICIENCY

Up to 11% less fuel consumption.
Advanced Productivity Electronic Control System (APECS) allows the engine and transmission to communicate on a high level. This communication allows the machine to better utilize the power and torque the engine is producing.
Automatically optimize fuel consumption with the feature—Adaptive Economy mode reduces fuel use without affecting productivity and can be engaged with a single button.
Gain improvements in fuel efficiency with auto-neutral idle.
Haul your 770 truck at a more fuel-efficient engine speed and gear selection with speed limiting.
Conserve fuel with integrated Engine Idle Shutdown by the engine automatically initiating when the truck is in park and idle for a preset amount of time.

DESIGNED FOR SAFETY

Improvements in accessibility with safe, ground-level access tofuel fill and daily maintenance points.
Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
Superior brake performance meets the latest brake standards—
ISO 3450:2011.
The ground-level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine safely.
Sturdy 4-point mounted cabin meets rollover protective structure/
falling objects protective structure (ROPS/FOPS) standard.
4-point seat belt provides enhanced safety to the operator.
Seat belt indicator implements both visual and audible alerts to the
operator when seat belt is not fastened.
Lockout features help the service technician to perform
maintenance work on the machine with safe mode.
Secondary steering activates automatically in case of primary
system failure.
Overload speed limiter works with truck payload system to reduce
machine speed automatically when the truck is overloaded.

WORK IN COMFORT

Completely redesigned cab for a whole new standard in visibility, comfort, and productivity.
The new operator seat placement provides easier operation and comfort to the operator.
Improvements in enlarged views of the work area and its surroundings.
Access connectivity and decrease clutter with more storage areas in the newly designed cab.
Automatic cab temperature controls.
Cat next-generation deluxe seat for better operator comfort.

TECHNOLOGY THAT GETS WORK DONE

Integrated systems give you the ability to make timely, fact-based
decisions to maximize efficiency, improve productivity, and lower
costs.
Gain valuable insight into how your machine is performing by continuously
monitoring and collecting vital machine data via the advisor display with the software Vital Information Management System (VIMS™). Applicable to both U.S. EPA Tier 4 Final/EU Stage V and U.S. EPA Tier 2 equivalent.
Truck Production Management System (TPMS) provides accurate weighing of the materials, stores 2,400 payload cycles, and reportson, haul cycle times, and distances with date and time stamps.
External payload indicator lights alert the loader when to stop, reducing the risk of machine overloading.
Product Link™ system connects to each machine wirelessly,
allowing you to monitor location, hours, fuel use, productivity, idle
time, and diagnostic codes.
VisionLink®
wirelessly connects you to your equipment, giving
you access to essential information you need to know to run your business.
The Cat 770 is MineStar™ ready and includes Cat Product Link
Elite and VIMS to help optimize equipment management, remote
monitoring capabilities, machine availability, and component life while reducing both repair costs and the risk of catastrophic
failure.
Tons kilometers per hour/tons miles per hour (TKPH/TMPH) tire management system works with TPMS for improved tire life.

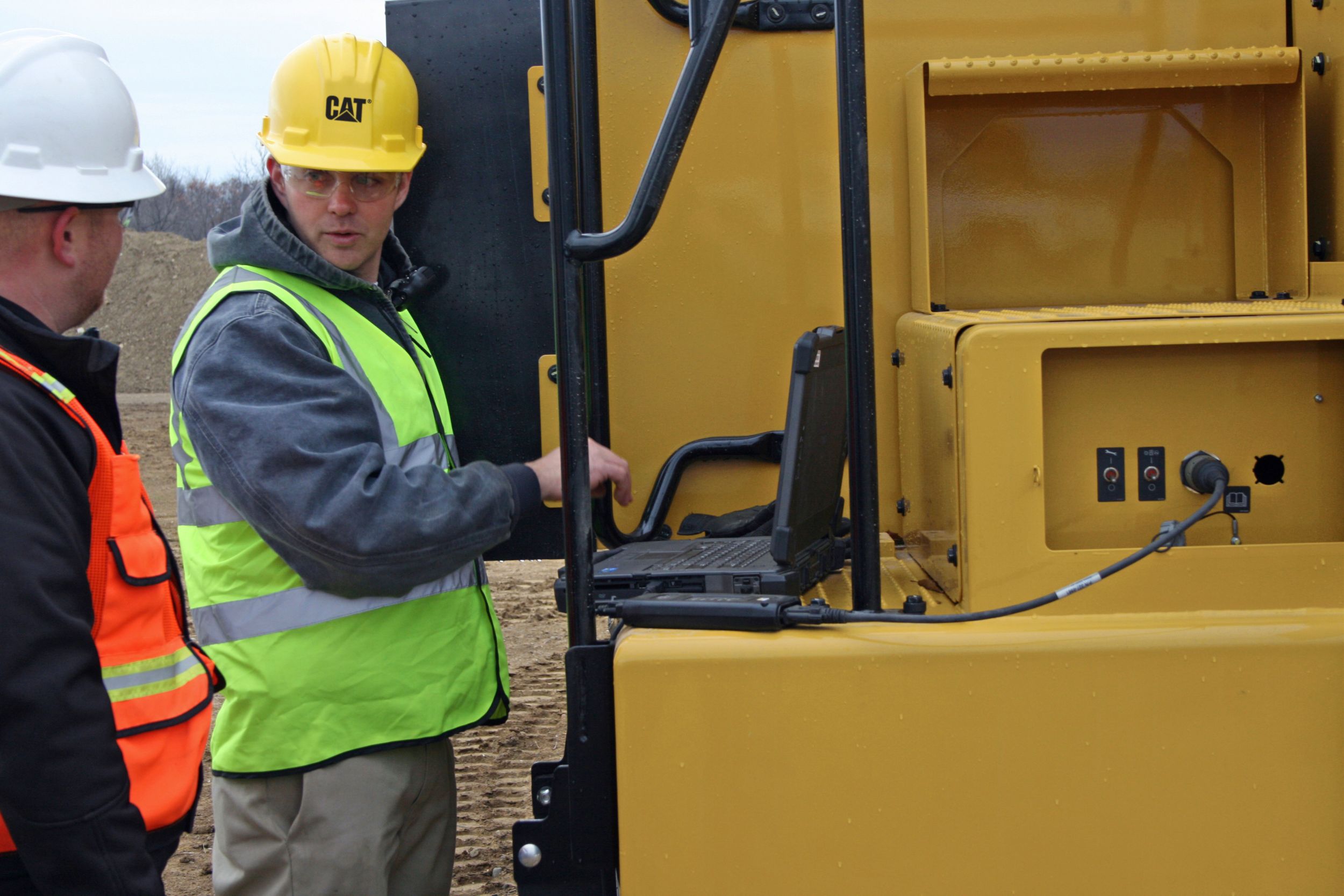

REDUCED MAINTENANCE COST AND OTHER COSTS

• Grouped service points.
• Control particulate matter with two engine-mounted diesel
oxidation catalyst canisters. (Tier 4)
• NOx reduction system (NRS) technology replaces a portion of intake air with exhaust gas to control combustion temperatures and NOx production.(Tier 4)
• Parts commonality with other Cat equipment.
• Resolve problems before failure occurs with VIMS notifications.
• Torque converter stall (autostall) enables quick operating temperatures for best performance life.
• All LED lights provide longer life, brighter light, consume less power, and are more resistant to vibration or water damage.

APPLICATION VERSATILITY

Get the right body option—Dual Slope, Flat Floor, or Quarry—for your material and jobsite needs.
For haul profiles including steep slopes, an optional Dual Slope body is available—offering excellent material retention.
The flat floor body is perfect for metering material, especially when
feeding the crusher.
Optimize your body life by selecting a liner package best suited
for your application. We offer steel liners that work for most applications as well as rubber liners for extreme applications.

Specifications Standard Equipment Optional Equipment

Product Specifications for 770 (07)

Engine

Engine Model	Cat® C15 Cat® C15
Rated Engine Speed	1700 r/min 1700 r/min
Gross Power - SAE J1995:2014	515 hp 384 kW
Net Power - SAE J1349:2011	477 hp 356 kW
Net Power - ISO 9249	477 hp 356 kW
Net Power - 80/1269/EEC	489 hp 365 kW
Net Power - ISO 14396	508 hp 379 kW
Net Torque - SAE J1349	1834 ft·lbf 2486 N·m
Number of Cylinders	6 6
Bore	5.4 in 137 mm
Stroke	6.7 in 171 mm
Displacement	927.6 in³ 15.2 l
Note (1)	Power rating applies at 1,700 rpm when tested under the specified condition for the specified standard. Power rating applies at 1,700 rpm when tested under the specified condition for the specified standard.
Note (2)	Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
Note (3)	No engine derating required up to 3000 m (9,843 ft) altitude. No engine derating required up to 3000 m (9,843 ft) altitude.
Note (4)	Meets Japan Small Volume Exemption. Meets Japan Small Volume Exemption.
Emissions	Meets U.S. EPA Tier 4 and EU Stage V emission standards. Meets U.S. EPA Tier 4 and EU Stage V emission standards.

Weights - Approximate

Target Gross Machine Operating Weight	157000 lb 71214 kg
Target Gross Machine Weight	157000 lb 71214 kg
Chassis Weight	55948 lb 25378 kg
Body Weight	17306 lb 7850 kg
Note (1)	Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires. Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires.
Note (2)	Body weight is the standard Dual Slope body with no liner and will vary depending on configuration. Body weight is the standard Dual Slope body with no liner and will vary depending on configuration.

Operating Specifications

Nominal Payload Class (100%)	42.1 ton (US) 38.2 t
Top Speed - Loaded	45.8 mile/h 73.7 km/h
Target Payload (100%)	42.1 ton (US) 38.2 t
Maximum Working Payload (110%)	46.3 ton (US) 42 t
Maximum Allowable Payload (120%)*	50.5 ton (US) 45.8 t
Body Capacity - SAE 2:1	32.9 yd³ 25.2 m³
Note (1)	Refer to Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. Refer to Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations.
Note (2)	Target payload and capacity based on Dual Slope body with no liner. Attachment selection will affect payload and maximum gross machine operating weight. Target payload and capacity based on Dual Slope body with no liner. Attachment selection will affect payload and maximum gross machine operating weight.

Transmission

Forward - 1	7.4 mile/h 11.9 km/h
Forward - 2	10.1 mile/h 16.3 km/h
Forward - 3	13.8 mile/h 22.2 km/h
Forward - 4	18.5 mile/h 29.8 km/h
Forward - 5	25.1 mile/h 40.4 km/h
Forward - 6	33.8 mile/h 54.4 km/h
Forward - 7	45.8 mile/h 73.7 km/h
Reverse	8.8 mile/h 14.2 km/h
Note	Maximum travel speeds with standard 18.00R33 (E4) tires. Maximum travel speeds with standard 18.00R33 (E4) tires.

Final Drives

Differential Ratio	1.92:1 1.92:1
Planetary Ratio	4.80:1 4.80:1
Total Reduction Ratio	9.26:1 9.26:1

Brakes

Brake Surface - Front	216 in² 1395 cm²
Brake Surface - Rear	6235 in² 40225 cm²
Brake Standards	ISO 3450:2011 ISO 3450:2011
Note	Target gross machine operating weight is 71 214 kg (157,000 lb). Target gross machine operating weight is 71 214 kg (157,000 lb).

Body Hoists

Pump Flow - High Idle	118 gal/min 448 l/min
Relief Valve Setting - Raise	2750 psi 18950 kPa
Relief Valve Setting - Lower	500 psi 3450 kPa
Body Raise Time - High Idle	7.5 s 7.5 s
Body Lower Time - Float	10 s 10 s
Body Power Down - High Idle	10 s 10 s

Capacity - Dual Slope - 100% Fill Factor

Struck	23.01 yd³ 17.6 m³
Heaped (SAE 2:1)*	32.9 yd³ 25.2 m³
Note (2)	ISO 6483:1980. ISO 6483:1980.
Note (1)	Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.

Capacity - Flat Floor - 100% Fill Factor

Struck	23.01 yd³ 17.6 m³
Heaped (SAE 2:1)*	32.9 yd³ 25.2 m³
Note (1)	Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.
Note (2)	ISO 6483:1980. ISO 6483:1980.

Weight Distributions - Approximate

Front Axle - Empty	49 % 49 %
Front Axle - Loaded	34 % 34 %
Rear Axle - Empty	51 % 51 %
Rear Axle - Loaded	66 % 66 %

Suspension

Empty Loaded Cylinder Stroke Front	9.2 in 234 mm
Empty Loaded Cylinder Stroke Rear	5.9 in 149 mm
Rear axle - Oscillation	8.9 ° 8.9 °

Service Refill Capacities

Fuel Tank	140 gal (US) 530 l
Cooling System	33 gal (US) 125 l
Crankcase	17 gal (US) 64 l
Differential - Final Drives	47 gal (US) 180 l
Steering Tank	14.5 gal (US) 55 l
Steering System - Including Tank	23 gal (US) 87 l
Brake/Hoist Hydraulic Tank	38 gal (US) 145 l
Brake Hoist System	60 gal (US) 227 l
Torque Converter - Transmission System	17 gal (US) 64 l
DEF Tank	6 gal (US) 21 l

Tires

Standard Tire	18.00R33 (E4) 18.00R33 (E4)
Note (1)	Productive capabilities of the 770G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. Productive capabilities of the 770G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2)	Caterpillar recommends the customer evaluates all job conditions and consults the tire manufacturer for proper tire selection. Caterpillar recommends the customer evaluates all job conditions and consults the tire manufacturer for proper tire selection.

ROPS

ROPS Standards	Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
FOPS Standards	Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria.

Sound

Sound Standards (1)	Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment. Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment.
Sound Standards (2)	Exterior sound pressure power level for standard machine measured according to tests specified in ISO 6395:2008 is 116 dB(A). Exterior sound pressure power level for standard machine measured according to tests specified in ISO 6395:2008 is 116 dB(A).
Sound Standards (3)	Operator Equivalent Sound Pressure Level is 79 dB(A) & 74 dB(A) with EU sound suppression applied when ISO 6396:2008 is used. Operator Equivalent Sound Pressure Level is 79 dB(A) & 74 dB(A) with EU sound suppression applied when ISO 6396:2008 is used.

Steering

Steering Standards	ISO 5010:2007 ISO 5010:2007
Steer Angle	40.5 ° 40.5 °
Turning Diameter - Front	57.7 ft 17.6 m
Turning Circle - Clearance Diameter	66.6 ft 20.3 m
Note	Target gross machine operating weight is 71 214 kg (157,000 lb). Target gross machine operating weight is 71 214 kg (157,000 lb).

Dimensions

Height - Top of ROPS	12.7 ft 3857 mm
Overall Body Length	26.8 ft 8199 mm
Inside Body Length	18.5 ft 5635 mm
Overall Length	28.9 ft 8796 mm
Wheel Base	13 ft 3960 mm
Rear Axle - Tail	8.5 ft 2586 mm
Ground Clearance	1.6 ft 518 mm
Dump Clearance	1.7 ft 506 mm
Loading Height - Empty	10.3 ft 3147 mm
Inside Body Depth - Maximum	4.6 ft 1404 mm
Overall Height - Body Raised	27.1 ft 8255 mm
Operating Width	15.7 ft 4780 mm
Centerline Front Tire Width	10.2 ft 3110 mm
Engine Guard Clearance	1.8 ft 335 mm
Outside Body Width	12.9 ft 3931 mm
Inside Body Width	11.9 ft 3627 mm
Front Canopy Height	13.5 ft 4114 mm
Rear Axle - Clearance	1.8 ft 548 mm
Centerline of Rear Dual Tire Width	8.3 ft 2536 mm
Overall Tire Width	12.1 ft 3693 mm

770 (07) Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, backup

Alternator, 115 ampere

Auxiliary jump start receptacle

Batteries, maintenance-free, 12V (2), 190 amp-hour

Electrical system, 24V

Lighting system:
– Backup light (halogen)
– Directional signals/hazard warning (front and rear LED)
– Headlights, (halogen) with dimmer
– Operator access courtesy lights (Developing Market Only)

PRODUCT LINK™ COMMUNICATIONS

Product Link Ready

GUARDS

Driveline

Engine crankcase

OPERATOR ENVIRONMENT

Air conditioning

Ashtray and cigarette lighter

Coat hook

Cup holders (4)

Diagnostic connection port, 24V

Entertainment Radio Ready:
– 5 amp converter
– Speakers
– Antenna
– Wiring harness

Gauges/indicators:
– Air cleaner service indicator - electronic
– Brake oil temperature gauge
– Coolant temperature gauge
– Hour meter
– Tachometer
– Engine overspeed indicator
– Fuel level
– Speedometer with odometer
– Transmission gear indicator

Heater/defroster (11 070 kCal/43,930 BTU)

Hoist lever

Horn, electric

Light - dome

Light - courtesy

Messenger, display unit

Mirrors

Power port, 12V

ROPS cab, insulated/sound suppressed

Seat, Cat Comfort Series III:
– full air suspension
– four-point harness

Steering wheel, padded, tilt and telescopic

Storage compartment

Sun visor, tinted glass

Throttle lock

Windshield wiper (intermittent) and washer

POWER TRAIN

Air-To-Air Aftercooler (ATAAC)

Air cleaner with precleaner (1)

Automatic cold mode idle control

Electric start

Turbocharger

Braking system, hydraulic actuated:
– Automatic Retarder Control (ARC) (utilizes rear oil-cooled, multiple disc brakes)
– Brake release motor (towing)
– Caliper-disc (front)
– Extended Life Brakes
– Oil-cooled, multiple disc (rear)
– Parking
– Secondary
– Service

Transmission:
– 7-speed automatic powershift
– Body up-shift inhibitor
– Controlled throttle shifting
– Directional shift management
– Downshift inhibitor
– Neutral start switch
– Neutral coast inhibitor
– Reverse shift inhibitor
– Reverse neutralizer during dumping
– Programmable top gear selection

SUSPENSION SYSTEMS

Suspension, front and rear

OTHER STANDARD EQUIPMENT

Body safety pin (secures body in up position)

Body down indicator

CD-ROM parts book

Fan, hydraulic demand

Fuel tank (530 L/140 gal)

Guard, engine compartment

Guard, mud

Ground level battery disconnect

Ground level engine shutdown

Ground level grease fittings

Reservoirs (separate):
– Brake/converter/hoist
– Steering
– Transmission/torque converter

Rims 15 × 33

Rock ejectors

Service platform, left and right side

Supplemental steering (automatic)

Tie down eyes

Tow hooks (front)/Tow pin (rear)

Vandalism protection locks

ANTIFREEZE

Extended Life Coolant to -35° C (-30° F)

770 (07) Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPTIONAL EQUIPMENT

Cat Engine Brake

Extended Life Brake Discs

Body heat/diverter box

Four (4) batteries

HID lights

Product Link

Backup alarm

Heated mirrors

Fuel heater

Ether aid

Coolant heater

Auto lube

Rear vision camera (WAVS)

Spare rims

Wheel chocks

Body sideboards

Traction Control System (TCS)

Product Specifications for 770 (07)

Download Print

Engine

Engine Model	Cat® C15 Cat® C15
Rated Engine Speed	1700 r/min 1700 r/min
Gross Power - SAE J1995:2014	515 hp 384 kW
Net Power - SAE J1349:2011	477 hp 356 kW
Net Power - ISO 9249	477 hp 356 kW
Net Power - 80/1269/EEC	489 hp 365 kW
Net Power - ISO 14396	508 hp 379 kW
Net Torque - SAE J1349	1834 ft·lbf 2486 N·m
Number of Cylinders	6 6
Bore	5.4 in 137 mm
Stroke	6.7 in 171 mm
Displacement	927.6 in³ 15.2 l
Note (1)	Power rating applies at 1,700 rpm when tested under the specified condition for the specified standard. Power rating applies at 1,700 rpm when tested under the specified condition for the specified standard.
Note (2)	Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F). Ratings based on SAE J1995 standard air conditions of 25° C (77° F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16° C (60° F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30° C (86° F).
Note (3)	No engine derating required up to 3000 m (9,843 ft) altitude. No engine derating required up to 3000 m (9,843 ft) altitude.
Note (4)	Meets Japan Small Volume Exemption. Meets Japan Small Volume Exemption.
Emissions	Meets U.S. EPA Tier 4 and EU Stage V emission standards. Meets U.S. EPA Tier 4 and EU Stage V emission standards.

Weights - Approximate

Target Gross Machine Operating Weight	157000 lb 71214 kg
Target Gross Machine Weight	157000 lb 71214 kg
Chassis Weight	55948 lb 25378 kg
Body Weight	17306 lb 7850 kg
Note (1)	Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires. Chassis weight with 100% fuel, hoist, body mounting group, rims, and tires.
Note (2)	Body weight is the standard Dual Slope body with no liner and will vary depending on configuration. Body weight is the standard Dual Slope body with no liner and will vary depending on configuration.

Operating Specifications

Nominal Payload Class (100%)	42.1 ton (US) 38.2 t
Top Speed - Loaded	45.8 mile/h 73.7 km/h
Target Payload (100%)	42.1 ton (US) 38.2 t
Maximum Working Payload (110%)	46.3 ton (US) 42 t
Maximum Allowable Payload (120%)*	50.5 ton (US) 45.8 t
Body Capacity - SAE 2:1	32.9 yd³ 25.2 m³
Note (1)	Refer to Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. Refer to Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations.
Note (2)	Target payload and capacity based on Dual Slope body with no liner. Attachment selection will affect payload and maximum gross machine operating weight. Target payload and capacity based on Dual Slope body with no liner. Attachment selection will affect payload and maximum gross machine operating weight.

Transmission

Forward - 1	7.4 mile/h 11.9 km/h
Forward - 2	10.1 mile/h 16.3 km/h
Forward - 3	13.8 mile/h 22.2 km/h
Forward - 4	18.5 mile/h 29.8 km/h
Forward - 5	25.1 mile/h 40.4 km/h
Forward - 6	33.8 mile/h 54.4 km/h
Forward - 7	45.8 mile/h 73.7 km/h
Reverse	8.8 mile/h 14.2 km/h
Note	Maximum travel speeds with standard 18.00R33 (E4) tires. Maximum travel speeds with standard 18.00R33 (E4) tires.

Final Drives

Differential Ratio	1.92:1 1.92:1
Planetary Ratio	4.80:1 4.80:1
Total Reduction Ratio	9.26:1 9.26:1

Brakes

Brake Surface - Front	216 in² 1395 cm²
Brake Surface - Rear	6235 in² 40225 cm²
Brake Standards	ISO 3450:2011 ISO 3450:2011
Note	Target gross machine operating weight is 71 214 kg (157,000 lb). Target gross machine operating weight is 71 214 kg (157,000 lb).

Body Hoists

Pump Flow - High Idle	118 gal/min 448 l/min
Relief Valve Setting - Raise	2750 psi 18950 kPa
Relief Valve Setting - Lower	500 psi 3450 kPa
Body Raise Time - High Idle	7.5 s 7.5 s
Body Lower Time - Float	10 s 10 s
Body Power Down - High Idle	10 s 10 s

Capacity - Dual Slope - 100% Fill Factor

Struck	23.01 yd³ 17.6 m³
Heaped (SAE 2:1)*	32.9 yd³ 25.2 m³
Note (2)	ISO 6483:1980. ISO 6483:1980.
Note (1)	Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.

Capacity - Flat Floor - 100% Fill Factor

Struck	23.01 yd³ 17.6 m³
Heaped (SAE 2:1)*	32.9 yd³ 25.2 m³
Note (1)	Contact your local Cat dealer for body recommendation. Contact your local Cat dealer for body recommendation.
Note (2)	ISO 6483:1980. ISO 6483:1980.

Weight Distributions - Approximate

Front Axle - Empty	49 % 49 %
Front Axle - Loaded	34 % 34 %
Rear Axle - Empty	51 % 51 %
Rear Axle - Loaded	66 % 66 %

Suspension

Empty Loaded Cylinder Stroke Front	9.2 in 234 mm
Empty Loaded Cylinder Stroke Rear	5.9 in 149 mm
Rear axle - Oscillation	8.9 ° 8.9 °

Service Refill Capacities

Fuel Tank	140 gal (US) 530 l
Cooling System	33 gal (US) 125 l
Crankcase	17 gal (US) 64 l
Differential - Final Drives	47 gal (US) 180 l
Steering Tank	14.5 gal (US) 55 l
Steering System - Including Tank	23 gal (US) 87 l
Brake/Hoist Hydraulic Tank	38 gal (US) 145 l
Brake Hoist System	60 gal (US) 227 l
Torque Converter - Transmission System	17 gal (US) 64 l
DEF Tank	6 gal (US) 21 l

Tires

Standard Tire	18.00R33 (E4) 18.00R33 (E4)
Note (1)	Productive capabilities of the 770G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. Productive capabilities of the 770G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production.
Note (2)	Caterpillar recommends the customer evaluates all job conditions and consults the tire manufacturer for proper tire selection. Caterpillar recommends the customer evaluates all job conditions and consults the tire manufacturer for proper tire selection.

ROPS

ROPS Standards	Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria.
FOPS Standards	Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria.

Sound

Sound Standards (1)	Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment. Hearing protection may be needed when operating with open operator station & cab for extended periods or in noisy environment.
Sound Standards (2)	Exterior sound pressure power level for standard machine measured according to tests specified in ISO 6395:2008 is 116 dB(A). Exterior sound pressure power level for standard machine measured according to tests specified in ISO 6395:2008 is 116 dB(A).
Sound Standards (3)	Operator Equivalent Sound Pressure Level is 79 dB(A) & 74 dB(A) with EU sound suppression applied when ISO 6396:2008 is used. Operator Equivalent Sound Pressure Level is 79 dB(A) & 74 dB(A) with EU sound suppression applied when ISO 6396:2008 is used.

Steering

Steering Standards	ISO 5010:2007 ISO 5010:2007
Steer Angle	40.5 ° 40.5 °
Turning Diameter - Front	57.7 ft 17.6 m
Turning Circle - Clearance Diameter	66.6 ft 20.3 m
Note	Target gross machine operating weight is 71 214 kg (157,000 lb). Target gross machine operating weight is 71 214 kg (157,000 lb).

Dimensions

Height - Top of ROPS	12.7 ft 3857 mm
Overall Body Length	26.8 ft 8199 mm
Inside Body Length	18.5 ft 5635 mm
Overall Length	28.9 ft 8796 mm
Wheel Base	13 ft 3960 mm
Rear Axle - Tail	8.5 ft 2586 mm
Ground Clearance	1.6 ft 518 mm
Dump Clearance	1.7 ft 506 mm
Loading Height - Empty	10.3 ft 3147 mm
Inside Body Depth - Maximum	4.6 ft 1404 mm
Overall Height - Body Raised	27.1 ft 8255 mm
Operating Width	15.7 ft 4780 mm
Centerline Front Tire Width	10.2 ft 3110 mm
Engine Guard Clearance	1.8 ft 335 mm
Outside Body Width	12.9 ft 3931 mm
Inside Body Width	11.9 ft 3627 mm
Front Canopy Height	13.5 ft 4114 mm
Rear Axle - Clearance	1.8 ft 548 mm
Centerline of Rear Dual Tire Width	8.3 ft 2536 mm
Overall Tire Width	12.1 ft 3693 mm

770 (07) Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

ELECTRICAL

Alarm, backup

Alternator, 115 ampere

Auxiliary jump start receptacle

Batteries, maintenance-free, 12V (2), 190 amp-hour

Electrical system, 24V

Lighting system:
– Backup light (halogen)
– Directional signals/hazard warning (front and rear LED)
– Headlights, (halogen) with dimmer
– Operator access courtesy lights (Developing Market Only)

PRODUCT LINK™ COMMUNICATIONS

Product Link Ready

GUARDS

Driveline

Engine crankcase

OPERATOR ENVIRONMENT

Air conditioning

Ashtray and cigarette lighter

Coat hook

Cup holders (4)

Diagnostic connection port, 24V

Entertainment Radio Ready:
– 5 amp converter
– Speakers
– Antenna
– Wiring harness

Gauges/indicators:
– Air cleaner service indicator - electronic
– Brake oil temperature gauge
– Coolant temperature gauge
– Hour meter
– Tachometer
– Engine overspeed indicator
– Fuel level
– Speedometer with odometer
– Transmission gear indicator

Heater/defroster (11 070 kCal/43,930 BTU)

Hoist lever

Horn, electric

Light - dome

Light - courtesy

Messenger, display unit

Mirrors

Power port, 12V

ROPS cab, insulated/sound suppressed

Seat, Cat Comfort Series III:
– full air suspension
– four-point harness

Steering wheel, padded, tilt and telescopic

Storage compartment

Sun visor, tinted glass

Throttle lock

Windshield wiper (intermittent) and washer

POWER TRAIN

Air-To-Air Aftercooler (ATAAC)

Air cleaner with precleaner (1)

Automatic cold mode idle control

Electric start

Turbocharger

Braking system, hydraulic actuated:
– Automatic Retarder Control (ARC) (utilizes rear oil-cooled, multiple disc brakes)
– Brake release motor (towing)
– Caliper-disc (front)
– Extended Life Brakes
– Oil-cooled, multiple disc (rear)
– Parking
– Secondary
– Service

Transmission:
– 7-speed automatic powershift
– Body up-shift inhibitor
– Controlled throttle shifting
– Directional shift management
– Downshift inhibitor
– Neutral start switch
– Neutral coast inhibitor
– Reverse shift inhibitor
– Reverse neutralizer during dumping
– Programmable top gear selection

SUSPENSION SYSTEMS

Suspension, front and rear

OTHER STANDARD EQUIPMENT

Body safety pin (secures body in up position)

Body down indicator

CD-ROM parts book

Fan, hydraulic demand

Fuel tank (530 L/140 gal)

Guard, engine compartment

Guard, mud

Ground level battery disconnect

Ground level engine shutdown

Ground level grease fittings

Reservoirs (separate):
– Brake/converter/hoist
– Steering
– Transmission/torque converter

Rims 15 × 33

Rock ejectors

Service platform, left and right side

Supplemental steering (automatic)

Tie down eyes

Tow hooks (front)/Tow pin (rear)

Vandalism protection locks

ANTIFREEZE

Extended Life Coolant to -35° C (-30° F)

770 (07) Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPTIONAL EQUIPMENT

Cat Engine Brake

Extended Life Brake Discs

Body heat/diverter box

Four (4) batteries

HID lights

Product Link

Backup alarm

Heated mirrors

Fuel heater

Ether aid

Coolant heater

Auto lube

Rear vision camera (WAVS)

Spare rims

Wheel chocks

Body sideboards

Traction Control System (TCS)

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Detect

Equipment Management

Payload

Productivity

Driver Safety System (DSS)

Fatigued and distracted equipment operators can pose a severe risk to themselves and others. The consequences can be costly, even fatal. The Cat® Detect Driver Safety System (DSS) is an in-cab detection technology that can help identify and address fatigue and distraction events, enhancing operator safety.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Fatigued and distracted equipment operators can pose a severe risk to themselves and others. The consequences can be costly, even fatal. The Cat® Detect Driver Safety System (DSS) is an in-cab detection technology that can help identify and address fatigue and distraction events, enhancing operator safety.

Explore Technology

Cat Inspect

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat Product Link

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology
VisionLink®

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology

VisionLink® is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Payload with Truck Production Management System

The Cat® Payload with Truck Production Management System is a payload weighing system that helps to improve fleet productivity and reduce operating costs. Payload lights and display signal that the proper load is reached.

Explore Technology

1 - 8 of 9 Items items

Previous Next

The Cat® Payload with Truck Production Management System is a payload weighing system that helps to improve fleet productivity and reduce operating costs. Payload lights and display signal that the proper load is reached.

Explore Technology

VisionLink® Productivity

VisionLink® Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink® Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.

Explore Technology
