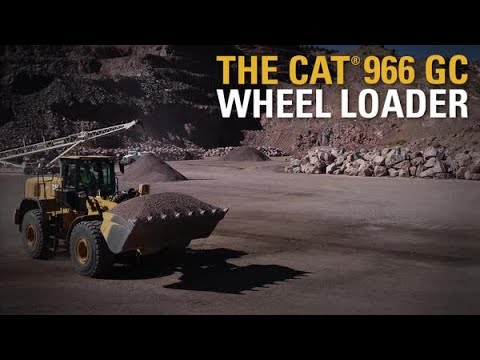

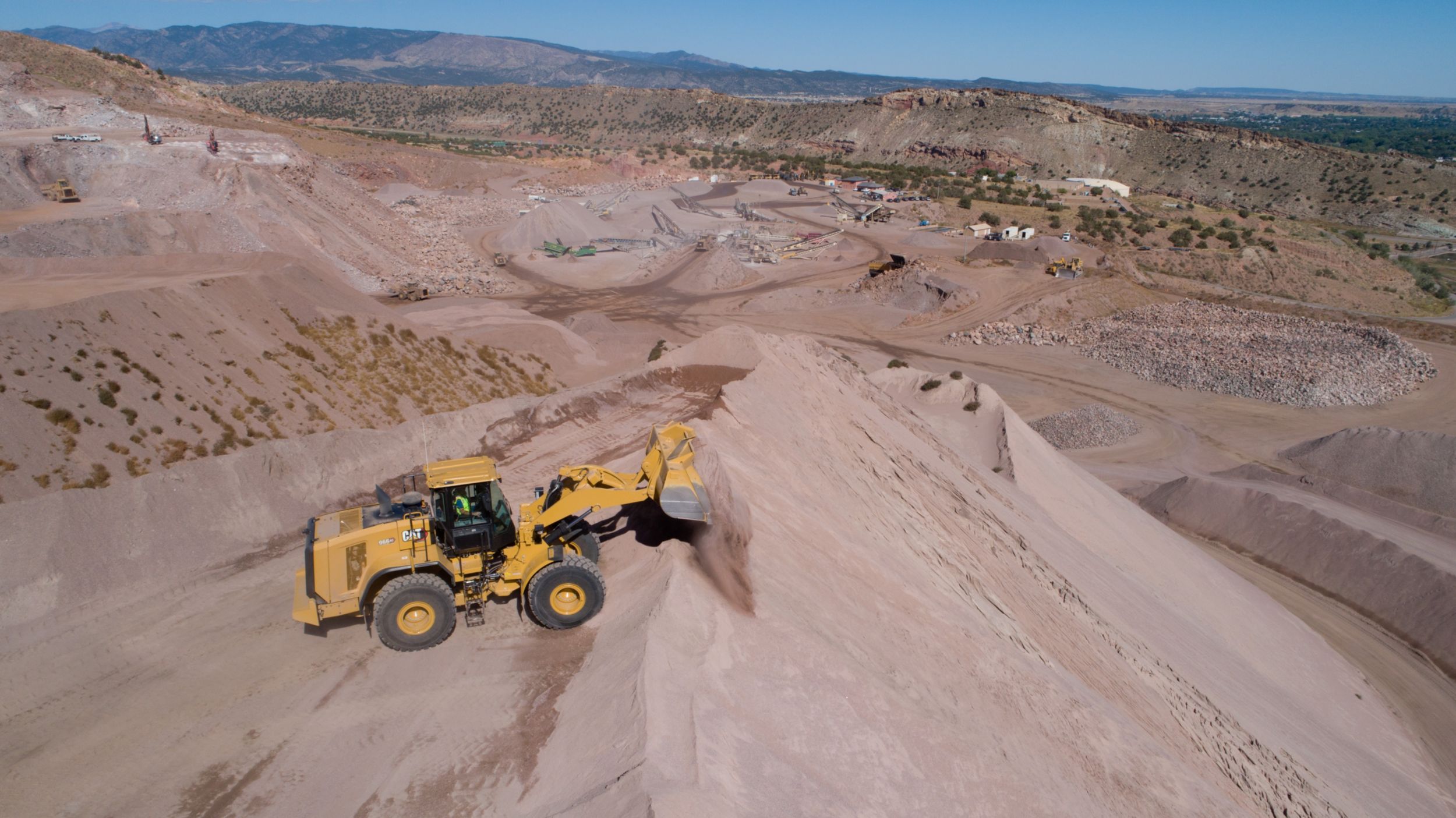

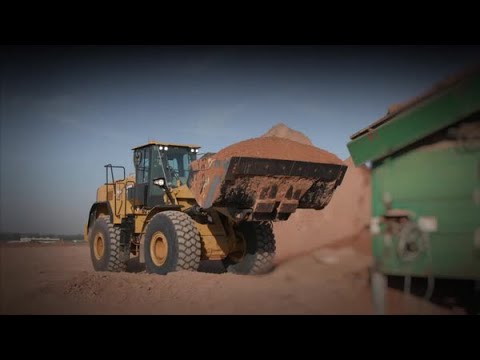

966 GC Medium Wheel Loaders | Cat

Engine

Engine Power @ 1,600 rpm - ISO 14396:2002	321 HP 239 kW
Engine Model	Cat C9.3B Cat C9.3B
Gross Power @ 1,600 rpm - SAE J1995:2014	325 HP 242 kW
Net Power @ 1,600 rpm - ISO 9249:2007, SAE J1349:2011	292 HP 218 kW
Net Power - ISO 9249	292 HP 218 kW
Engine Torque @ 1,200 rpm - ISO 14396:2002	1314 ft·lbf 1781 N·m
Gross Torque @ 1,200 rpm – SAE J1995:2014	1327 ft·lbf 1799 N·m
Net Torque @ 1,200 rpm - ISO 9249:2007, SAE J1349:2011	1234 ft·lbf 1673 N·m
Bore - ISO 9249	4.53 in 115 mm
Stroke	5.87 in 149 mm
Displacement	568 in³ 9.3 l
Note (1)	Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards. Cat engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Tier 5, China Nonroad Stage IV, and Japan 2014 (Tier 4 Final) emission standards.
Note (2)	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment. The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (3)	Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels Cat engines are compatible with the following renewable, alternative, and biodiesel* fuels that reduce greenhouse gases on a lifecycle basis: • Up to B20 biodiesel (FAME) ** • Up to 100% HVO and GTL renewable fuels

Weights

Operating Weight*	48018 lb 21781 kg
Note (1)	* For 4 m3 (5.2 yd3) general purpose bucket with BOCE. * For 4 m3 (5.2 yd3) general purpose bucket with BOCE.
Note (2)	* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. * Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Operating Specifications

Static Tipping Load - Full 37° Turn - With Tire Deflection	30072 lb 13640 kg
Static Tipping Load - Full 37° Turn - No Tire Deflection	32233 lb 14642 kg
Breakout Force	36974 lbf 164 kN
Note (1)	* For 4 m3 (5.2 yd3) general purpose bucket with BOCE. * For 4 m3 (5.2 yd3) general purpose bucket with BOCE.
Note (2)	* Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. * Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Buckets

Bucket Capacities

3.2 - 7.1 m³ (4.25 - 9.25 yd³) 3.2 - 7.1 m³ (4.25 - 9.25 yd³)

Sound

With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)	75 dB(A) 75 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)	110 dB(A) 110 dB(A)
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)	78 dB(A)* 78 dB(A)*
Note (1)	Distance of 15 m (49.2 ft), moving forward in second gear ratio. Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**	73 dB(A) 73 dB(A)
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**	108 dB(A)* 108 dB(A)*
Note (2)	For machines in European Union countries and in countries that adopt the “EU Directives”. For machines in European Union countries and in countries that adopt the “EU Directives”.
Note (3)	* European Union Directive “2000/14/EC” as amended by “2005/88/EC”. * European Union Directive “2000/14/EC” as amended by “2005/88/EC”.

Transmission

Forward - 1	4 mile/h 6.4 km/h
Reverse - 1	4.3 mile/h 7 km/h
Forward - 2	7.5 mile/h 12.1 km/h
Reverse - 2	8.2 mile/h 13.2 km/h
Forward - 3	13 mile/h 21 km/h
Reverse - 3	14.3 mile/h 23 km/h
Forward - 4	21.6 mile/h 34.8 km/h
Reverse - 4	22.9 mile/h 36.9 km/h
Note	Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32 in) roll radius. Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32 in) roll radius.

Service Refill Capacities

Fuel Tank	84.5 gal (US) 320 l
DEF Tank	6.9 gal (US) 26 l
Cooling System	14 gal (US) 53 l
Crankcase	6.1 gal (US) 23 l
Transmission	14.5 gal (US) 55 l
Differential - Final Drives - Front	15.1 gal (US) 57 l
Differential - Final Drives - Rear	15.1 gal (US) 57 l
Hydraulic Tank	26.7 gal (US) 101 l

Hydraulic System

Implement Pump Type	Variable Displacement Piston, Load Sensing Variable Displacement Piston, Load Sensing
Implement System - Maximum Flow @ 2,275 rpm	86 gal/min 327 l/min
Implement System - Maximum Operating Pressure	4047 psi 27900 kPa
Implement System - Maximum Flow 3rd Function	63 gal/min 240 l/min
Implement System - Maximum Operating Pressure 3rd Function	3304 psi 22780 kPa
Hydraulic Cycle Time - Raise from Carry Position	5.7 s 5.7 s
Hydraulic Cycle Time - Dump, at Maximum Raise	1.8 s 1.8 s
Hydraulic Cycle Time - Lower, Empty, Float Down	2.6 s 2.6 s
Hydraulic Cycle Time - Total Cycle Time	10.1 s 10.1 s

Cab

ROPS/FOPS

ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards ROPS/FOPS meet ISO 3471:2008 and ISO 3449:2005 Level II standards

Brakes

Brakes

Brakes meet ISO 3450:2011 standards Brakes meet ISO 3450:2011 standards

Dimensions

Height - Top of Hood	9.2 ft 2804 mm
Height - Top of Exhaust Pipe	11.61 ft 3539 mm
B-Pin Height	13.11 ft 4256 mm
Height - Top of ROPS	11.75 ft 3582 mm
Centerline of Rear Axle to Edge of Counterweight	8.1 ft 2453 mm
Ground Clearance	1.49 ft 455 mm
Wheel Base	11.65 ft 3550 mm
Centerline of Rear Axle to Hitch	5.82 ft 1775 mm
Rack Back - Maximum Lift	62 ° 62 °
Rack Back - Carry	50 ° 50 °
Rack Back - Ground	42 ° 42 °
Lift Arm Clearance	12.16 ft 3705 mm
