Overview

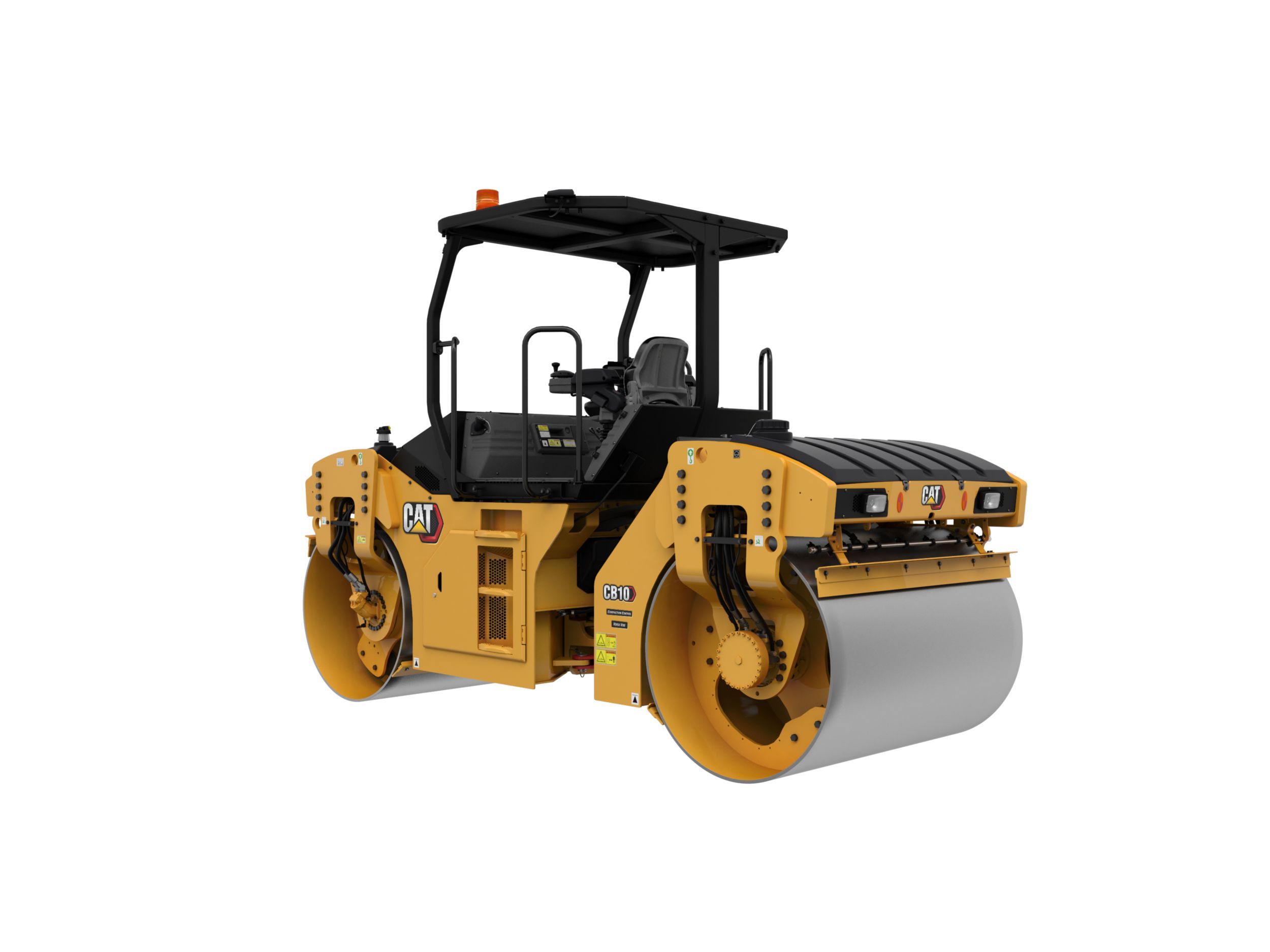

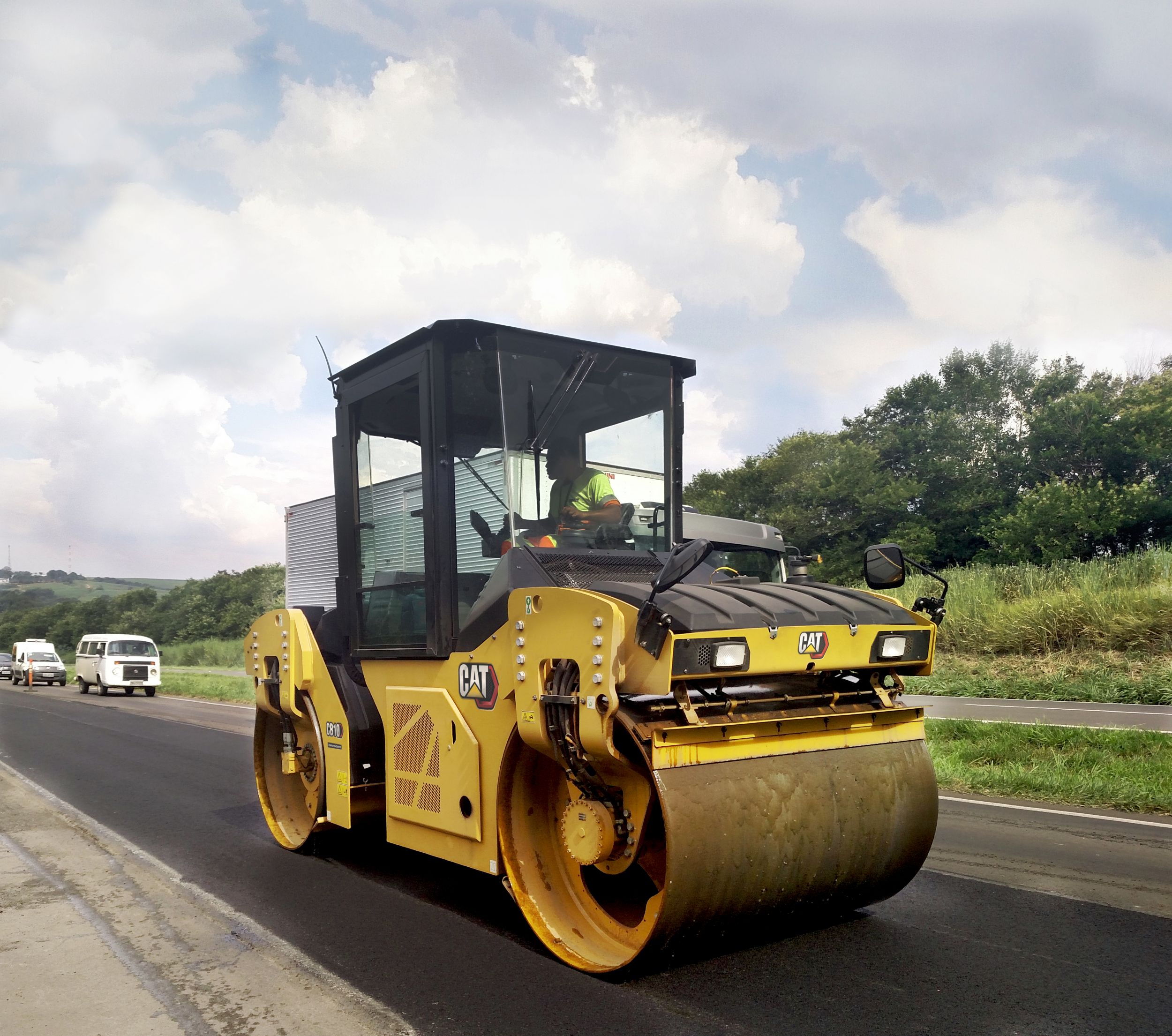

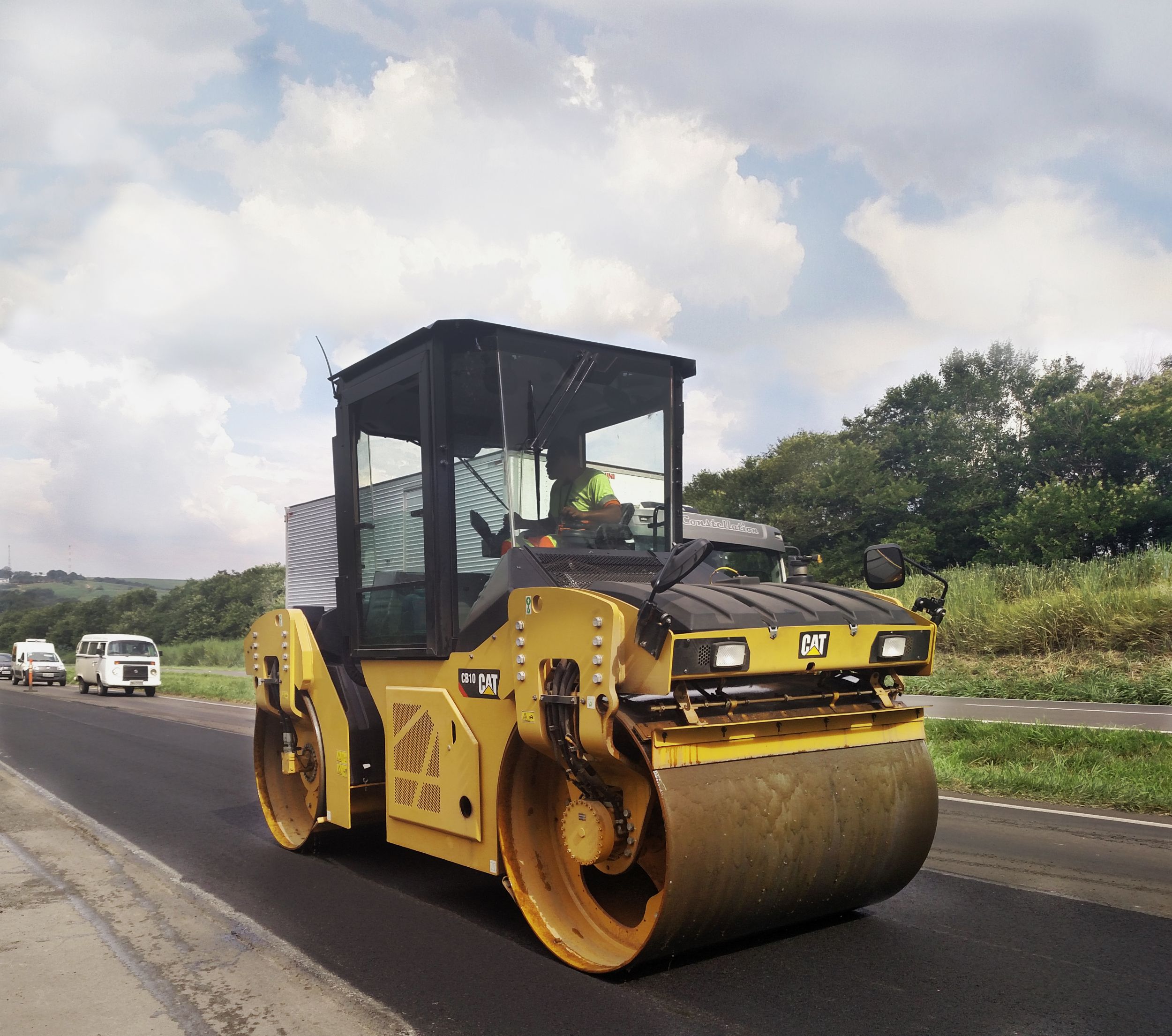

The Cat® CB10 Solid Drum is a 10 ton roller with 1700 mm (67") tandem vibratory drums. It excels on a variety of asphalt mix designs as well as other granular materials. It features exceptional visibility and control, smooth operating powertrain, and versatile vibratory systems including Oscillation Technology.

Weights

Units:
Operating Weight 20945.0 lb 9500.0 kg Less
Standard Operating Weight with Cab 21407.0 lb 9710.0 kg Less
Maximum Operating Weight with Cab 23171.0 lb 10510.0 kg Less
Maximum Operating Weight with ROPS 22564.0 lb 10235.0 kg Less
Standard Operating Weight with ROPS 20945.0 lb 9500.0 kg Less

Operating Specifications

Standard Compaction Width 67.0 in 1700.0 mm Less
Travel Speed - Maximum 7.5 mile/h 12.0 km/h Less
Static Linear Load 160.0 lb/in 28.5 kg/cm Less
Maximum Compaction Width 73.0 in 1940.0 mm Less

Engine

Gross Power 131.8 HP 97.0 kW Less
Engine Model Cat C4.4 with ACERT Technology Cat C4.4 with ACERT Technology Less

Dimensions

Overall Length 177.0 in 4565.0 mm Less
Wheel Base 130.0 in 3300.0 mm Less
Height - With ROPS/FOPS 117.0 in 2982.0 mm Less
Overall Width 73.0 in 1872.0 mm Less
Drum Diameter 47.0 in 1198.0 mm Less

Vibratory System

Drum Width 67.0 in 1700.0 mm Less
Vibration Selection Independent per drum, front only, rear only, both Independent per drum, front only, rear only, both Less
Centrifugal Force per Drum - Minimum 6092.0 lb 27.1 kN Less
Centrifugal Force per Drum - Maximum 28977.0 lb 128.9 kN Less
Nominal Amplitude - High 0.033 in 0.84 mm Less
Nominal Amplitude - Low 0.007 in 0.18 mm Less

Service Refill Capacities

Fuel Tank Capacity 55.0 gal (US) 208.0 l Less
Water Spray Tank Capacity 221.0 gal (US) 837.0 l Less

Exceptional Visibility and Control

Vibratory System Versatility

Cat Compaction Control

Smooth Operating Powertrain

CB10 Optional Equipment

Air Conditioning

Air Suspension Seat w/heat

Cat Compaction Control

Compaction Meter Value

Edge Cutter

Freeze Protection Kit (Water Spray)

Halogen Lights with Drum Edge Lighting

High Ambient Cooling System

High Intensity Discharge Lights

LED Lights

Machine to Machine Communication

Mirrors

Product Link

Roading Lights

ROPS/FOPS Cab

Temperature Gauge

2-Amplitude, 2-Frequency Vibratory System

Warning Beacon

Water Distribution Mats
