Key Specs

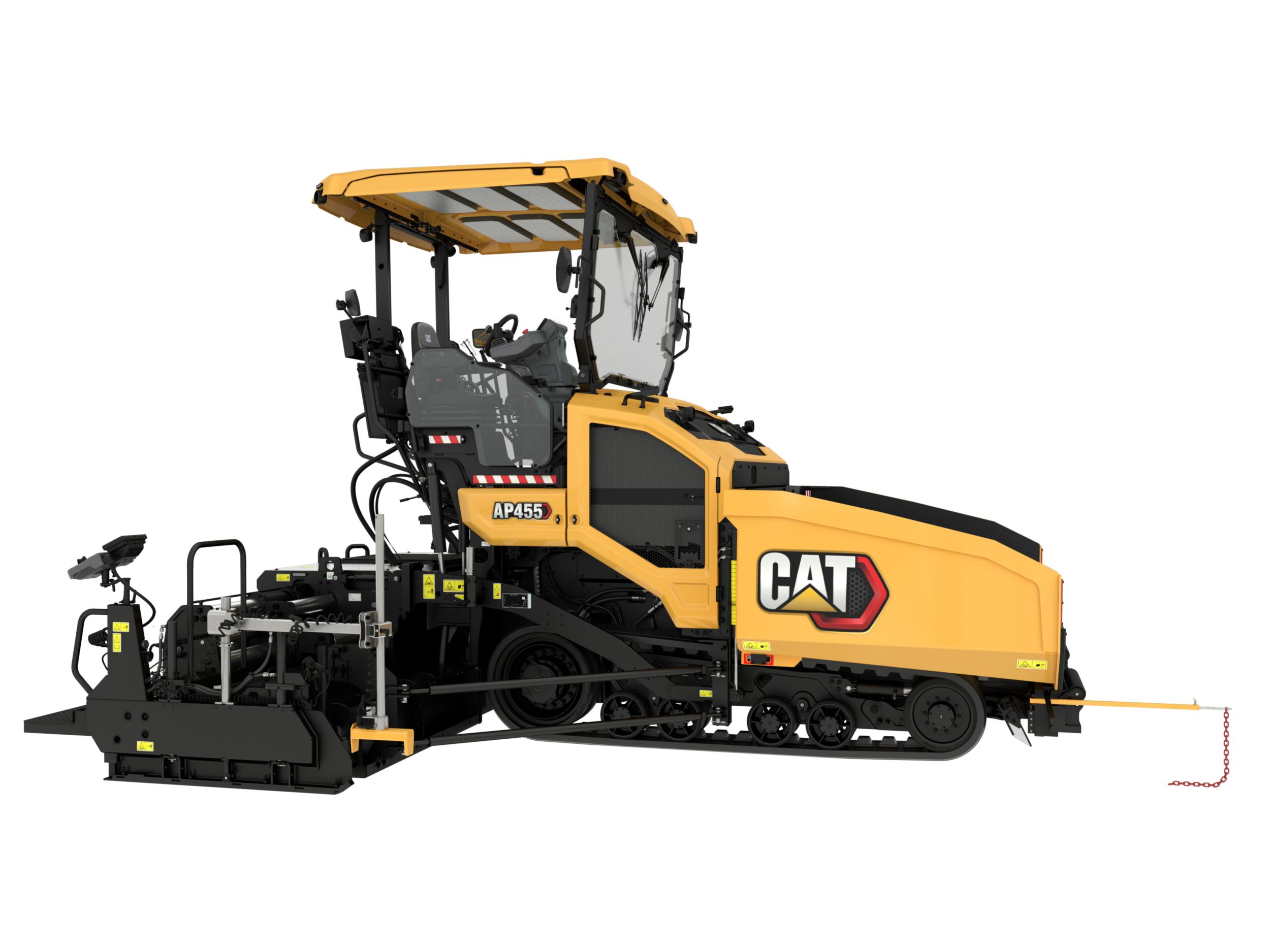

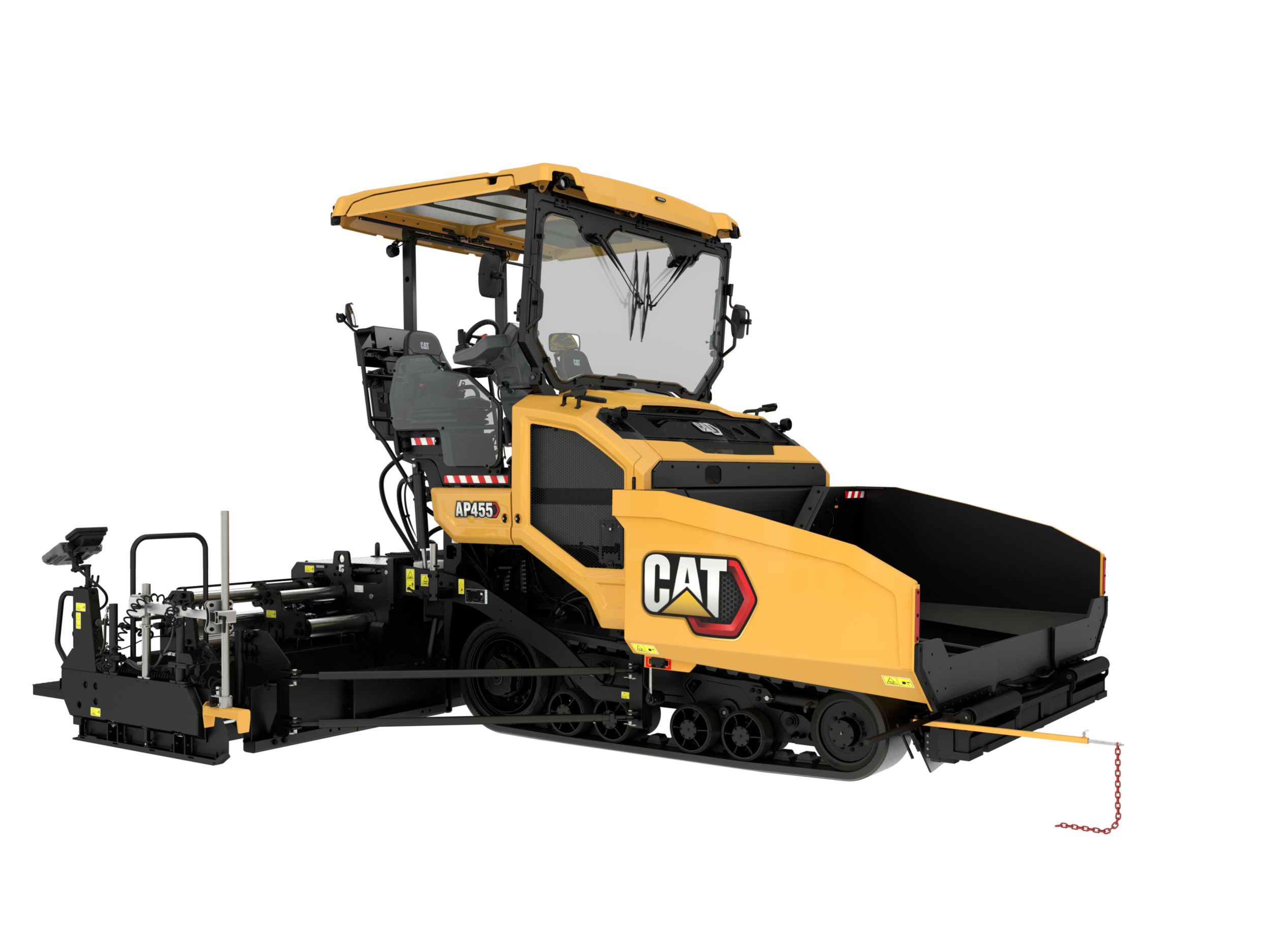

The AP455 Mobil-trac™ Asphalt Paver delivers excellent traction and mobility as-well-as, easy set-up, and a wide paving range, making it the perfect fit for urban streets, parking lots, rural roads and many other small to intermediate-type applications.

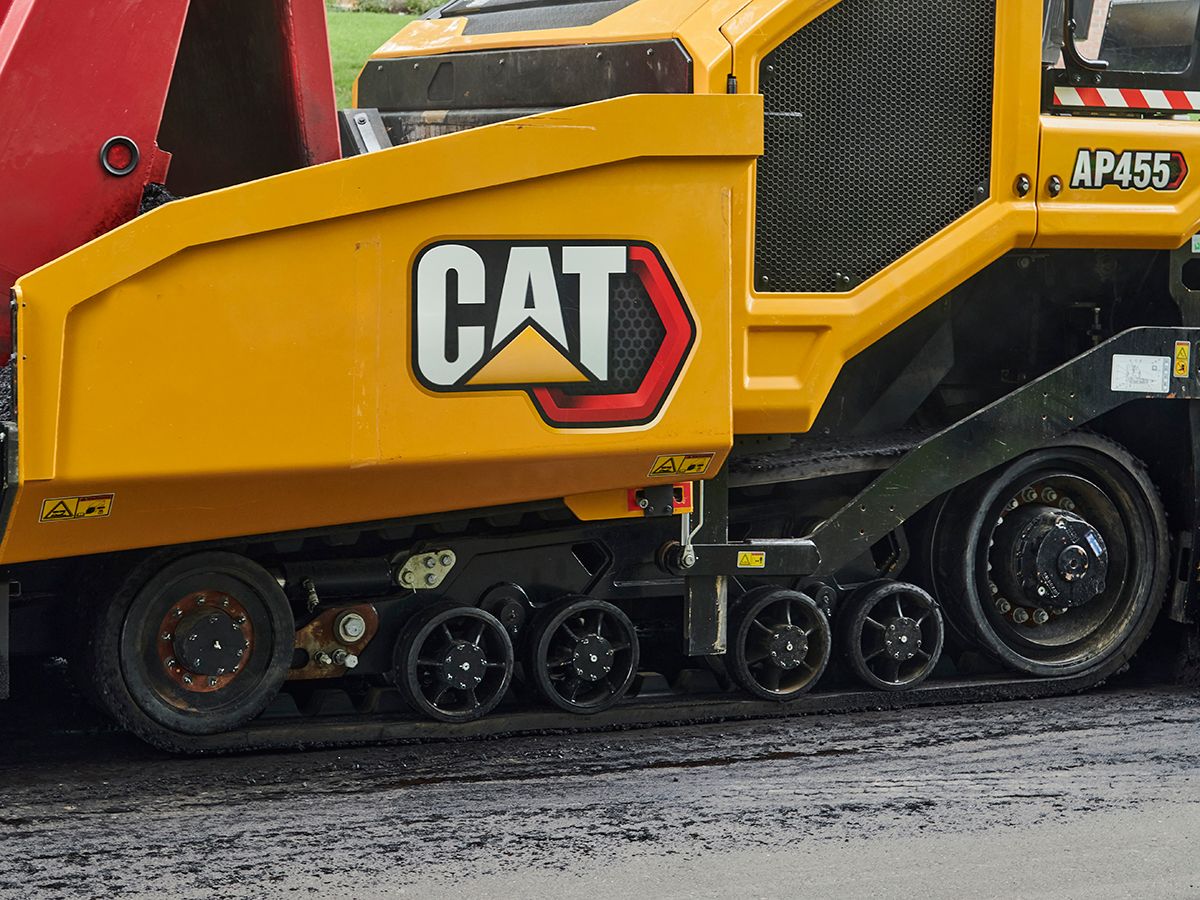

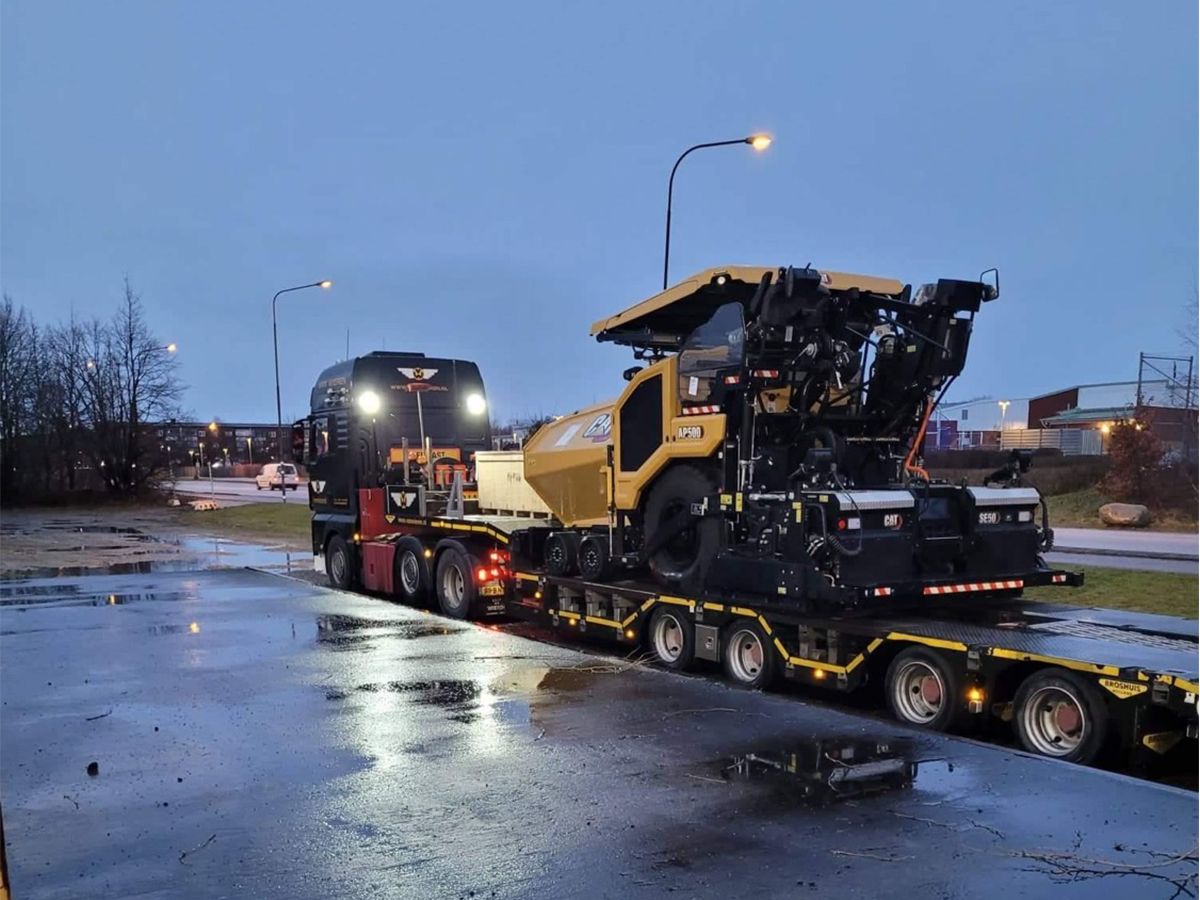

The small footprint simplifies maneuverability in tight spaces, while the lighter weight and optimal width accommodates easy transport.

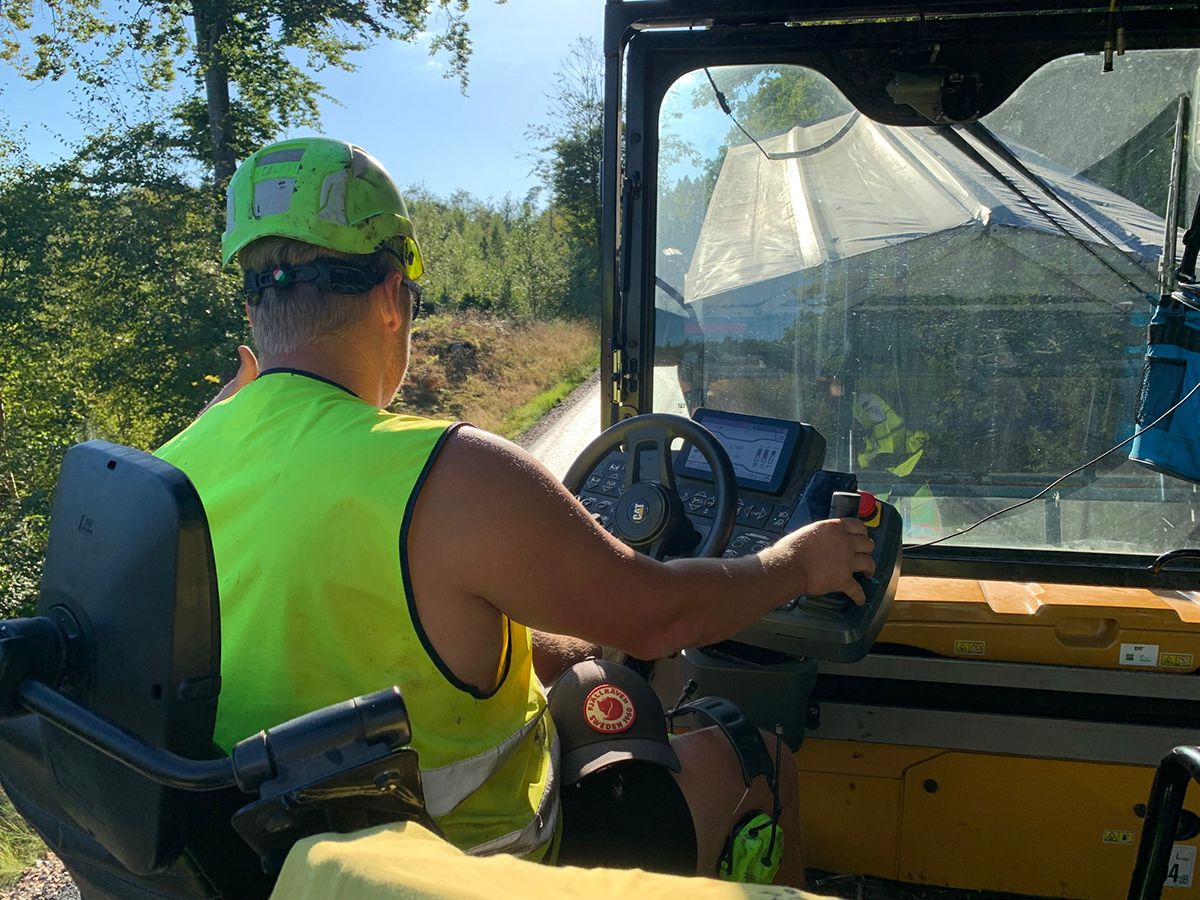

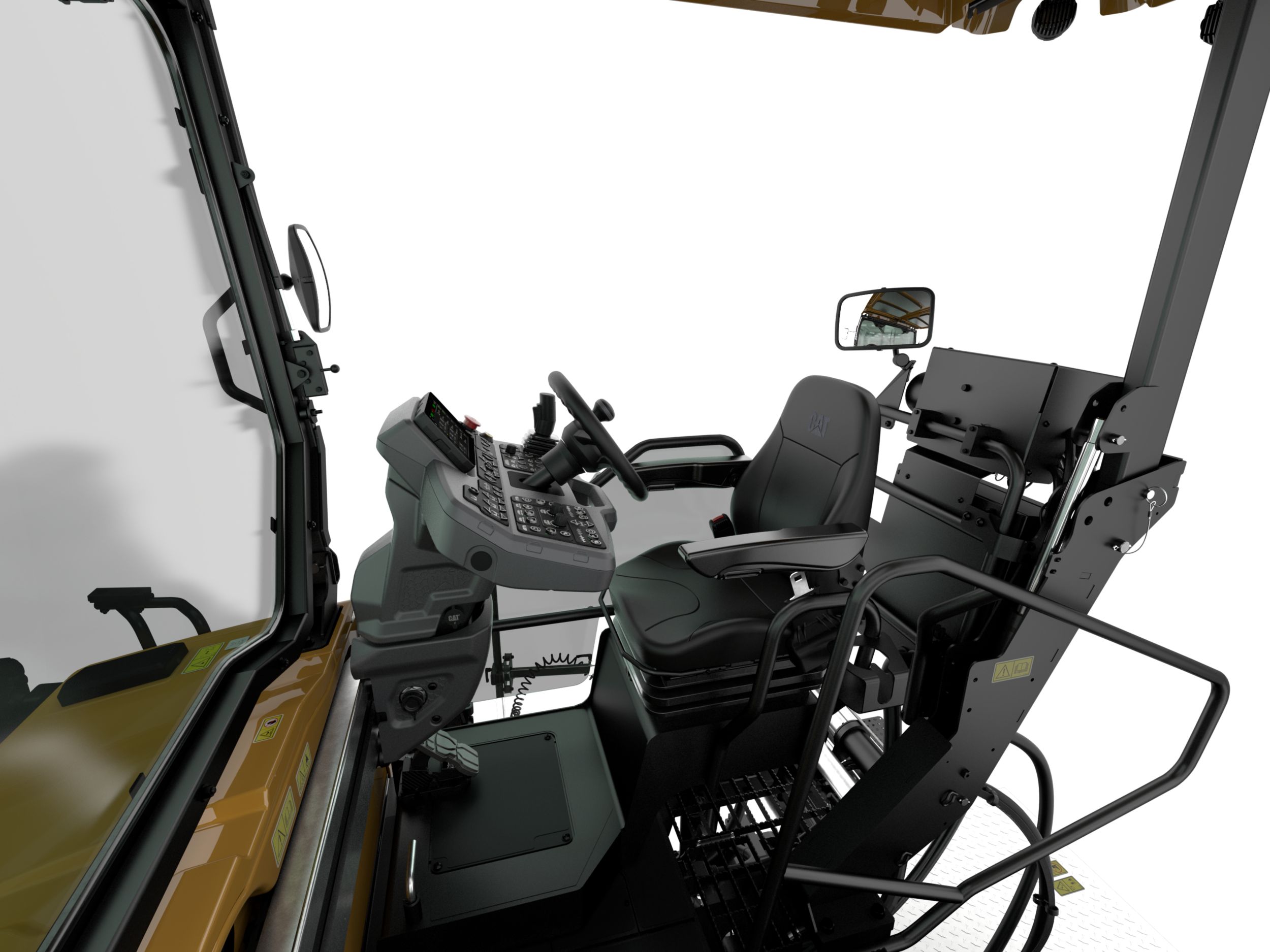

The single sliding console, easy-viewing display, and unobstructed visibility to the hopper, combine to simplify operation.

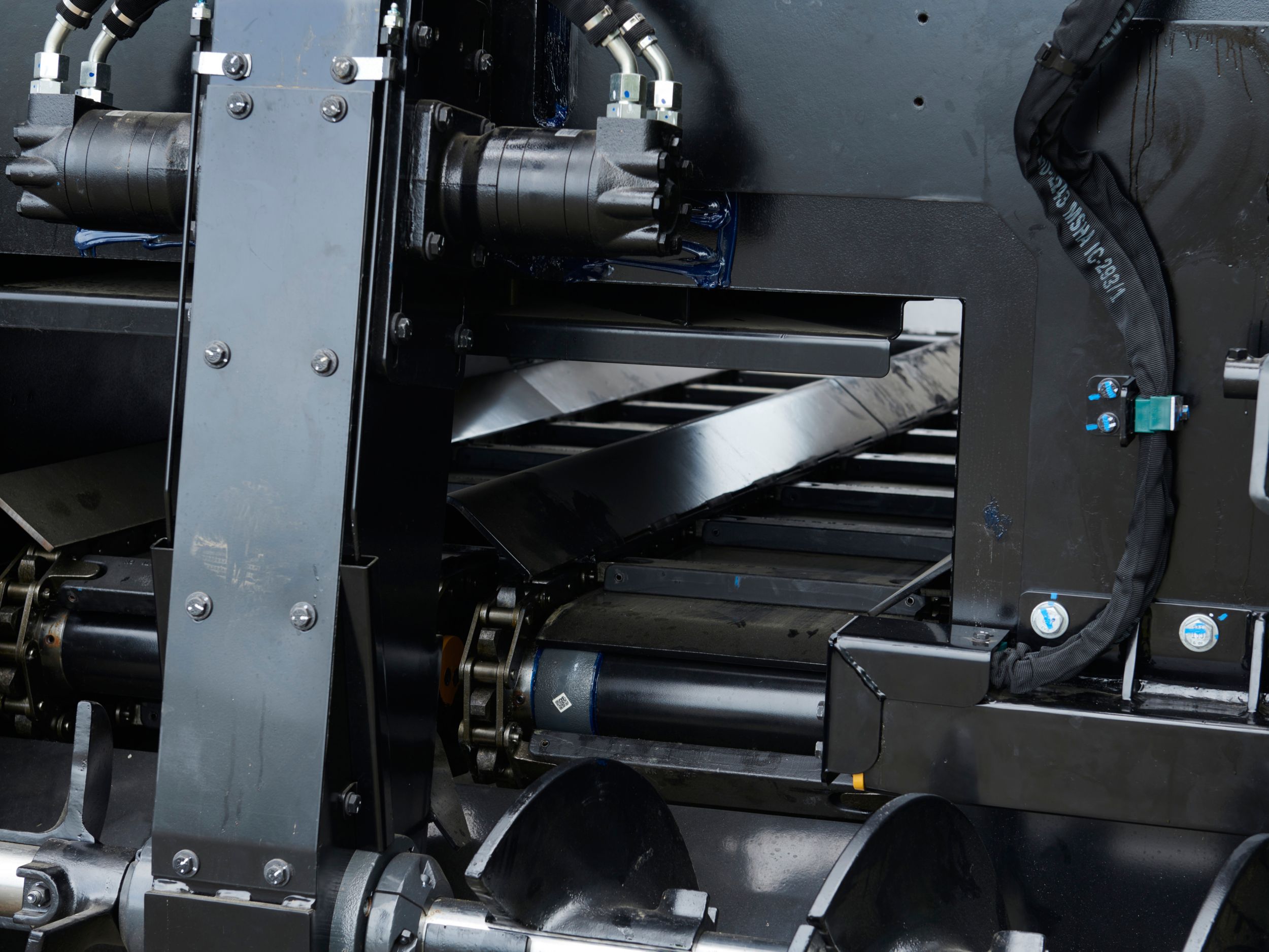

Configurable screed designs, high transport speeds, and serviceable components provide contractors with excellent flexibiity.
| Paving Range with SE47 FM | 2.4 m - 5.9 m (8' - 19' 6") 2.4 m - 5.9 m (8' - 19' 6") |
| Paving Range with SE47 V | 2.4 m - 6.1 m (8' - 20') 2.4 m - 6.1 m (8' - 20') |
| Paving Range with SE47 VT | 2.4 m - 6. m (7' 10" - 19' 8") 2.4 m - 6. m (7' 10" - 19' 8") |
| Truck Entry Height | 22 in 567 mm |
| Operating Length | 18.8 ft 5.7 m |
| Operating Width | 10.75 ft 3.3 m |
| Overall Height | 10.75 ft 3.2 m |
| Transport Length | 18.3 ft 5.5 m |
| Transport Width | 8.3 ft 2.55 m |
| Transport Height | 9.25 ft 2.8 m |
| Operating weight with SE47 FM | 31,533 lb 14303 kg |
| Operating weight with SE47 V | 31,292 lb 14194 kg |
| Operating weight with SE47 VT | 32,913 lb 14929 kg |
| Shipping Weight - Paver Only | 25,582 lb 11604 kg |
| Fuel Tank | 53 gal (US) 200 l |
| DEF Tank | 5 gal (US) 19 l |
| Cooling System - Total | 6.3 gal (US) 24 l |
| Hydraulic Oil Tank | 32 gal (US) 121 l |
| Washdown Spray Tank | 8.5 gal (US) 32 l |
| Engine Model (1) | Cat® C3.6 (U.S. Tier 4 Final, EU Stage V) Cat® C3.6 (U.S. Tier 4 Final, EU Stage V) |
| Engine Power (1) | 120 hp 90 kW |
| Engine Model (2) | Cat C3.6 (UN ECE R96 Stage IIIA, equivalent to U.S. EPA Tier 3 and EU Stage IIIA) Cat C3.6 (UN ECE R96 Stage IIIA, equivalent to U.S. EPA Tier 3 and EU Stage IIIA) |
| Engine Power (2) | 120 hp 90 kW |
| Maximum Throughput Capacity | 853 ton(US)/h 774 tonnes/hr |
| Maximum Paving Speed | 200 ft/min 61 m/min |
| Maximum Travel Speed | 7 mile/h 11 km/h |
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All ModelsCaterpillar product brochures and other informational documents are available for your growing business.
AP455 Paver
AP455 Paver
AP455 Paver
AP455 Paver
AP455 Paver

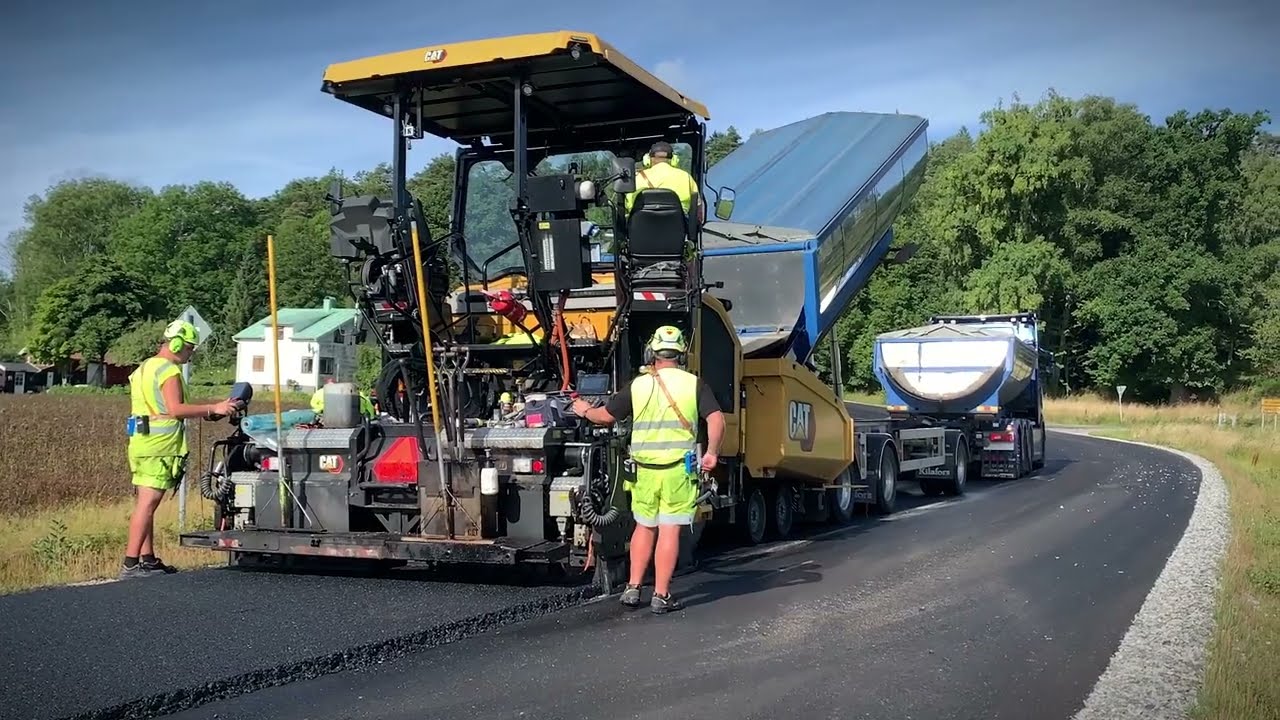

Introducing the Cat AP455 Asphalt Paver
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.
Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.
Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
The Cat® Grade and Slope system is designed to remove irregularities from the paved surface. The system consists of sensors to control elevation and slope. These sensors can work individually or together to make automatic elevation or cross slope adjustments and maintain the targeted values. Averaging beams equipped with multiple sensors provide a longer averaging area to help remove irregularites for smoother transitions.
The Cat® Grade and Slope system is designed to remove irregularities from the paved surface. The system consists of sensors to control elevation and slope. These sensors can work individually or together to make automatic elevation or cross slope adjustments and maintain the targeted values. Averaging beams equipped with multiple sensors provide a longer averaging area to help remove irregularites for smoother transitions.
