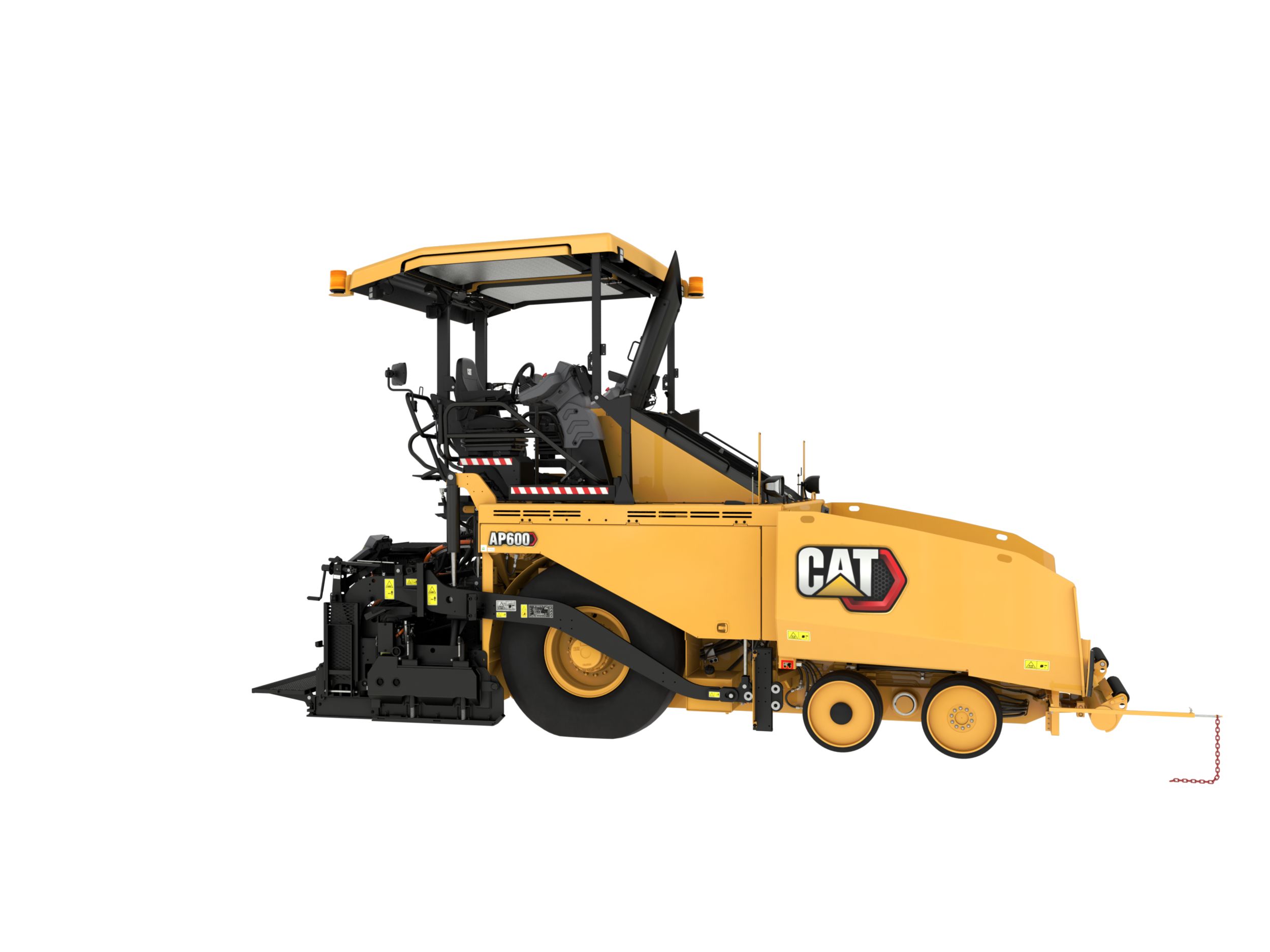

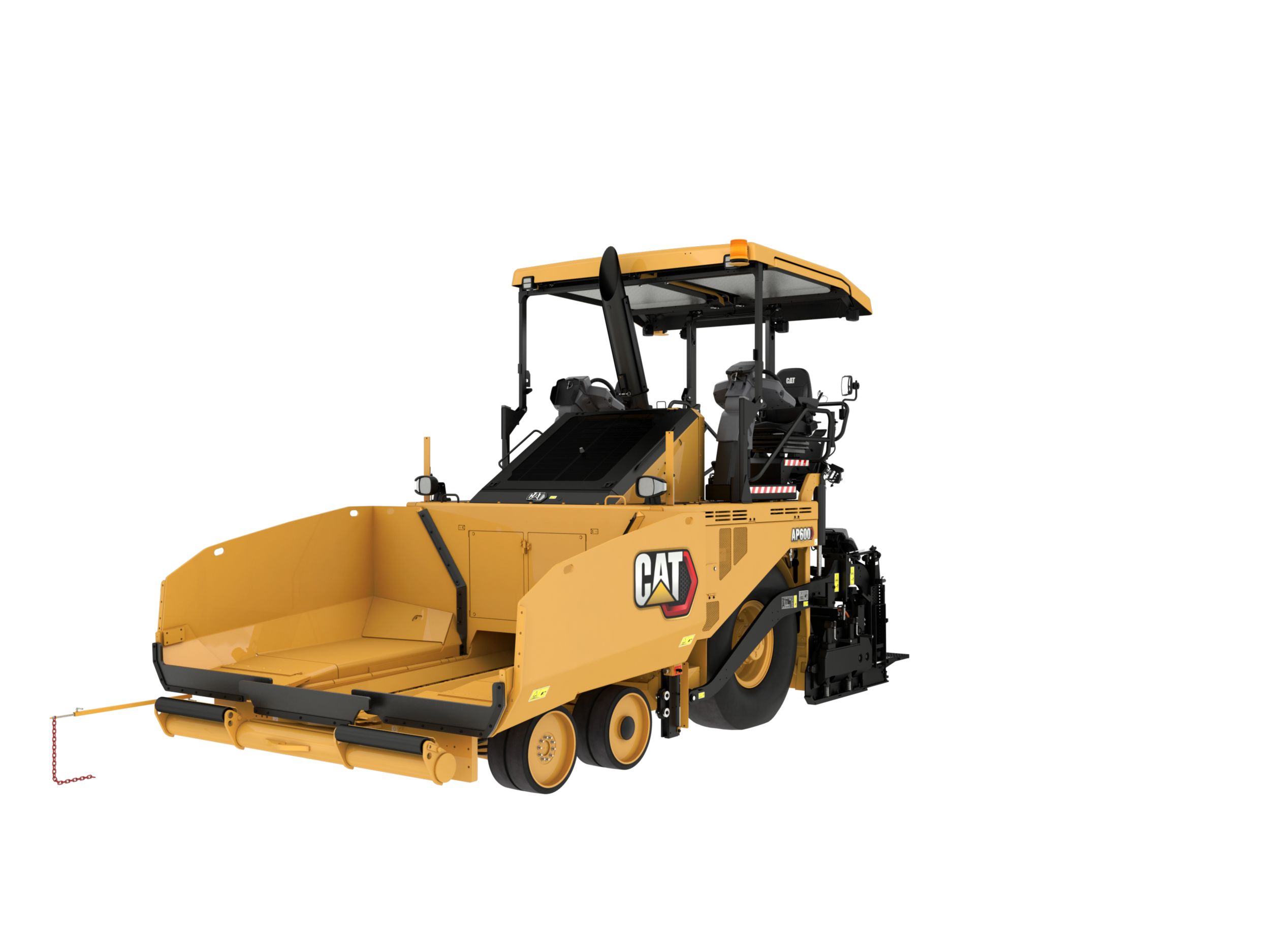

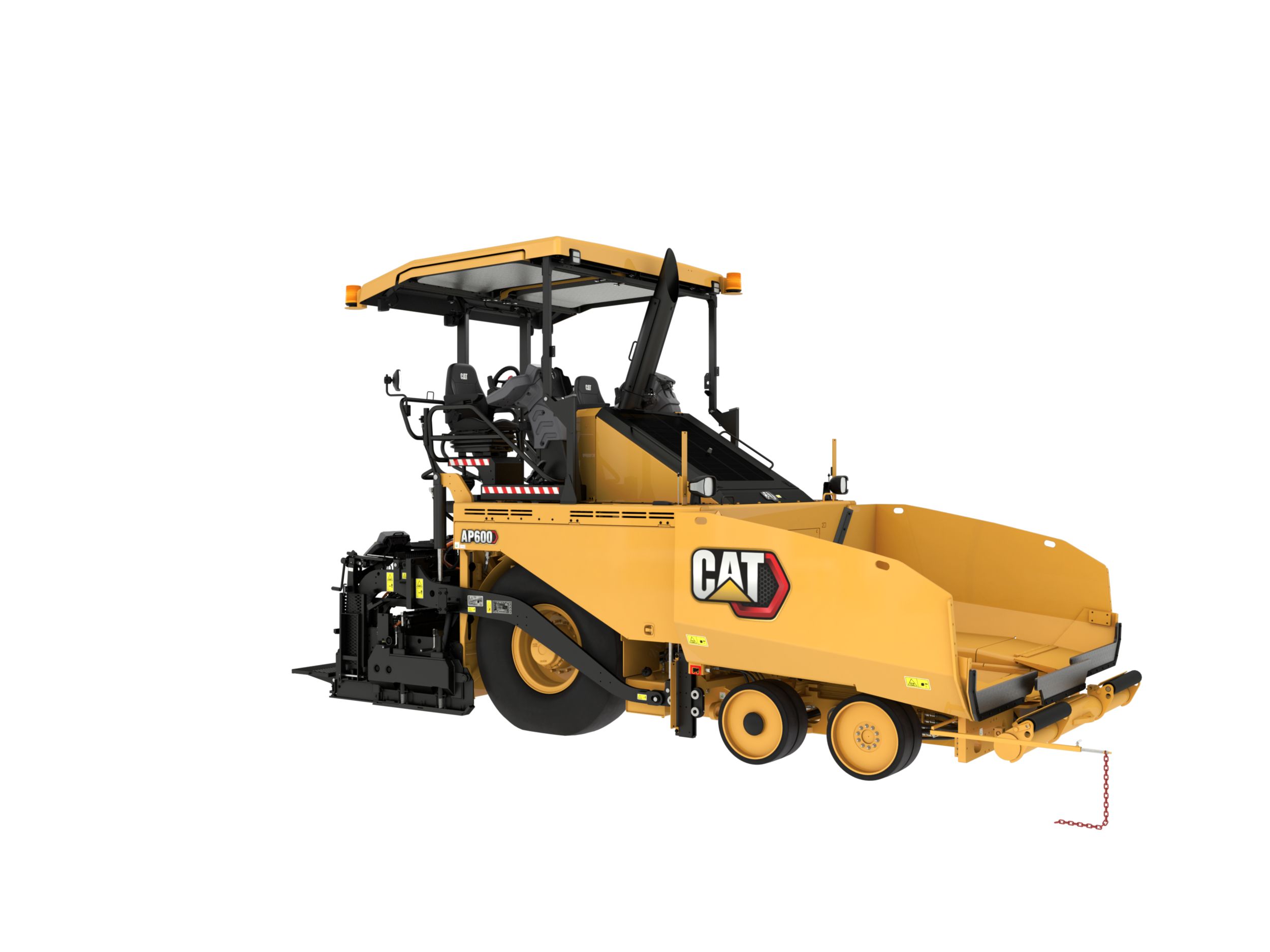

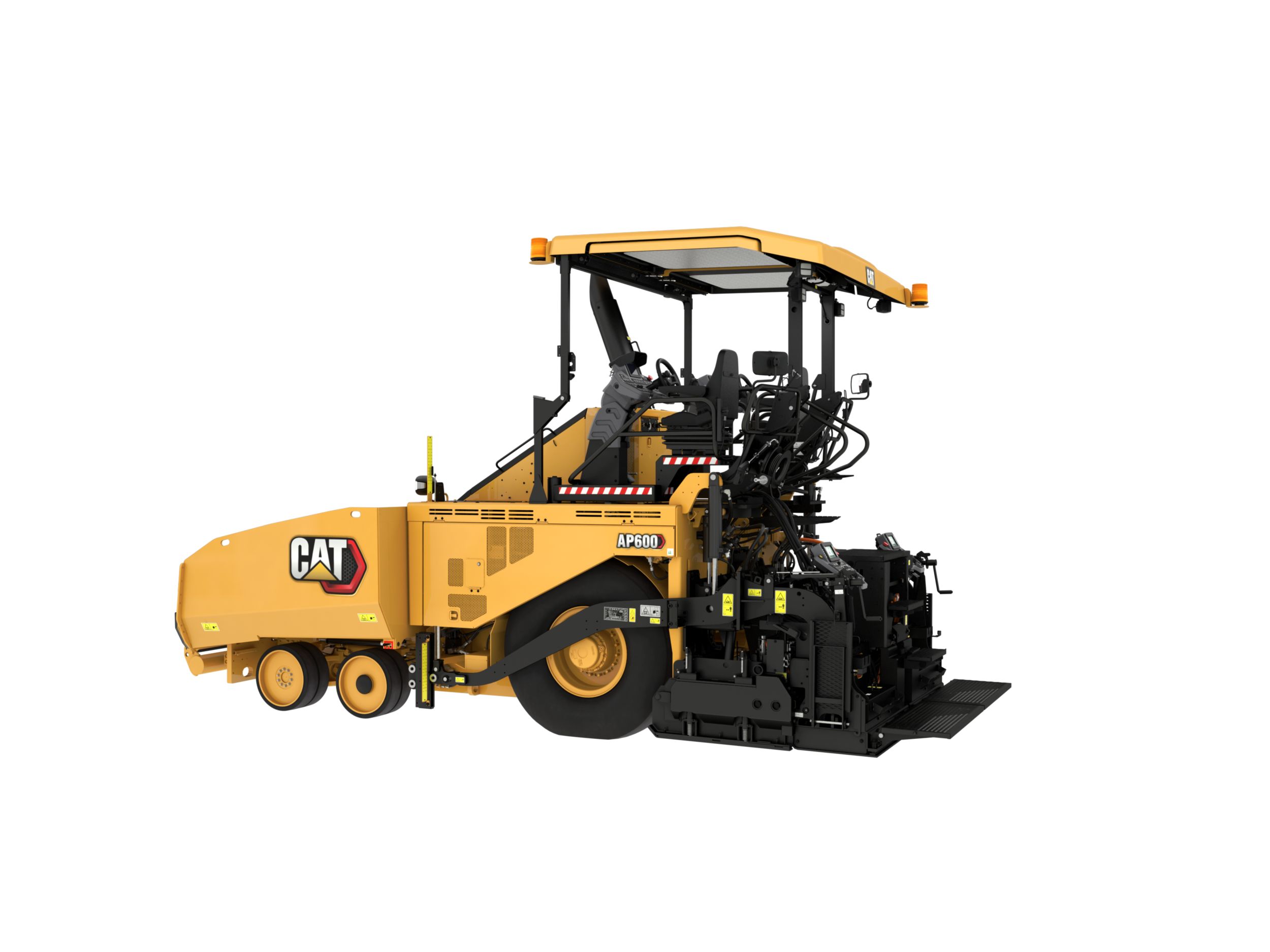

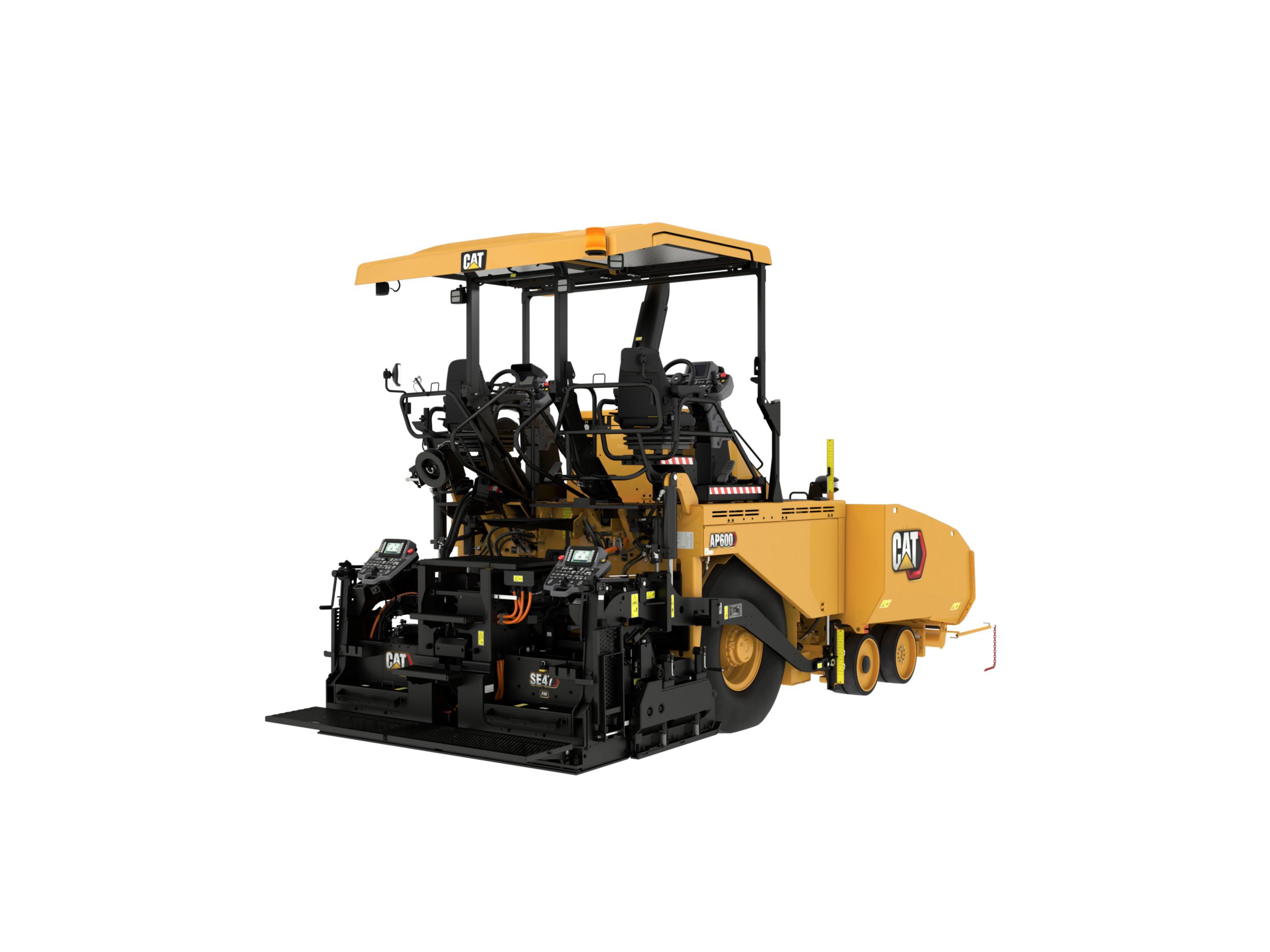

AP600

Wheel Asphalt Pavers AP600

Request A Price Find Dealer

Key Specs

Paving Range with SE47 FM
2.44 m - 6.2 m (8' - 20' 6")
2.44 m - 6.2 m (8' - 20' 6")
Operating weight with SE47 FM
36716 lb
16659 kg
Maximum Throughput Capacity
1433 tonnes/hr
1300 tonnes/hr

Overview

Mid-Sized Production

The AP600 asphalt paver is a wheel paver that delivers a high-return on investment with the fast heating screed system, low fuel consumption, durable components, and easy to use technology. A variety of screed choices offer versatility and provide high-quality results on interstates, highways, airports, and parking lots.

Benefits

Advanced Technology

with pave start assistant, thermal mapping and hopper level sensors

Up to 15% More Fuel Efficient

with advanced Eco-mode and integrated generator design.

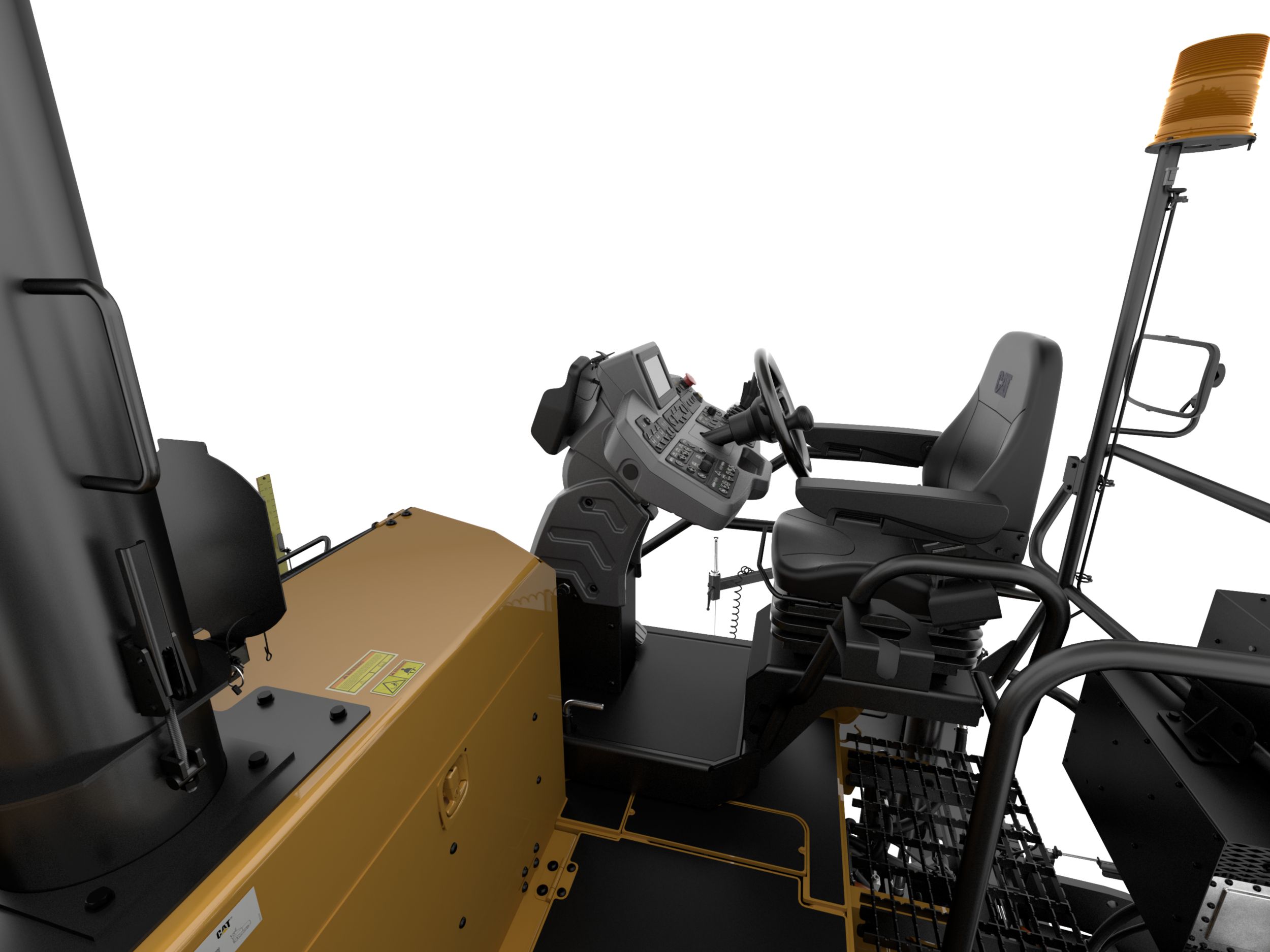

Simple and Quiet Operation

with intuitive touch-screen displays and ultra-low sound levels.

Product Specifications for AP600

Paving Range with SE47 FM 2.44 m - 6.2 m (8' - 20' 6") 2.44 m - 6.2 m (8' - 20' 6")
Paving Range with SE50 V 2.55 m - 6.5 m (8' 4" - 21' 4") 2.55 m - 6.5 m (8' 4" - 21' 4")
Paving Range with SE50 VT 2.55 m - 8 m (8' 4" - 26' 4") 2.55 m - 8 m (8' 4" - 26' 4")
Paving Range with SE60 FM 3 m - 7.8 m (10' - 25' 6") 3 m - 7.8 m (10' - 25' 6")
Paving Range with SE60 V 3 m - 7.5 m (9' 10" - 24' 6") 3 m - 7.5 m (9' 10" - 24' 6")
Operating Length 21.75 ft 6.6 m
Operating Width 10.8 ft 3.3 m
Overall Height 12.5 ft 3.8 m
Transport Length 20.9 ft 6.4 m
Transport Width 9.8 ft 2.9 m
Transport Height 9.9 ft 3.3 m
Engine Model (1) Cat C4.4 (US Tier 4 Final, EU Stage V) Cat C4.4 (US Tier 4 Final, EU Stage V)
Gross Power (1) 173 HP 129 kW
Engine Model (2) Cat C7.1 (EU Stage III B equivalent) Cat C7.1 (EU Stage III B equivalent)
Gross Power (2) 202 HP 151 kW
Maximum Throughput Capacity 1433 tonnes/hr 1300 tonnes/hr
Maximum Travel Speed 10 mile/h 16 km/h
Maximum Paving Speed 250 ft/min 76 m/min
Inside Turn Radius 4.5 ft 1.5 m
Operating weight with SE47 FM 36716 lb 16659 kg
Operating weight with SE50 V 37754 lb 17125 kg
Operating weight with SE50 VT 39229 lb 17794 kg
Operating weight with SE60 FM 38316 lb 17380 kg
Operating weight with SE60 V 38056 lb 17262 kg
Shipping Weight - Paver Only 29391 lb 13556 kg
Fuel Tank Capacity 73 gal (US) 278 l
DEF Tank 5 gal (US) 19.1 l
Engine Oil (1) 3.6 Gal 13.5 l
Engine Oil (2) 15.5 gal (US) 4.1 l
Cooling System (1) 8 gal (US) 31 l
Cooling System (2) 37 gal (US) 9.8 l
Hydraulic Oil Tank 58 gal (US) 219 l
Washdown Spray Tank 7.9 gal (US) 30 l

AP600 Standard Equipment

Operating Environment

  • Dual operating stations
  • Steering guide
  • Ventilation System

Technology

  • Product Link™ Elite 641_cellular

Powertrain

  • Automatic engine speed control
  • Variable speed cooling fan
  • Eco-mode
  • Extended life hydraulic oil

Electrical system

  • 1000 CCA batteries
  • 100 amp alternator
  • 12-volt power receptacle
  • Cat Electronic Technician
  • Automotive type fuse system
  • 70 kW generator
  • Machine security system

Material Delivery

  • Contact-type material feed sensors
  • Adjustable push-roller

Service and Maintenance

  • Extended-life coolant
  • Engine coolant heater (C4.4 engine)
  • Remote access drains
  • Scheduled Oil sampling ports
  • Sight gauges

Safety

  • Back-up alarm
  • Horn
  • Working lights
  • Mirror package
  • Vandal covers

AP600 Optional Equipment

Operating Environment

  • Air-ride seat
  • Hard top canopy
  • Deceleration pedal
  • Heated seats
  • Side shields
  • Towpoint indicator (2nd)
  • Umbrella
  • Screen visor
  • Windshield

Technology

  • Cat Grade Control
  • Hopper level and material height sensor
  • Pave start assistant
  • Product Link™ Elite 631_satellite

Powertrain

  • All wheel drive
  • Cat C4.4 engine
  • Ballast_front weights
  • Cat C7.1 engine
  • Front wheel assist
  • Radial drive tires
  • Sand rib drive tires

Electrical System

  • Auxiliary power panel_6.6 kW

Material Delivery

  • Auger extension
  • Leveling devices
  • Mainframe extensions_manual
  • Mainframe extensions_power
  • Sonic feed sensors
  • Power folding front apron
  • Truck hitch
  • Washdown pump and reel
  • Washdown tank
  • Wide width paving packages

Service and Maintenance

  • Service repair kits
  • Uptime kits

Grade References

  • Sonic Averaging Beam
  • Rigid Ski, 9.15 m (30') and 12.2 m (40')

Screed Choices

  • SE47 FM Screed
  • SE50 V Screed
  • SE50 VT Screed
  • SE60 V Screed
  • SE60 FM Screed
