Track Asphalt Pavers AP1055

Request A Price Find Dealer

Key Specs

Paving Range with SE60 FM: 3 m - 7.8 m (10' - 25' 6"); 3 m - 7.8 m (10' - 25' 6")

Operating weight with SE60 FM: 45,352 lb; 20571 kg

Maximum Throughput Capacity: 1766 ton(US)/h; 1602 tonnes/hr

AP1055
Change model

Overview

Proven, Reliable Performance

The AP1055 asphalt paver is a rubber track paver that delivers a high-return on investment with its extremely versatile Mobil-tracâ„¢ undercarriage that delivers speed, traction, and flotation. This high production paver offers a fast-heating screed system, durable components, and easy to use technology.

Benefits

Advanced Technology

Integrated generator is designed for the life of the paver.

Up To 15% More Fuel Efficient

More fuel efficient with integrated generator and advanced eco-mode.

Fast and Simple Operation

with screed heat-up in as little as 15 minutes.

Features At A Glance

Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer
Fast heating screed leads to more daily production, heating time in as little as 15 minutes
Mobil-trac™ undercarriage design delivers excellent traction, good flotation, and fast travel that helps lead to increased production
Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability

Pave Start Assistant saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display
Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement
Cat Grade Control (option) is integrated into the tractor and screed displays for optimized operator efficiency

Versatile screed designs deliver excellent ride, density, and mat texture while providing superior adjustment; available with front-mount extenders, rear-mount extenders, or tamper-bar systems
Tow-point utilizes exclusive linkage design for optimal screed flotation
Exclusive 2-speed proportional control on the screed extenders
Cat® Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability

Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication
4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption
Million cycle switches provide reliability
Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
Heating elements slide-out for easy replacement
Machined screed frames simplify screed plate replacement
Enhanced hopper flashing with increased memory and temperature resiliency offers better performance during truck exchanges

Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility
Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort
Eco-mode provides low sound levels that supports clear communication with the crew
High visibility 76 mm (3") seat belt helps with crew safety compliance
USB port simplifies software updates
Cup holders offer convenience

Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions
Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, tamper and vibratory speeds, Cat Grade Control (option), and stored operator preferences
Operating displays can be tailored to specific language requirements with multiple options available

Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
Easily track location, machine hours, fuel usage, and idle time
Diagnostic codes are made available through online web applications

Paver and screed service and repair kits include the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop

Specifications Standard Equipment Optional Equipment

Product Specifications for AP1055

Dimensions

Paving Range with SE60 FM	3 m - 7.8 m (10' - 25' 6") 3 m - 7.8 m (10' - 25' 6")
Paving Range with SE60 V	3 m - 7.65 m (9' 10" - 25') 3 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 V XW	3 m - 10 m (10' - 33') 3 m - 10 m (10' - 33')
Paving Range with SE60 VT XW	3 m - 10 m (10' - 33') 3 m - 10 m (10' - 33')
Operating Length	21.75 ft 6.6 m
Operating Width	11.8 ft 3.6 m
Overall Height	12.3 ft 3.7 m
Transport Length	20.9 ft 6.4 m
Transport Width	11.8 ft 3.6 m
Transport Height	9.7 ft 2.9 m

Weights

Operating weight with SE60 FM	45,352 lb 20571 kg
Operating weight with SE60 V	45,087 lb 20451 kg
Operating weight with SE60 V XW	46,573 lb 21125 kg
Operating weight with SE60 VT XW	48,308 lb 21912 kg
Shipping Weight - Paver Only	36,804 lb 16691 kg

Service Refill Capacities

Fuel Tank Capacity	92 gal (US) 348 l
DEF Tank	5 gal (US) 19.1 l
Engine Oil (1)	4.2 gal (US) 16 l
Engine Oil (2)	4.2 gal (US) 16 l
Cooling System (1)	12 gal (US) 45 l
Cooling System (2)	12 gal (US) 45 l
Hydraulic Oil Tank	58 gal (US) 219 l
Washdown Tank	7.9 gal (US) 30 l

Engine

Engine Model (1)	Cat C7.1 (US Tier 4, EU Stage V) Cat C7.1 (US Tier 4, EU Stage V)
Engine Power (1)	225 hp 169 kW
Engine Model (2)	Cat 7.1 (EU Stage IIIB equivalent) Cat 7.1 (EU Stage IIIB equivalent)
Engine Power (2)	249 hp 186 kW

Operating Specifications

Maximum Throughput Capacity	1766 ton(US)/h 1602 tonnes/hr
Maximum Travel Speed	9 mile/h 14.5 km/h
Maximum Paving Speed	210 ft/min 64 m/min
Inside Turn Radius	1.5 ft 0.5 m

AP1055 Standard Equipment

Operating Environment

Dual operating stations

Steering guide

Technology

Product Link™ Elite 641_cellular

Powertrain

Automatic engine speed control

Variable speed cooling fan

Eco-mode

Extended life hydraulic oil

Electrical system

70 kW generator

Cat Electronic Technician

Machine security system

Remote jump start receptacle

Automotive type fuse system

12-volt power receptacle

100 amp alternator

1000 CCA batteries

Material Delivery

Contact-type material feed sensors

Adjustable push-roller

Service and Maintenance

Extended-life coolant

Remote access drains

Scheduled Oil sampling ports

Sight gauges

Safety

Back-up alarm

Horn

Working lights

Mirror package

Vandal covers

AP1055 Optional Equipment

Technology

Cat Grade Control

Hopper level and material height sensor

Pave start assistant

Product Link™ Elite 631_satellite

Operating Environment

Air-ride seat

Hard top canopy

Deceleration pedal

Friction steering

Heated seats

Side shields

Towpoint indicator (2nd)

Umbrella

Ventilation System

Screen visor

Windshield

Powertrain

Ballast_front weights

Cat C7.1 (US Tier 4 Final, EU Stage V)

Cat C7.1 (EU Stage IIIB equivalent)

Mobil-trac belt - smooth

Mobil-trac belt - tread bar

Electrical System

Auxiliary power panel_6.6 kW

Material Delivery

Auger extension

Leveling devices

Mainframe extensions_manual

Mainframe extensions_power

Truck hitch

Sonic feed sensors

Power folding front apron

Washdown pump and reel

Washdown tank

Wide width paving packages

Service and Maintenance

Service repair kits

Uptime kits

Screed Choices

SE60 V Screed

SE60 FM Screed

SE60 V XW Screed

SE60 VT XW Screed

Grade References

Rigid Ski, 9.15 m (30') and 12.2 m (40')

Sonic Averaging Beam

Product Specifications for AP1055

Download Print

Dimensions

Paving Range with SE60 FM	3 m - 7.8 m (10' - 25' 6") 3 m - 7.8 m (10' - 25' 6")
Paving Range with SE60 V	3 m - 7.65 m (9' 10" - 25') 3 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 V XW	3 m - 10 m (10' - 33') 3 m - 10 m (10' - 33')
Paving Range with SE60 VT XW	3 m - 10 m (10' - 33') 3 m - 10 m (10' - 33')
Operating Length	21.75 ft 6.6 m
Operating Width	11.8 ft 3.6 m
Overall Height	12.3 ft 3.7 m
Transport Length	20.9 ft 6.4 m
Transport Width	11.8 ft 3.6 m
Transport Height	9.7 ft 2.9 m

Weights

Operating weight with SE60 FM	45,352 lb 20571 kg
Operating weight with SE60 V	45,087 lb 20451 kg
Operating weight with SE60 V XW	46,573 lb 21125 kg
Operating weight with SE60 VT XW	48,308 lb 21912 kg
Shipping Weight - Paver Only	36,804 lb 16691 kg

Service Refill Capacities

Fuel Tank Capacity	92 gal (US) 348 l
DEF Tank	5 gal (US) 19.1 l
Engine Oil (1)	4.2 gal (US) 16 l
Engine Oil (2)	4.2 gal (US) 16 l
Cooling System (1)	12 gal (US) 45 l
Cooling System (2)	12 gal (US) 45 l
Hydraulic Oil Tank	58 gal (US) 219 l
Washdown Tank	7.9 gal (US) 30 l

Engine

Engine Model (1)	Cat C7.1 (US Tier 4, EU Stage V) Cat C7.1 (US Tier 4, EU Stage V)
Engine Power (1)	225 hp 169 kW
Engine Model (2)	Cat 7.1 (EU Stage IIIB equivalent) Cat 7.1 (EU Stage IIIB equivalent)
Engine Power (2)	249 hp 186 kW

Operating Specifications

Maximum Throughput Capacity	1766 ton(US)/h 1602 tonnes/hr
Maximum Travel Speed	9 mile/h 14.5 km/h
Maximum Paving Speed	210 ft/min 64 m/min
Inside Turn Radius	1.5 ft 0.5 m

AP1055 Standard Equipment

Operating Environment

Dual operating stations

Steering guide

Technology

Product Link™ Elite 641_cellular

Powertrain

Automatic engine speed control

Variable speed cooling fan

Eco-mode

Extended life hydraulic oil

Electrical system

70 kW generator

Cat Electronic Technician

Machine security system

Remote jump start receptacle

Automotive type fuse system

12-volt power receptacle

100 amp alternator

1000 CCA batteries

Material Delivery

Contact-type material feed sensors

Adjustable push-roller

Service and Maintenance

Extended-life coolant

Remote access drains

Scheduled Oil sampling ports

Sight gauges

Safety

Back-up alarm

Horn

Working lights

Mirror package

Vandal covers

AP1055 Optional Equipment

Technology

Cat Grade Control

Hopper level and material height sensor

Pave start assistant

Product Link™ Elite 631_satellite

Operating Environment

Air-ride seat

Hard top canopy

Deceleration pedal

Friction steering

Heated seats

Side shields

Towpoint indicator (2nd)

Umbrella

Ventilation System

Screen visor

Windshield

Powertrain

Ballast_front weights

Cat C7.1 (US Tier 4 Final, EU Stage V)

Cat C7.1 (EU Stage IIIB equivalent)

Mobil-trac belt - smooth

Mobil-trac belt - tread bar

Electrical System

Auxiliary power panel_6.6 kW

Material Delivery

Auger extension

Leveling devices

Mainframe extensions_manual

Mainframe extensions_power

Truck hitch

Sonic feed sensors

Power folding front apron

Washdown pump and reel

Washdown tank

Wide width paving packages

Service and Maintenance

Service repair kits

Uptime kits

Screed Choices

SE60 V Screed

SE60 FM Screed

SE60 V XW Screed

SE60 VT XW Screed

Grade References

Rigid Ski, 9.15 m (30') and 12.2 m (40')

Sonic Averaging Beam

See how AP1055 compares against frequently compared products.

Asphalt Pavers

Selected

AP1055

Paving Range with SE60 FM: 3 m - 7.8 m (10' - 25' 6"); 3 m - 7.8 m (10' - 25' 6")
Operating weight with SE60 FM: 45,352 lb; 20571 kg
Maximum Throughput Capacity: 1766 ton(US)/h; 1602 tonnes/hr

Asphalt Pavers

AP655

Paving Range with SE47 FM: 2.44 - 6.25 m (8' - 20' 6"); 2.44 - 6.25 m (8' - 20' 6")
Operating weight with SE47 FM: 40,560 lb; 18397 kg
Maximum Throughput Capacity: 1433 ton(US)/h; 1300 tonnes/hr

View Details

Asphalt Pavers

AP555 Steel Track

Paving Range with SE50 VT: 2.55 m - 7.64 m (8' 4" - 25'); 2.55 m - 7.64 m (8' 4" - 25')
Operating weight with SE50 VT: 35926 lb; 16296 kg
Maximum Throughput Capacity: 1100 ton(US)/h; 1000 tonnes/hr

View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

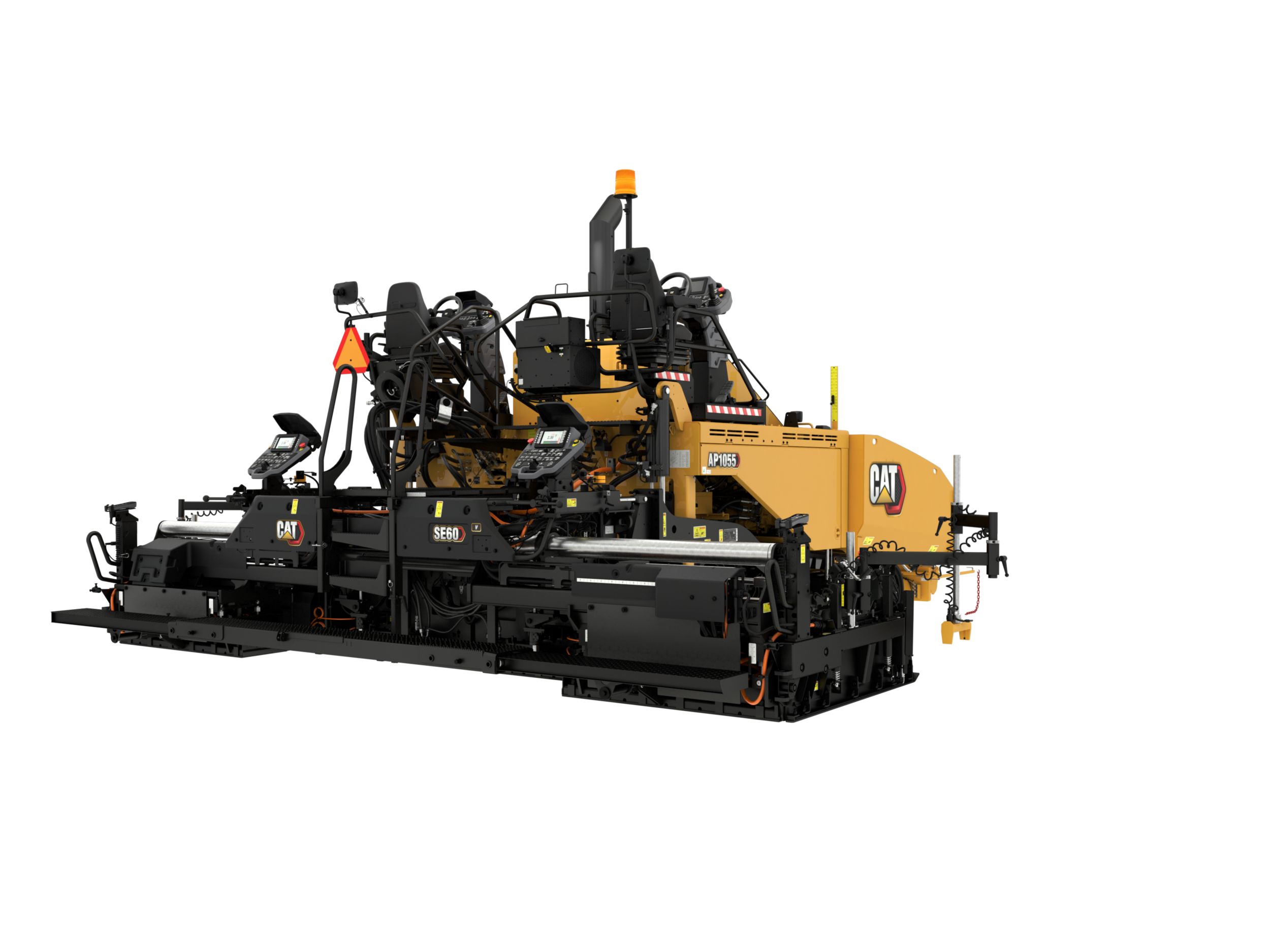

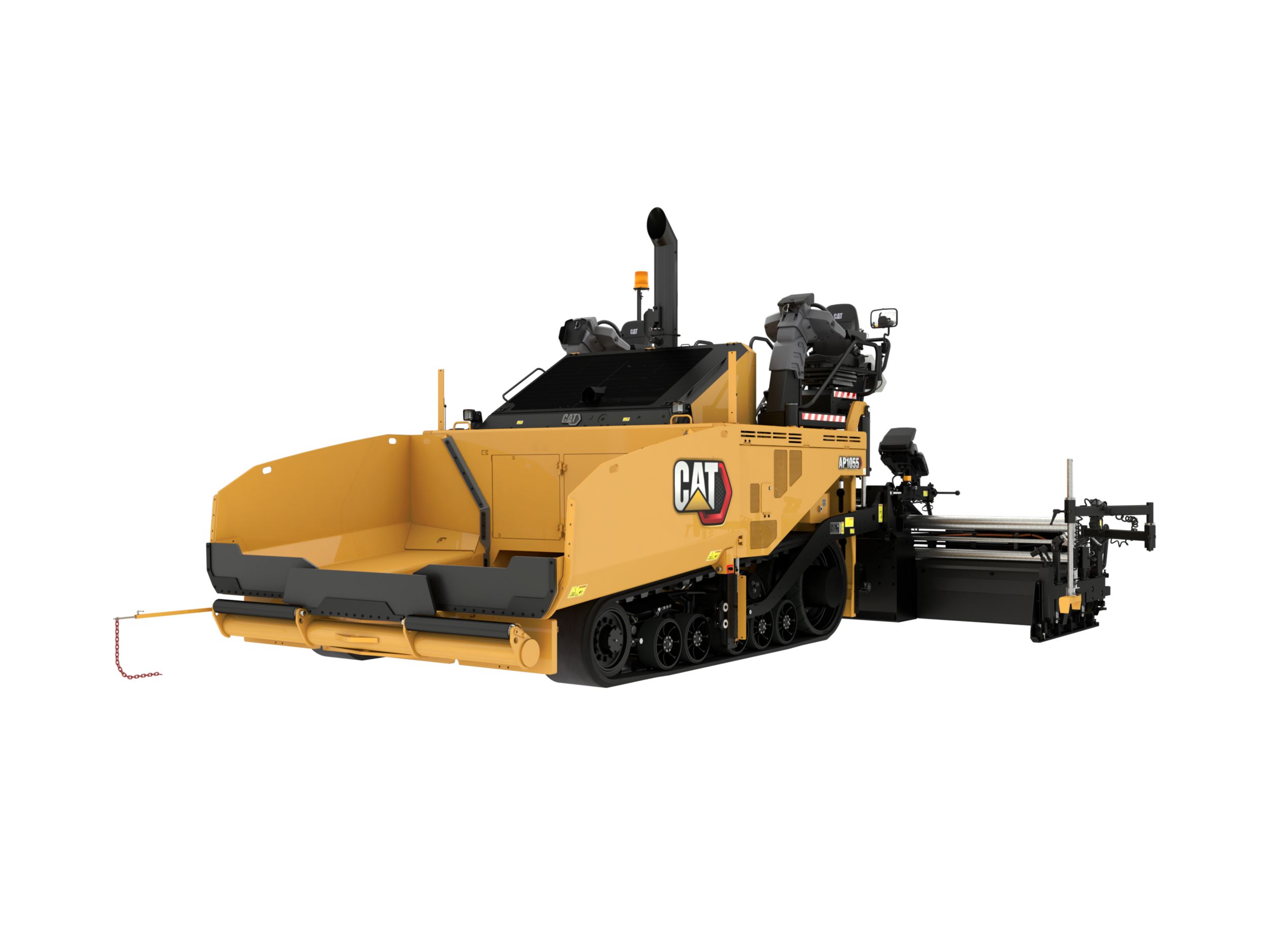

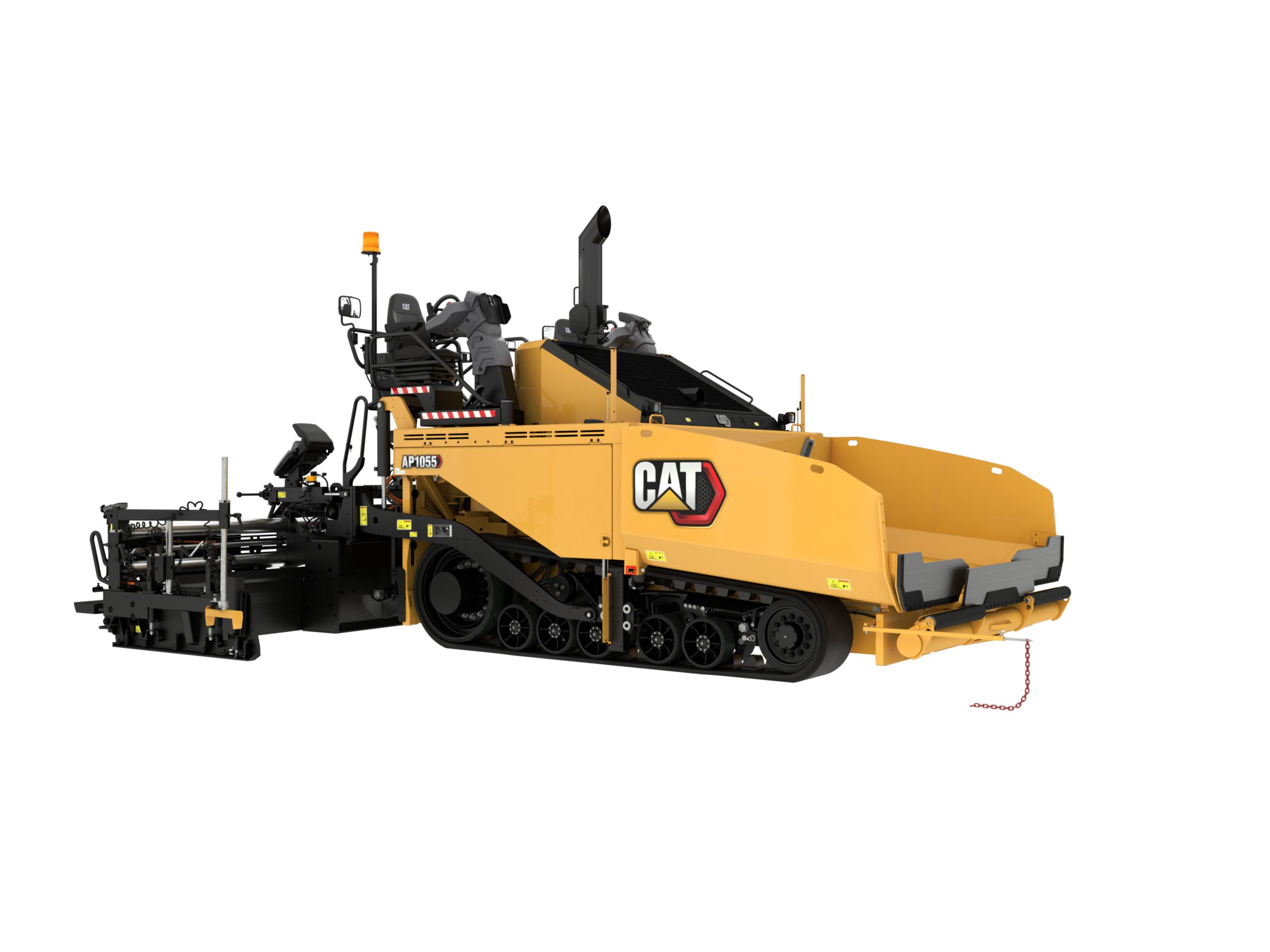

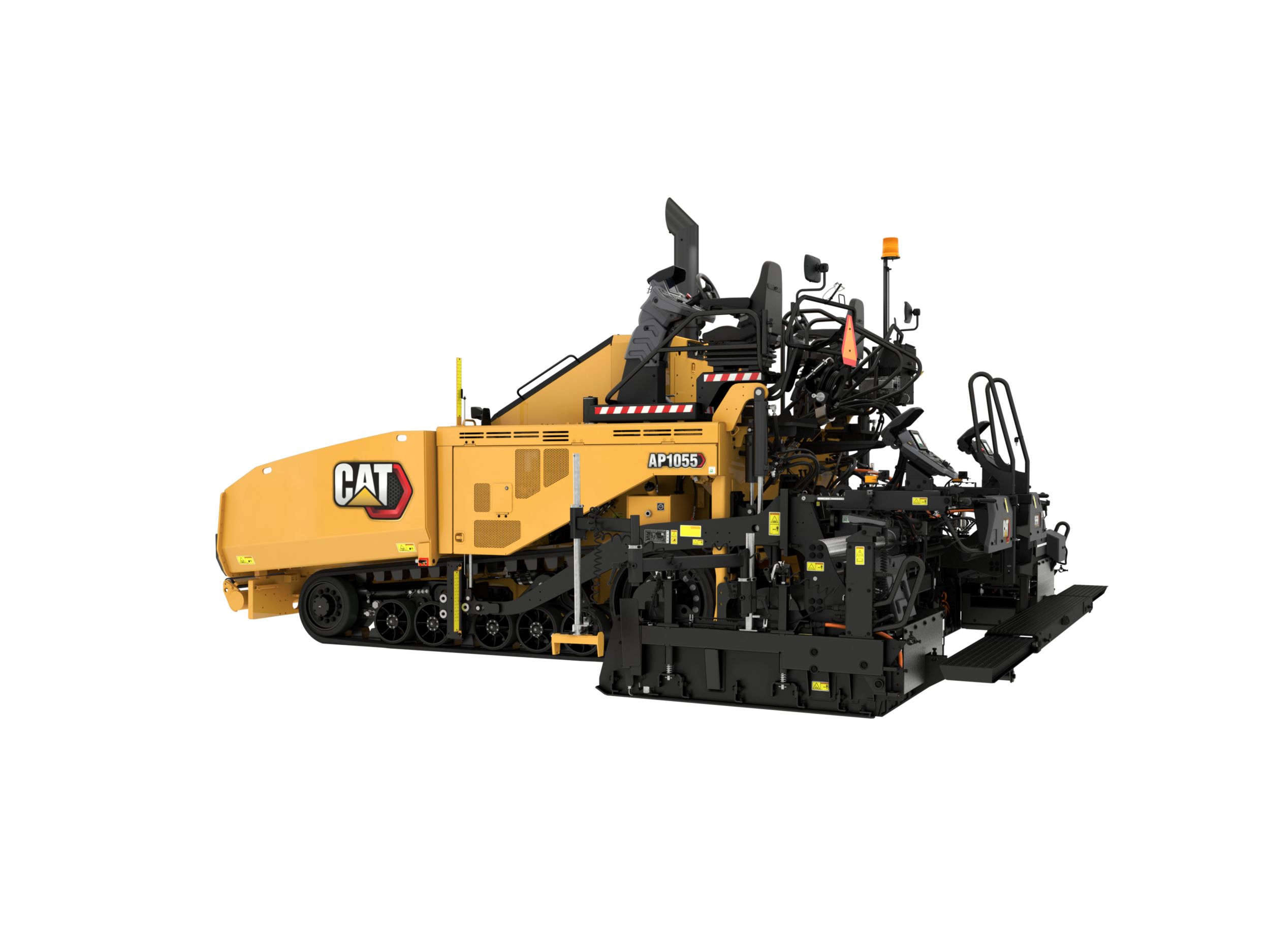

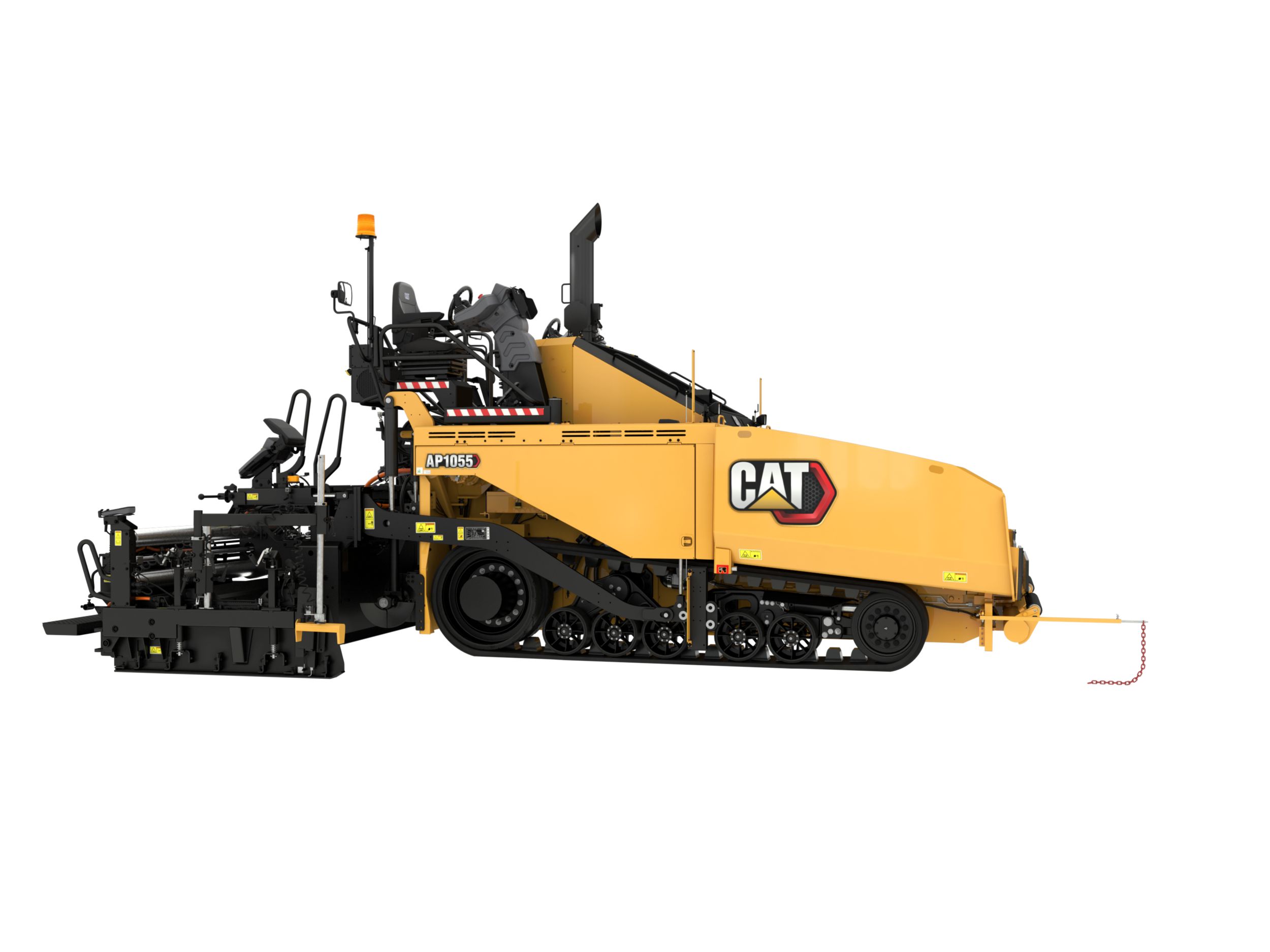

AP1055 Paver

Paving by the Numbers

Cat Grade Control

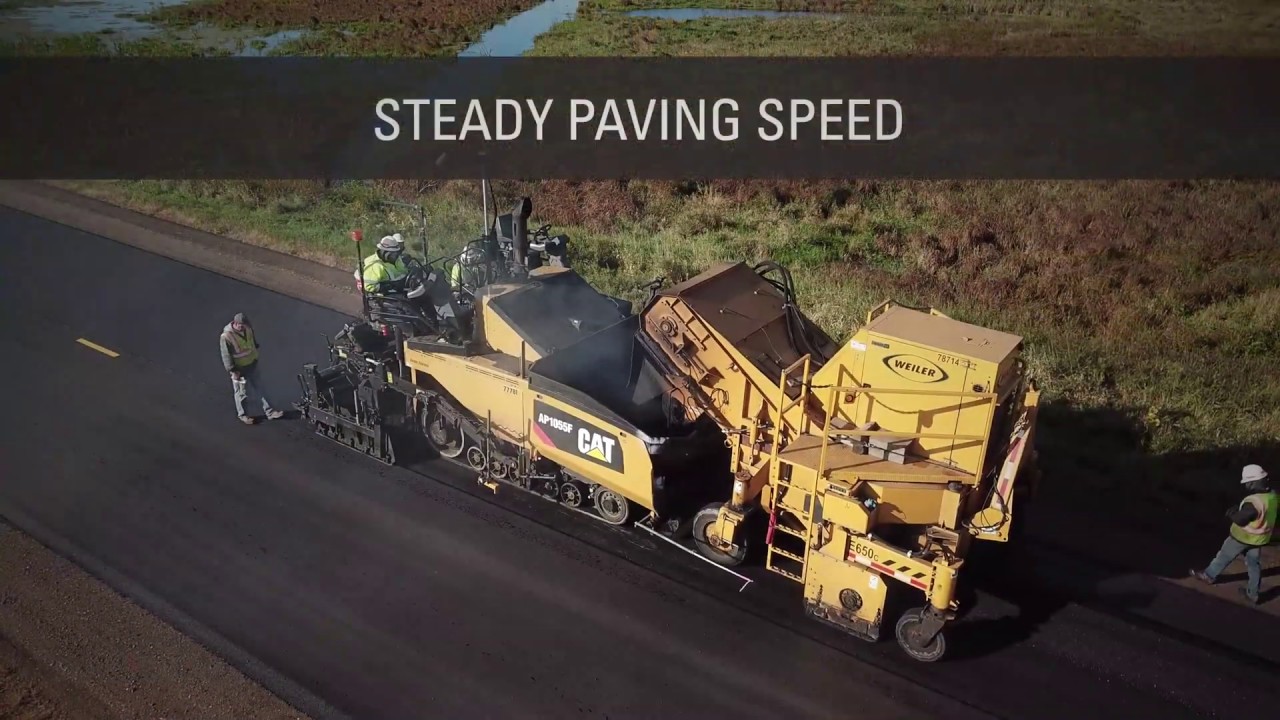

Consistency Drives Smoothness

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Equipment Management

Grade

Cat® Inspect

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat® Remote Flash

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
Cat® Remote Troubleshooting

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Grade with Grade and Slope For Pavers

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

The Cat® Grade and Slope system is designed to remove irregularities from the paved surface. The system consists of sensors to control elevation and slope. These sensors can work individually or together to make automatic elevation or cross slope adjustments and maintain the targeted values. Averaging beams equipped with multiple sensors provide a longer averaging area to help remove irregularites for smoother transitions.

Explore Technology

1 - 8 of 9 Items items

Previous Next

The Cat® Grade and Slope system is designed to remove irregularities from the paved surface. The system consists of sensors to control elevation and slope. These sensors can work individually or together to make automatic elevation or cross slope adjustments and maintain the targeted values. Averaging beams equipped with multiple sensors provide a longer averaging area to help remove irregularites for smoother transitions.

Explore Technology

Internet Explorer users may experience issues with certain features of our site.
Please try a current version of an alternate browser (i.e. Google Chrome, Microsoft Edge, Mozilla Firefox) for the full Cat.com experience.

Track Asphalt Pavers AP1055

Overview

Proven, Reliable Performance

Benefits

Advanced Technology

Up To 15% More Fuel Efficient

Fast and Simple Operation

Features At A Glance

Product Specifications for AP1055

Dimensions

Weights

Service Refill Capacities

Engine

Operating Specifications

AP1055 Standard Equipment

Operating Environment

Technology

Powertrain

Electrical system

Material Delivery

Service and Maintenance

Safety

AP1055 Optional Equipment

Technology

Operating Environment

Powertrain

Electrical System

Material Delivery

Service and Maintenance

Screed Choices

Grade References

Product Specifications for AP1055

Dimensions

Weights

Service Refill Capacities

Engine

Operating Specifications

AP1055 Standard Equipment

Operating Environment

Technology

Powertrain

Electrical system

Material Delivery

Service and Maintenance

Safety

AP1055 Optional Equipment

Technology

Operating Environment

Powertrain

Electrical System

Material Delivery

Service and Maintenance

Screed Choices

Grade References

See how AP1055 compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

assignment Product Brochures and More Are Ready to Download!

Media Gallery

Photos

Videos

360 View

Related Products

Asphalt Pavers

Screeds

Compatible Technology and Services

Cat® Inspect

Cat® Remote Flash

Cat® Remote Troubleshooting

VisionLink™

Cat Grade with Grade and Slope For Pavers

Products

Services & Support

How Can We Help?

Company Info

Industry Solutions

Product Brochures and More Are Ready to Download!
