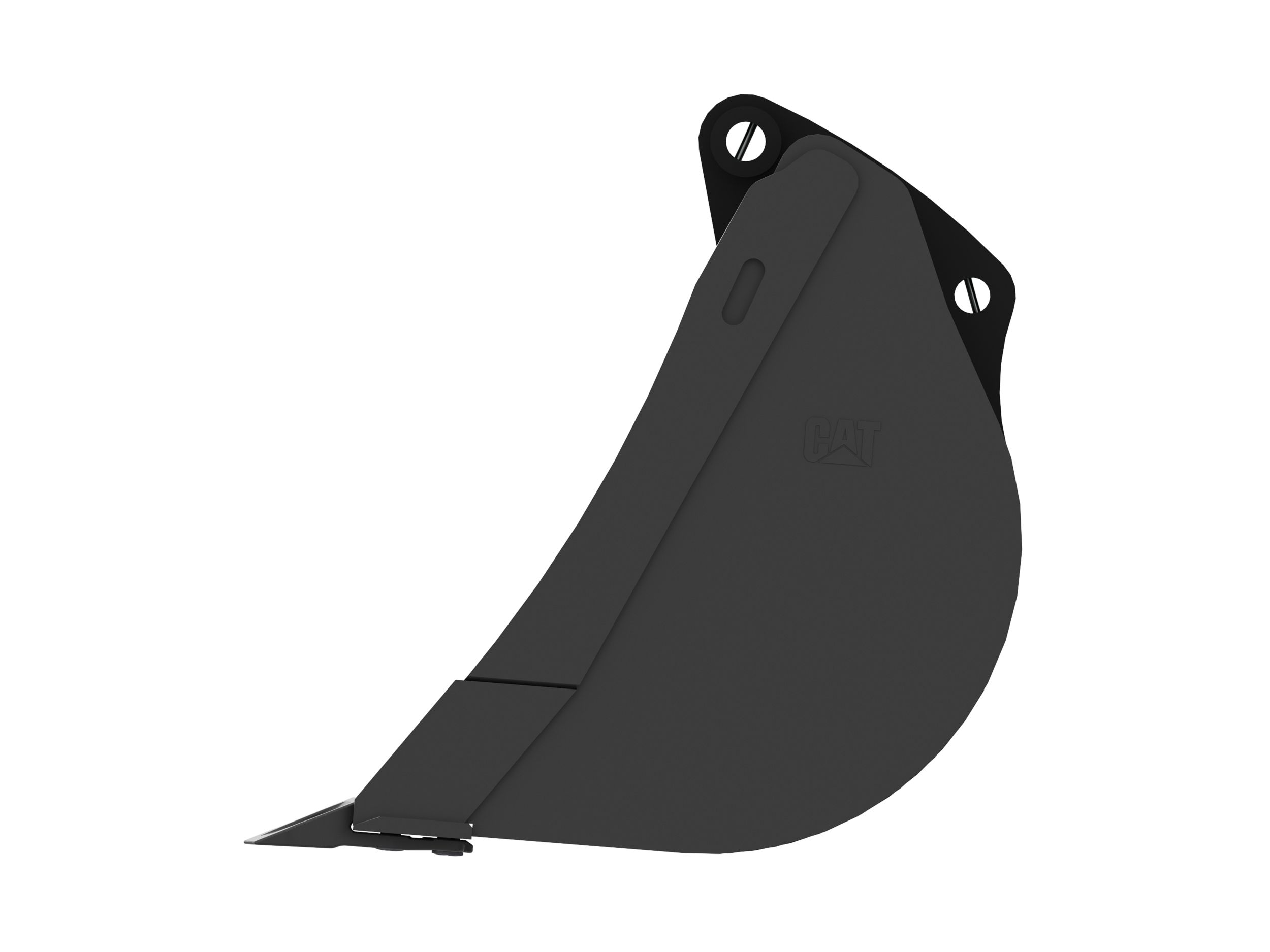

High Capacity Buckets 610 mm (24 in), 240 L (8.5 ft3), Pin On, Bolt-On Teeth

Request A Price Shop Now

Key Specs

Width: 24 in; 610 mm

Capacity: 8.5 ft³; 240 l

Weight: 348.1 lb; 157.9 kg

610 mm (24 in), 240 L (8.5 ft3), Pin On, Bolt-On Teeth
Change model

Overview

Ideal for work in lower density soils and light materials.

Features At A Glance

Well suited for work in lower density soils and light materials. Cat® High Capacity Buckets have the same durable characteristics as heavy duty buckets but are capable of moving greater volumes.

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Cat® Buckets are designed for superior productivity, reliability and long life.

Product Specifications for 610 mm (24 in), 240 L (8.5 ft3), Pin On, Bolt-On Teeth

Width	24 in 610 mm
Capacity	8.5 ft³ 240 l
Weight	348.1 lb 157.9 kg
Base Edge Thickness	0.8 in 20 mm
Tip Radius	42.8 in 1087 mm
Interface Type	Pin On Pin On

Product Specifications for 610 mm (24 in), 240 L (8.5 ft3), Pin On, Bolt-On Teeth

Download Print

Width	24 in 610 mm
Capacity	8.5 ft³ 240 l
Weight	348.1 lb 157.9 kg
Base Edge Thickness	0.8 in 20 mm
Tip Radius	42.8 in 1087 mm
Interface Type	Pin On Pin On
