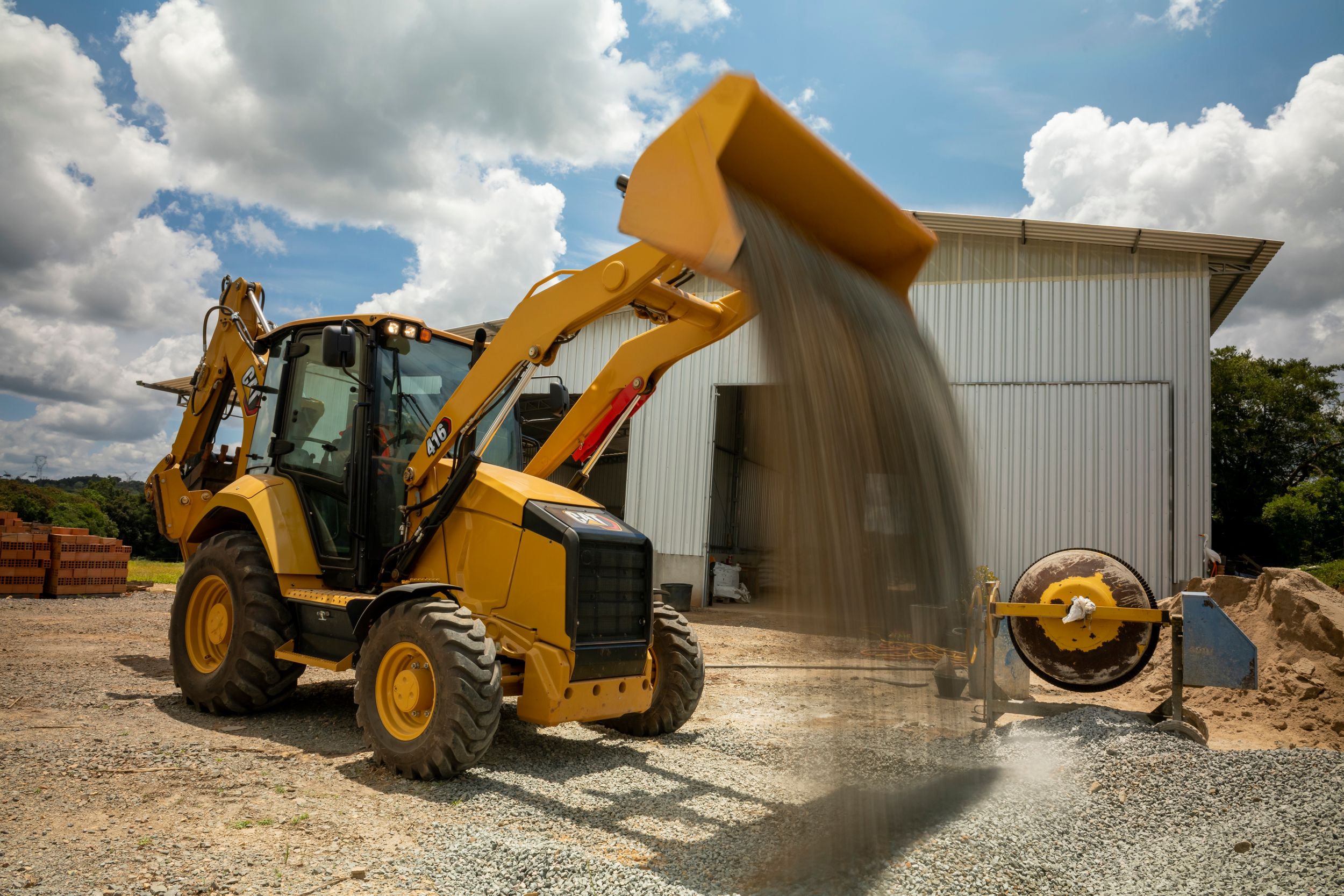

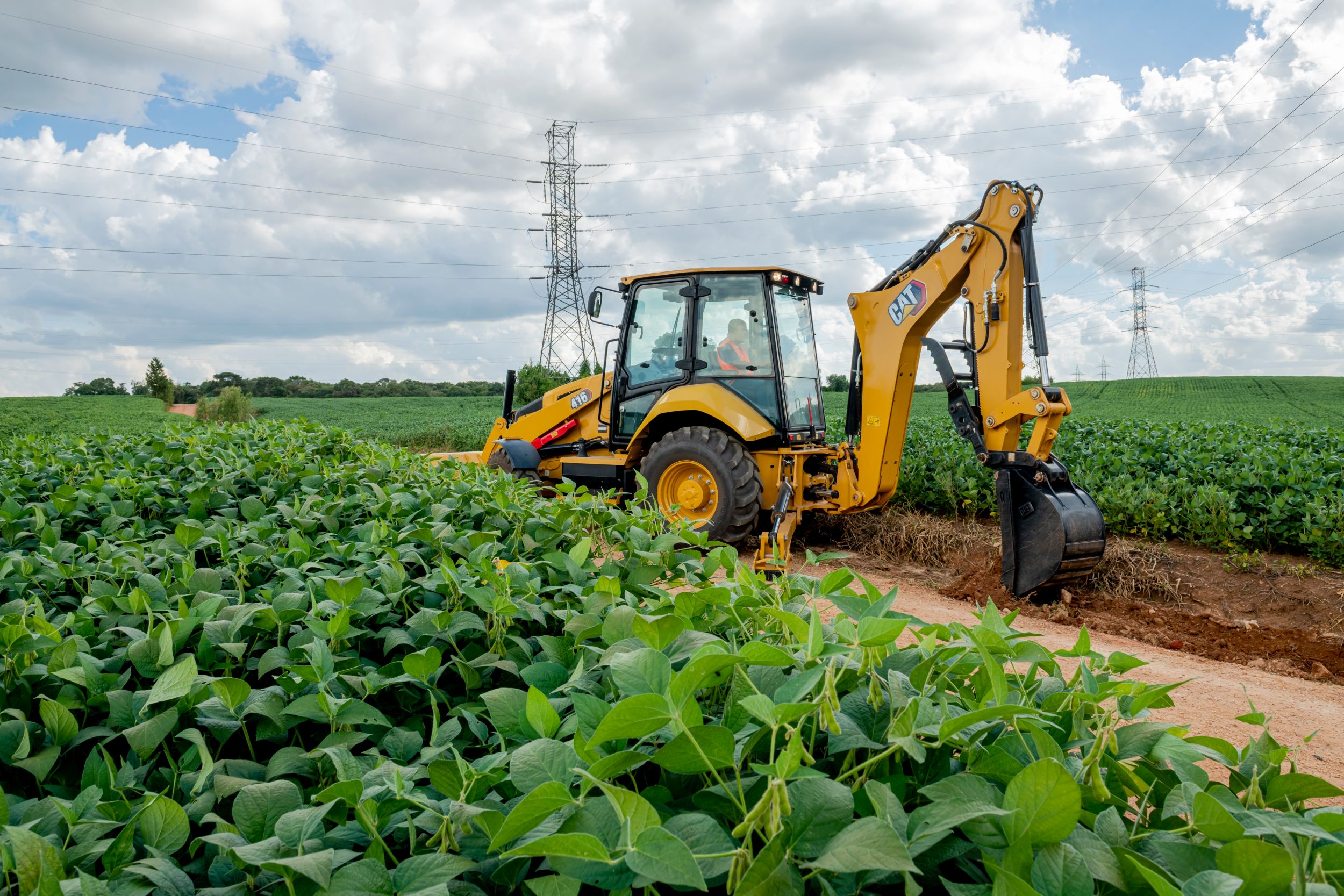

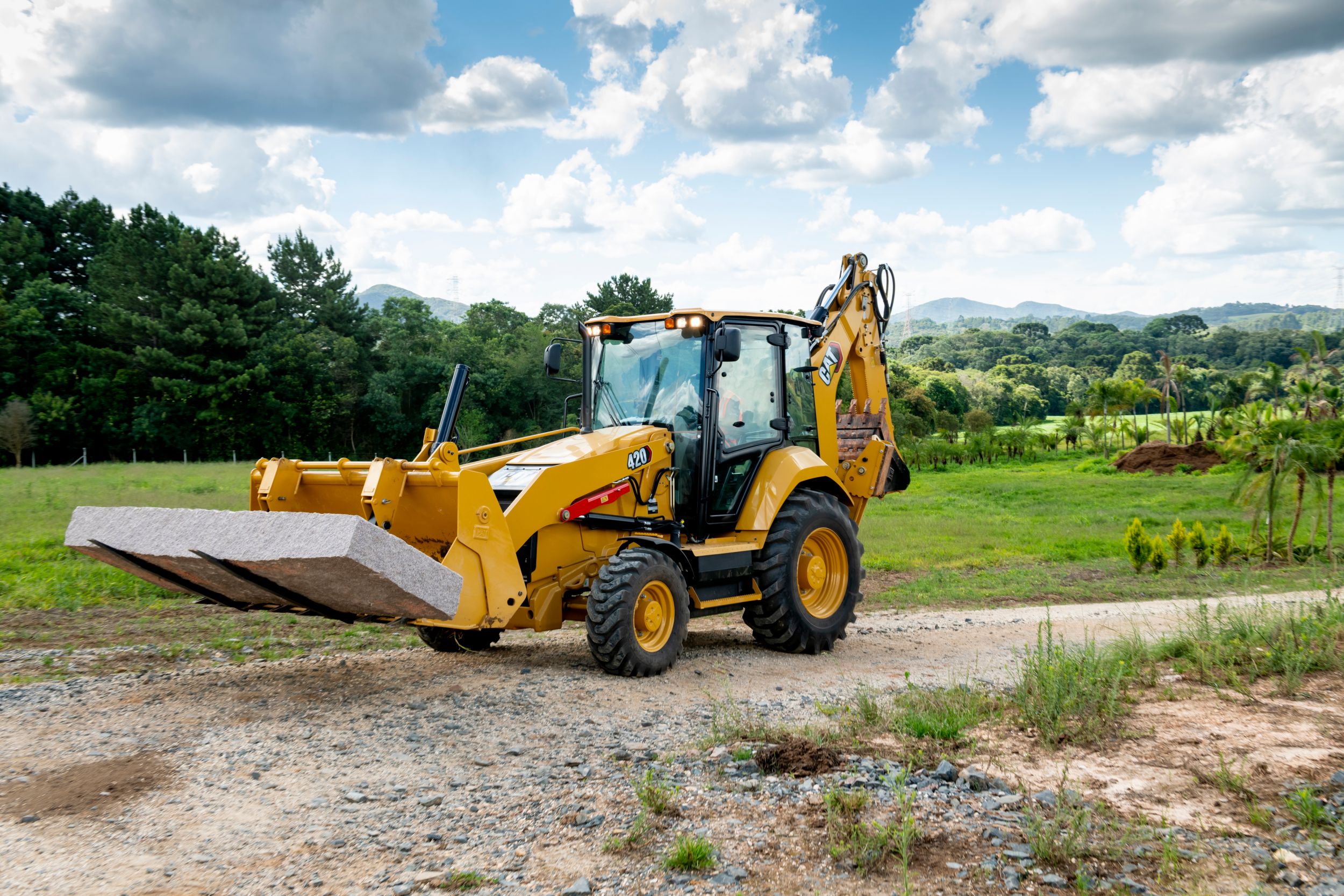

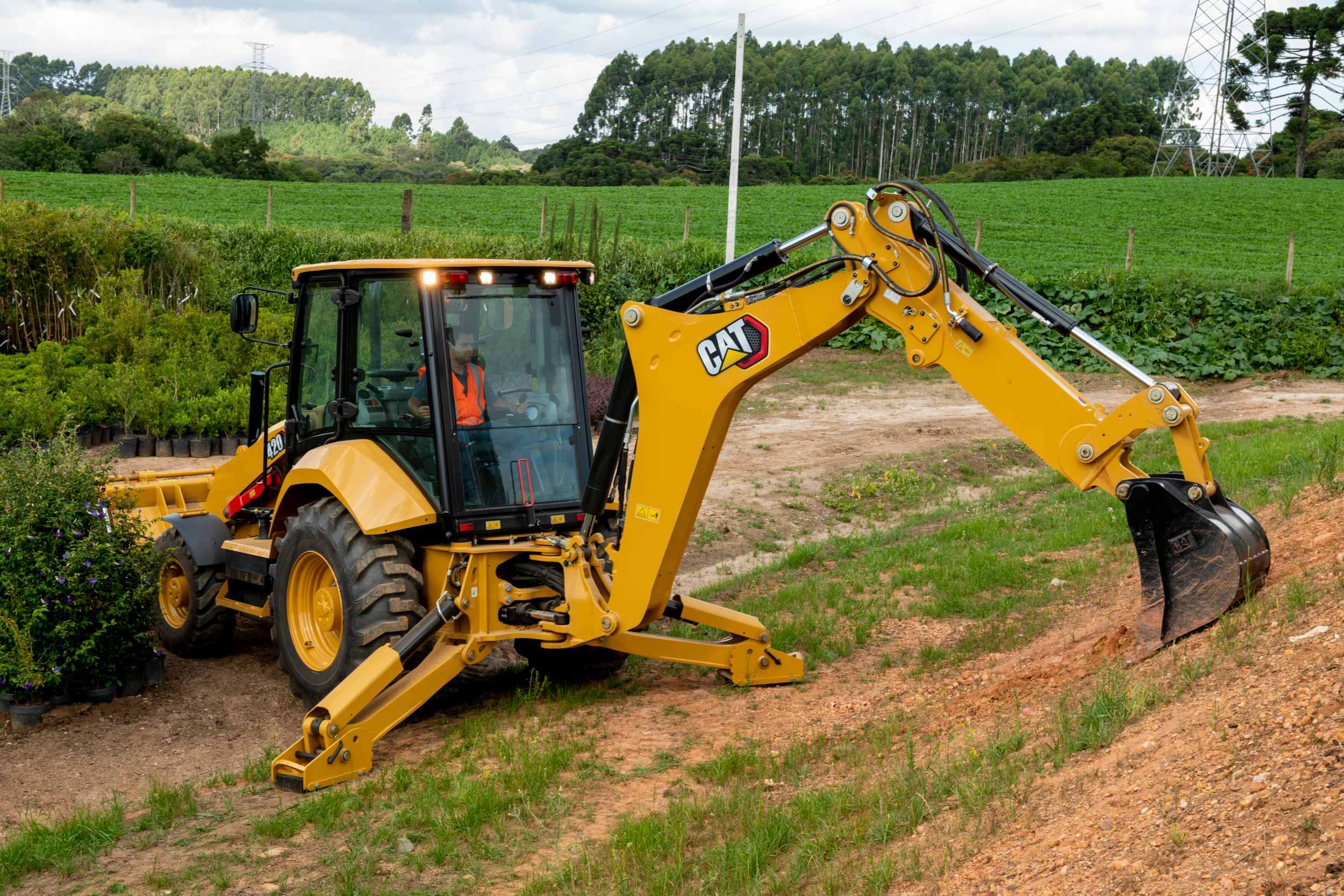

Center-Pivot Backhoe Loaders 416

Product Specifications for 416

416 Standard Equipment

POWER TRAIN

• Air cleaner

• Brake, secondary parking

• Brakes, hydraulically boosted, oil disc, dual pedals, interlocking

• Coolant/antifreeze, extended life

• Diagnostic port for engine

• Differential lock, loader joystick

• Engine, Cat 3054C, Mechanical Turbocharged, emits equivalent to Tier 2/Stage II

• Engine enclosure, sound suppression removal panels

• Fast reversing shuttle, all gears

• Filters, spin-on: fuel, engine oil, transmission oil, water separator

• Filters, bowl and cartridge: hydraulic fluid

• High ambient cooling package

• Torque converter

• Transmission, four speed, syncromesh

• Transmission neutralizer switch

• Two Wheel Drive

OPERATOR ENVIRONMENT

• Backhoe controls, mechanical two lever

• Canopy, ROPS/FOPS

• Coat restraint

• Drink holders, two

• Fan, suction and guard

• Floor mat

• Gauge cluster
  – Gauges: coolant temperature, fuel level, tachometer

• Indicators: air cleaner service, water separator service, engine coolant, oil pressure, torque converter temperature high, fuel level, charging, engine warning #1, engine warning #2, action lamp, wait to start

• Instrument panel lights

• Mechanical two lever controls

• Mirror, rearview

• Seat belt, retractable, 51 mm (2 in)

• Seat, mechanical suspension, vinyl

• Storage compartment, lockable

• Storage tray

• Fixed Steering Column on canopies

• Throttle, hand and foot, manual

HYDRAULIC SYSTEM

• Face seals, O-ring

• Hydraulic hose, XT™

• Hydraulic oil cooler

• Hydraulic oil level sight gauge

• Hydraulic valve, hydrostatic steering

• Hydraulic valves, loader 2 function

• Hydraulic valves, backhoe 4 function

• Hydraulics, load sensing with variable displacement piston pump

ELECTRICAL

• Alarm, back-up

• Alternator, 120 amp

• Audible system fault alarm

• Battery, maintenance-free, 850 CCA

• Battery disconnect switch

• Battery remote jumpstart

• Dome light (cab only)

• Flashing hazards/signal lights

• Key start/stop system

• Lights, working (2 front, 2 rear)

• Power receptacle, 12 volt, 2 internal, 1 external

• Product Link™, cellular, PL240 (only for certified countries)

• Socket, two roof

• Starting system, glow plugs

• Stop and tail lights

• Warning horn, electric

OTHER

• Boom transport lock

• Brace, lift cylinder

• Bucket level indicator

• Counterweight, bumper

• Fenders, rear

• Fuel tank, fully enclosed

• Fully hinged front grill for cooling package cleaning access

• Ground level fuel fill

• Hood lock, inside cab

• Loader, self-leveling, return-to-dig and transmission disconnect switch

• Loader, single tilt

• Open circuit breather

• Power steering, hydrostatic

• Stabilizer shoes, street

• Swing transport lock

• Tires

• Toolbox, external, lockable

• Transport tie-downs

• Reinforced iron sheets all around the components for a tougher structure

416 Optional Equipment

OPTIONAL EQUIPMENT

• Cab, standard

• Cold weather fuel (–30° C/–22° F)

• Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)

• Engine, Cat C4.4, emits equivalent to Tier 3/Stage IIIA

• Fenders, front with integral steps

• Four Wheel Drive

• Guard, stabilizer, rock

• Hydraulic valves, loader (3rd valve for GP, MP or Quick Coupler)

• Hydraulic valves, backhoe (5th and 6th function)

• Hydraulic lines, combined function auxiliary

• Product Link, cellular, PL641I

• Product Link, satellite, PL631E

• Quick Coupler, manual, dual lock

• Radio, Bluetooth

• Rotating beacon, magnetic mount

• Seat, air suspension, fabric with armrest

• Security system keypad

• Stabilizer pads, street

• Stick, extendible

• Storage box

• Vandalism protection, gauge cover

• Work Tool Attachments such as general purpose buckets, multi purpose buckets, heavy duty backhoe buckets and standard duty backhoe buckets. See your Cat dealer for more information.
