CAT® SMART GRADER BLADES

GB120 AND GB124

INDUSTRY EXCLUSIVE

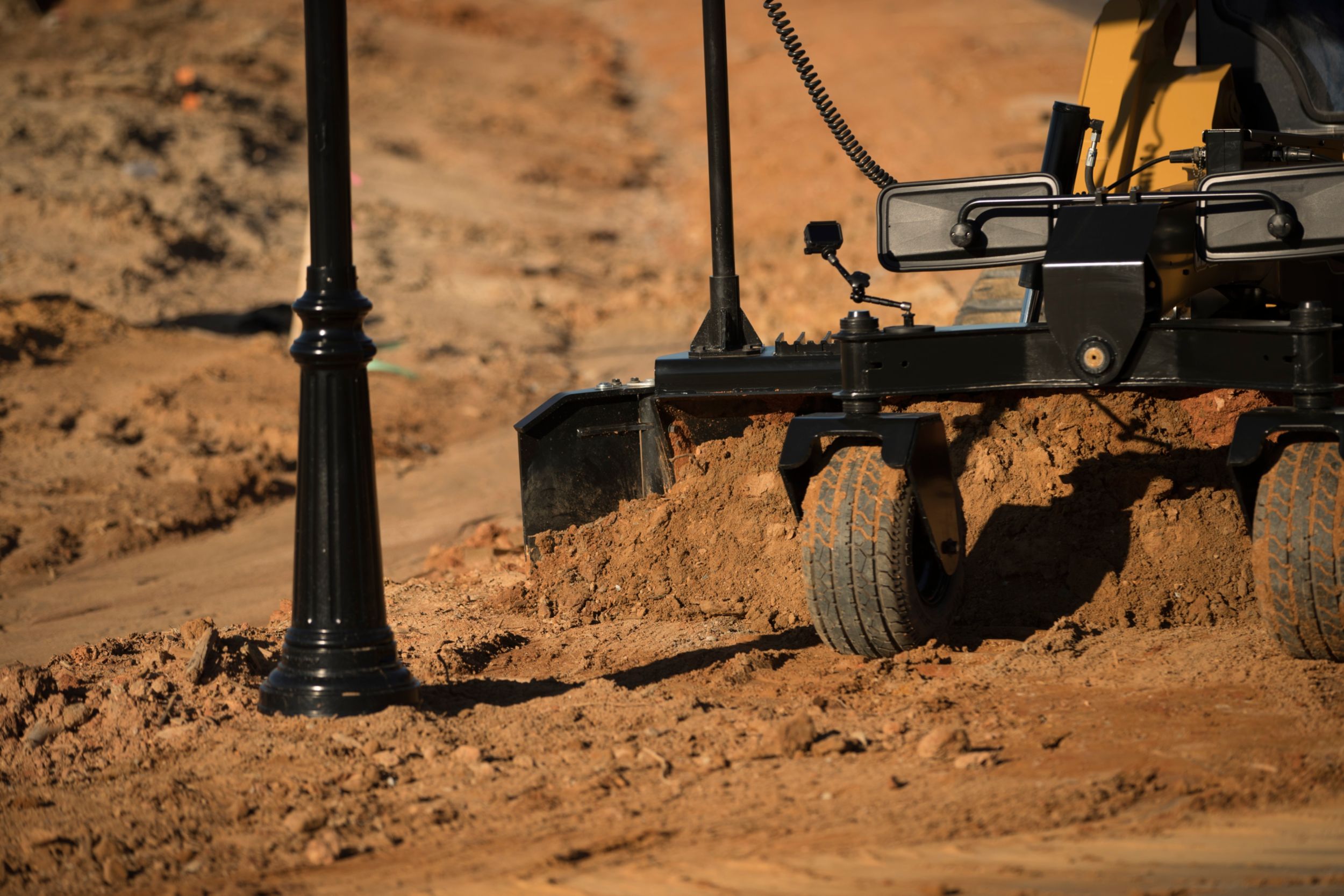

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base. The Smart Grader Blade brings cross slope to SSL/CTL platforms. The combination of these features, along with the support of the Caterpillar Dealer Network, makes this attachment industry-leading due to the industry-first features.

of

GRADE CONTROL READY

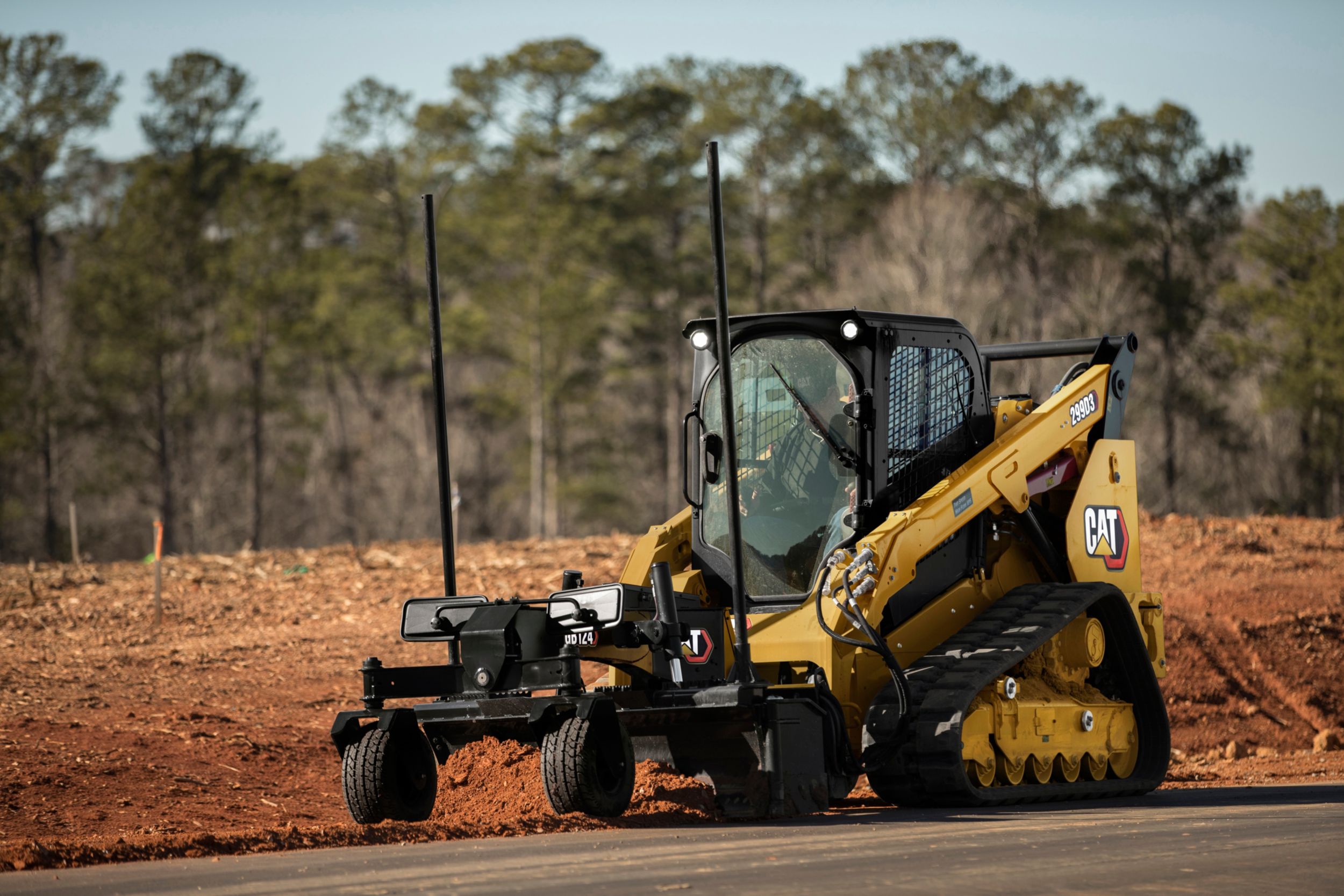

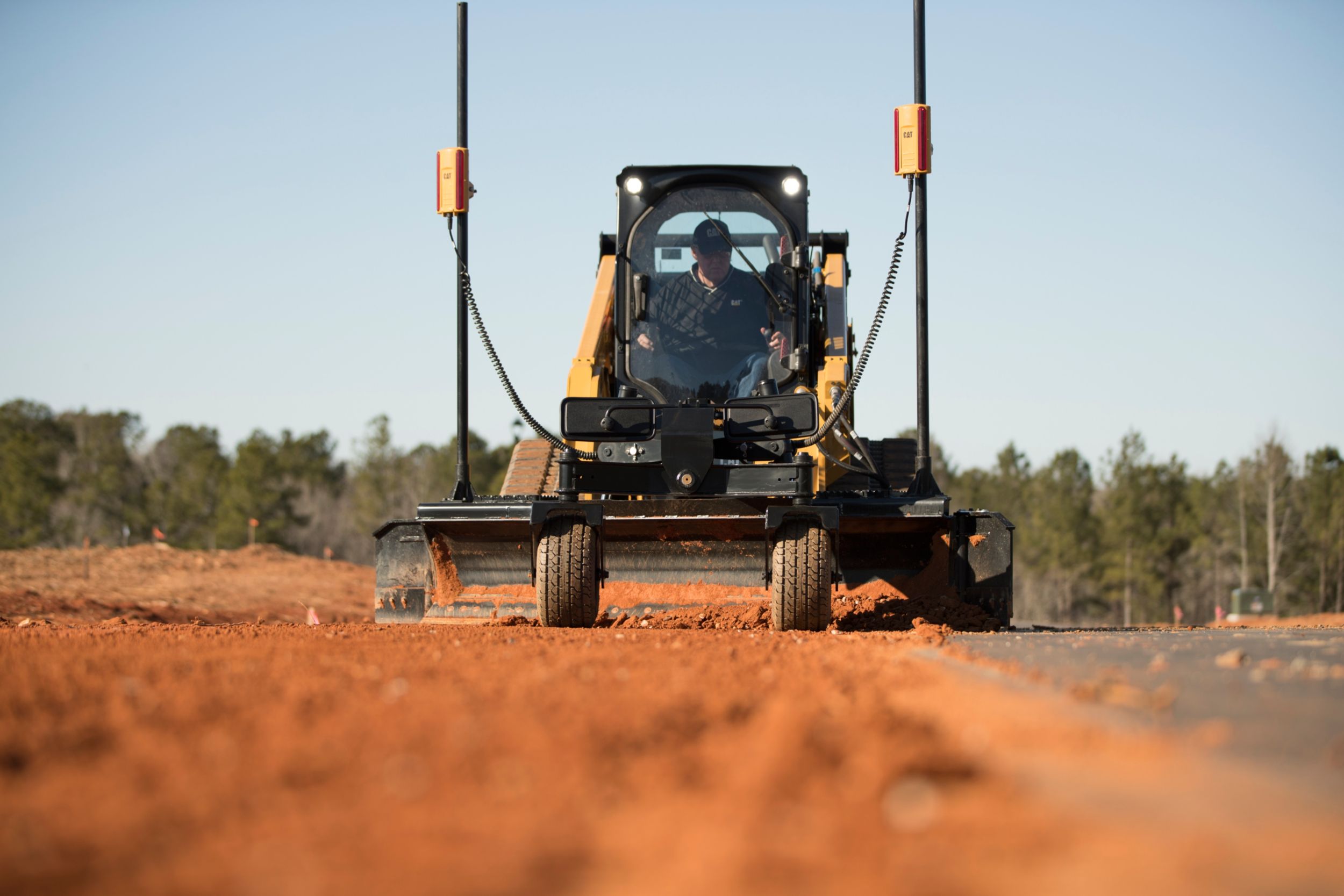

With the included masts, the Cat® Smart Grader Blade supports grade-control technologies such as External Reference, EW GO! and Cat® Grade.

OPTIONAL SIDE WINGS

With the optional wings, you can greater control over the blade edge, similar features to side shift. It also allows you to carry material similar to a box blade.

of

SMART GRADER BLADES SPECS
MODEL	GB120	GB124
Blade Width with wings (wings optional) - in (mm)	103 (2604)	121 (3061)
Blade Width (wings forward) - in (mm)	85 (2148)	103 (2605)
Blade Width (without wings) - in (mm)	78 (1981)	96 (2438)
Blade Width Fully Angled (wings extended) - in (mm)	90 (2292)	106 (2688)
Blade Width Fully Angled (without wings) - in (mm)	69 (1747)	84 (2143)
Wing Rotation - degrees	205°	205°
Maximum Blade Angle - Right/Left of Center - degrees	30°	30°
Tilt Angle ± - degrees	15°	15°
Maximum Cut Depth - in (mm)	4 (102)	4 (102)
Weight (with wings) - lb (kg)	2205 (1000)	2293 (1040)
Smart	Yes	Yes
