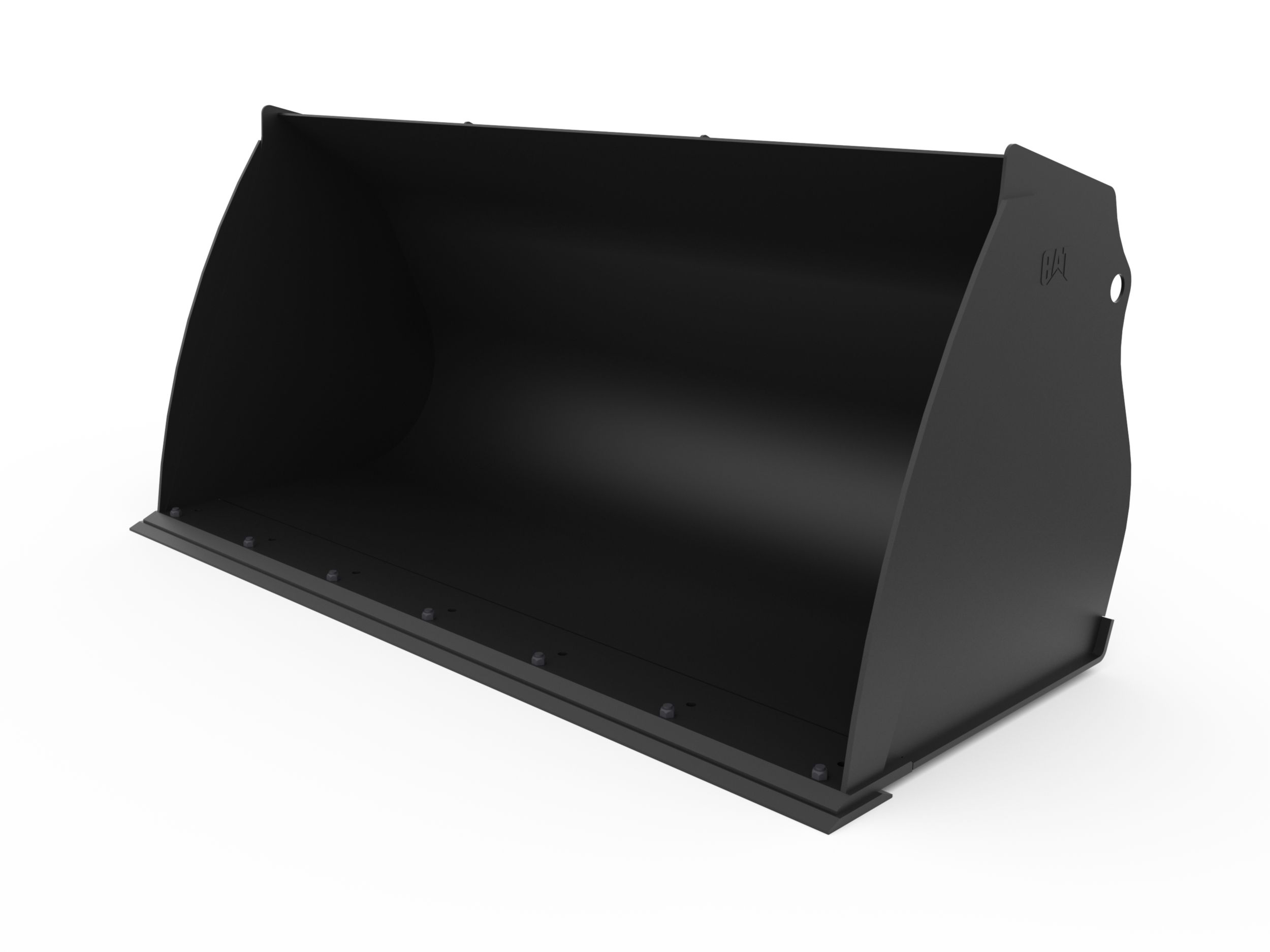

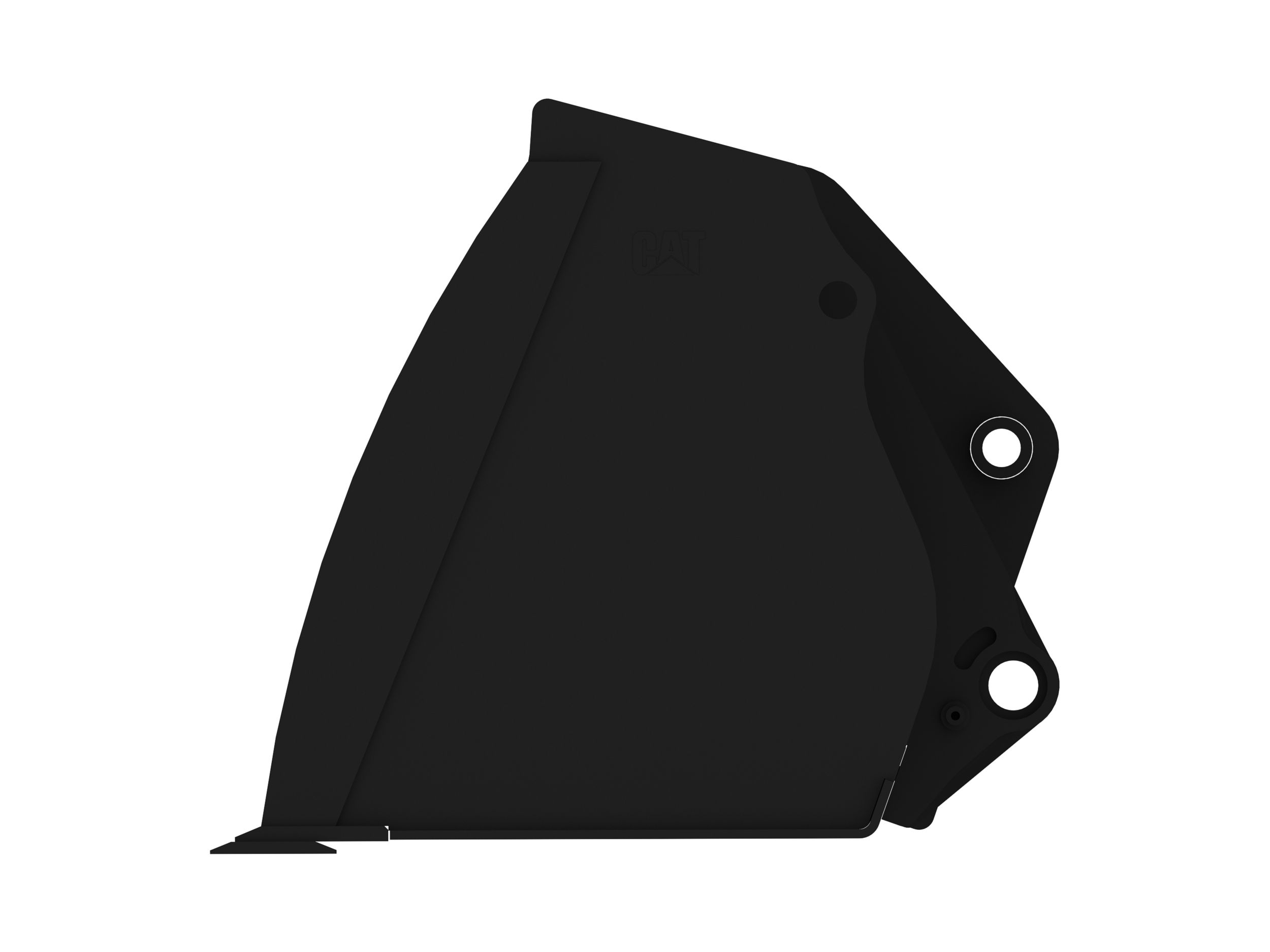

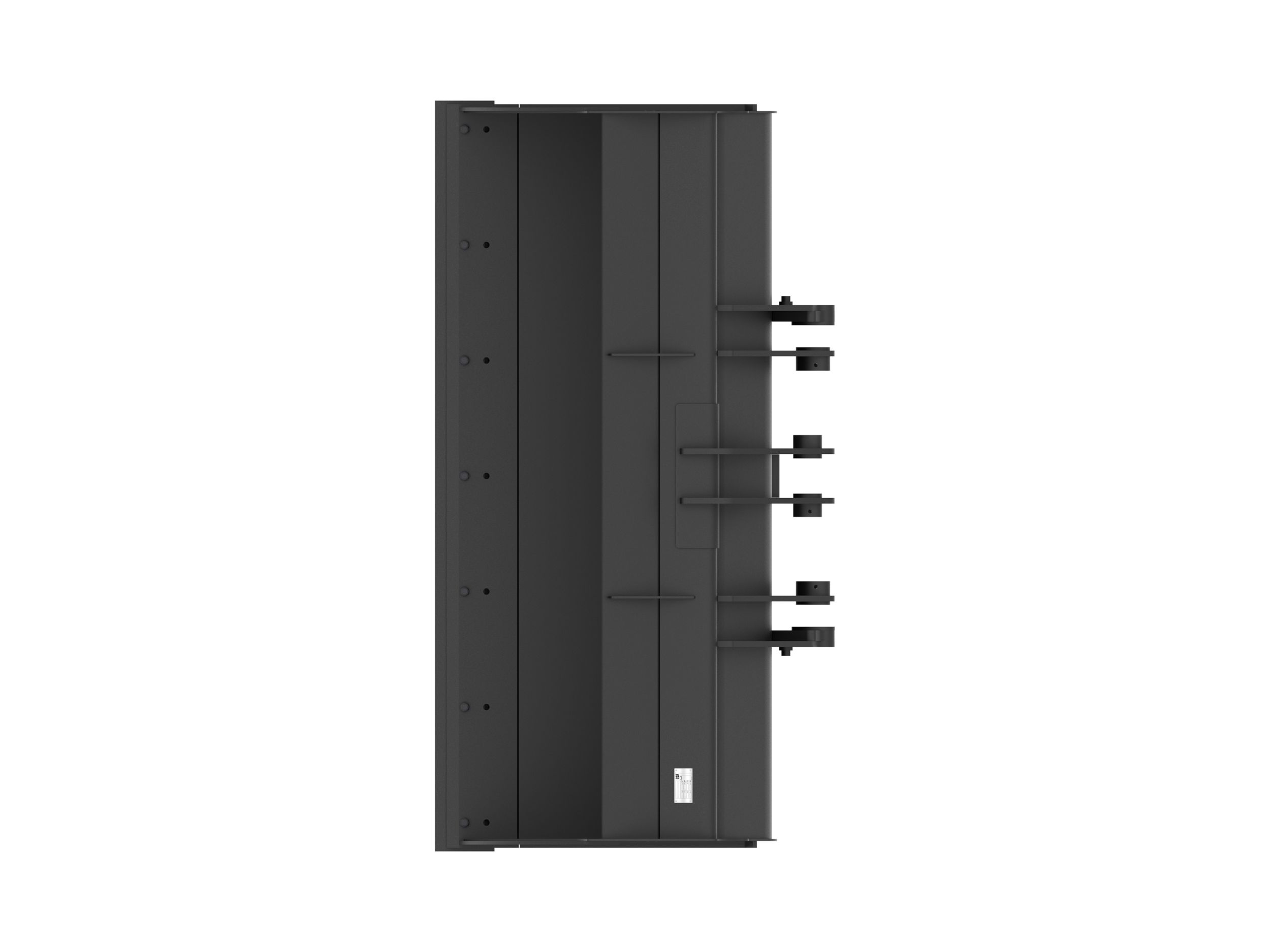

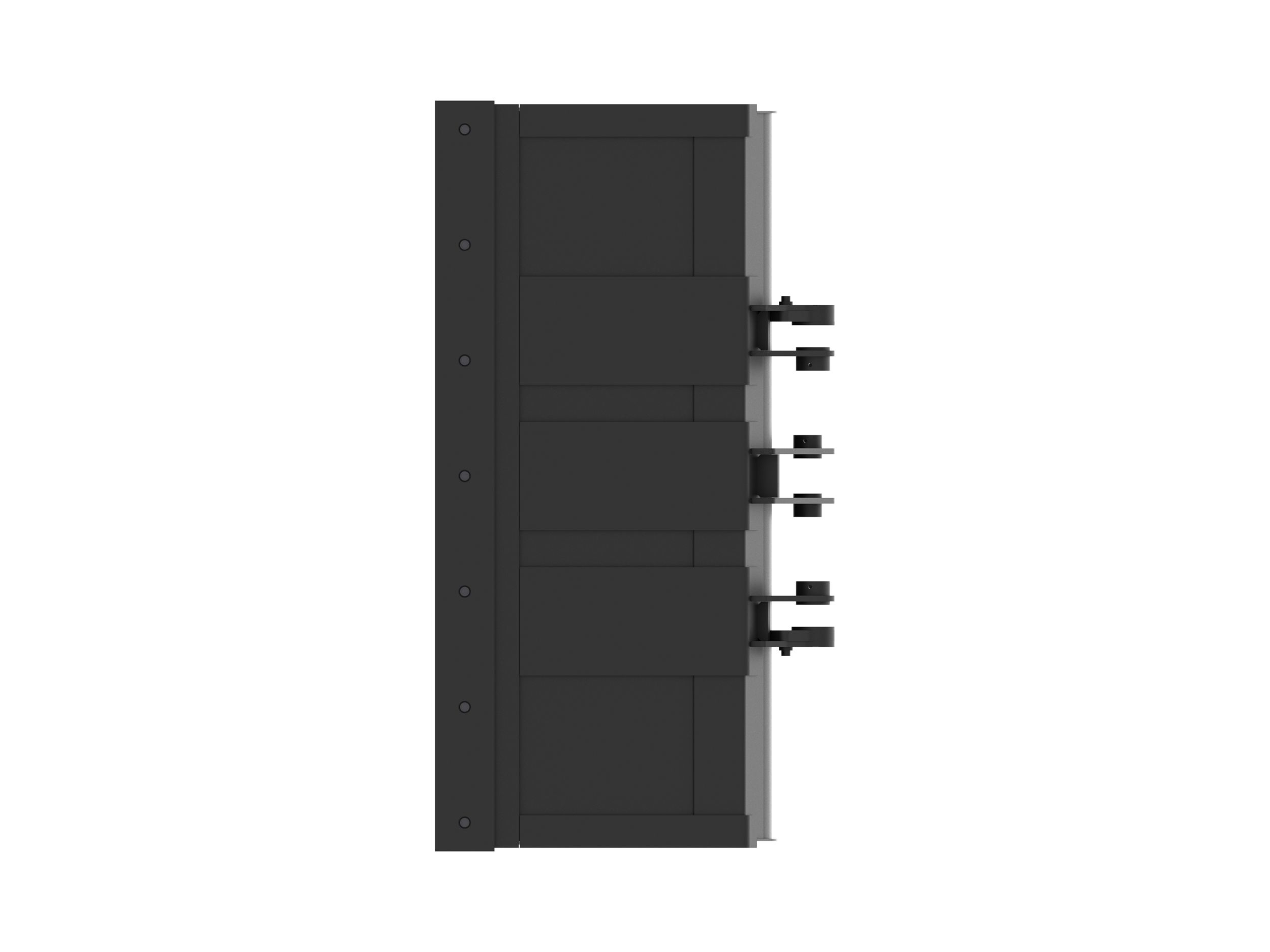

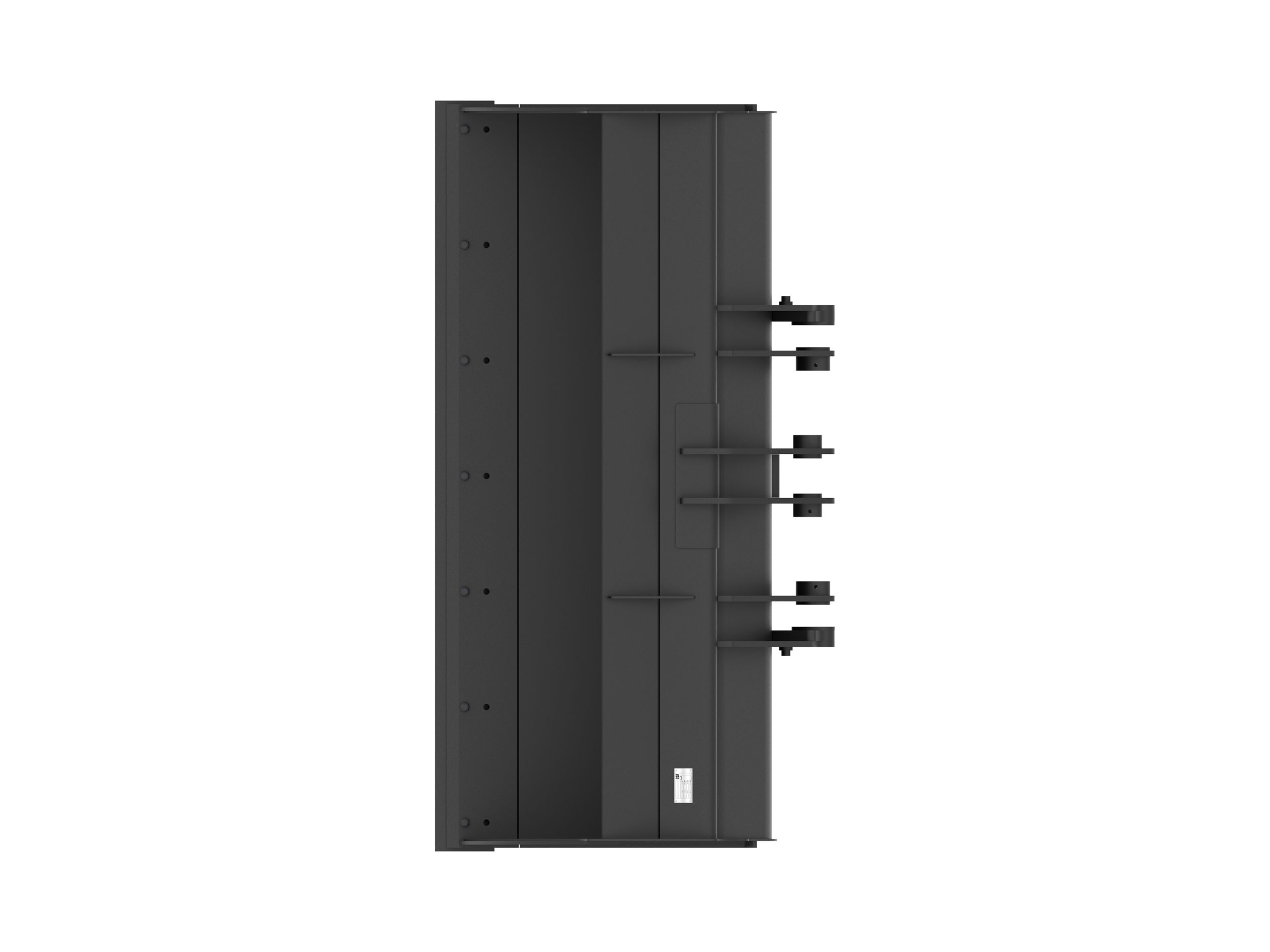

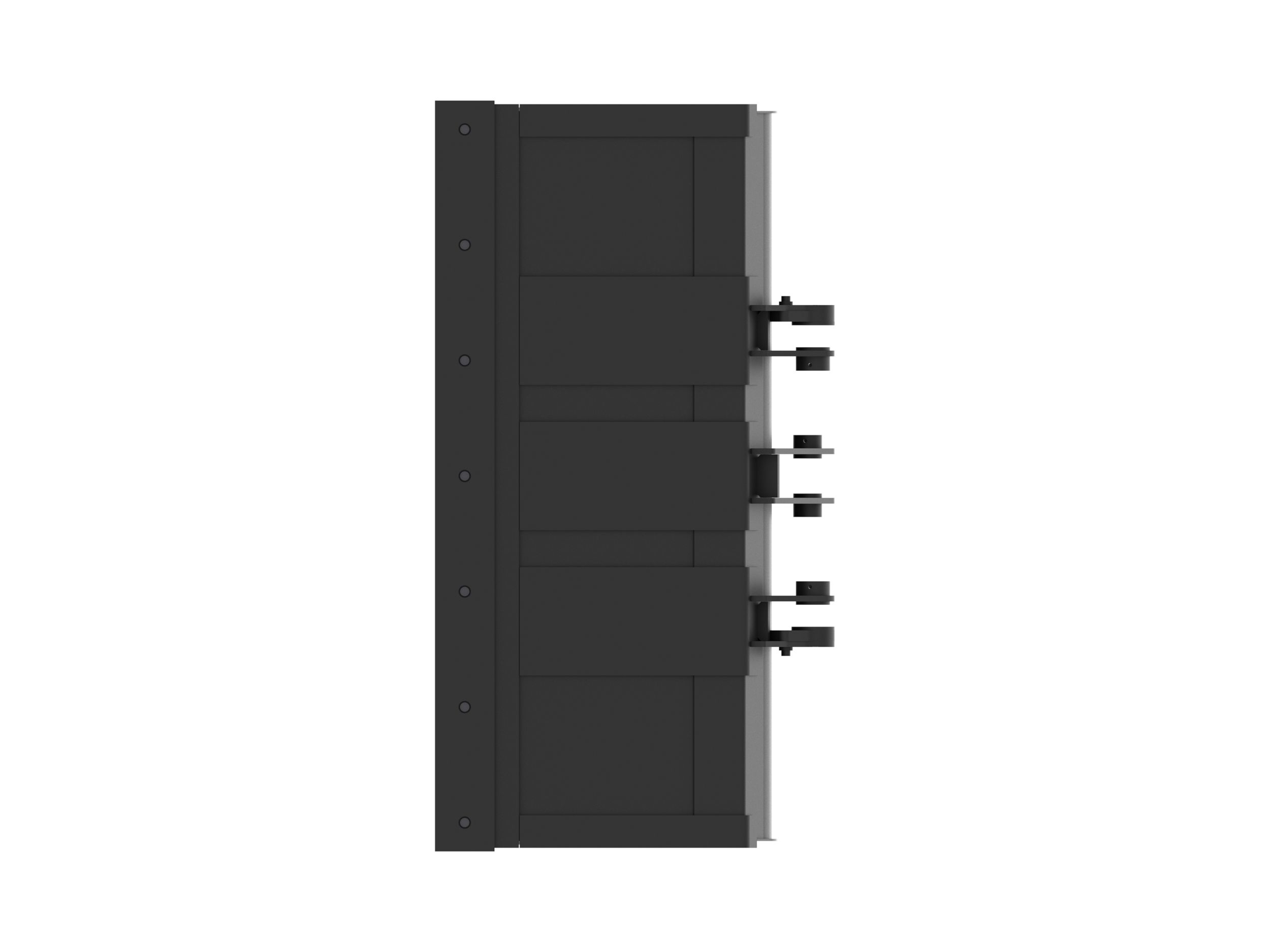

Light Material Buckets 1.3 m3 (1.7 yd3), Pin On, Bolt-On Cutting Edge

Request A Price Shop Now

Key Specs

Width: 81.9 in; 2080 mm

Weight: 1217 lb; 552 kg

Height: 38.7 in; 984 mm

1.3 m3 (1.7 yd3), Pin On, Bolt-On Cutting Edge
Change model

Overview

High capacity increases productivity in handling light materials.

Features At A Glance

Designed to improve material retention when truck loading or working on rough, uneven ground.

Flat upper torque tube is parallel to cutting edge for better ground reference (which aligns with all other Cat loader buckets). This reduces the cutting edge wear and improves grading capabilities. Edge angle and placement can be easier to gauge from within the cab.

Upper and lower torque tubes and thick side walls provide added strength and increased durability in aggressive applications.

Buckets are available with bolt-on cutting edges.

Product Specifications for 1.3 m3 (1.7 yd3), Pin On, Bolt-On Cutting Edge

Width	81.9 in 2080 mm
Weight	1217 lb 552 kg
Height	38.7 in 984 mm
Length	43.6 in 1108 mm
Capacity	1.7 yd³ 1.3 m³
Base Edge Thickness	0.6 in 16 mm
Interface Type	Pin On Pin On

Product Specifications for 1.3 m3 (1.7 yd3), Pin On, Bolt-On Cutting Edge

Download Print

Width	81.9 in 2080 mm
Weight	1217 lb 552 kg
Height	38.7 in 984 mm
Length	43.6 in 1108 mm
Capacity	1.7 yd³ 1.3 m³
Base Edge Thickness	0.6 in 16 mm
Interface Type	Pin On Pin On
