Cold Planers PC104

Request A Price Shop Now

Key Specs

Working Width: 13.8 in; 350 mm

Maximum Cutting Depth: 5.9 in; 150 mm

Required Hydraulics: Standard Flow; Standard Flow

PC104
Change model

Overview

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Features At A Glance

Designed for small paving jobs in residential and commercial applications, and are primarily used to economically restore asphalt and concrete surfaces. Ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited.

Self-leveling design automatically levels itself when placed on the ground for consistent depth control without operator adjustments and excellent spoil retention.

Two wear-resistant skid plates remain parallel to the ground for optimum stability.

Hydraulic side shift permits close planing to curbs, walls and other obstructions.

Independent left/right depth control allows maximum drum depths to be adjusted independently on each skid. Gauges are easily viewable from the cab. Independent depth control is mechanical on the PC104 and PC105 models; hydraulic independent depth control is standard on the PC305-PC412 models.

Max Pro Pressure Gauge provides operator feedback to adjust speed for maximum productivity in changing material loads. Gauge displays planer performance in real-time conditions and is visible from the cab. Standard on all models.

Direct drive system on the standard flow models features a variable speed, uni-directional, gerotor style hydraulic motor. Direct drive system on high flow and XHP models features a hydraulic radial piston motor to ensure maximum cutting rate and drum torque for optimal production performance and efficiency.

Float enables planers to follow the contour of the surface. Float is activated by a knob and is only available on high flow and XHP planers. Spring tilt and hydraulic tilt enable planers to oscillate for angled cuts. Tilt is hydraulically controlled on high flow models and spring controlled on standard flow planers.

All purpose conical bits are standard. Optional concrete bits, heavy duty concrete bits, and heavy duty asphalt bits are also available. Tools to change out the bits are included.

Indicates contact point of drum with surface based on depth of cut, so an assistant can communicate with the operator when to start and stop the cut.

Indicates center of the drum on the side of the planer.

Fast cut asphalt drums require less power for cutting due to increased spacing between cutting lines on the drum. These drums improve productivity in asphalt applications, and are now standard on all models. Multi-purpose and optional-width drums are also available.

Serrated steps allow for safe and easy access in and out of the cab. A new center step enables even easier access and shorter step lengths by the operator.

Stores the OMM (Operation and Maintenance Manual) in a protective case on the attachment, where it can be conveniently accessed.

Coupler frame-mounted water tank provides 160 liters (42 gallons) capacity with a tank level sight gauge. Can be combined with cab-mounted water tank for additional capacity and run time. Sprinkler kit included if cold planer is ordered with a water tank installed. Water tank not available on XD models.

Product Specifications for PC104

Working Width	13.8 in 350 mm
Maximum Cutting Depth	5.9 in 150 mm
Required Hydraulics	Standard Flow Standard Flow
Overall Width	68 in 1728 mm
Overall Length	44 in 1117 mm
Overall Height	37 in 941 mm
Weight	1503.6 lb 682 kg
Optimal Hydraulic Flow	60-80 L/min (16-22 gpm) 60-80 L/min (16-22 gpm)
Optimal Hydraulic Pressure	210-230 bar (3050-3300 psi) 210-230 bar (3050-3300 psi)
Drum Speed	181 rpm 181 rpm
Optional Drum Widths/Depths	400/150 mm (16/6 in) 400/150 mm (16/6 in)
Tilt Angle Range	8.5° Left/Right 8.5° Left/Right
Side Shift Travel	25.6 in 650 mm
Conical Bits	36 36
Standard Bit Type	All Purpose All Purpose

Product Specifications for PC104

Download Print

Working Width	13.8 in 350 mm
Maximum Cutting Depth	5.9 in 150 mm
Required Hydraulics	Standard Flow Standard Flow
Overall Width	68 in 1728 mm
Overall Length	44 in 1117 mm
Overall Height	37 in 941 mm
Weight	1503.6 lb 682 kg
Optimal Hydraulic Flow	60-80 L/min (16-22 gpm) 60-80 L/min (16-22 gpm)
Optimal Hydraulic Pressure	210-230 bar (3050-3300 psi) 210-230 bar (3050-3300 psi)
Drum Speed	181 rpm 181 rpm
Optional Drum Widths/Depths	400/150 mm (16/6 in) 400/150 mm (16/6 in)
Tilt Angle Range	8.5° Left/Right 8.5° Left/Right
Side Shift Travel	25.6 in 650 mm
Conical Bits	36 36
Standard Bit Type	All Purpose All Purpose

See how PC104 compares against frequently compared products.

Cold Planers

Selected

PC104

Working Width: 13.8 in; 350 mm
Maximum Cutting Depth: 5.9 in; 150 mm
Required Hydraulics: Standard Flow; Standard Flow

Cold Planers

PC105

Working Width: 17.7 in; 450 mm
Maximum Cutting Depth: 5.9 in; 150 mm
Required Hydraulics: Standard Flow; Standard Flow

View Details

Cold Planers

PC305

Working Width: 17.7 in; 450 mm
Maximum Cutting Depth: 6.7 in; 170 mm
Required Hydraulics: High Flow; High Flow

View Details

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Cat® Cold Planers Brochure Downloadable PDF Opens in a New Tab

Media Gallery

Photos

Videos

360 View

Studio Shot

Front View

Top View

Left View

Rear View

Bottom View

Right View

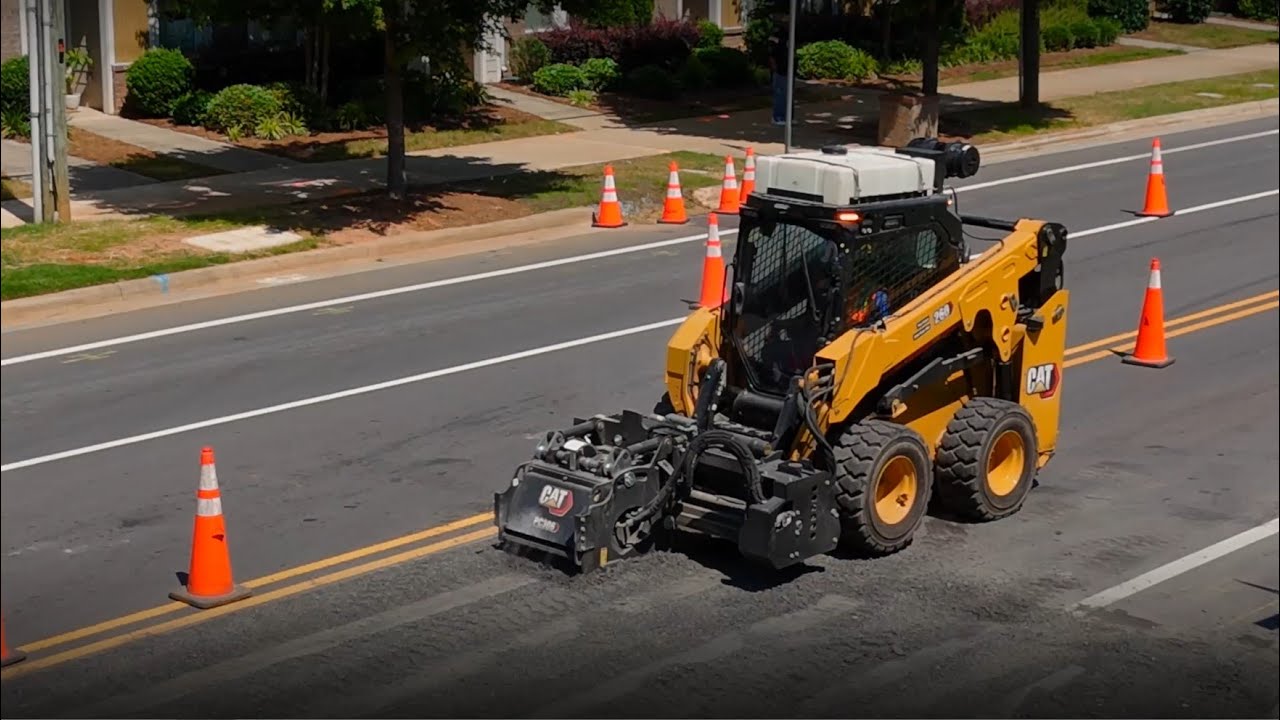

Cat® Cold Planer and Smart Creep Technology | Customer Story

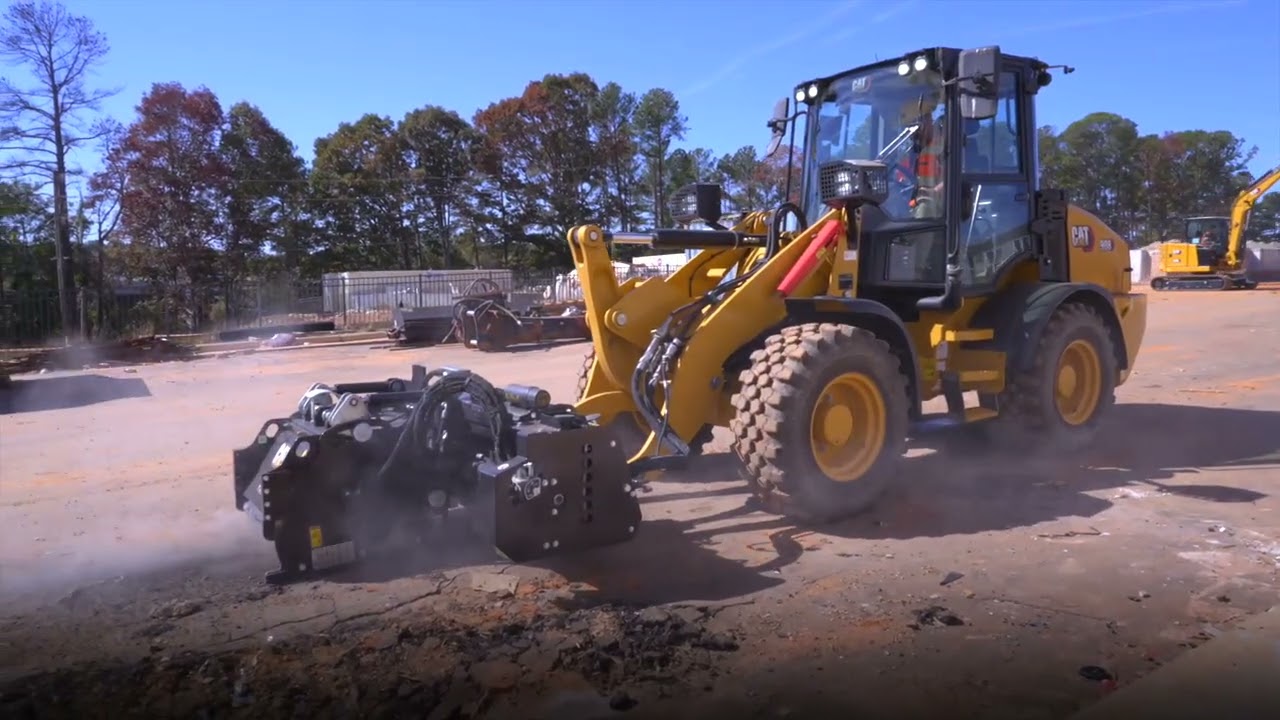

Cat® Cold Planers at Work
