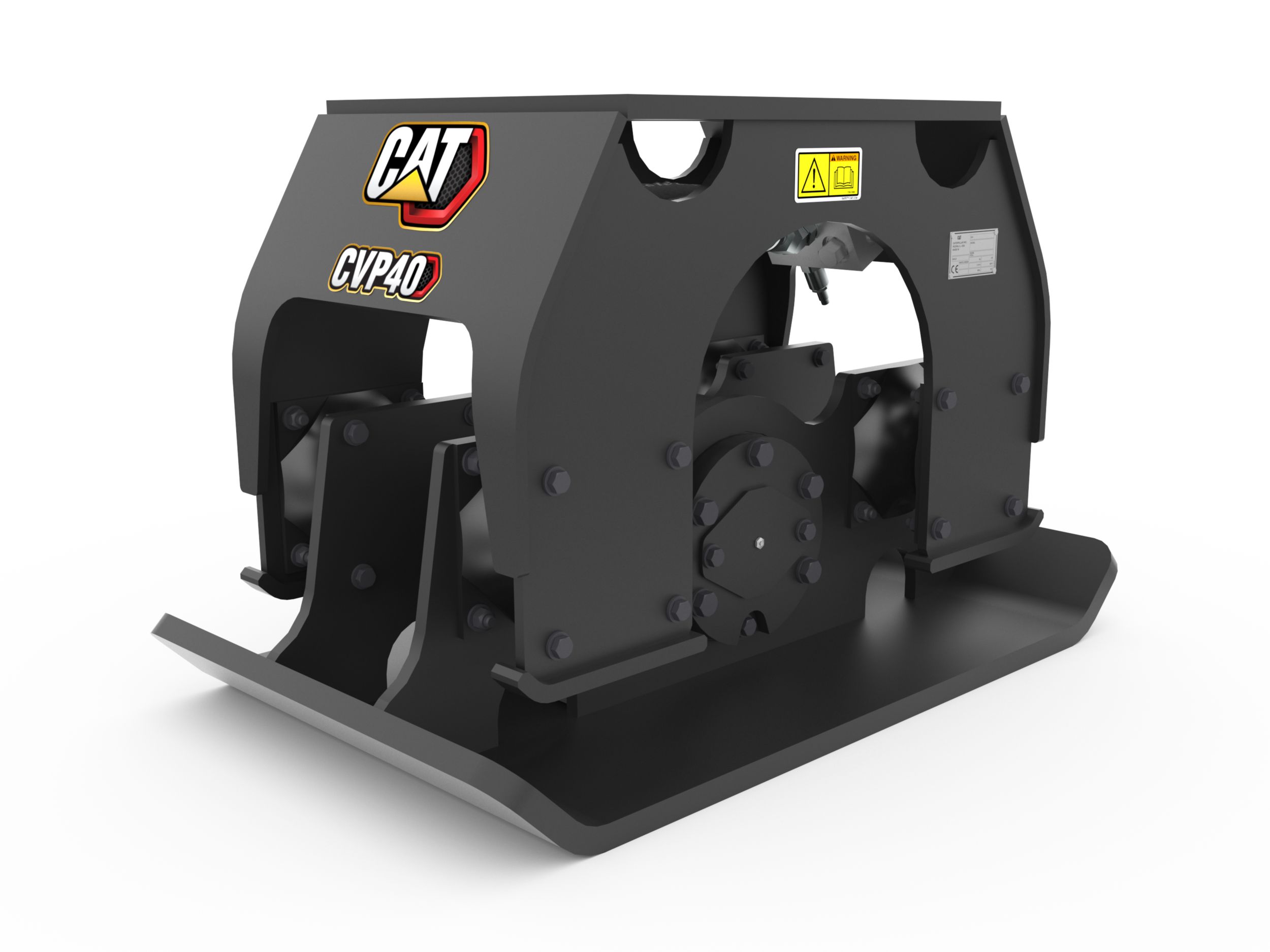

Vibratory Plate Compactors CVP40

Request A Price Click for Price

Key Specs

Impulse Force: 8992.36 lb; 40 kN

Impact Frequency: 2200 bpm; 2200 bpm

Base Plate Width: 23.2 in; 590 mm

CVP40
Change model

Overview

Vibratory action and dynamic force provides excellent compaction in a compact size.

Features At A Glance

Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.

These units produce high-power impulses at a rate of 2200 impacts per minute driving soil particles close together for solid, stable compactions.

Cat vibratory plate compactors share the same mounting solutions as the Cat B and H model Hammers. Mounting brackets are available for pin on, pin grabber, pin lock, CW, and S type connections.

Hydraulic hoses are protected inside the frame of the compactor. Jumper lines are routed out the back of the compactor. Hoses are out of the way – even in tight trenches.

Oil changes are simplified with the rear centerline plug. Oil can be changed while the compactor is installed.

A heavy-duty steel frame and solid rubber isolator bushings deliver the maximum amount of power to the ground while minimizing machine impact.

An optional bolt-on backfill blade can be mounted on both front and back of the compactor.

An optional swivel plate that allows the operator to manually swivel the compactor, which allows for less repositioning while compacting.

Product Specifications for CVP40

Impulse Force	8992.36 lb 40 kN
Impact Frequency	2200 bpm 2200 bpm
Base Plate Width	23.2 in 590 mm
Compaction Area	4.7 ft² 0.44 m²
Base Plate Pressure	13.3 psi 91.8 kPa
Base Plate Length	38.6 in 980 mm
Optimal Hydraulic Flow	10 gal/min 38 l/min
Optimal Hydraulic Flow	69-87 lpm (18-23 gpm) 69-87 lpm (18-23 gpm)
Minimum Operating Pressure	1599.8 psi 11030 kPa
Minimum Operating Pressure	13000-17000 kPa (1900-2500 psi) 13000-17000 kPa (1900-2500 psi)
Weight	771.6 lb 350 kg

Product Specifications for CVP40

Download Print

Impulse Force	8992.36 lb 40 kN
Impact Frequency	2200 bpm 2200 bpm
Base Plate Width	23.2 in 590 mm
Compaction Area	4.7 ft² 0.44 m²
Base Plate Pressure	13.3 psi 91.8 kPa
Base Plate Length	38.6 in 980 mm
Optimal Hydraulic Flow	10 gal/min 38 l/min
Optimal Hydraulic Flow	69-87 lpm (18-23 gpm) 69-87 lpm (18-23 gpm)
Minimum Operating Pressure	1599.8 psi 11030 kPa
Minimum Operating Pressure	13000-17000 kPa (1900-2500 psi) 13000-17000 kPa (1900-2500 psi)
Weight	771.6 lb 350 kg

See how CVP40 compares against frequently compared products.

Compactors

Selected

CVP40

Impulse Force: 8992.36 lb; 40 kN
Impact Frequency: 2200 bpm; 2200 bpm
Base Plate Width: 23.2 in; 590 mm

Compactors

CVP28

Impulse Force: 6294.65 lb; 28 kN
Impact Frequency: 2200 bpm; 2200 bpm
Base Plate Width: 17.7 in; 450 mm

View Details

Compactors

CVP55

Impulse Force: 12364.5 lb; 55 kN
Impact Frequency: 2200 bpm; 2200 bpm
Base Plate Width: 26 in; 660 mm

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Cat® Vibratory Plate Compactors for Mini Excavators and Backhoe Loaders Product Brochure Downloadable PDF Opens in a New Tab
