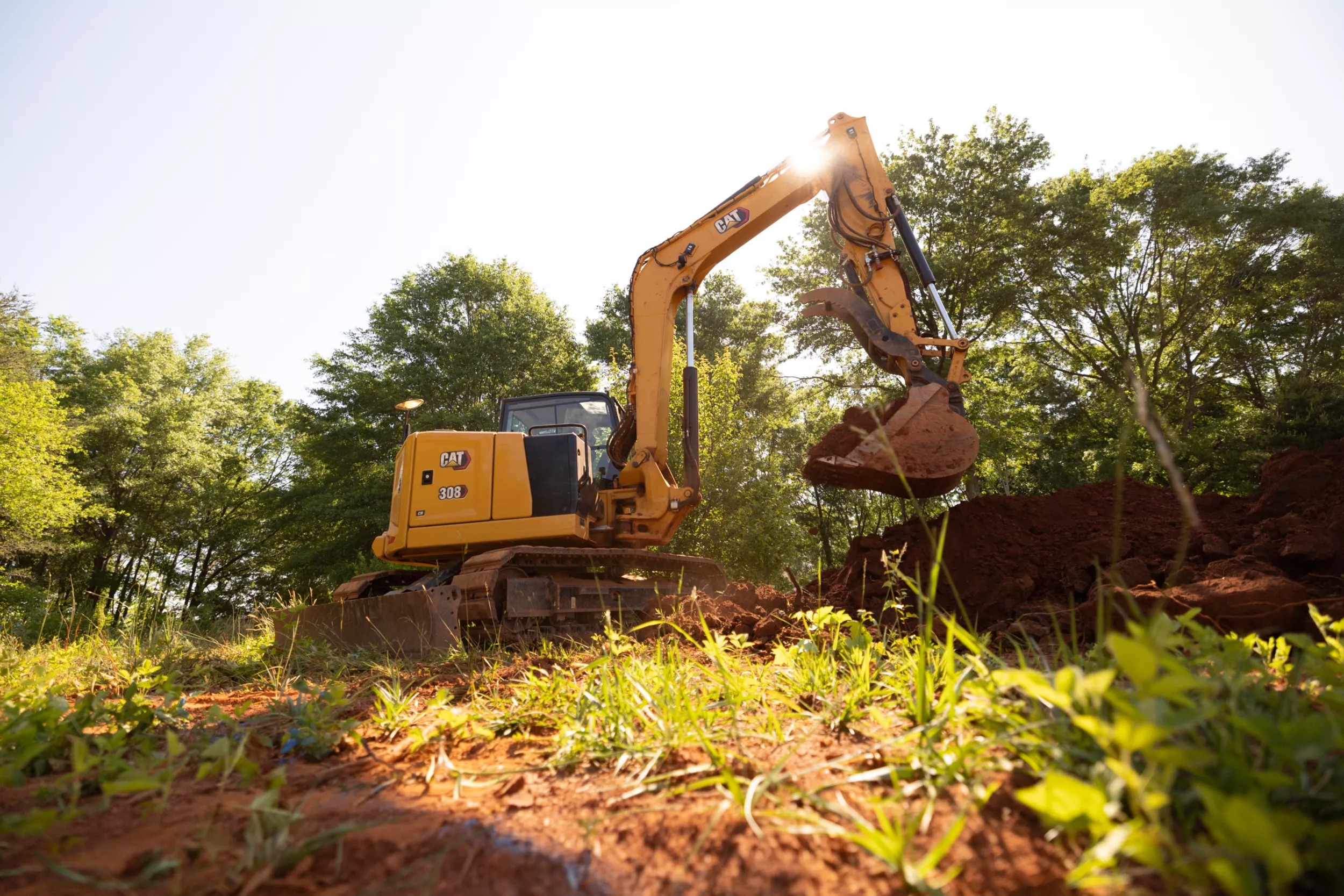

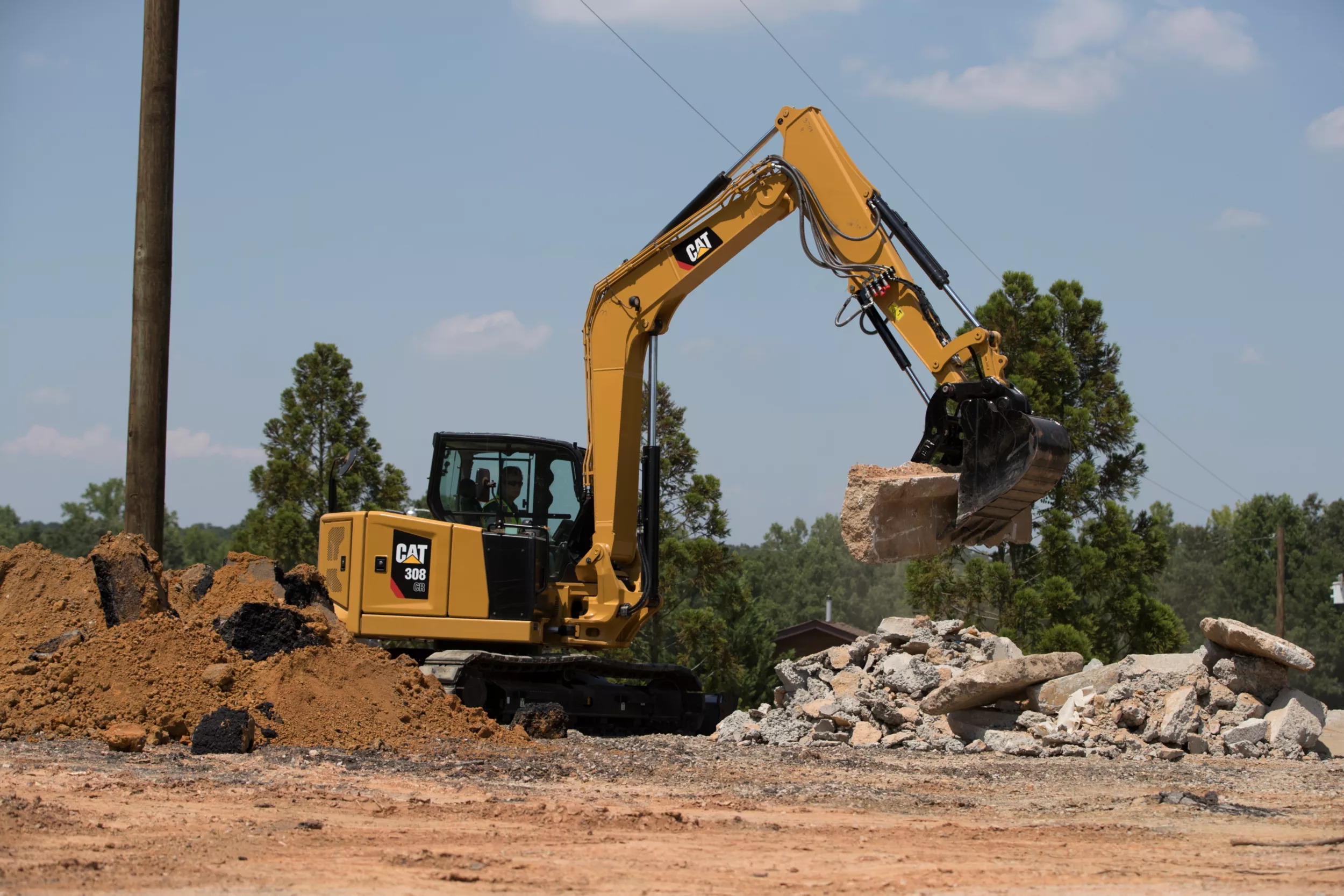

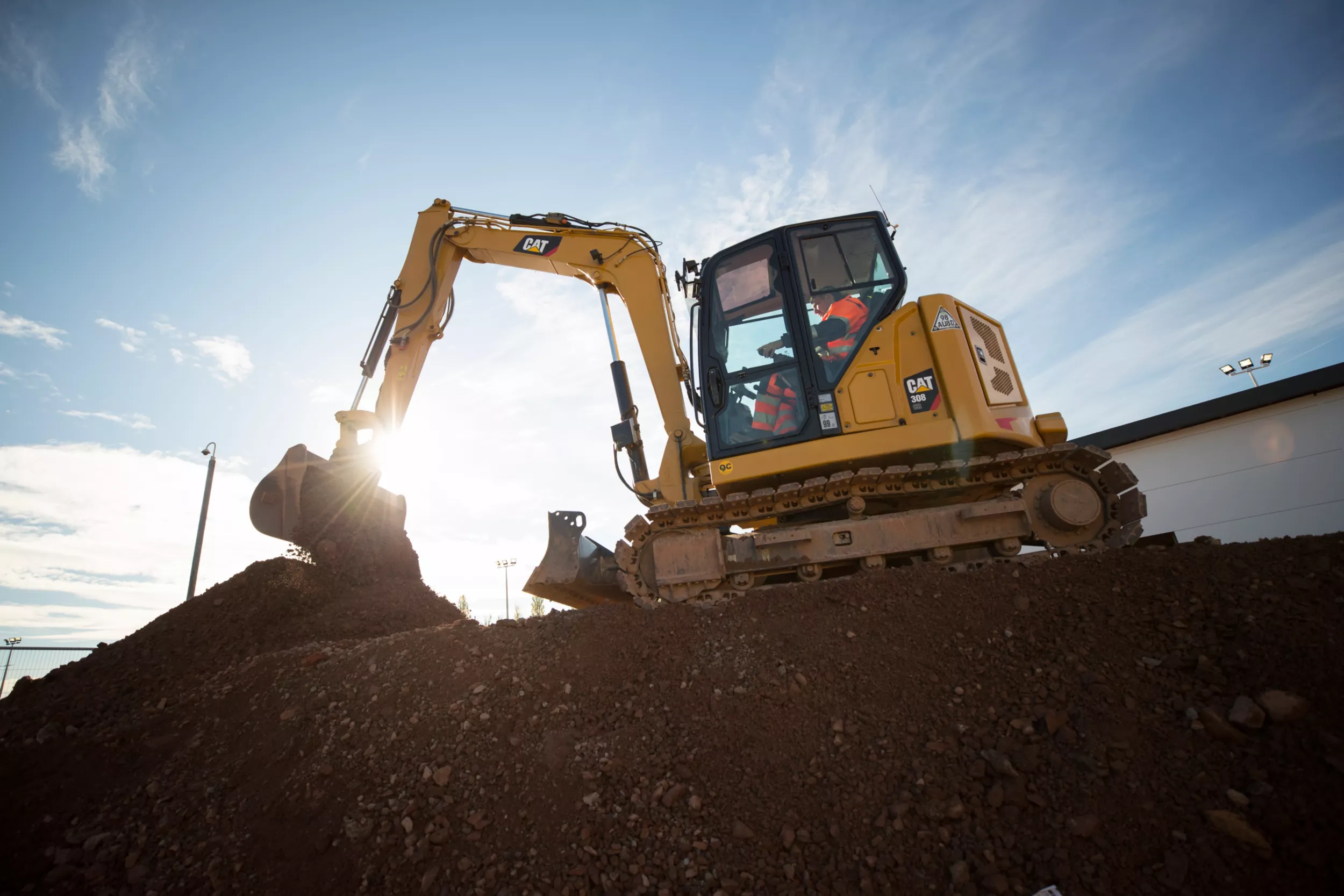

The Cat® 308 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.
Cat Exclusives in a Mini Excavator
with improved fuel efficiency and longer service intervals
with customizable operator settings and improvements in lift, swing, travel and multifunction
| Net Power | 69.5 HP 51.8 kW |
| Engine Model | Cat C3.3B Cat C3.3B |
| Stroke | 4.7 in 120 mm |
| Bore | 3.7 in 94 mm |
| Gross Power - SAE J1995 | 74.3 HP 55.4 kW |
| Displacement | 203 in³ 3.33 l |
| Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269 | 69.5 HP 51.8 kW |
| Operating Weight | 20077 lb 9105 kg |
| Note (1) | *Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket. *Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket. |
| Note (2) | **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket. **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket. |
| Maximum Operating Weight with Cab** | 20077 lb 9105 kg |
| Minimum Operating Weight with Cab* | 18610 lb 8440 kg |
| Steel Tracks with Pads | 752 lb 341 kg |
| Counterweight | 552 lb 250 kg |
| Long Stick | 146 lb 66 kg |
| Maximum Traction Force - High Speed | 6250 lb 27.8 kN |
| Ground Pressure - Maximum Weight | 5.8 psi 39.8 kPa |
| Ground Pressure - Minimum Weight | 5.4 psi 36.9 kPa |
| Travel Speed - High | 3.2 mile/h 5.1 km/h |
| Travel Speed - Low | 1.9 mile/h 3.1 km/h |
| Maximum Traction Force - Low Speed | 15175 lb 67.5 kN |
| Gradeability - Maximum | 30 degrees 30 degrees |
| Fuel Tank | 39 gal (US) 147 l |
| Hydraulic System | 29 gal (US) 110 l |
| Hydraulic Tank | 14 gal (US) 53 l |
| Cooling System | 2.6 gal (US) 10 l |
| Engine Oil | 3 gal (US) 11.2 l |
| Digging Force - Bucket | 13946 lb 62 kN |
| Operating Pressure - Travel | 4134 psi 285 bar |
| Operating Pressure - Swing | 3626 psi 250 bar |
| Operating Pressure - Equipment | 4134 psi 285 bar |
| Digging Force - Stick - Long | 8032 lb 35.7 kN |
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Note | Flow and pressure are not combinable. Under load, as flow rises pressure goes down. Flow and pressure are not combinable. Under load, as flow rises pressure goes down. |
| Pump Flow at 2,400 rpm | 44 gal/min 167 l/min |
| Digging Force - Stick - Standard | 9509 lb 42.3 kN |
| Maximum Auxiliary Circuit - Primary - Pressure at Pump | 4134 psi 285 bar |
| Maximum Auxiliary Circuit - Secondary - Pressure at Pump | 4134 psi 285 bar |
| Maximum Auxiliary Circuit - Primary - Flow at Pump | 35 gal/min 131 l/min |
| Maximum Auxiliary Circuit - Secondary - Flow at Pump | 9 gal/min 33 l/min |
| Machine Swing Speed | 10.6 r/min 10.6 r/min |
| Boom Swing - Right | 50 degrees 50 degrees |
| Boom Swing - Left | 60 degrees 60 degrees |
| Height | 17 in 431 mm |
| Width - Standard | 90.6 in 2300 mm |
| Width - Wide | 96.5 in 2450 mm |
| Top Guard | ISO 10262:1998 (Level I) ISO 10262:1998 (Level I) |
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 ISO 12117-2:2008 |
| Tip Over Protective Structure (TOPS) | ISO 12117:1997 ISO 12117:1997 |
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) 72 dB(A) |
| Note | European Union Directive "2000/14/EC" European Union Directive "2000/14/EC" |
| Average Exterior Sound Pressure (ISO 6395:2008) | 99 dB(A) 99 dB(A) |
| Cab Height | 100 in 2541 mm |
| Vertical Wall | 117.8 in 2991 mm |
| Boom In Reach | 120.4 in 3059 mm |
| Tail Swing with Counterweight | 62.4 in 1585 mm |
| Boom Swing - Right | 36.8 in 935 mm |
| Track Belt/Shoe Width | 17.7 in 450 mm |
| Maximum Reach | 281.1 in 7141 mm |
| Stick Length | 71.7 in 1820 mm |
| Maximum Blade Height | 14.6 in 370 mm |
| Boom Swing - Left | 23.8 in 604 mm |
| Maximum Blade Depth | 16 in 407 mm |
| O/A Track Width | 90.6 in 2300 mm |
| Maximum Dig Height | 265.2 in 6736 mm |
| Maximum Dump Clearance | 187.4 in 4760 mm |
| Maximum Reach - Ground Level | 273.6 in 6949 mm |
| Tail Swing without Counterweight | 57.1 in 1450 mm |
| O/A Undercarriage Length | 113.4 in 2880 mm |
| Swing Bearing - Height | 29.7 in 756 mm |
| Ground Clearance | 13.8 in 350 mm |
| Dig Depth | 161.7 in 4108 mm |
| Note | *Boom Height when stick is pinned in transport position with no attachments. *Boom Height when stick is pinned in transport position with no attachments. |
| Overall Shipping Length - with Counterweight | 264 in 6706 mm |
| Note (1) | **Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. **Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. |
| Overall Shipping Length - without Counterweight | 258.8 in 6574 mm |
| Note (2) | ***With blade positioned at the rear of the machine. ***With blade positioned at the rear of the machine. |
| Height - Boom Working - With Tools** | 104.7 in 2660 mm |
| Height - Boom Transport - No Tools* | 95.7 in 2430 mm |
| Dig Depth | 182.8 in 4643 mm |
| Boom Swing - Left | 23.8 in 604 mm |
| Maximum Dig Height | 277.1 in 7039 mm |
| Maximum Blade Height | 14.6 in 370 mm |
| Track Belt/Shoe Width | 17.7 in 450 mm |
| Cab Height | 100 in 2541 mm |
| Tail Swing with Counterweight | 62.4 in 1585 mm |
| O/A Undercarriage Length | 113.4 in 2880 mm |
| Maximum Dump Clearance | 199.7 in 5072 mm |
| Boom Swing - Right | 36.8 in 935 mm |
| Maximum Blade Depth | 16 in 407 mm |
| Ground Clearance | 13.8 in 350 mm |
| Stick Length | 92.8 in 2358 mm |
| Maximum Reach | 300.7 in 7637 mm |
| Maximum Reach - Ground Level | 293.7 in 7460 mm |
| Boom In Reach | 126.6 in 3215 mm |
| Swing Bearing - Height | 29.7 in 756 mm |
| O/A Track Width | 90.6 in 2300 mm |
| Tail Swing without Counterweight | 57.1 in 1450 mm |
| Vertical Wall | 134 in 3404 mm |
| Note | *Boom Height when stick is pinned in transport position with no attachments. *Boom Height when stick is pinned in transport position with no attachments. |
| Note (2) | ***With blade positioned at the rear of the machine. ***With blade positioned at the rear of the machine. |
| Note (1) | **Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. **Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. |
| Height - Boom Transport - No Tools* | 89 in 2260 mm |
| Height - Boom Working - With Tools** | 120.1 in 3050 mm |
| Overall Shipping Length - without Counterweight | 6872 mm (270.6 in)*** 6872 mm (270.6 in)*** |
| Overall Shipping Length - with Counterweight | 6872 mm (270.6 in)*** 6872 mm (270.6 in)*** |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |
