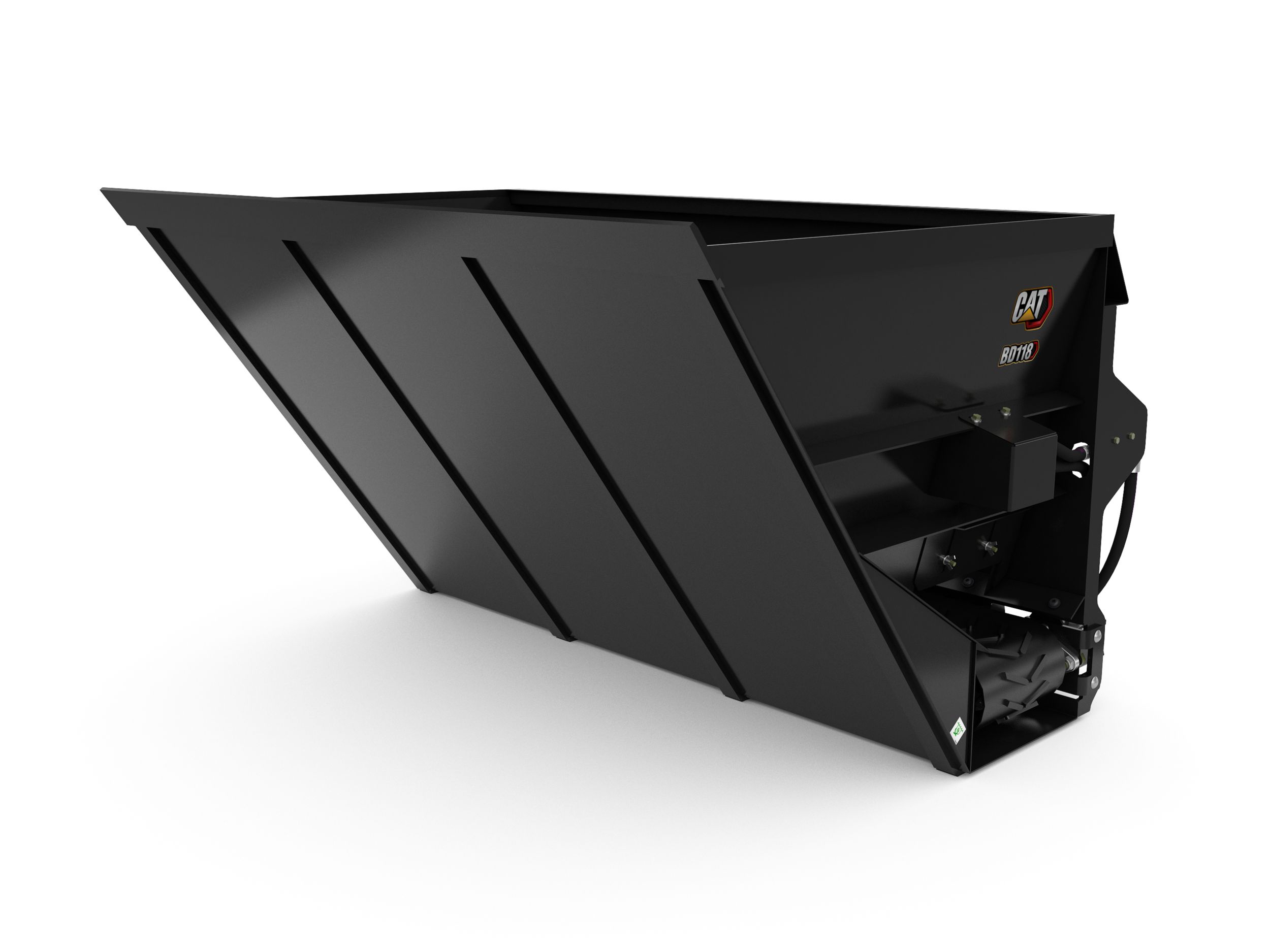

Side Discharge Buckets BD118 Sawdust

Request A Price Shop Now

Key Specs

Capacity: 2 yd³; 1.53 m³

Width: 73.2 in; 1860 mm

Required Hydraulics: Standard Flow; Standard Flow

BD118 Sawdust
Change model

Overview

Collect and discharge sawdust, mulch, straw and sand into barns, stalls and orchards, backfill top soil or pea gravel into trenches and spread silage.

Features At A Glance

Designed to collect and discharge sawdust, mulch, straw and sand into barns, stalls and orchards, backfill top soil or pea gravel into trenches and spread silage.

Manually adjustable discharge doors on both sides regulate the volume of discharged material. Thick plating reinforces the doors for long lasting performance.

Dual direction rubber conveyor belt is heavy-duty with a raised chevron tread and adjustable tension belt. Dual direction drive boosts productivity by eliminating the need for awkward maneuvering commonly encountered in tight areas.

High torque agitator assembly is directly powered by an independent hydraulic motor. Motor and conveyor systems rotate in conjunction on bi-axis planes for consistent flow and to prevent material from bridging inside the bucket.

Dual direct drive hydraulic motors drive the belt and a third motor drives the agitator providing consistent hydraulic flow. Motors are externally mounted for convenient access.

Welded-on serrated safety step allows for easy entry and exit from the cab.

Tool mounted operation and maintenance manual required for proper operation of the work tool attachment is sealed from the elements.

Product Specifications for BD118 Sawdust

Capacity	2 yd³ 1.53 m³
Width	73.2 in 1860 mm
Required Hydraulics	Standard Flow Standard Flow
Weight	1179.5 lb 535 kg
Height	44 in 1118 mm
Length	57.1 in 1451 mm
Optimal Hydraulic Flow	76-87 lpm (20-23 gpm) 76-87 lpm (20-23 gpm)
Optimal Hydraulic Pressure	130-230 bar (2000-3300 psi) 130-230 bar (2000-3300 psi)
Belt Width	12 in 305 mm
Interface Type	Skid Steer Coupler Skid Steer Coupler
Overall Width	74.8 in 1900 mm

Product Specifications for BD118 Sawdust

Download Print

Capacity	2 yd³ 1.53 m³
Width	73.2 in 1860 mm
Required Hydraulics	Standard Flow Standard Flow
Weight	1179.5 lb 535 kg
Height	44 in 1118 mm
Length	57.1 in 1451 mm
Optimal Hydraulic Flow	76-87 lpm (20-23 gpm) 76-87 lpm (20-23 gpm)
Optimal Hydraulic Pressure	130-230 bar (2000-3300 psi) 130-230 bar (2000-3300 psi)
Belt Width	12 in 305 mm
Interface Type	Skid Steer Coupler Skid Steer Coupler
Overall Width	74.8 in 1900 mm
