Bucket Fill Factors
Fill Factor is the percentage of an available volume in a hauler body, bucket or bowl that is actually used.
For example, a fill factor of 87 percent for a hauler body means that 13 percent of the rated volume is not being used to carry material. Buckets often have fill factors over 100 percent.
MATERIAL DESCRIPTION |
FILL FACTOR |
LOOSE MATERIAL |
|
Mixed Moist Aggregates |
95-100% |
Uniform Aggregates up to 3mm/1/8” |
95-100% |
3mm – 9mm/1/8”-3/8” |
90-95% |
12mm – 20mm/1/2”-3/4” |
85-90% |
24mm/1” and over |
85-90% |
BLASTED ROCK |
|
Well blasted |
80-95% |
Average Blasted |
75-90% |
Poorly blasted |
60-75% |
OTHER |
|
Rock Dirt Mixtures |
100-120% |
Moist Loam |
100-110% |
Soil, Boulders, roots |
80-100% |
Cemented Materials |
85-95% |
Notes
- Loader bucket fill factors are affected by bucket penetration, breakout force, rack back angle, bucket profile and ground engaging tools such as bucket teeth of bolt-on replaceable cutting edges.
- For bucket fill factors for hydraulic excavators, see bucket payloads in the hydraulic excavator section.
- Above values are not valid for Hydraulic Mining Shovels.
Additional materials can be found in the Caterpillar Performance Handbook. Consult your Cat dealer for more information.
RELATED ARTICLES
You’re here to get ideas to grow your business. Read on for machine insights and expert tips and tricks to get more out of every job.
-
Strack, Inc.
Cat equipment provides strategic advantage for Strack, Inc.
Learn More -

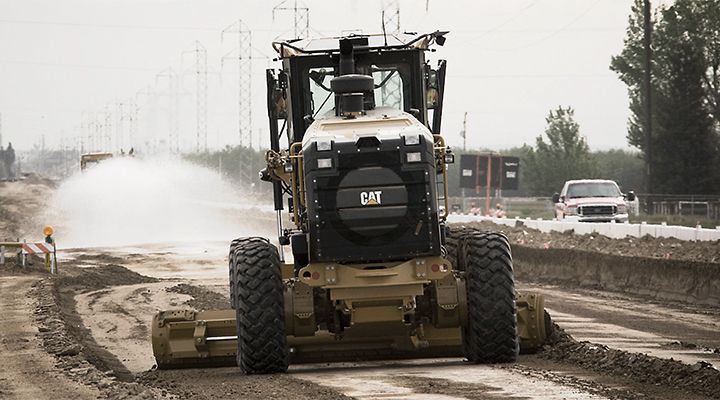

Budget Reductions Only Half of Story
