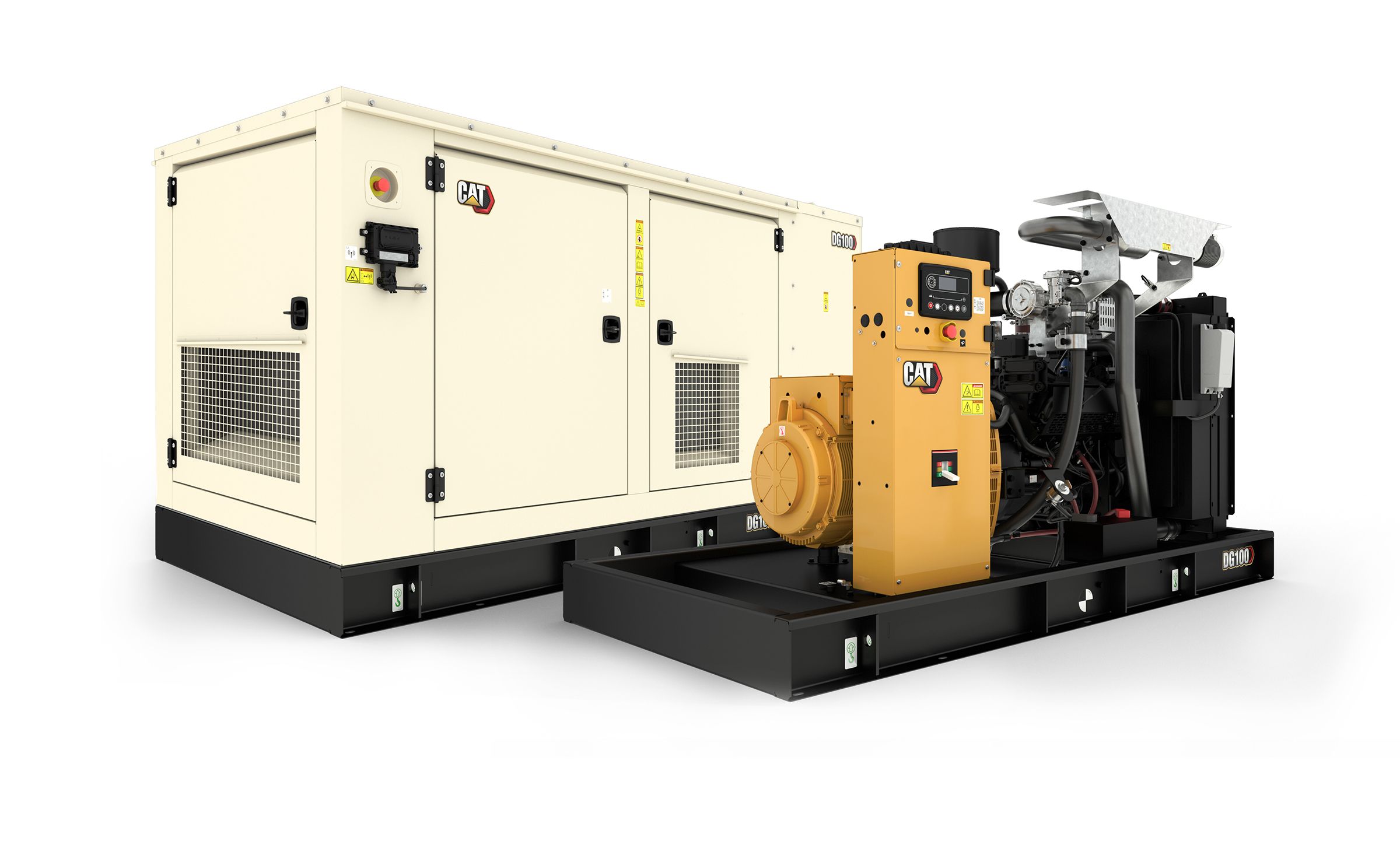

GAS GENERATOR SETS

Ranging from 86 to 4045 ekW (108 to 5056 kVA) in a single unit, our gas generator sets are easy to select, permit and install. Our industrial and commercial gas generator sets are proven for reliable operation with a wide range of gaseous fuels including natural gas, biogas from landfills and digesters, coal gas, propane and alternative fuels. We build durable, low life-cycle cost power systems that we integrate with controls, exhaust systems, fuel train, combined cooling heat & power skids and switchgear.



60 Hz Ratings

Natural Gas (NG)

EPA

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Standby
175 1800 1φ DG175-2 GC 14.2 ESE Link
200 1800 1φ DG200-2 GC 14.2 ESE
            LEXExxxxx
175 1800 3φ ** DG175-2 GC 14.2 ESE
200 1800 3φ ** DG200-2 GC 14.2 ESE
230 1800 3φ ** DG230-2 GC 14.2 ESE
250 1800 3φ ** DG250-2 GC 14.2 ESE
275 1800 3φ ** DG275-2 GC 14.2 ESE
300 1800 3φ ** DG300-2 GC 14.2 ESE
350 1800 3φ ** DG350 18.1 ESE
350 1800 3φ ** DG350-2 GC 21.9 ESE
400 1800 3φ ** DG400 18.1 ESE
400 1800 3φ ** DG400-2 GC 21.9 ESE
450 1800 3φ ** DG450 18.1 ESE
450 1800 3φ ** DG450-2 GC 21.9 ESE
500 1800 3φ ** DG500 18.1 ESE
500 1800 3φ ** G3412 G3412 with Fast Response EPA Factory Certified Link
750 1800 3φ ** G3512 G3512 with Fast Response EPA Factory Certified Link
1000 1800 3φ ** G3512 G3512 with Fast Response EPA Factory Certified Link
1500 1800 3φ ** G3516 G3516 with Fast Response EPA Factory Certified Link
2000 1800 3φ ** G3520 G3520 with Fast Response EPA Factory Certified Link
2500 1800 3φ ** G3520 G3520 with Fast Response EPA Factory Certified Link

  * - Ratings at 1.0 pf.  ** - Ratings at 0.8 pf.

The Certifications above are applicable for US Sales: ESE = “EPA Stationary Emergency”.

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Emergency Standby
100 1800 1φ * DG100 6.2 ESE LEXExxxxx

100 1800 3φ ** DG100 6.2 ESE
125 1800 3φ ** DG125 6.2 ESE
150 1800 3φ ** DG150 9.1 ESE

  * - Ratings at 1.0 pf.  ** - Ratings at 0.8 pf.

The Certifications above are applicable for US Sales: ESE = “EPA Stationary Emergency”.

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Prime
86 1800 1φ * DG125 6.2 EPA Non-Emergency LEXExxxxx

88 1800 3φ ** DG125 6.2 EPA Non-Emergency
122 1800 3φ ** DG150 6.2 EPA Non-Emergency

  * - Ratings at 1.0 pf.  ** - Ratings at 0.8 pf.

The Certifications above are applicable for US Sales: ESE = “EPA Stationary Emergency”.

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Demand Response
100 1800 1φ ** DG125 6.2 EPA Non-Emergency LEXExxxxx
175 1800 1φ ** DG175-2 GC 14.2 EPA Non-Emergency
200 1800 1φ ** DG200-2 GC 14.2 EPA Non-Emergency

105 1800 3φ ** DG125 6.2 EPA Non-Emergency
125 1800 3φ ** DG125 6.2 EPA Non-Emergency
150 1800 3φ ** DG150 9.1 EPA Non-Emergency
175 1800 3φ ** DG175-2 GC 14.2 EPA Non-Emergency
200 1800 3φ ** DG200-2 GC 14.2 EPA Non-Emergency
230 1800 3φ ** DG230-2 GC 14.2 EPA Non-Emergency
250 1800 3φ ** DG250-2 GC 14.2 EPA Non-Emergency
275 1800 3φ ** DG275-2 GC 14.2 EPA Non-Emergency
300 1800 3φ ** DG300-2 GC 14.2 EPA Non-Emergency
350 1800 3φ ** DG350 18.1 EPA Non-Emergency
350 1800 3φ ** DG350-2 GC 21.9 EPA Non-Emergency
400 1800 3φ ** DG400 18.1 EPA Non-Emergency
400 1800 3φ ** DG400-2 GC 21.9 EPA Non-Emergency
450 1800 3φ ** DG450 18.1 EPA Non-Emergency
450 1800 3φ ** DG450-2 GC 21.9 EPA Non-Emergency
500 1800 3φ ** DG500 18.1 EPA Non-Emergency

  * - Ratings at 1.0 pf.  ** - Ratings at 0.8 pf.

The Certifications above are applicable for US Sales: ESE = “EPA Stationary Emergency”.

Global

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
400 1800 3φ CG132B-8 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
423 1800 3φ G3412C —   Link
453 1800 3φ G3412 — consult factory -
600 1800 3φ CG132B-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
800 1800 3φ CG132B-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link

1125 1500 3φ CG170-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1200 1500 3φ CG170-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1490 1500 3φ G3512H — 0.5 g/bhp-hr NOX Link
1500 1500 3φ CG170-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1560 1500 3φ CG170-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1982 1500 3φ G3516H — 0.5 g/bhp-hr NOX Link
2000 1500 3φ CG170B-20 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
2300 1500 3φ CG170B-20 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
2490 1500 3φ G3520H — 0.5 g/bhp-hr NOX Link
3000 900 3φ CG260-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
4000 900 3φ CG260-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
4050 900 3φ CG260-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link

*- Ratings at 0.8 pf. Electric output depends on final generator specification.

Propane

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
253 1800 3φ CG132B-08 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
378 1800 3φ CG132B-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
505 1800 3φ CG132B-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
607*** 1800 3φ G3512 with Fast Response — NOX ≤ 500 mg/Nm3 @ 5% O2 Link
750 1800 3φ CG132B-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
932*** 1800 3φ G3516 with Fast Response — NOX ≤ 500 mg/Nm3 @ 5% O2 Link
1097*** 1800 3φ G3520 with Fast Response — NOX ≤ 500 mg/Nm3 @ 5% O2 Link

878 1500 3φ CG170-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
892 1500 3φ G3512H — NOX ≤ 500 mg/Nm3 @ 5% O2 Link
948 1500 3φ CG170-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
950 1500 3φ CG170-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1112 1500 3φ G3516H   NOX ≤ 500 mg/Nm3 @ 5% O2 Link
1170 1500 3φ CG170-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1186 1500 3φ CG170-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1391 1500 3φ G3520H — NOX ≤ 500 mg/Nm3 @ 5% O2 Link
1472 1500 3φ CG170B-20   NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1880 1500 3φ CG170B-20 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link

1770 900 3φ CG260-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
2229 900 3φ CG260-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
2613 900 3φ CG260-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link

*** ekW Standby

Propane ratings of natural gas gensets are very sensitive to site conditions, fuel composition and emissions setting. Site specific limitations may apply, maintenance intervals may be affected.

Biogas

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
194 1800 3φ G3412 — — Link

400 1800 3φ CG132B-8 — — Link
600 1800 3φ CG132B-12 — — Link
800 1800 3φ CG132B-16 — — Link

824 1200 3φ G3516 — — Link
1000 1200 3φ G3516 — — Link
1626 1200 3φ G3520C — — Link

1200 1500 3φ CG170-12 — — Link
1560 1500 3φ CG170-16 — — Link
1950 1500 3φ G3520C — — Link
2000 1500 3φ CG170B-20 — — Link
2300 1500 3φ CG170B-20 — — Link

3510 900 3φ CG260-16 — — Link

*- Ratings at 0.8 pf.

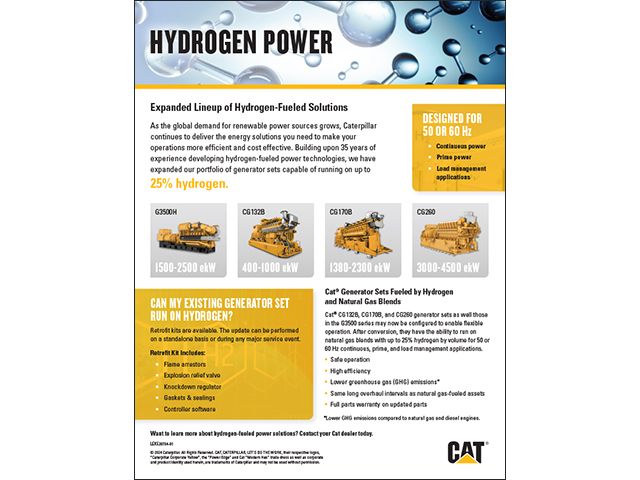

Hydrogen (H2)

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
400 1800 3φ CG132B-08 — NG with 25% H2 Link
600 1800 3φ CG132B-12 — NG with 25% H2 Link
800 1800 3φ CG132B-16 — NG with 25% H2 Link

1490 1500 3φ G3512H — NG with 25% H2 Link
1982 1500 3φ G3516H — NG with 25% H2 Link
2000 1500 3φ CG170B-20 — NG with 25% H2 Link
2300 1500 3φ CG170B-20 — NG with 25% H2 Link
2490 1500 3φ G3520H — NG with 25% H2 Link

3000 900 3φ CG260-12 — NG with 25% H2 Link
4000 900 3φ CG260-16 — NG with 25% H2 Link
4500 900 3φ CG260-16 — NG with 25% H2 Link

Generator sets operating on Natural Gas containing up to 25 vol.-% of hydrogen.

CHP - Combined Heat & Power

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
1490 1500 3φ CHP1500 G3512H w/CHP Solution Link
1982 1500 3φ CHP2000 G3516H w/CHP Solution Link
2480 1500 3φ CHP2500 G3520H w/CHP Solution Link

*- Ratings at 1.0 pf.

50 Hz Ratings

Natural Gas (NG)

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
374 1500 3φ ** G3412C — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
400 1500 3φ ** CG132B-8 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
600 1500 3φ ** CG132B-12 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
800 1500 3φ ** CG132B-16 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1000 1500 3φ ** CG132B-16 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1000 1500 3φ ** CG170-12 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1030 1500 3φ ** G3516 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1125 1500 3φ ** CG170-12 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1200 1500 3φ ** CG170-12 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1380 1500 3φ ** CG170B-12 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1500 1500 3φ ** CG170-16 K — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1500 1500 3φ ** G3512H — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1560 1500 3φ ** CG170-16 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
1840 1500 3φ ** CG170B-16 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
2000 1500 3φ ** CG170B-20 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
2000 1500 3φ ** G3516H — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
2300 1500 3φ ** CG170B-20 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
2500 1500 3φ ** G3520H — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
2600 1800 3φ ** G3520with fast response — NOx ≤ 250 mg/Nm3 @ 5% O2 consult factory

3333 1000 3φ ** CG260-12 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
4300 1000 3φ ** CG260-16 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link
4500 1000 3φ ** CG260-16 — NOx ≤ 250 mg/Nm3 @ 5% O2 Link

**- Ratings at 0.8 pf. Electric output depends on final generator specification.

***- ekW Standby

Propane

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
252 1500 3φ CG132B-08 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
378 1500 3φ CG132B-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
504 1500 3φ CG132B-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
505 1500 3φ CG132B-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
750 1500 3φ CG132B-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
842 1500 3φ CG170B-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
878 1500 3φ CG170-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
913 1500 3φ G3512H — NOX ≤ 500 mg/Nm3 @ 5% O2 Link
948 1500 3φ CG170-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
950 1500 3φ CG170-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1122 1500 3φ CG170B-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1144 1500 3φ G3516H — NOX ≤ 500 mg/Nm3 @ 5% O2 Link
1170 1500 3φ CG170-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1186 1500 3φ CG170-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1429 1500 3φ G3520H — NOX ≤ 500 mg/Nm3 @ 5% O2 Link
1472 1500 3φ CG170B-20 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
1880 1500 3φ CG170B-20 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link

2100 1000 3φ CG260-12 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
2795 1000 3φ CG260-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link
3420 1000 3φ CG260-16 — NOX ≤ 250 mg/Nm3 @ 5% O2 Link

Propane ratings of natural gas gensets are very sensitive to site conditions, fuel composition and emissions setting. Site specific limitations may apply, maintenance intervals may be affected.

Biogas

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
174 1500 3φ G3412 — — Link
400 1500 3φ CG132B-8 — — Link
600 1500 3φ CG132B-12 — — Link
800 1500 3φ CG132B-16 — — Link
1000 1500 3φ CG170-12 — — Link
1041 1500 3φ G3516 — — Link
1105 1500 3φ G3516 — — Link
1200 1500 3φ CG170-12 — — Link
1380 1500 3φ CG170B-12 — — Link
1560 1500 3φ CG170-16 — — Link
1840 1500 3φ CG170B-16 — — Link
1984 1500 3φ G3520C — — Link
2000 1500 3φ CG170B-20 — — Link
2300 1500 3φ CG170B-20 — — Link

3770 1000 3φ CG260-16 — — Link

*- Ratings at 0.8 pf.

Hydrogen (H2)

ekW Rpm Phase Generator Set Model Engine    Configuration     Media
Continuous
400 1500 3φ CG132B-08   NG with 25% H2 Link
600 1500 3φ CG132B-12   NG with 25% H2 Link
800 1500 3φ CG132B-16   NG with 25% H2 Link
1000 1500 3φ CG132B-16   NG with 25% H2 Link
1380 1500 3φ CG170B-12   NG with 25% H2 Link
1500 1500 3φ G3512H   NG with 25% H2 Link
1840 1500 3φ CG170B-16   NG with 25% H2 Link
2000 1500 3φ G3516H   NG with 25% H2 Link
2000 1500 3φ CG170B-20   NG with 25% H2 Link
2300 1500 3φ CG170B-20   NG with 25% H2 Link
2500 1500 3φ G3520H   NG with 25% H2 Link

3333 1000 3φ CG260-12   NG with 25% H2 Link
4300 1000 3φ CG260-16   NG with 25% H2 Link
4500 1000 3φ CG260-16   NG with 25% H2 Link

Generator sets operating on Natural Gas containing up to 25 vol.-% of hydrogen.

Standby Power Rating / Demand Response: Output available with varying load for the duration of the interruption of normal source power. Average power output is 70% of the standby rated ekW. Typical operation is 200 hours per year, with maximum expected usage of 500 hours per year.

Emergency Standby Power (ESP): Output available with varying loads for the duration of the interruption of the normal source power. Average power output is 70% of the ESP rated ekW. Typical operation is 50 hours per year with a maximum expected usage of 200 hours per year.

Prime Power Rating: Output available with varying load for an unlimited time. Average power output is 70% of the prime rated ekW. Typical peak demand is 100% of prime rated ekW.

Continuous Power Rating: Output available with non-varying load for an unlimited time. Average power output is 70-100% of the continuous rated ekW. Typical peak demand is 100% of continuous rated ekW for 100% of operating hours.

Related Content

Electric Power Ratings Guide

Download Now
Electric Power Ratings Guide
Electric Power Ratings Guide

ELECTRIC POWER BROCHURES

LEBE0074-01

SMARTER ENERGY

No matter the industry or application, Caterpillar provides the latest power generation technologies to business ventures, municipalities and other customers around the globe. See why Cat gas generator sets can deliver the power, efficiency and reduced emissions you need to keep your business running.
LEYE20949

Combined heat and power (CHP) generator systems

With combined heat and power generation, also known as CHP or cogeneration, heat that is normally wasted is harnessed to provide thermal energy.
LEDE7505-03

HYDROGEN POWER TO HELP YOU MEET YOUR GOALS

Our expanded line of hydrogen fueled generator sets can help you reduce emissions while providing power you can depend on 24/7/365. Learn how these power assets can make your operations more efficient.
LEXE1157-05

Reliable Power Wherever You Are

Ensuring your success is our priority. We’re ready to customize a power system for your specific needs, in any application. The global Cat dealer network, Cat Connect, parts, service, financing and service programs are designed to give you a fully integrated system with all the support you need.

Applications

Liquified Natural Gas (LNG)

See Video
Cat® CHP2500 Combined Heat and Power Container
Cat® CHP2500 Combined Heat and Power Container

Cat® CHP2500 Combined Heat and Power Container

See Video
Cat® CHP2500 Combined Heat and Power Container
Cat® CHP2500 Combined Heat and Power Container

Sustainability

For Caterpillar, sustainability is not a new concept. It’s part of who we are and what we do every single day.

Learn More
Fill in Alt Text for SEO
Fill in Alt Text for SEO

Custom Power Solutions

Our team of experts is waiting to help you design a solution for your application, and no application is too challenging.

Learn More
Fill in Alt Text for SEO
Fill in Alt Text for SEO

Generator Set Sizing Calculators

Caterpillar Electric Power now has two tools available for sizing gensets in any application.

Size Now
Fill in Alt Text for SEO
Fill in Alt Text for SEO

Configure Your Generator

Build and customize your own Generator set to perfectly fit your needs.

Build Now
Fill in Alt Text for SEO
Fill in Alt Text for SEO

Search Available Stock

View your local dealer's inventory to fit your power needs.

Search Stock
Fill in Alt Text for SEO
Fill in Alt Text for SEO

Dealer Locator

Your Cat dealer is committed to maximizing your success, helping you get the most out of your operations with site-level solutions, service and support.

Find Dealer
Fill in Alt Text for SEO
Fill in Alt Text for SEO

Products

Industry Solutions

Services & Support

How Can We Help?

Company Info

News

Connect with Cat

public North America ‧ English edit

Caterpillar Brands

  • US-English
  • © 2024 Caterpillar. All Rights Reserved.
