OEM Solutions Product Downloads





Caterpillar OEM Solutions

Caterpillar OEM Solutions offers proven, high-performance and durable platforms for specialty machine solutions. From bare chassis to partial machines and components, we are able to provide a solution that enhances OEM offerings. Through direct interaction with Caterpillar, Cat® dealers and OEMs — we are prepared to work with customers worldwide to provide a total machine solution.





OEM Solutions

Learn more about what Caterpillar OEM Solutions has to offer for specialty applications.

Download brochure
oem solutions
oem solutions

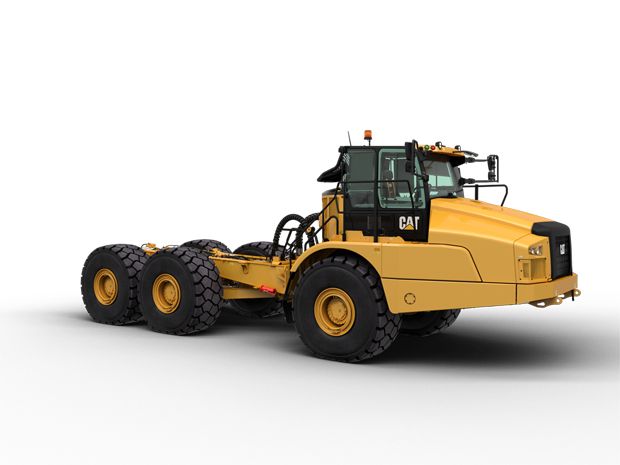

ARTICULATED TRUCK BARE CHASSIS

GET IT ALL FROM A SINGLE SOURCE.

Along with offering a bare chassis, your Cat dealer can coordinate the activity of the OEM body manufacturer with Caterpillar application and integration support, resulting in a simple, easy-to-manage acquisition process… and one tough machine that’s built for your special-purpose needs.

Download brochure
articulated truck bare chassis
articulated truck bare chassis

Cat 725 Articulated Truck Bare Chassis

The Cat 725 Bare Chassis is a strong, durable Cat C9.3 engine platform equipped with a U.S. EPA Tier 4 Final/EU Stage IV engine emission solution. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity.

Download technical specs
725 bare chassis
725 bare chassis

Cat 730 Articulated Truck Bare Chassis

The Cat 730 Bare Chassis is equipped with a true “on-the-go” Automatic Traction Control (ATC) system and is available in both standard and long wheel base. Advanced Productivity Electronics Control Strategy (APECS) delivers a smooth shifting transmission, improving acceleration with higher productivity.

Download technical specs
730 bare chassis
730 bare chassis

Cat 735 Articulated Truck Bare Chassis

The Cat 735 Bare Chassis is available in both standard and long wheel base. With up to a 38.4 tonnes (42.3 tons) capacity, the 735 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs.

Download technical specs
735 bare chassis
735 bare chassis

Cat 740 GC Articulated Truck Bare Chassis

The Cat 740 GC Bare Chassis is available in a standard wheel base. With up to a 44.6 tonnes (49.2 tons) capacity, the 740 GC bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs.

Download technical specs
740 GC bare chassis
740 GC bare chassis

Cat 745 Articulated Truck Bare Chassis

The Cat 745 Bare Chassis is available in both standard and long wheel base. With up to a 49.9 tonnes (55 tons) capacity, the 745 bare chassis offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs.

Download technical specs
745 bare chassis
745 bare chassis





OFF-HIGHWAY TRUCK BARE CHASSIS





GET IT ALL FROM A SINGLE SOURCE.

Along with offering a bare chassis, your Cat dealer can coordinate the activity of the OEM body manufacturer with Caterpillar application and integration support, resulting in a simple, easy-to-manage acquisition process… and one tough machine that’s built for your special-purpose needs.

Download brochure
off-highway truck bare chassis
off-highway truck bare chassis

off-highway truck bare chassis 770

LRC Bare Chassis Weight without Hoist: 54,357 lb / 24 656 kg

Tractor ROPS: 77,430 lb / 35 122 kg

Nominal Water Tank Capacity: 9,000 gal (US) / 34 000 L

Download technical specs
770G
770G

off-highway truck bare chassis 772

LRC Bare Chassis Weight without Hoist: 58,414 lb / 26 496 kg

Tractor ROPS: 77,430 lb / 35 122 kg

Nominal Water Tank Capacity: 11,000 gal (US) / 41 500 L

Download technical specs
772
772

off-highway truck bare chassis 775

LRC Bare Chassis Weight without Hoist: 75,118 lb / 34 073 kg

Tractor ROPS: 85,288 lb / 38 686 kg

Nominal Water Tank Capacity: 15,000 gal (US) / 56 775 L

Download brochure
775 bare chassis
775 bare chassis

off-highway truck bare chassis 777

LRC Bare Chassis Weight without Hoist: 111,505 lb / 50 578 kg

Tractor ROPS: 133,082 lb / 60 365 kg

Nominal Water Tank Capacity: 20,000 gal (US) / 75 700 L

Download technical specs
777
777

off-highway truck bare chassis 777 (05)

LRC Bare Chassis Weight without Hoist: 109,673 lb / 49 747 kg

Tractor ROPS: 121,254 lb / 55 000 kg

Nominal Water Tank Capacity: 20,000 gal (US) / 75 700 L

Download technical specs
777
777



The 777 (05) is only offered for lesser regulated countries.

off-highway truck bare chassis 785

LRC Bare Chassis Weight without Hoist: 184,582 lb / 83 725 kg

Tractor ROPS: 231,485 lb / 105 000 kg

Nominal Water Tank Capacity: 30,000 gal (US) / 113 500 L

Download technical specs
785
785

off-highway truck bare chassis 785D

LRC Bare Chassis Weight without Hoist: 177,309 lb / 80 426 kg

Tractor ROPS: 207,234 lb / 94 000 kg

Nominal Water Tank Capacity: 30,000 gal (US) / 113 500 L

Download technical specs
785D
785D



The 785D is only offered for lesser regulated countries.

off-highway truck bare chassis 789D

LRC Bare Chassis Weight without Hoist: 222,975 lb / 101 140 kg

Tractor ROPS: 257,940 lb / 117 000 kg

Nominal Water Tank Capacity: 42,288 gal (US) / 160 000 L

Download technical specs
789D
789D



The 789D is only offered for lesser regulated countries.









Power Modules for Rail

For more than 57 years, we have been providing real-world solutions for the industries we serve. And now we are offering an integrated power module which includes a Cat engine coupled with a Cat transmission for the rail industry. These ratings meet U.S. EPA Tier 4 Final, EU Stage V, and China Nonroad IV emission standards.

rail
rail

Cat C9.3B Engine & TR35-E44 Transmission

This package combines the Cat C9.3B diesel engine and Cat TR35-E44 transmission to deliver a 280 kW / 375 hp solution.

Download brochure
power module
power module

Cat C9.3B Engine & TR43-E44 Transmission

This package combines the Cat C9.3B diesel engine and Cat TR43-E44 transmission to deliver a 340 kw / 456 hp solution.

Download brochure
power module
power module

Cat C13B Engine & TR43-E44 Transmission

This package combines the Cat C13B diesel engine and Cat TR43-E44 transmission to deliver a 370 kW /496 hp solution.

Download brochure
power module
power module

Cat C13B Engine & TR43-M44 Transmission

This package combines the Cat C13B diesel engine and Cat TR43-M44 transmission to deliver a 430 kW / 577 hp solution.

Download brochure
power module
power module

Cat C18 Engine & TR43-M44 Transmission

This package combines the Cat C18 diesel engine and Cat TR43-M44 transmission to deliver a 470 kW / 630 hp solution.

Download brochure
power module
power module

Quarry & Mining Solutions

A mobile crusher is an important piece of support equipment at a quarry or mine site. And we offer components to compliment your design with the support to back you up. Our package includes a Cat C13B engine, undercarriage, hydraulics, and additional components.



quarry and mining
quarry and mining

CRUSH IT WITH CAT POWER

At the heart of every great machine is a great engine — one that powers through day after day, month after month and year after year. That kind of reliability doesn’t happen by chance. It’s the result of proven designs, quality manufacturing and extensive validation.

Download brochure
cat components
cat components

621 Partial Scraper

With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on investment and time.

Download technical specifications
621 partial scraper
621 partial scraper

631 Partial Scraper

With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on investment and time.

Download technical specifications
631 partial scraper
631 partial scraper

651 Partial Scraper

With improvements in productivity combined with enhancements in operator comfort and new safety features – Powered Access System and effective wet disc brakes – this machine offers high returns on investment and time.

Download technical specifications
651 partial scraper
651 partial scraper





Control Haul Road Dust

The Cat Water Delivery System (WDS) is available as an optional attachment and includes a hydraulic pump and motor, a water pump, spray heads, and controls in the cab. WDS provides variable water flow based on truck speed and determines appropriate flow to conserve water.

Download brochure
cat water delivery system (WDS)
cat water delivery system (WDS)
