Cat Abrasion Undercarriage





Cat® Abrasion™: An Inside Job

Our engineers spent thousands of hours talking to undercarriage users and examining performance in high-abrasion, low-to-medium-impact applications. They saw firsthand where you’d gain the most from undercarriage improvements. The design innovations of Cat® Abrasion™ are derived from these real-world applications and deliver real results for your operation.

Consult with your dealer









First-to-market cartridge innovations

We redesigned Cat Abrasion’s sealed, cartridge-style joints so they perform better and last longer than their predecessor, SystemOne™. The cartridge may look the same on the outside, but the coating and seals inside are different — and better — to extend life and lower your costs.

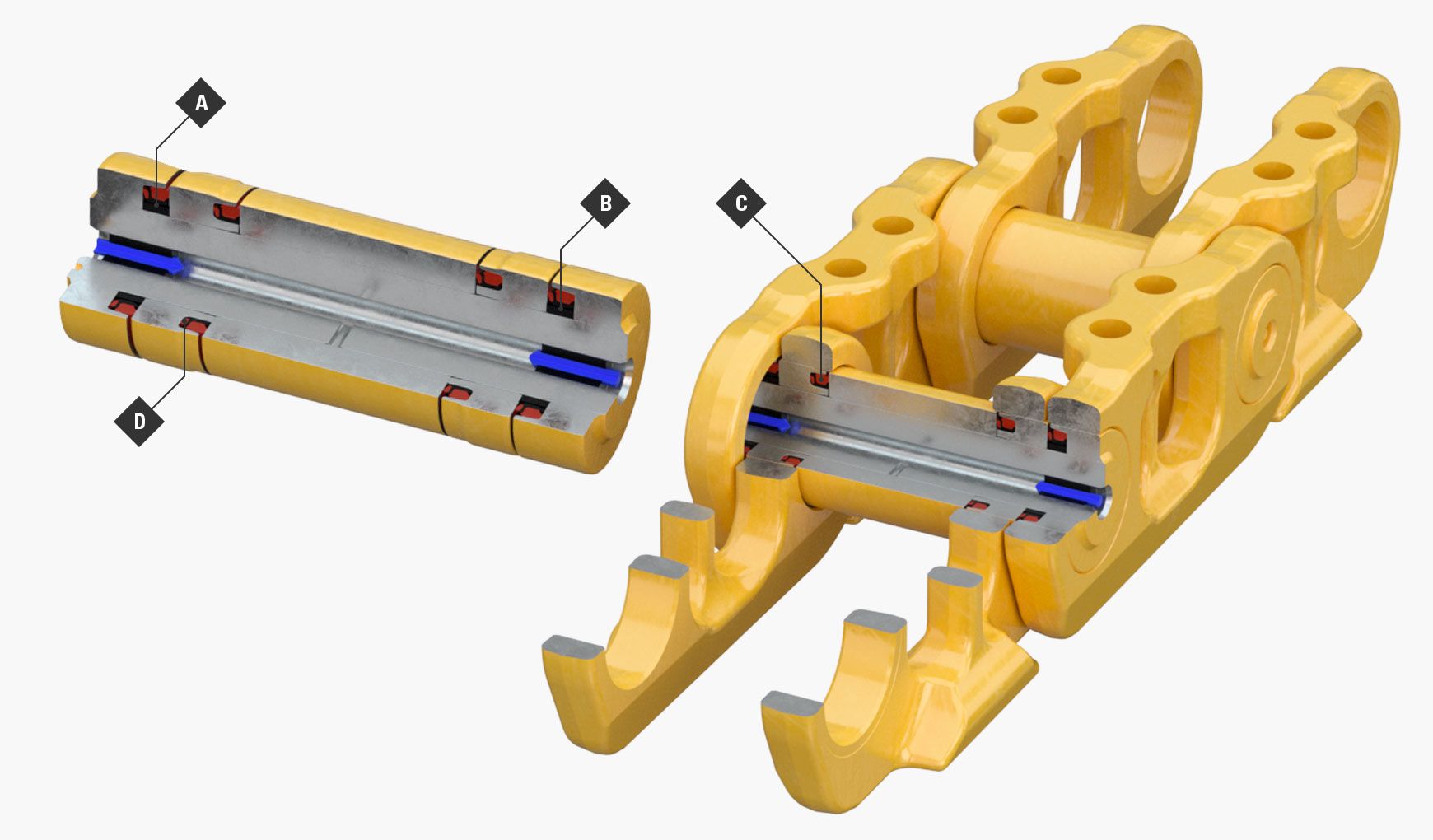

Cat Abrasion Undercarriage Link Assembly and Cartridge Innovations with Improved Seals
of
Cat Abrasion Undercarriage Link Assembly and Cartridge Innovations with Improved Seals
­


Resists chipping and cracking

­



Improves seal life in the harshest conditions

­



Reduces packing and oil loss in freeze/thaw conditions

­



Greatly reduces end grooving, corrosion and seal lip wear

­

­





Different by design

Critical updates in Cat Abrasion cartridge design improve sealability and deliver up to double the seal life compared to SystemOne. That's how it delivers the lowest-cost-per-hour solution.

­

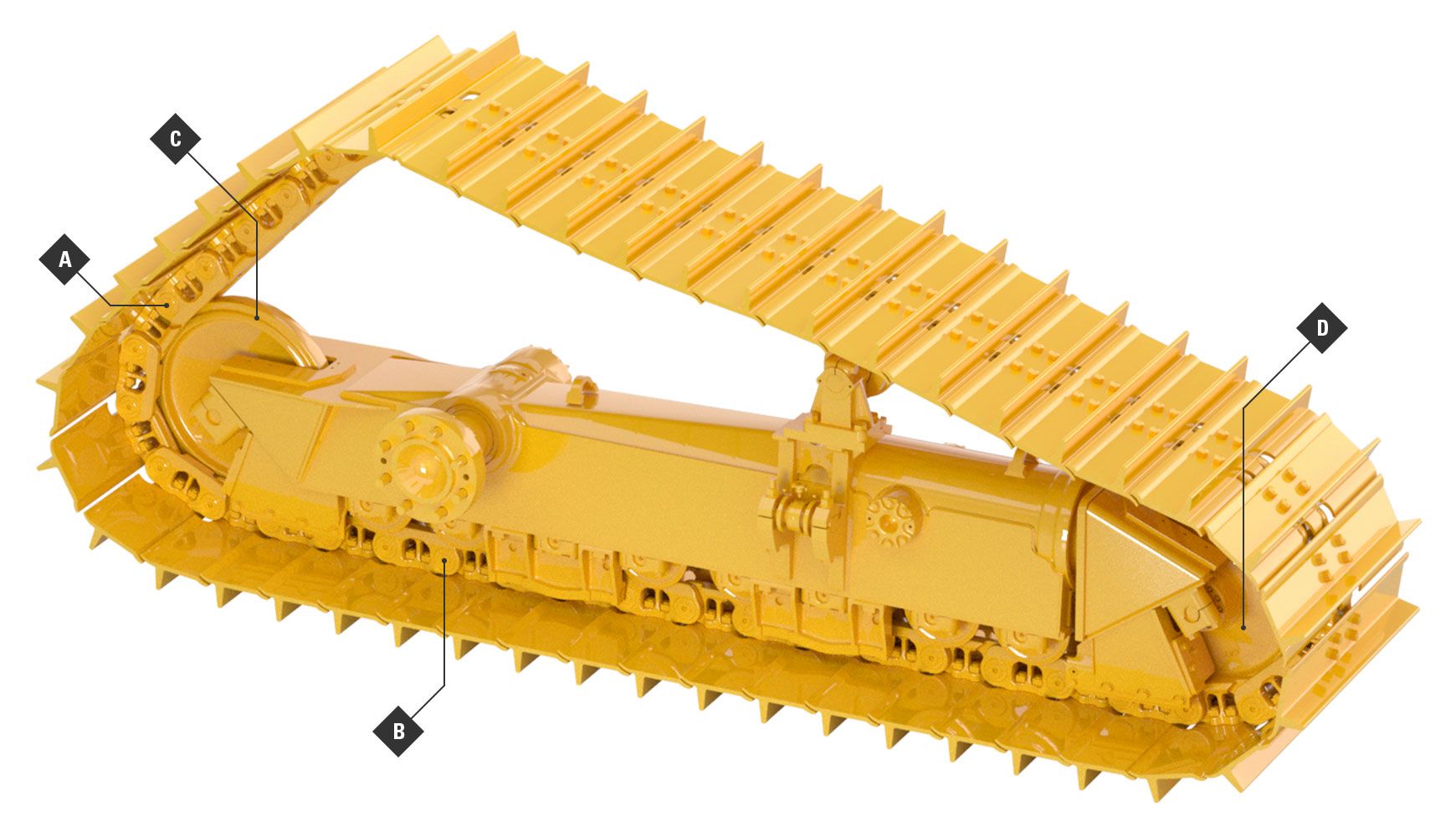

Cat Abrasion Undercarriage Key Benefits
of
Cat Abrasion Undercarriage Key Benefits
­


Eliminates the need for bushing turns in abrasive applications

­



Better sealability means less maintenance and reduced costs over the lifecycle

­



Patented relieved tread idler design extends life up to 2x longer compared to traditional idlers

­



Eliminates contact between idlers and link rails providing a smoother ride for operators

­

­





What's new?

Take a side-by-side look.





Cat® Abrasion™

SystemOne™

Coating on Seal Counterface New XL coating cuts down on corrosion and end grooving Stainless-steel coating
Load Ring on Track Sealing System New shape expands and contracts to prevent packing in mud and freeze/thaw conditions Old shape contributed to packing and dry joints in heavy mud and freeze/thaw conditions
Lip/Band on Track Sealing System Sealed lip/band greatly decreases seal-face groove rate Undefined lip/band









Consult with the
undercarriage experts

Cat dealer undercarriage specialists offer an efficient inspection process for measuring and managing wear components, identifying equipment issues and calculating cost per hour. Find out more about lowering your operating costs with Cat Abrasion.

Request a consultation
