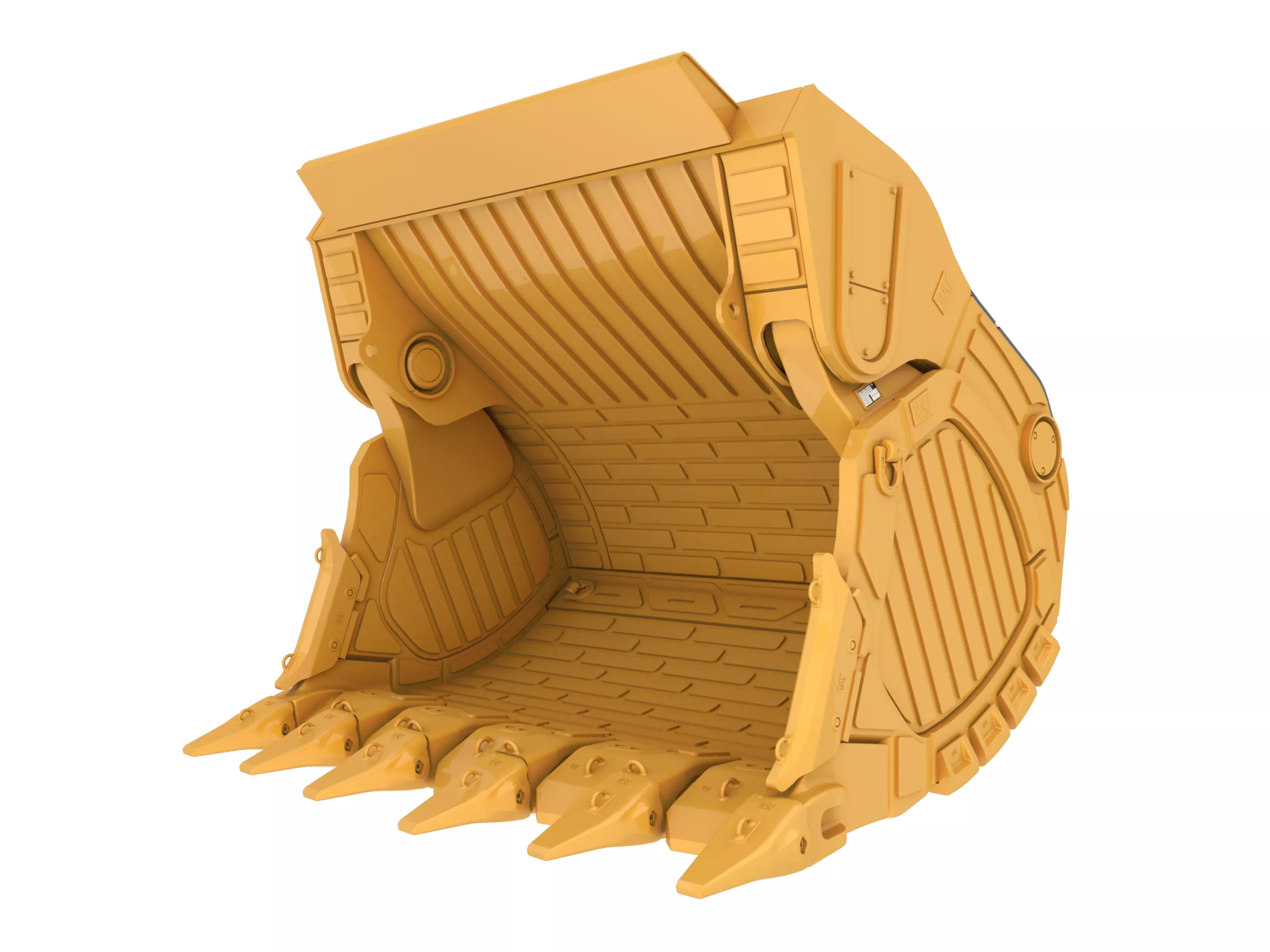

Standard Rock Bucket 16.5 m³ (21.6 yd³) - 462-7807

Request A Price Find Dealer

Key Specs

Material Density: 3034 lb/yd³; 1.8 t/m³

Wear Package: Standard Duty; Standard Duty

Ground Engaging Tool (GET) System: Cat C95; Cat C95

16.5 m³ (21.6 yd³) - 462-7807
Change model

Overview

Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.

Benefits

Efficient

Sized and designed to work as part of a machine loading system, for high productivity and the lowest cost per ton.

Maximum Payload

A wide variety of sizes and wear packages are available, so you can ideally match your bucket and GET to your application.

Fully Supported

Cat mining buckets are fully supported by the Cat dealer network for round the clock support.

Product Specifications for 16.5 m³ (21.6 yd³) - 462-7807

Material Density	3034 lb/yd³ 1.8 t/m³
Wear Package	Standard Duty Standard Duty
Ground Engaging Tool (GET) System	Cat C95 Cat C95
Machine Model	6030 6030
Capacity	21.6 yd³ 16.5 m³
Weight	60067 lb 27246 kg
Outer Width	154.8 in 3931 mm
Inner Width	135 in 3430 mm

Product Specifications for 16.5 m³ (21.6 yd³) - 462-7807

Download Print

Material Density	3034 lb/yd³ 1.8 t/m³
Wear Package	Standard Duty Standard Duty
Ground Engaging Tool (GET) System	Cat C95 Cat C95
Machine Model	6030 6030
Capacity	21.6 yd³ 16.5 m³
Weight	60067 lb 27246 kg
Outer Width	154.8 in 3931 mm
Inner Width	135 in 3430 mm
