Microgrid Site Control
Cat® Energy Control System (ECS) Site Control
Cat® Energy Control System (ECS) manages assets for on- and off-grid applications in commercial or industrial installations. The Cat ECS controller manages all power sources into a single, controllable entity to optimize the flow of energy.
of

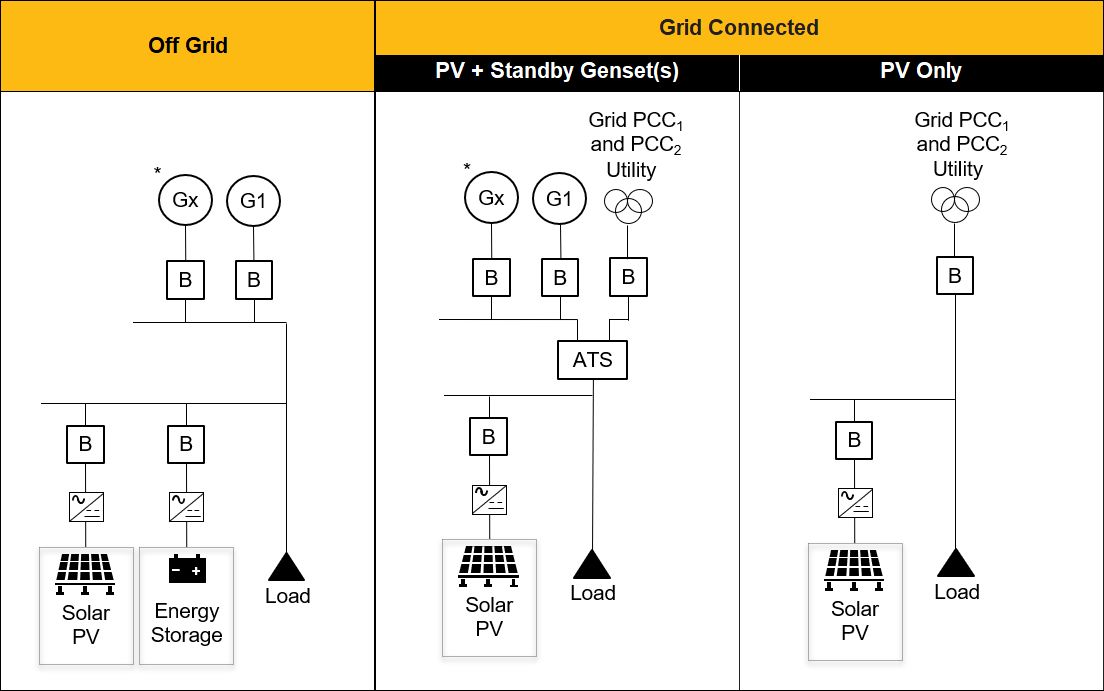

(*) - Paralleling genset controllers (Cat® ECS 200, EMCP4.4) or paralleling switchgear required.
PCC - Points of common coupling.
G - Genset.
B - Breaker.
ATS - Automatic transfer switch.
PV - Photovoltaic panel.
Products
-
- Application
- The Cat ECS 300 is used in a variety of microgrids where the Cat ECS 300 is configurable to meet applicable site-specific asset requirements.
- The Cat ECS 300 is used in a variety of microgrids where the Cat ECS 300 is configurable to meet applicable site-specific asset requirements.
- Module Type
- Monitoring / control and asset optimization may be configured with up to 4 Distributed Energy Resources (DER's).
- Monitoring / control and asset optimization may be configured with up to 4 Distributed Energy Resources (DER's).
- Enclosure Rating
- NEMA 1 wall mountable
- NEMA 1 wall mountable
Cat® Energy Control System (ECS) 300
Learn More -
- Application
- The Cat ECS 400 is used in a variety of microgrids where the Cat ECS 400 is configurable to meet applicable site-specific asset requirements.
- The Cat ECS 400 is used in a variety of microgrids where the Cat ECS 400 is configurable to meet applicable site-specific asset requirements.
- Module Type
- Monitoring / control and asset optimization may be configured with up to 32 Distributed Energy Resources (DER's).
- Monitoring / control and asset optimization may be configured with up to 32 Distributed Energy Resources (DER's).
- Enclosure Rating
- NEMA 1 wall mountable
- NEMA 1 wall mountable
Cat® Energy Control System (ECS) 400
Learn More
