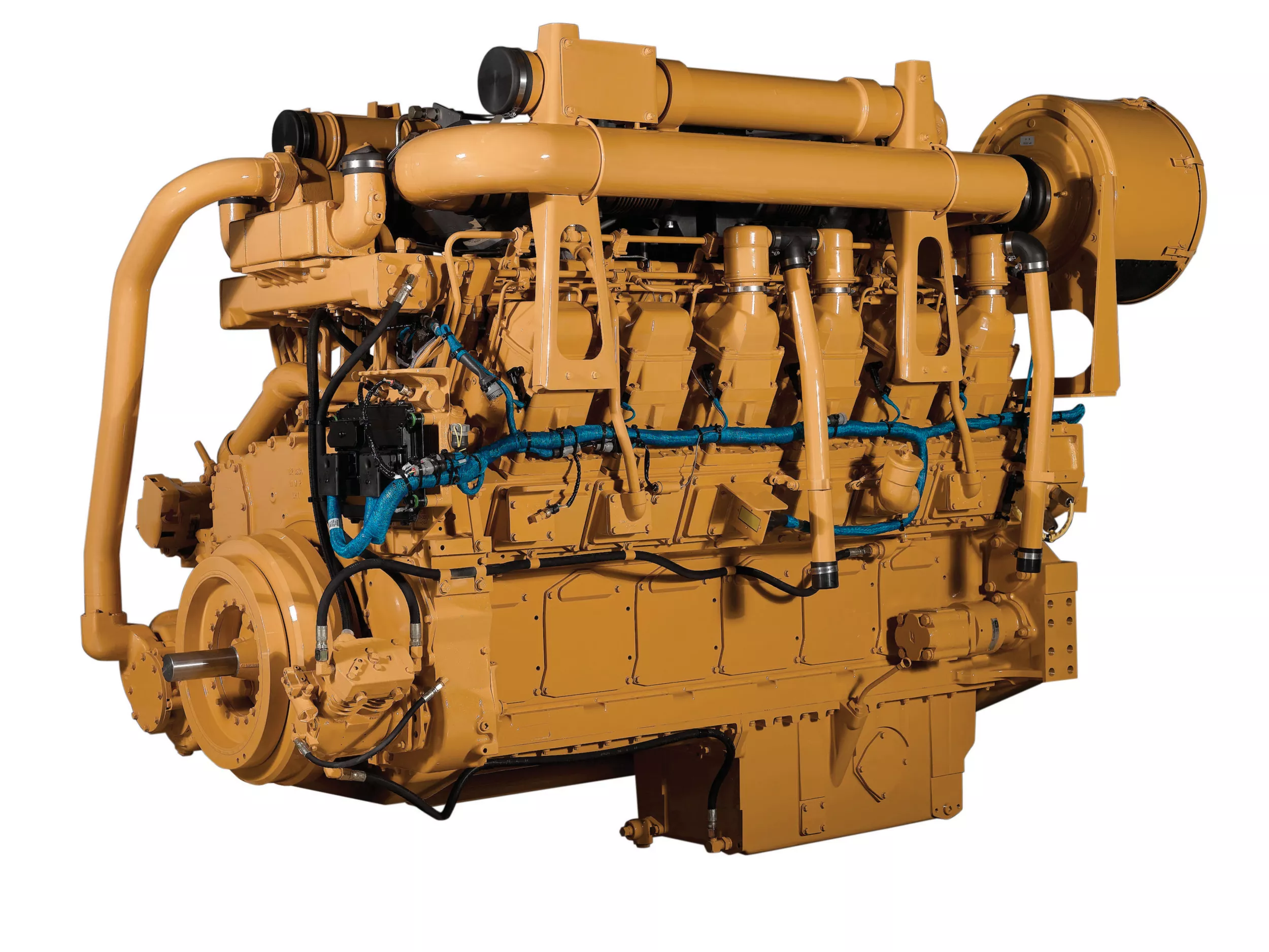

3512C HD Dry Manifold with ATAAC Petroleum Engine Well Servicing Engines

3512C DGB

3512C DGB

Features At A Glance

Engine Mounted Transmission Oil Cooler —
Advanced Digital Engine Management
Custom Packaging
Custom Packaging
Full Range of Attachments
Testing
Product Support
Over 80 Years of Engine Manufacturing Experience
Web Site
Web Site

Product Specifications for 3512C DGB

General Specifications

Emissions

Dimensions

3512C DGB Standard Equipment

Air Inlet System

  • Air-to-air aftercooled (ATAAC) (512DW04, 512DW05, 512DW06, 512DW07)
  • Air cleaners (single element w/service indicator)

Control System

  • ADEM A3 ECU, LH
  • With electronic fuel injector fuel system (10 amp DC power required to drive electronic engine control module)

Cooling System

  • ATAAC (512DW04, 512DW05, 512DW06, 512DW07)
  • Torque converter connections
  • Thermostats and housing, jacket water pump, gear-driven centrifugal (gear-driven centrifugal pumps)
  • Connections for radiator cooling
  • Dual outlets: 88.9 mm O.D. (3.5 in) elbow hose connections

Exhaust System

  • Land Well Service Engine:
  • Offshore Well Service Engine:

Flywheels & Flywheel Housing

  • Flywheel, SAE No. 0, 151 teeth
  • Flywheel housing, SAE No. 0

Fuel System

  • Primary fuel filter
  • Fuel priming pump
  • Fuel filter, RH spin-on type
  • Fuel transfer pump
  • Electronically controlled unit injectors

Instrumentation

  • No standard instrumentation
  • Optional — remote instrumentation available Service meter

Lube System

  • Crankcase breather — top-mounted
  • Oil cooler
  • Oil filler and dipstick — RH
  • Oil pump
  • Oil filter — RH spin-on type
  • Rear sump oil pan, 250-hour change interval
  • Oil pan drain valve, 3/4" NPT female connection
  • Fumes disposal
  • Scavenger pump

Mounting System

  • Trunion front support

Power Take-Offs

  • ATAAC (512DW04, 512DW05, 512DW06, 512DW07)
  • Front housing, two-sided

Protection System

  • ADEM A3 ECU system to provide customer programmable engine deration strategies to protect against adverse operating conditions
  • Emergency stop logic inputs provided at 40-pin customer interface connection
  • ATAAC (512DW04, 512DW05, 512DW06, 512DW07)
  • Single Air inlet shutoff

General

  • Paint, Cat yellow
  • Vibration damper and guard
  • Lifting eyes

3512C DGB Optional Equipment

Air Inlet System

  • Air cleaner
  • Remote air inlet adapters
  • Air inlet heater

Charging System

  • Battery chargers
  • Charging alternators

Control System

  • Throttle position sensors

Cooling System

  • Coolant level sensor
  • Coolant conditioner
  • Connections

Emissions Certifications

  • IMO Certification and European Union Certification

Exhaust System

  • Flexible exhaust fitting
  • Elbows
  • Flange
  • Flange and exhaust adapters
  • Manifold
  • Mufflers

Fuel Systems

  • Flexible fuel lines
  • Fuel cooler
  • Fuel priming pumps
  • Water/fuel separator
  • Fuel level switch

Gauges and Instrument Panels

  • Engine mount premium panel
  • Remote instrumentation

Lube System

  • RH oil filters
  • Oil pan accessories
  • Oil pan front sump — 250 hrs
  • High capacity oil pan — 500 hrs

Power Take-Offs

  • Front Accessory Drives
  • Auxiliary Drive Shaft
  • Auxiliary Drive Pulleys
  • Front Stub Shaft
  • Front Crankshaft Adapter
  • Pulleys

Protection System

  • Corrosion Protection

Starting System

  • Air starting motors
  • Air pressure regulator
  • Air silencer
  • Hydraulic starter
  • Battery sets— 24V
  • Battery cable
