Vibratory Soil Compactors CS7
Request A Price Find DealerKey Specs
- Operating Weight - With Cab
- 15895 lb
- 7210 kg
- Compaction Width
- 66 in
- 1676 mm
- Gross Power
- 99.9 hp
- 74.5 kW
Overview
Dual Pump Propel System
The CS7 is ideally-sized for small compaction jobs or working in tight areas such as trenches or job sites with limited space.
Features At A Glance
- The ROPS/FOPS configuration features hand rails that enclose the platform area. A multi-position steering wheel adjusts for comfort. An adjustable, pivoting vinyl seat with seat belt and integrated operator's display is comfortable and keeps controls and operating information within easy reach. A 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibrations. A specially designed fixture allows the operator to securely store lunch boxes. Cup holders are provided on the steering column. Large mirrors provide excellent views to the rear of the machine. An additional mirror package for enhanced rear visibility is available as an option.
- In most regions, an LCD display unit is standard. Some regions feature a standard LED display; in those areas, an LCD display is available as an option (LCD display is required for Cat Compaction Control option; consult your Cat dealer for availability in your area). The display functions as a gauge cluster as well as provides diagnostics and additional data to the operator. Machines that are equipped with Cat Compaction Control output compaction measurements to the display as well.
- The standard operator seat design rotates to the right 20 degrees and integrates the propel stick and control console on the right armrest. Most markets will also feature an LCD user display as well. The design allows the controls and display to comfortably follow the operator as the seat is rotated. Certain markets will have a standard LED display not mounted to the seat. Visit your Cat dealer for specifics in your area. ROPS/FOPS configured machines will have a vinyl, all-weather seat. ROPS/FOPS Cab configured machines will have a cloth seat. A deluxe, high-back, air-ride seat is available as an option on Cab-equipped machines. The seat has a retractable seat belt.
- The ROPS/FOPS Cab is an enhanced design that provides greater comfort for the operator. The cab features a multi-position steering wheel that adjusts for operator comfort. An adjustable, pivoting cloth seat with seat belt and integrated operator display keeps controls and operating information within easy reach. A 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibration. Glass panels and large exterior mirrors provide excellent views to the rear of the machine. Operator comfort is enhanced with climate control, including a heater and air conditioning. Large windows on the door and right side of the cab open wide for maximum ventilation. A cloth headliner provides a smart, finished appearance. An interior mirror package and a deluxe, high-back cloth seat are available as an option.
- The rear vision camera enhances visibility for more complete operator control and safety.
- Vibratory soil compactors deliver enhanced compaction performance as the result of an increase in amplitude. Maximum amplitude provides a greater ability to put compaction energy into the ground.
- Smooth drums are ideal for compacting granual materials or cohesive soil applications with the use of an optional padfoot shell kit.
- Build around the exclusive Cat� dual pump propel system, two pumps provide separate dedicated flow to drum drive motor and rear axle motor for exceptional gradeability and traction in forward and reverse. Providing unrivaled reliability and performance, the Cat pod-style vibratory system is virtually maintenance free, with the first scheduled maintenance period at 3 years or 3,000 hours.
- When vibration is engaged, vibration will cease as the compactor slows beneath a predetermined speed. When propel resumes vibration recommences at a predetermined speed. This feature contributes to uniform, high-quality work.
- The cooling package tilts for easy cleaning. Normal cleaning ensures that the cooling systems protects the engine to full capacity.
- Long service intervals contribute to more productivity and lower owning and operating costs. The vibratory system scheduled oil change interval is 3 years/3,000 hours. The hydraulic oil service interval is 3,000 hours. Engine oil service is every 500 hours.
- The hitch features sealed-for-life bearings that never need greasing.
- Automatic Speed Control allows the operator to select a maximum working speed. Once selected, the speed can consistently be reached by engaging the propel lever to the full stroke. Consistent speed contributes to compaction quality making it easier to maintain compaction uniformity.
- Performance Vibratory Soil Compactors are equipped with a large cooling package and a variable speed fan. The system helps keep operating temperatures within optimal ranges. The variable speed fan reduces power draw by only operating at the speed that is necessary to cool the system. The reduced power draw contributes to more efficient use of fuel. Vibratory Soil Compactors feature engines that offers enhanced efficiency, better serviceability, ample power, and less noise. This innovative combination yields cleaner combustion and delivers steady power in all operating conditions with optimal fuel efficiency.
- Equipped with Eco-mode, a function which helps to economize the use of fuel. When machine idles for a predetermined amount of time, Eco-mode is engaged and the engine rpm is lowered. When the propel is engaged, higher engine speeds resume. For certain applications, Eco-mode can be engaged to operate the engine at lower rpm than normal. The lower engine speed results in less fuel burn. Eco-mode can also be programmed to shut down the engine entirely after a user-defined amount of time.
- The exclusive Cat dual pump propel system provides steady hydraulic flow for unmatched gradeability and blade function and now has been enhanced with electronic control for even better performance. The dual pump propel system provides separate hydraulic flow to the rear wheels and drum for exceptional tractive effort in thick lifts, soft underfoot conditions or steep slope applications and allows for superior control on a grade in forward and reverse.
- The Cat® C4.4 engine meets Brazil MAR-1, equivalent to U.S. EPA Tier 3 Final and EU Stage IIIA emissions.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
- Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.
- Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. The hydraulic oil can be replaced every 3000 hours, eccentric housing oil can be replaced every 3000 hours, and engine oil changes can be 500 hours.
- Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays.
- Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
- Remote Flash for engines helps to minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Product Specifications for CS7
Operating Specifications
| Compaction Width | 66 in 1676 mm |
| Static Linear Load - With ROPS/FOPS | 113 lb/in 20.2 kg/cm |
| Ground Clearance | 16.2 in 411 mm |
| Curb Clearance | 14.5 in 369 mm |
| Static Linear Load - With Cab | 118 lb/in 21 kg/cm |
| Drum Width | 66 in 1676 mm |
| Travel Speed - Maximum | 7 mile/h 11.4 km/h |
| Turning Radius - Inside Drum Edge | 10 ft 3.1 m |
Engine
| Gross Power | 99.9 hp 74.5 kW |
| Net Power - ISO 9249 | 94.5 hp 70.5 kW |
| Bore | 4.1 in 105 mm |
| Engine Model | Cat C4.4 Cat C4.4 |
| Stroke | 5 in 127 mm |
| Net Power - SAE J1349:2011 | 93.5 hp 69.7 kW |
Dimensions
| Wheel Base | 8.5 ft 2.6 m |
| Maximum Height | 2.9 ft 9.4 m |
| Overall Length - With Blade Option | 18.4 ft 5.6 m |
| Overall Width - With Blade Option | 7 ft 2.1 m |
| Drum Width | 66 in 1676 mm |
| Overall Length | 16.7 ft 5.1 m |
| Overall Width | 5.9 ft 1.8 m |
| Drum Diameter | 48.1 in 1221 mm |
Vibratory System
| Centrifugal Force - Maximum | 29900 lb 133 kN |
| Variable Frequency Option Range | 23.3-31.9 Hz (1400-1914 vpm) 23.3-31.9 Hz (1400-1914 vpm) |
| Centrifugal Force - Minimum | 15000 lb 67 kN |
| Nominal Amplitude - High | 0.063 in 1.59 mm |
| Vibratory Frequency - Standard | 1914 V/m 31.9 Hz |
| Nominal Amplitude - Low | 0.031 in 0.8 mm |
Service Refill Capacities
| Fuel Tank Capacity | 37 gal (US) 140 l |
CS7 Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
- Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera System
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Smooth Drum
- Dual Amplitude, Single Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Front Adjustable Steel Scraper
POWER TRAIN
- Cat C4.4 Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch and Eco-mode
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
ELECTRICAL
- 12 volt Electrical System
- 150 ampere Alternator
- 1000 Cold-cranking Amps Battery Capacity
OTHER
- Product LinkTM
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S-O-SSM Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
CS7 Optional Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control
VIBRATORY SYSTEM
- Padfoot Shell Kit (oval or square pads available)
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
POWER TRAIN
- Transmission Guard
TECHNOLOGY SOLUTIONS
- Measure - Compaction Meter Value (CMV)
OTHER
- Upgraded Halogen Light Package
- Amber Rotating Beacon
See how CS7 compares against frequently compared products.
Compactors
CS7
Selected
- Operating Weight - With Cab
- 15895 lb
- 7210 kg
- Compaction Width
- 66 in
- 1676 mm
- Gross Power
- 99.9 hp
- 74.5 kW
Compactors
CP7
- Operating Weight - With Cab
- 16471 lb
- 7471 kg
- Compaction Width
- 66 in
- 1676 mm
- Gross Power
- 99.9 hp
- 74.5 kW
Compactors
CS10 GC (Tier 3)
- Operating Weight - With Cab
- 23131 lb
- 10492 kg
- Compaction Width
- 84 in
- 2134 mm
- Gross Power
- 112.4 hp
- 83.8 kW
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All Modelsassignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos

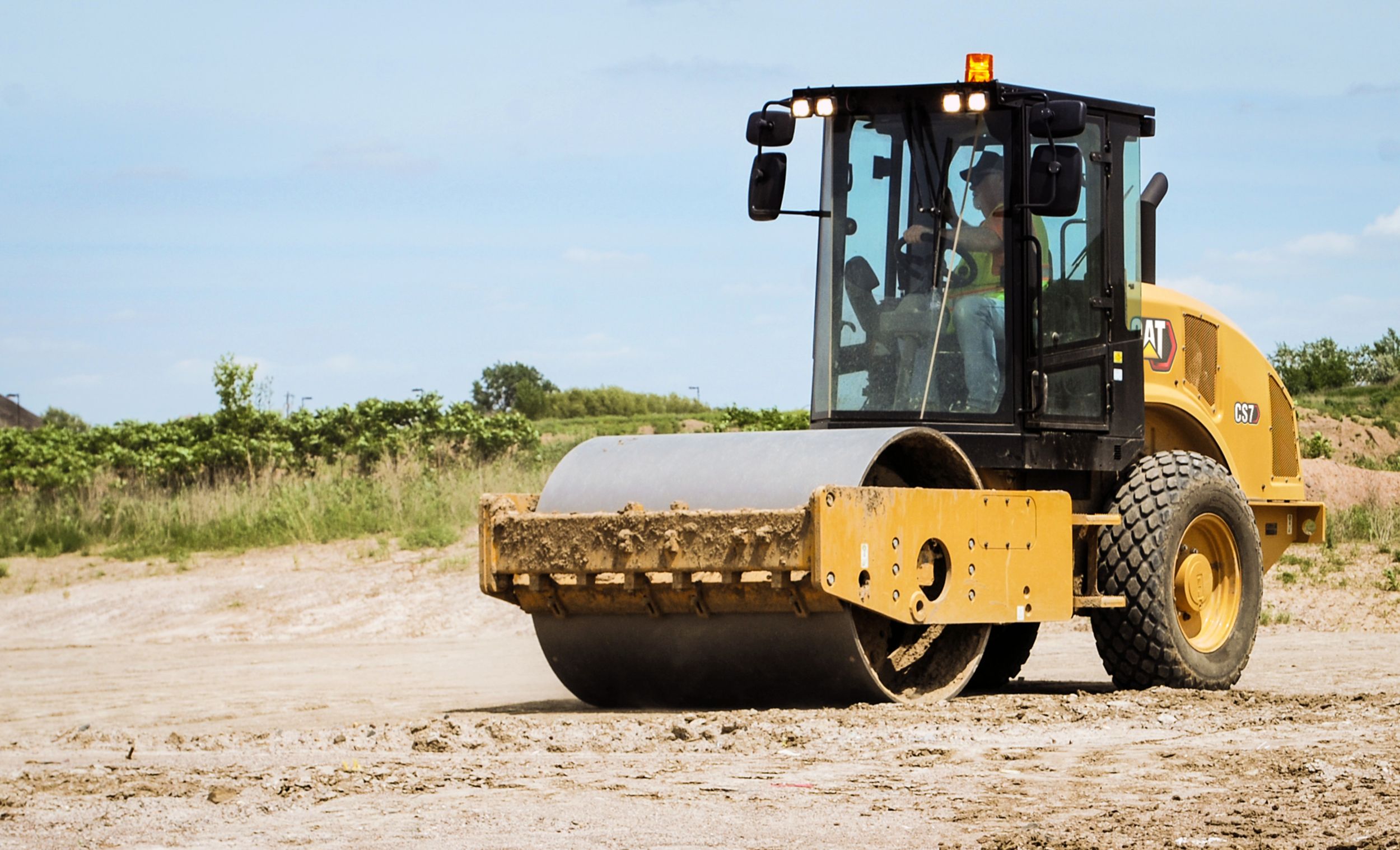

CS7 Vibratory Soil Compactor
