Weights
| Operating Weight | 19511 lb 8850 kg |
| Average Weight per Wheel | 2778 lb 1.26 t |
Pneumatic Rollers CW12
Request A Price Find DealerKey Specs
- Operating Weight
- 19511 lb
- 8850 kg
- Compaction Width
- 82 in
- 2090 mm
- Gross Power
- 100.5 hp
- 75 kW
Overview
Superb Mobility
The Cat® CW12 7-wheel pneumatic roller offers an operating weight range of 8520 kg to 8860 kg (18,783 lb - 19,533 lb) when equipped with a canopy. It provides a 2090 mm (82") compaction width and delivers excellent performance on grades and soft base materials with an efficient Cat engine.
Features At A Glance
Simple Operation
Superb Visibility with an exclusive 360 degree operating environment that enables the operator to face the direction of travel for better job site awareness. The rotating seat also slides from side to side for optimal wheel edge visibility.Simple Operation
An LCD provides a visual references of machine controls to keep the operator informed when making adjustments. The display can be customized to support multiple language options. The push-button controls make operation easy and enable operators to modify engine speed, travel speed, and water spray functions.Compaction Width
Seven rubber tires provide an overall compaction width of 2090 mm (82") with 84 mm (3") overlap.Pickup Prevention
Several features help prevent material from adhering to the tires. The water spray system includes a pump, triple filtration, and dedicated spray nozzles for each tire. Spring-applied, self-adusting scrapers help remove debris and prevent accumulation.Oscillating Wheels
Oscillating wheels optimize compaction beneath each wheel and eliminates bridging over softer areas.Engine
A C4.4 engine provides 75 kW (100.5 hp) of power and meets emissions equivalent to U.S. EPA Tier 3, EU Stage IIIA, and China Stage III.Automatic Speed Control
Automatic speed control enables operators to maintain consistent speeds for optimal performance.Eco-Mode
Eco-mode modifies the engine speed to 1900 rpm for peak performance and lower fuel consumption. The reduced rpm also lowers sound levels for enhanced operator comfort.Best Lifetime Value
Best Lifetime Value with efficient engine and durable rubber tires minimize life-time operating costs and maximize profit.Lower Maintenance
The standard 500 hour oil service interval, extended life coolant, eco-mode, and bio-degradeable oil, lead to longer intervals between scheduled service requirements.Product Specifications for CW12
Engine
| Gross Power | 100.5 hp 75 kW |
| Engine Model | C4.4 C4.4 |
Operating Specifications
| Compaction Width | 82 in 2090 mm |
| Travel Speed - Maximum | 9 mile/h 14.5 km/h |
Dimensions
| Height - ROPS | 9.6 ft 2960 mm |
| Overall Length | 14.9 ft 4524 mm |
Service Refill Capacities
| Water Spray Tank Capacity | 185 gal (US) 700 l |
| Fuel Tank Capacity | 55 gal (US) 208 l |
CW12 Optional Equipment
Air Conditioning
Air Suspension Seat w/heat
Cat Compaction Control
Emulsion Spray System
Water Spray Freeze Protection Kit
LED Lighting
Machine to Machine Communication
External Mirrors
Product Link
ROPS/FOPS Cab
Roading Lights
Sun Canopy
Temperature Gauge (Single Sensor)
Thermal Aprons
Tire Scrapers
Tripler Filtered Water Spray System
Water Distribution Mats
Warning Beacon
Wheel Fenders
See how CW12 compares against frequently compared products.
Compactors
CW12
Selected
- Operating Weight
- 19511 lb
- 8850 kg
- Compaction Width
- 82 in
- 2090 mm
- Gross Power
- 100.5 hp
- 75 kW
Compactors
CW34
- Operating Weight - Standard Machine Empty
- 22050 lb
- 10000 kg
- Operating Weight - Maximum Ballast
- 59525 lb
- 27000 kg
- Compaction Width
- 82 in
- 2090 mm
Compactors
CW16
- Operating Weight - 9 Wheel Base Machine
- 11466 lb
- 5200 kg
- Operating Weight - Maximum Ballast
- 33069 lb
- 15000 kg
- Compaction Width
- 69 in
- 1754 mm
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All Modelsassignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos

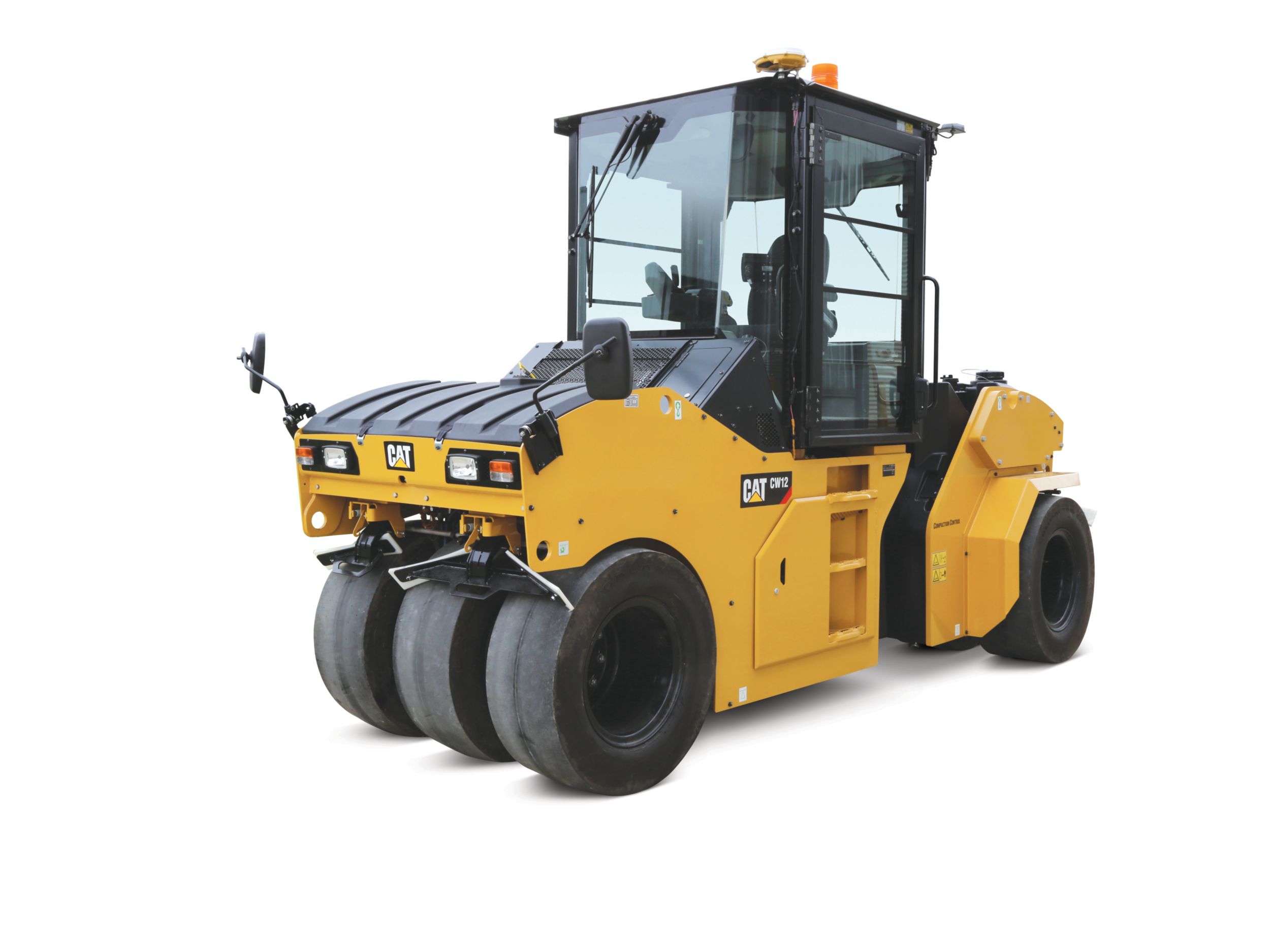

CW12 Pneumatic Roller

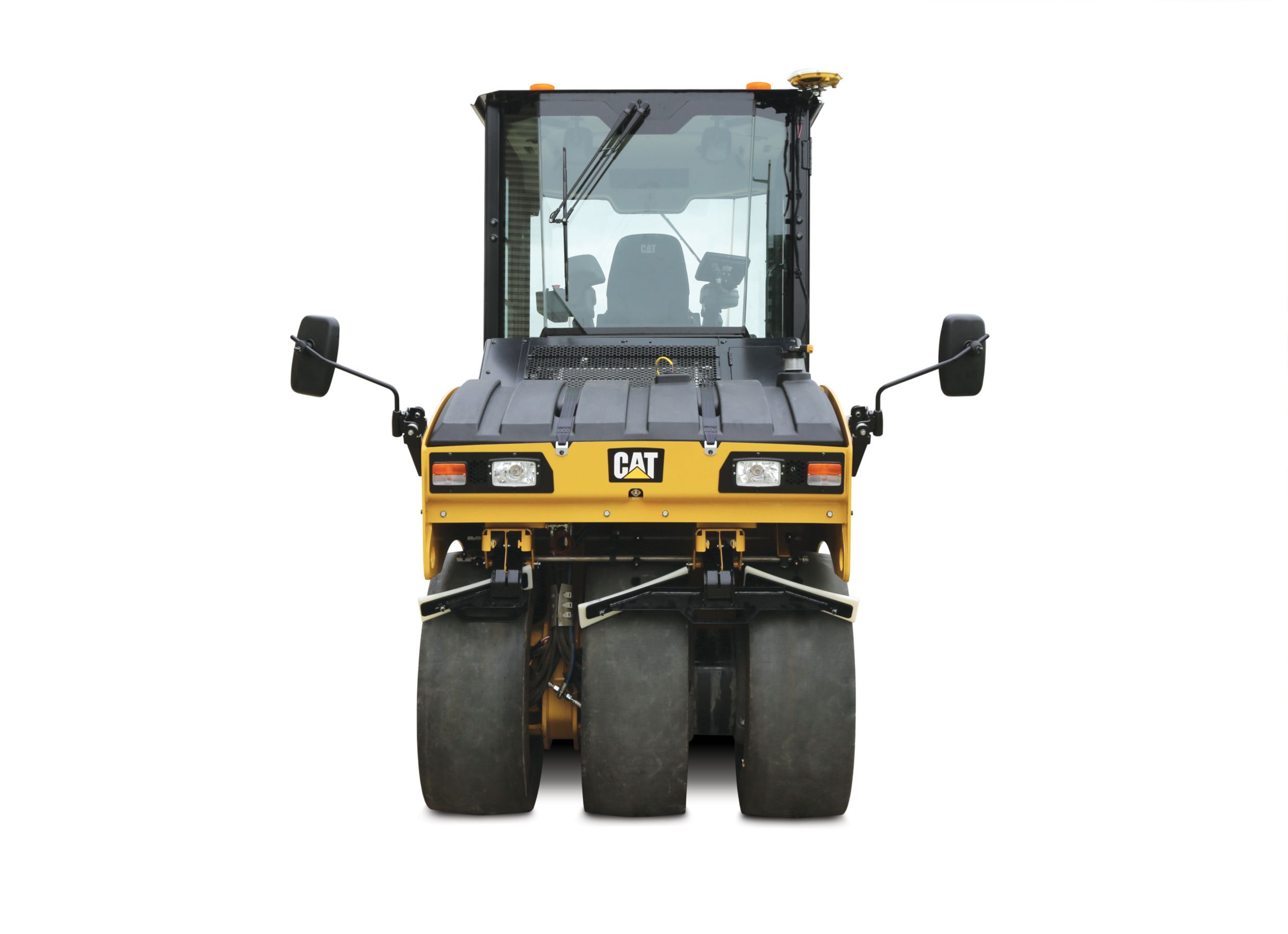

CW12 Pneumatic Roller

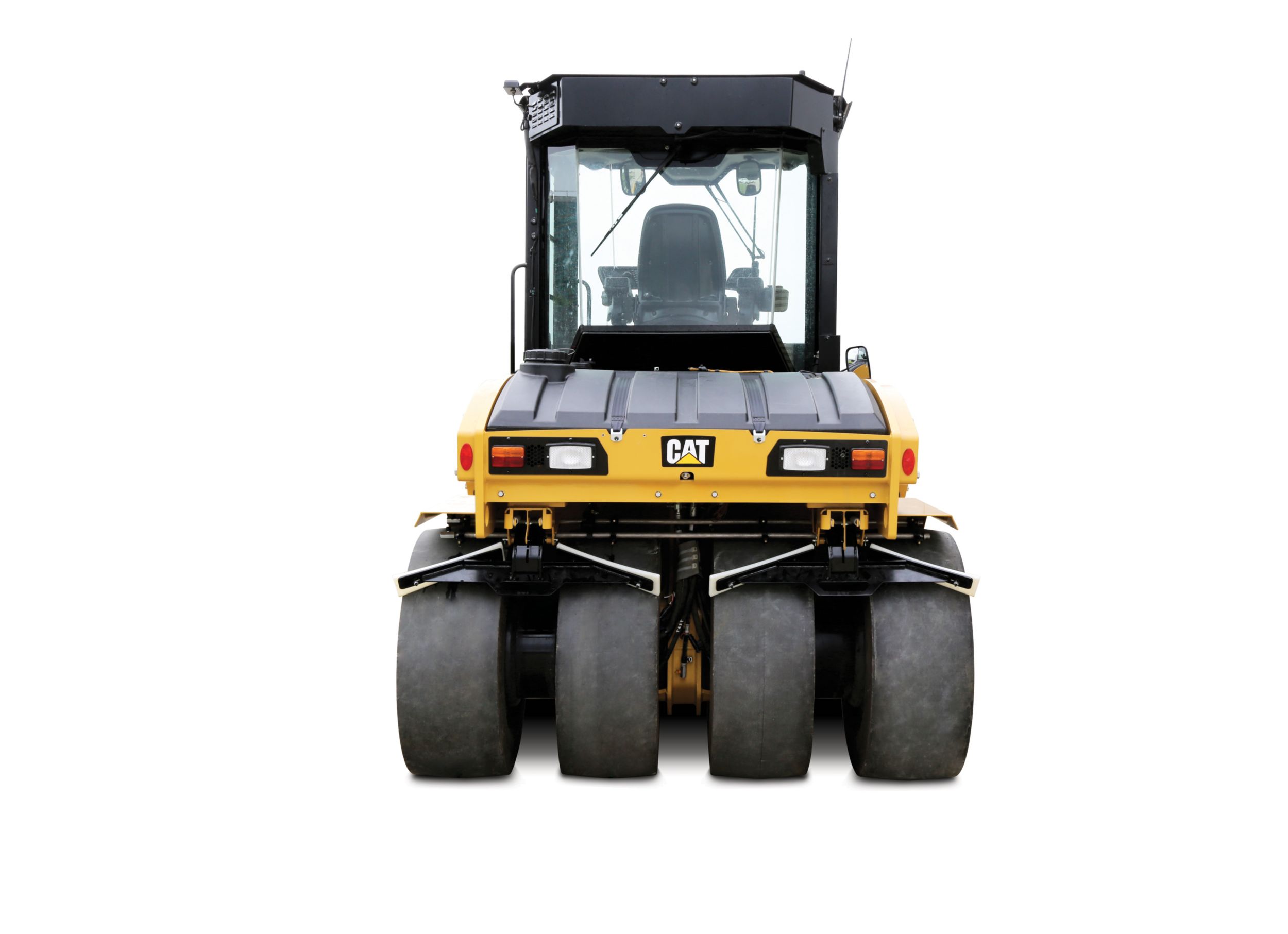

CW12 Pneumatic Roller
CW12 Pneumatic Roller

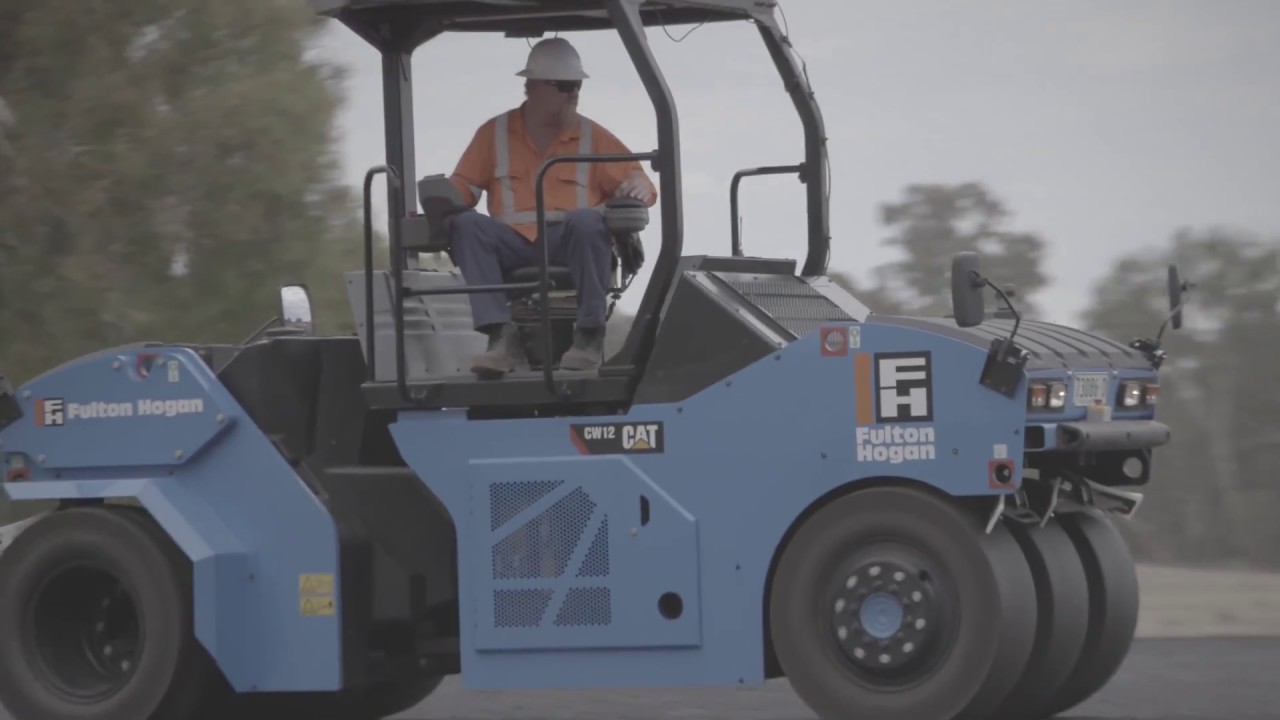

CW12 Facing a New Direction
