815

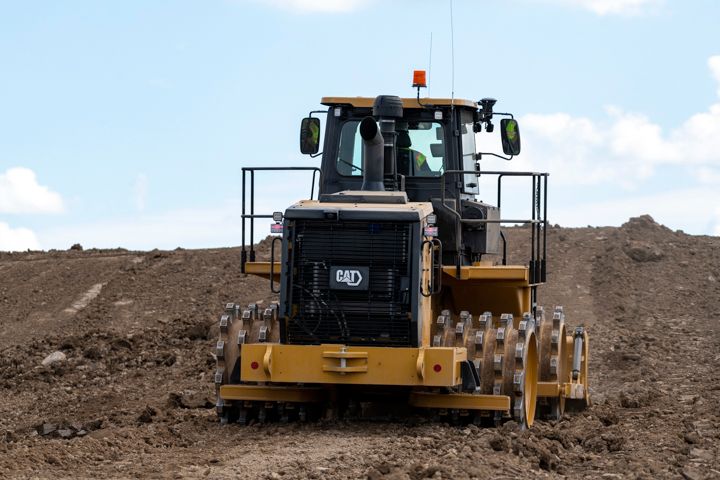

Soil Compactors 815

Request A Price Find Dealer

Key Specs

Engine Model
Cat® C7.1: configured for two emissions options
Cat® C7.1: configured for two emissions options
Net Power (SAE J1349:2011)
249 HP
186 kW
Net Power (ISO 9249:2007)
249 HP
186 kW

Overview

Raising the Bar in Compaction

Designed with durability built in, the Cat 815 ensures maximum availability through multiple life cycles. Designed and manufactured for optimum performance and serviceability, this rugged, powerful machine delivers heavy-duty compaction and dozing.

Benefits

IMPROVED TECHNOLOGY

Boost your productivity with technologies like Cat Compact 3D Mapping and Cat Compaction Control with Machine Drive Power.

UP TO 9% LOWER MAINTENANCE

Designed to reduce your service and maintenance costs with longer filter life.

ENHANCED OPERATOR COMFORT

Updated cab with quiet steering, new seat and adjustable controls helps operators work more productively throughout the day.

Product Specifications for 815

Engine Model Cat® C7.1: configured for two emissions options Cat® C7.1: configured for two emissions options
Net Power (SAE J1349:2011) 249 HP 186 kW
Net Power (ISO 9249:2007) 249 HP 186 kW
Emissions Meets U.S. EPA Tier 4 Final/EU Stage V emission standards Meets U.S. EPA Tier 4 Final/EU Stage V emission standards
Rated Speed 2200 r/min 2200 r/min
Gross Power (SAE J1995:2014) 284 HP 212 kW
Engine Power (ISO 14396:2002) 275 HP 205 kW
Peak Torque - 1,400 rpm 902 lb-ft @ 1400 rpm 1223 N·m
Torque Rise 52% 52%
Bore 4.1 in 105 mm
Stroke 5.3 in 135 mm
Displacement 427.8 in³ 7.01 l
High Idle Speed 2270 r/min 2270 r/min
Low Idle Speed 800 r/min 800 r/min
Maximum Altitude without Derating 9842.5 ft 3000 m
Note Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Engine Model Cat® C7.1: configured for two emissions options Cat® C7.1: configured for two emissions options
Net Power (SAE J1349:2011) 249 HP 186 kW
Emissions Brazil MAR-1 and China Nonroad Stage III, equivalent to U.S. EPA Tier 3/EU Stage IIIA Brazil MAR-1 and China Nonroad Stage III, equivalent to U.S. EPA Tier 3/EU Stage IIIA
Rated Speed 2200 r/min 2200 r/min
Gross Power (SAE J1995:2014) 286 HP 213 kW
Engine Power (ISO 14396:2002) 275 HP 205 kW
Peak Torque - 1,400 rpm 749 lb-ft @ 1400 rpm 1016 N·m
Torque Rise 26% 26%
Bore 4.1 in³ 105 mm
Stroke 5.3 in 135 mm
Displacement 5.3 in 135 mm
High Idle Speed 2270 r/min 2270 r/min
Low Idle Speed 800 r/min 800 r/min
Maximum Altitude without Derating 9842.5 ft 3000 m
Note Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator.
Operating Weight 49652 lb 22522 kg
Transmission Type Cat Planetary Power Shift Cat Planetary Power Shift
Travel Speeds - Forward - First 3.9 mile/h 6.3 km/h
Travel Speeds - Forward - Second 7.7 mile/h 10.8 km/h
Travel Speeds - Forward - Third 11.3 mile/h 18.2 km/h
Travel Speeds - Reverse - First 4.5 mile/h 7.2 km/h
Travel Speeds - Reverse - Second 8.5 mile/h 12.4 km/h
Travel Speeds - Reverse - Third 11.4 mile/h 18.4 km/h
Lift/Tilt System - Circuit Pilot operated LS valve with EH Pilot operated LS valve with EH
Lift/Tilt System Variable displacement piston Variable displacement piston
Maximum Flow at 2,200 rpm 23.5 gal/min 89 l/min
Relief Valve Setting - Lift/Tilt 3190 psi 22000 kPa
Pilot System Open center, fixed displacement gear Open center, fixed displacement gear
Pilot Relief Valve Setting 3046 psi 21000 kPa
Steering System - Circuit Pilot, Load Sensing Pilot, Load Sensing
Steering System - Pump Piston – Variable Displacement Piston – Variable Displacement
Maximum Flow at 2,200 rpm 38.8 gal/min 147 l/min
Relief Valve Setting - Steering 4003 psi 27600 kPa
Total Steering Angle 84 84
Steering Cycle Times - High Idle 3 s 3 s
Steering Cycle Times - Low Idle 8.2 s 8.2 s
Fuel Tank 132.1 gal (US) 500 l
Diesel Exhaust Fluid Tank* 4.2 gal (US) 16 l
Cooling Systems - Tier 4 Final/EU Stage V 21.4 gal (US) 81 l
Cooling System - Tier 3/Stage IIIA Equivalent 19.3 gal (US) 73 l
Engine Crankcase 5.3 gal (US) 20 l
Transmission 14.8 gal (US) 56 l
Differential - Final Drives - Front 17.2 gal (US) 65 l
Differential - Final Drives - Rear 17.2 gal (US) 65 l
Hydraulic Tank Only 19.8 gal (US) 75 l
Note All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1. All non-road Tier 4 Final and Stage V diesel engines are required to use: – Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less. Biodiesel blends up to B20 are acceptable when blended with 15 ppm for EPA and 10 ppm for EU (mg/kg) sulfur or less ULSD and when the biodiesel feedstock meets ASTM D7467 specifications. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1.
Height - Top of Beacon 12.9 ft 3933 mm
Height - Top of Cab Roof 12 ft 3650 mm
Height - Top of Exhaust Pipe 11.1 ft 3344 mm
Height - Top of Hood 8.6 ft 2616 mm
Height to Top of Radiator Guard 7.9 ft 2405 mm
Ground Clearance to Hitch 1.2 ft 365 mm
Ground Clearance to Transmission Guard 1.2 ft 375 mm
Ground Clearance to Bottom of Bumper 2.2 ft 665 mm
Centerline of Rear Axle to Bumper 6.5 ft 1990 mm
Hitch to Centerline of Front Axle 5.5 ft 1675 mm
Wheel Base 11 ft 3350 mm
Width over Platform 10.3 ft 3140 mm
Height to Top of GPS Antenna 12.1 ft 3701 mm
Overall Machine Length with Straight Blade 23.5 ft 7157 mm
Overall Machine Length with EU Suppression 24.9 ft 7598 mm
Front Planetary – Fixed Planetary – Fixed
Rear Planetary – Oscillating Planetary – Oscillating
Oscillation Angle ±10 ±10
Service Brakes Single Disc Wet (Enclosed) 2 WHL Single Disc Wet (Enclosed) 2 WHL
Parking Brake Drum and Shoe, Spring Applied, Hydraulic Released Drum and Shoe, Spring Applied, Hydraulic Released
Operator Sound Level (ISO 6396) 70 dB(A) 70 dB(A)
Machine Sound Level (ISO 6395) 111 dB(A) 111 dB(A)
Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.
Note (2) The operator sound pressure level uncertainty is ± 2 dB(A) The operator sound pressure level uncertainty is ± 2 dB(A)
Note (3) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note (4) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.
Operator Sound Level (ISO 6396) 70 dB(A) 70 dB(A)
Machine Sound Level (ISO 6395) 109 dB(A) 109 dB(A)
Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.
Note (2) The operator sound pressure level uncertainty is ± 2 dB(A) The operator sound pressure level uncertainty is ± 2 dB(A)
Note (3) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note (4) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed.
Operator Sound Level (ISO 6396) 70 dB(A) 70 dB(A)
Machine Sound Level (ISO 6395) 112 dB(A) 112 dB(A)
Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.
Note (2) The operator sound pressure level uncertainty is ± 2 dB(A) The operator sound pressure level uncertainty is ± 2 dB(A)
Note (3) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note (4) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed.
Operator Sound Level (ISO 6396) 70 dB(A) 70 dB(A)
Machine Sound Level (ISO 6395) 110 dB(A) 110 dB(A)
Note (1) The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed. The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at the maximum engine cooling fan speed.
Note (2) The operator sound pressure level uncertainty is ± 2 dB(A) The operator sound pressure level uncertainty is ± 2 dB(A)
Note (3) Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Note (4) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed. The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at the maximum engine cooling fan speed.
Machine Sound Level (ISO 6393) 107 dB(A) 107 dB(A)
Note (1) The machine sound power level was measured according to the test procedures and conditions specified in ISO 6393:2008. The measurement was conducted at the rated engine cooling fan speed. The machine sound power level was measured according to the test procedures and conditions specified in ISO 6393:2008. The measurement was conducted at the rated engine cooling fan speed.
Weight 9720 lb 4409 kg
Outside Diameter 55.6 in 1412 mm
Drum Diameter 40.5 in 1029 mm
Drum Width 39 in 991 mm
Tips per Row 12 12
Tips per Wheel 60 60
Replaceable Weld On Weld On
Width - Over Drums 127.7 in 3243 mm
Width Between Drums 49.6 in 1261 mm
Tip Height 7.5 in 192 mm
Capacity 2.69 yd³ 2.06 m³
Overall Width 12.3 ft 3761 mm
Height 2.8 ft 860 mm
Digging Depth 0.7 ft 222 mm
Ground Clearance 2.6 ft 802 mm
Maximum Tilt 1.1 ft 346 mm
Turning Radius - Outside Corner of Blade 21.1 ft 6437 mm
Turning Radius - Inside Face of Pusharm 8.3 ft 2520 mm
Weight 1764 lb 800 kg
Total Operating Weight 49652 lb 22522 kg

815 Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

POWER TRAIN

  • Advanced Productivity Electronic Control System (APECS)
  • Air to air aftercooler
  • Brakes, full hydraulic, enclosed, wet multiple disc service brakes
  • Cat clean emission module (Tier 4 Final/Stage IV only)
  • Electro-hydraulic parking brake
  • Electronic Clutch Pressure Control (ECPC)
  • Engine, Cat C7.1 (configured for two emissions options): – Tier 4 Final/Stage V – Tier 3/Stage IIIA equivalent
  • Engine driven cooling fan – suction
  • Fuel priming pump (electric)
  • Fuel to air cooler
  • Ground level engine shutoff
  • Muffler (under hood) (Tier 3/Stage IIIA equivalent only)
  • Radiator, unit core
  • Starting aid (ether)
  • Throttle lock
  • Torque converter
  • Transmission, planetary, with 3F/3R speed range control

ELECTRICAL

  • Alarm, back-up
  • Alternator, 150 amp
  • Batteries, maintenance-free
  • Electrical system, 24V
  • Ground level lockable master disconnect switch
  • Lights, directional (rear)
  • Light, warning switched (LED strobe)
  • Lighting system, (front and rear)
  • Starter, electric
  • Starting receptacle for emergency start

OPERATOR ENVIRONMENT

  • 12V power port for mobile phone or laptop connection
  • AccuGrade™ mapping (ready)
  • Air conditioner
  • Cab, sound-suppressed pressurized
  • Cab door, sliding window (LH)
  • Cat Compaction Control (ready)
  • Cat Detect: Object Detection (ready)
  • Coat and hard hat hooks
  • Finger tip shifting controls
  • Flip-up armrest
  • Heater and defroster
  • Horn, electric
  • Hydraulic controls – seat mounted
  • Implement hydraulic lockout
  • Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage V only) – Engine coolant temperature – Fuel level – Hydraulic oil temperature – Speedometer/tachometer – Torque converter temperature
  • Instrumentation, warning indicators: – Action alert system, three categories – Brake oil pressure – Electrical system, low voltage – Engine failure malfunction alert and action lamp – Parking brake status
  • Light, (dome) cab
  • Lunch box and beverage holders
  • Mirror, internal (panoramic)
  • Mirrors, rearview (externally mounted)
  • Radio ready for entertainment: – Antenna – Speakers – Converter (12V, 10-15 amp)
  • Seat, Cat Premium Plus (leather)
  • Seat belt with minder, retractable, 76 mm (3 in) wide
  • STIC control system with lockout
  • Sun visor, front
  • Tinted glass
  • Transmission gear (indicator)
  • Vital Information Management System (VIMS): – Graphical information display – External data port – Customizable operator profiles – Event indicator light on rear grill
  • Wet-arm wipers/washers (front and rear): – Intermittent wipers (front and rear)

TIRES, RIMS AND WHEELS

  • Wheels, tamping foot

GUARDS

  • Cleaner bars with teeth
  • Guards, crankcase and power train
  • Guard, driveshaft

FLUIDS

  • Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)

OTHER STANDARD EQUIPMENT

  • DEF tank fill gauge
  • Doors, service access (locking)
  • Ecology drains for engine, radiator, transmission, hydraulic tank
  • Engine, crankcase, 500 hour interval with CJ-4 oil
  • Emergency platform egress
  • Fire suppression ready
  • Fuel tank, 500 L (132.1 gal)
  • Hitch, drawbar with pin
  • Hoses, Cat XT™
  • Hydraulic, engine, and transmission oil coolers
  • Oil change system, high speed
  • Oil sampling valves
  • Steering, load sensing
  • Total hydraulic filtration system
  • Vandalism protection caplocks
  • Venturi stack

STANDARD ATTACHMENTS – HYDRAULICS

  • Hydraulics: – Standard or EU and Canada

STANDARD ATTACHMENTS – OPERATOR ENVIRONMENT

  • Glass (window): – rubber-mounted glass
  • Precleaner (cab): – powered
  • Seat (cab): – heated and ventilated
  • Mirrors – cab: – Standard or heated

STANDARD ATTACHMENTS – POWER TRAIN

  • Axles: – Standard or non-spin rear

STANDARD ATTACHMENTS – SPECIAL ARRANGEMENTS

  • Engine Precleaners: – Turbine or dual stage

STANDARD ATTACHMENTS – ELECTRICAL

  • Lights: – Standard or LED

STANDARD ATTACHMENTS – FUEL SYSTEMS

  • Fuel tank: – Non-fast or fast fill

STANDARD ATTACHMENTS – TECHNOLOGY PRODUCTS

  • Product Link: – GSM, satellite

STANDARD ATTACHMENTS – CLEANER BARS

  • Cleaner bars: – Standard or abrasive

STANDARD ATTACHMENTS – BLADES

  • Blades: – Straight or tilt-straight

815 Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

  • Camera, rear vision
  • Radio, AM/FM/AUX/USB/BLUETOOTH
  • Radio, CB (ready)

TECHNOLOGY PRODUCTS

  • Compaction control, basic

OTHER ATTACHMENTS

  • Sound suppression (required for Brazil)

FLUIDS

  • Antifreeze, –50° C (–58° F)

STARTING AIDS

  • Heater, engine coolant, 120V
  • Heater, engine coolant, 240V

MISCELLANEOUS

  • Film (ANSI) (Tier 4 Final/Stage V only)
  • EU certification (Tier 4 Final/Stage V only)
  • Plate – year of manufacture (Tier 3/Stage IIIA equivalent only)

See how 815 compares against frequently compared products.

Tools And Expert Help At Every Turn

Boost Productivity. Improve Efficiency.

Cat® Technology for construction helps contractors meet production goals and improve efficiencies.

Learn More

Product Brochures and More Are Ready to Download!

Full specifications, product brochures and more. Sign up below for additional information. Or for instant access, you can skip this form.

Marketing Consent

Take the interactive virtual product tour to explore the great features and benefits of the 815

Start 815 Tour
close

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

  • Cat Compact with Machine Drive Power (MDP)

    Machine Drive Power is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. It has an optional Mapping system, which helps the operator visualize the work as it occurs, ensures that the compactor covers the entire jobsite and produces uniform work.

1 - 8 of 9 Items items
Previous Next

Machine Drive Power is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. It has an optional Mapping system, which helps the operator visualize the work as it occurs, ensures that the compactor covers the entire jobsite and produces uniform work.

Explore Technology
  • Cat App

    Efficient equipment management starts with the Cat App. Track the location and health of your equipment, order service and parts, and activate telematics devices directly from your mobile device. Staying on top of your fleet 24/7 has never been easier.

  • Cat Inspect

    Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

  • Cat Product Link

    Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

  • Cat Remote Flash

    Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

  • Cat VisionLink

    View fleet information online with VisionLink and use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety on your jobsite. With different subscription level options, your Cat dealer can help configure exactly what you need to optimize your fleet and drive additional profit.

  • ISO 15143-3 (AEMP 2.0) API

    Import telematics data into your own applications for improved fleet management. Our API meets AEMP 2.0 and ISO 15143-3 standards, ideal for mixed fleets.

  • My.Cat.Com

    My.Cat.Com is the web-based hub for digital equipment management, giving you an easy way to take in complex information. Monitor cost, utilization, reliability, age information and other critical data needed to run a business more efficiently and effectively. Access your equipment information and connect with your Cat dealer – all in one place.

1 - 8 of 9 Items items
Previous Next

Efficient equipment management starts with the Cat App. Track the location and health of your equipment, order service and parts, and activate telematics devices directly from your mobile device. Staying on top of your fleet 24/7 has never been easier.

Explore Technology

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Cat® Product Link™ wirelessly connects you to your equipment giving you valuable insight into how your machine or fleet is performing. Information such as location, hours, fuel usage, productivity, idle time, and diagnostic codes are made available through online web applications so that you can make timely, fact-based decisions to maximize efficiency, improve productivity, and lower the cost of owning and operating your fleet. Available with satellite or cellular connectivity.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

View fleet information online with VisionLink and use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety on your jobsite. With different subscription level options, your Cat dealer can help configure exactly what you need to optimize your fleet and drive additional profit.

Explore Technology

Import telematics data into your own applications for improved fleet management. Our API meets AEMP 2.0 and ISO 15143-3 standards, ideal for mixed fleets.

Explore Technology

My.Cat.Com is the web-based hub for digital equipment management, giving you an easy way to take in complex information. Monitor cost, utilization, reliability, age information and other critical data needed to run a business more efficiently and effectively. Access your equipment information and connect with your Cat dealer – all in one place.

Explore Technology
  • Cat Productivity

    Cat® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

1 - 8 of 9 Items items
Previous Next

Cat® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Explore Technology

Check out current offers for the 815

View More Offers
warning

Internet Explorer users may experience issues with certain features of our site.
Please try a current version of an alternate browser (i.e. Google Chrome, Microsoft Edge, Mozilla Firefox) for the full Cat.com experience.
