CP16 Vibratory Soil Compactor

Vibratory Soil Compactors CP16 Tier 3

Request A Price Find Dealer

Key Specs

Operating Weight - With Cab: 36390 lb; 16506 kg

Compaction Width: 84 in; 2134 mm

Gross Power: 174.6 hp; 130.2 kW

CP16
Change model

Overview

Efficient and Consistent Compaction

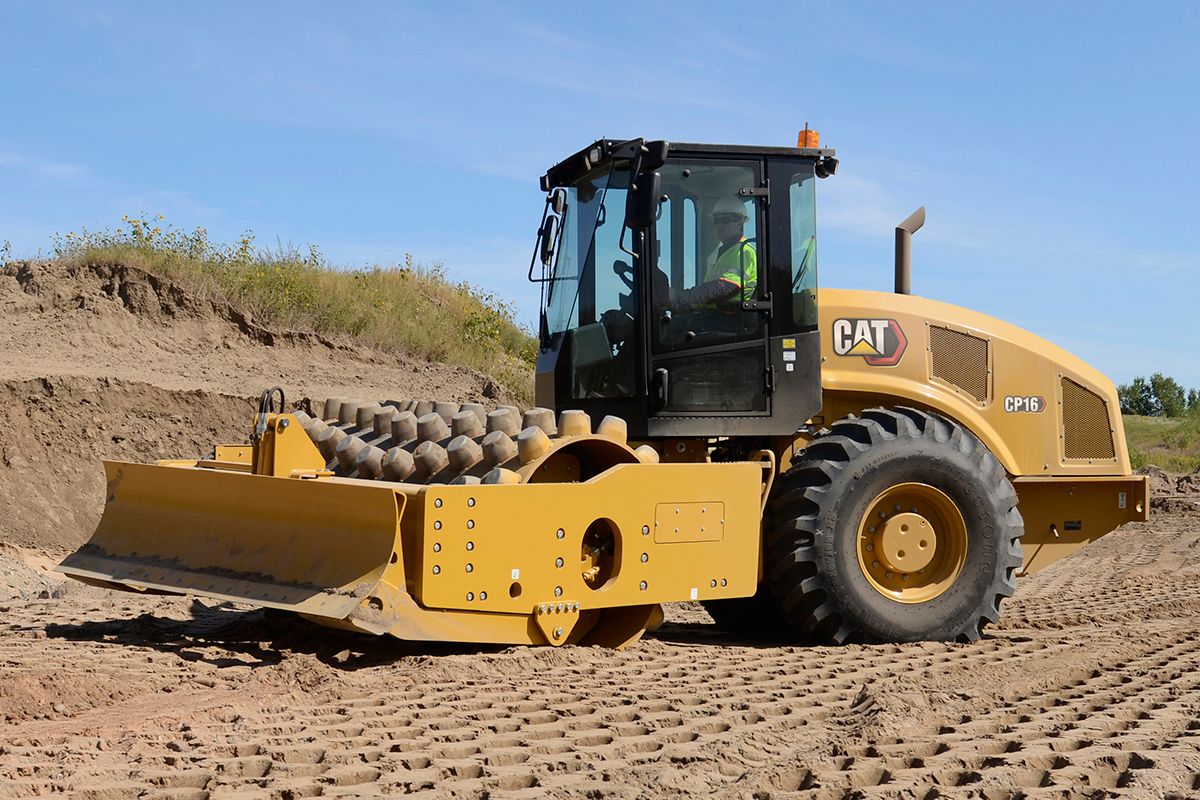

The Cat® CP16 Vibratory Soil Compactor features a padfoot drum and is ideally suited for cohesive and semi-cohesive soil applications. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

Benefits

Low Operating Costs

Eco-Mode, no-maintenance hitch with sealed-for-life bearings and extended service intervals help keep your operating and maintenance costs low.

Increase Efficiency with Compaction Technology

On-board compaction measurement technology indicates when specifications are met helping to eliminate guesswork, reduce unnecessary passes and minimize rework.

Exceptional Visibility and Comfort

A rear vision camera enhances visibility around the machine and a pivoting seat with integrated controls and tiltable steering console provide an ergonomic work environment.

Features At A Glance

Efficient Power

Built around a dual pump propel system, two pumps provide separate dedicated flow to the drum drive motor and rear axle motor for exceptional gradeability and traction in forward and reverse.
Powered by a Cat® C7.1 engine that emits equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Eco-mode limits engine RPM helping to reduce fuel consumption.
Engine Idle Shutdown Timer reduces fuel burn and unnecessary idle time by shutting down the machine after a pre-set idling period.
A variable speed cooling fan operates at the lowest possible speed for optimal cooling.
Bolt-on leveling blade option increases machine versatility.

Exceptional Compaction Performance

High static linear loads and amplitudes.
Exclusive eccentric weight design provides high reliability, smooth performance and low noise.
Automatic Speed Control and Auto-vibe functions make it easy to ensure consistent, high-quality compaction.
The Variable Frequency option provides a wide range of frequencies to help maximize compaction performance.
A unique oval padfoot design delivers higher weight concentration and deeper penetration for increased compaction effort. Also available in a square pad design.

Safe and Comfortable Work Environment

A rear vision camera with large color touchscreen display enhances visibility for more complete operator control and safety.
The pivoting seat with integrated multifunction LCD display and control console move with the operator.
Outstanding visibility to the front and rear of machine.
Low sound levels and vibration for greater operator comfort and productivity.
Operators are protected from the elements by a standard equipped sun canopy, optional ROPS/FOPS canopy or optional climate-controlled ROPS/FOPS cab with hinged glass windows.

Enhance Quality and Productivity with Technology

Optional Cat Compact technology helps you consistently meet compaction targets faster, more uniformly, and in fewer passes – saving on fuel and reducing rework and material costs.
Exclusive Machine Drive Power (MDP) is an energy-based measurement and can be used on all soil types.

Virtually Maintenance Free

Maintenance-free hitch with sealed-for-life bearings.
Ground-level access to the engine compartment and cooling module for easy service and fluid sampling.
Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
VisionLink® takes the guesswork out of managing your entire fleet–regardless of size or equipment manufacturer*–by providing maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and more through interactive dashboards on your mobile device or desktop, helping you make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.

* Data field availability can vary by equipment manufacturer and is provided through an application programming interface (API).

The Cat C7.1 emits equivalent to U.S. EPA Tier 3, EU Stage IIIA.
Cat engines are compatible with diesel fuel blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester) and 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
*Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.
Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. Extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays.
Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.

Specifications Standard Equipment Optional Equipment

Product Specifications for CP16

Weights

Operating Weight - With Cab	36390 lb 16506 kg
Operating Weight - With Sun Canopy	35109 lb 15925 kg
Operating Weight - With ROPS/FOPS Canopy	35494 lb 16100 kg
Weight - Drum with Cab	23464 lb 10643 kg
Weight - Drum with Sun Canopy	23237 lb 10540 kg
Weight - Drum with ROPS/FOPS Canopy	23358 lb 10595 kg
Note (1)	Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.

Dimensions

Compaction Width	84 in 2134 mm
Overall Length	19.8 ft 6.1 m
Overall Length - With Blade Option	21.5 ft 6.5 m
Overall Width	7.7 ft 2.3 m
Overall Width - With Blade Option	8.2 ft 2.5 m
Maximum Height	10.2 ft 3.1 m
Drum Diameter - Over Pads	61 in 1550 mm
Optional Blade Height	26.9 in 683 mm
Wheel Base	9.5 ft 2.9 m

Engine

Gross Power	174.6 hp 130.2 kW
Engine Power - ISO 14396	173 hp 129 kW
Net Power - ISO 9249	145.5 hp 108.5 kW
Net Power - SAE J1349:2011	143.8 hp 107.2 kW
Note (1)	Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, and alternator.
Engine Model	Cat® C7.1 Cat® C7.1
Emissions	U.S. EPA Tier 3, EU Stage IIIA equivalent U.S. EPA Tier 3, EU Stage IIIA equivalent
Stroke	5.3 in 135 mm
Bore	4.1 in 105 mm

Vibratory System

Vibratory Frequency - Standard	1680 VPM 28 Hz
Variable Frequency Option Range	23.3 - 30.5 Hz (1400-1680 vpm) 23.3 - 30.5 Hz (1400-1680 vpm)
Nominal Amplitude - High	0.083 in 2.1 mm
Nominal Amplitude - Low	0.039 in 0.98 mm
Centrifugal Force - Maximum	75234 lb 335 kN
Centrifugal Force - Minimum	35163 lb 156 kN

Operating Specifications

Ground Clearance	17.2 in 436 mm
Curb Clearance	19.6 in 497 mm
Turning Radius - Inside Drum Edge	12.1 ft 3.7 m
Travel Speed - Maximum	7.1 mile/h 11.4 km/h

Service Refill Capacities

Fuel Tank Capacity	87.7 gal (US) 332 l
Cooling System	7.5 gal (US) 28.3 l
Engine Oil - With Filter	4.6 gal (US) 17.4 l
Eccentric Weight Housings (combined)	6.9 gal (US) 26 l
Axle and Final Drives	6.3 gal (US) 24 l
Hydraulic Tank	13.2 gal (US) 50 l

Sustainability

Recyclability

97% 97%

CP16 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Steel Sun Canopy with Handrails, Floor Mat, Vinyl Seat

Adjustable Seat with Integrated Console

LCD Display with Lockable Vandalism Guard

Adjustable Tilting Steering Column with Integrated Cup Holders

Rear Vision Camera System with Color Touchscreen Display

High Visibility 50 mm (2 in) Seat Belt

12-volt Power Outlet

Horn, Backup Alarm

VIBRATORY SYSTEM

Padfoot Drum - Oval or Square Pads

Pod-Style Eccentric Weight Housings

Dual Amplitude, Single Frequency

Auto-vibe Function

Dual Adjustable Steel Scrapers

TECHNOLOGY SOLUTIONS

VisionLink®

POWERTRAIN

Cat® C7.1 Engine

Air Cleaner, Dual Element

Three Speed Throttle Switch including Eco-mode

Automatic Speed Control (ASC)

Dual Propel Pumps; One for Drum Drive, One for Rear Axle

Fuel Filter, Water Separator, Priming Pump, Water Indicator

Tilting Radiator / Hydraulic Oil Cooler

Dual Braking System

Two-Speed Hydrostatic Transmission

Limited Slip Differential

ELECTRICAL

24 volt Electrical System

100 ampere Alternator

750 Cold-cranking Amps Battery Capacity

OTHER

Lockable Engine Enclosure, Hydraulic and Fuel Tanks

Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level

S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant

Halogen Working Lights (4)

CP16 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

ROPS/FOPS Canopy with Handrails, Floor Mat, Vinyl Seat

ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors

Sun Visor (Cab)

Roll-Down Screen (Cab)

VIBRATORY SYSTEM

Variable Frequency

Leveling Blade

TECHNOLOGY SOLUTIONS

Measure - Machine Drive Power (MDP)

POWERTRAIN

Transmission Guard

OTHER

Halogen Working Lights (8)

Amber Rotating Beacon

Product Specifications for CP16

Download Print

Weights

Operating Weight - With Cab	36390 lb 16506 kg
Operating Weight - With Sun Canopy	35109 lb 15925 kg
Operating Weight - With ROPS/FOPS Canopy	35494 lb 16100 kg
Weight - Drum with Cab	23464 lb 10643 kg
Weight - Drum with Sun Canopy	23237 lb 10540 kg
Weight - Drum with ROPS/FOPS Canopy	23358 lb 10595 kg
Note (1)	Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning. Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.

Dimensions

Compaction Width	84 in 2134 mm
Overall Length	19.8 ft 6.1 m
Overall Length - With Blade Option	21.5 ft 6.5 m
Overall Width	7.7 ft 2.3 m
Overall Width - With Blade Option	8.2 ft 2.5 m
Maximum Height	10.2 ft 3.1 m
Drum Diameter - Over Pads	61 in 1550 mm
Optional Blade Height	26.9 in 683 mm
Wheel Base	9.5 ft 2.9 m

Engine

Gross Power	174.6 hp 130.2 kW
Engine Power - ISO 14396	173 hp 129 kW
Net Power - ISO 9249	145.5 hp 108.5 kW
Net Power - SAE J1349:2011	143.8 hp 107.2 kW
Note (1)	Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, and alternator. Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, and alternator.
Engine Model	Cat® C7.1 Cat® C7.1
Emissions	U.S. EPA Tier 3, EU Stage IIIA equivalent U.S. EPA Tier 3, EU Stage IIIA equivalent
Stroke	5.3 in 135 mm
Bore	4.1 in 105 mm

Vibratory System

Vibratory Frequency - Standard	1680 VPM 28 Hz
Variable Frequency Option Range	23.3 - 30.5 Hz (1400-1680 vpm) 23.3 - 30.5 Hz (1400-1680 vpm)
Nominal Amplitude - High	0.083 in 2.1 mm
Nominal Amplitude - Low	0.039 in 0.98 mm
Centrifugal Force - Maximum	75234 lb 335 kN
Centrifugal Force - Minimum	35163 lb 156 kN

Operating Specifications

Ground Clearance	17.2 in 436 mm
Curb Clearance	19.6 in 497 mm
Turning Radius - Inside Drum Edge	12.1 ft 3.7 m
Travel Speed - Maximum	7.1 mile/h 11.4 km/h

Service Refill Capacities

Fuel Tank Capacity	87.7 gal (US) 332 l
Cooling System	7.5 gal (US) 28.3 l
Engine Oil - With Filter	4.6 gal (US) 17.4 l
Eccentric Weight Housings (combined)	6.9 gal (US) 26 l
Axle and Final Drives	6.3 gal (US) 24 l
Hydraulic Tank	13.2 gal (US) 50 l

Sustainability

Recyclability

97% 97%

CP16 Standard Equipment

Print

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

Steel Sun Canopy with Handrails, Floor Mat, Vinyl Seat

Adjustable Seat with Integrated Console

LCD Display with Lockable Vandalism Guard

Adjustable Tilting Steering Column with Integrated Cup Holders

Rear Vision Camera System with Color Touchscreen Display

High Visibility 50 mm (2 in) Seat Belt

12-volt Power Outlet

Horn, Backup Alarm

VIBRATORY SYSTEM

Padfoot Drum - Oval or Square Pads

Pod-Style Eccentric Weight Housings

Dual Amplitude, Single Frequency

Auto-vibe Function

Dual Adjustable Steel Scrapers

TECHNOLOGY SOLUTIONS

VisionLink®

POWERTRAIN

Cat® C7.1 Engine

Air Cleaner, Dual Element

Three Speed Throttle Switch including Eco-mode

Automatic Speed Control (ASC)

Dual Propel Pumps; One for Drum Drive, One for Rear Axle

Fuel Filter, Water Separator, Priming Pump, Water Indicator

Tilting Radiator / Hydraulic Oil Cooler

Dual Braking System

Two-Speed Hydrostatic Transmission

Limited Slip Differential

ELECTRICAL

24 volt Electrical System

100 ampere Alternator

750 Cold-cranking Amps Battery Capacity

OTHER

Lockable Engine Enclosure, Hydraulic and Fuel Tanks

Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level

S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant

Halogen Working Lights (4)

CP16 Optional Equipment

Print

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

ROPS/FOPS Canopy with Handrails, Floor Mat, Vinyl Seat

ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors

Sun Visor (Cab)

Roll-Down Screen (Cab)

VIBRATORY SYSTEM

Variable Frequency

Leveling Blade

TECHNOLOGY SOLUTIONS

Measure - Machine Drive Power (MDP)

POWERTRAIN

Transmission Guard

OTHER

Halogen Working Lights (8)

Amber Rotating Beacon

See how CP16 compares against frequently compared products.

Compactors

Selected

CP16 Tier 3

CP16

Operating Weight - With Cab: 36390 lb; 16506 kg
Compaction Width: 84 in; 2134 mm
Gross Power: 174.6 hp; 130.2 kW

Compactors

CS16 Tier 3

CS16

Operating Weight - With Cab: 35589 lb; 16143 kg
Compaction Width: 84 in; 2134 mm
Gross Power: 174.6 hp; 130.2 kW

View Details

Compactors

CP17 Tier 3

CP17

Operating Weight - With Cab: 38971 lb; 17677 kg
Compaction Width: 84 in; 2134 mm
Gross Power: 174.6 hp; 130.2 kW

View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

CP16 Vibratory Soil Compactor

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Compact

Equipment Management

Cat Compact with Machine Drive Power (MDP)

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat Compact with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat Compact with Machine Drive Power (MDP) is an energy-based measurement system that correlates compaction with rolling resistance to provide an indication of soil stiffness. An optional mapping system helps operators visualize work as it occurs.

Explore Technology

Cat® Inspect

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Internet Explorer users may experience issues with certain features of our site.
Please try a current version of an alternate browser (i.e. Google Chrome, Microsoft Edge, Mozilla Firefox) for the full Cat.com experience.
