CP76B

< Back

View Product Downloads
Yes, I would like to receive future marketing communications (such as email) from Caterpillar Inc., its affiliates and subsidiaries worldwide and the Caterpillar dealer network. Regardless of whether you decide to receive these marketing communications, Caterpillar will continue to send service/transactional messages, including those that have to do with any accounts that you may have with us.

Overview

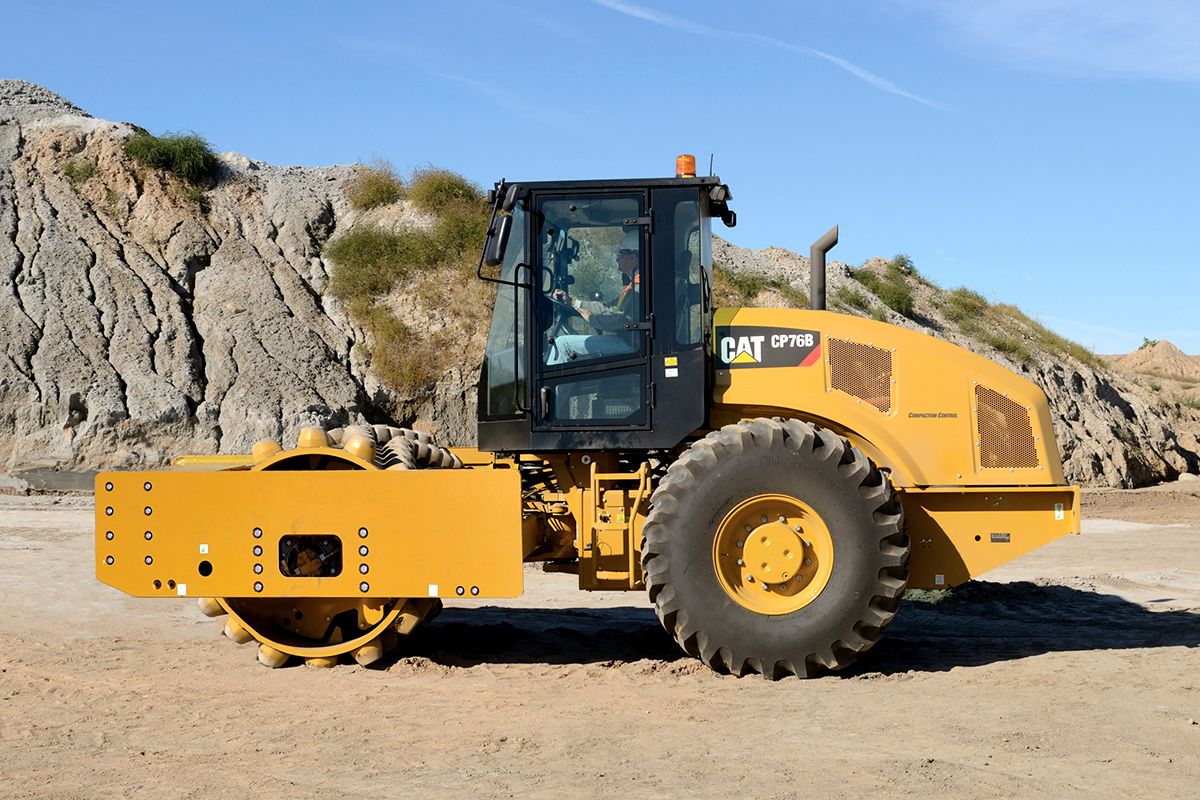

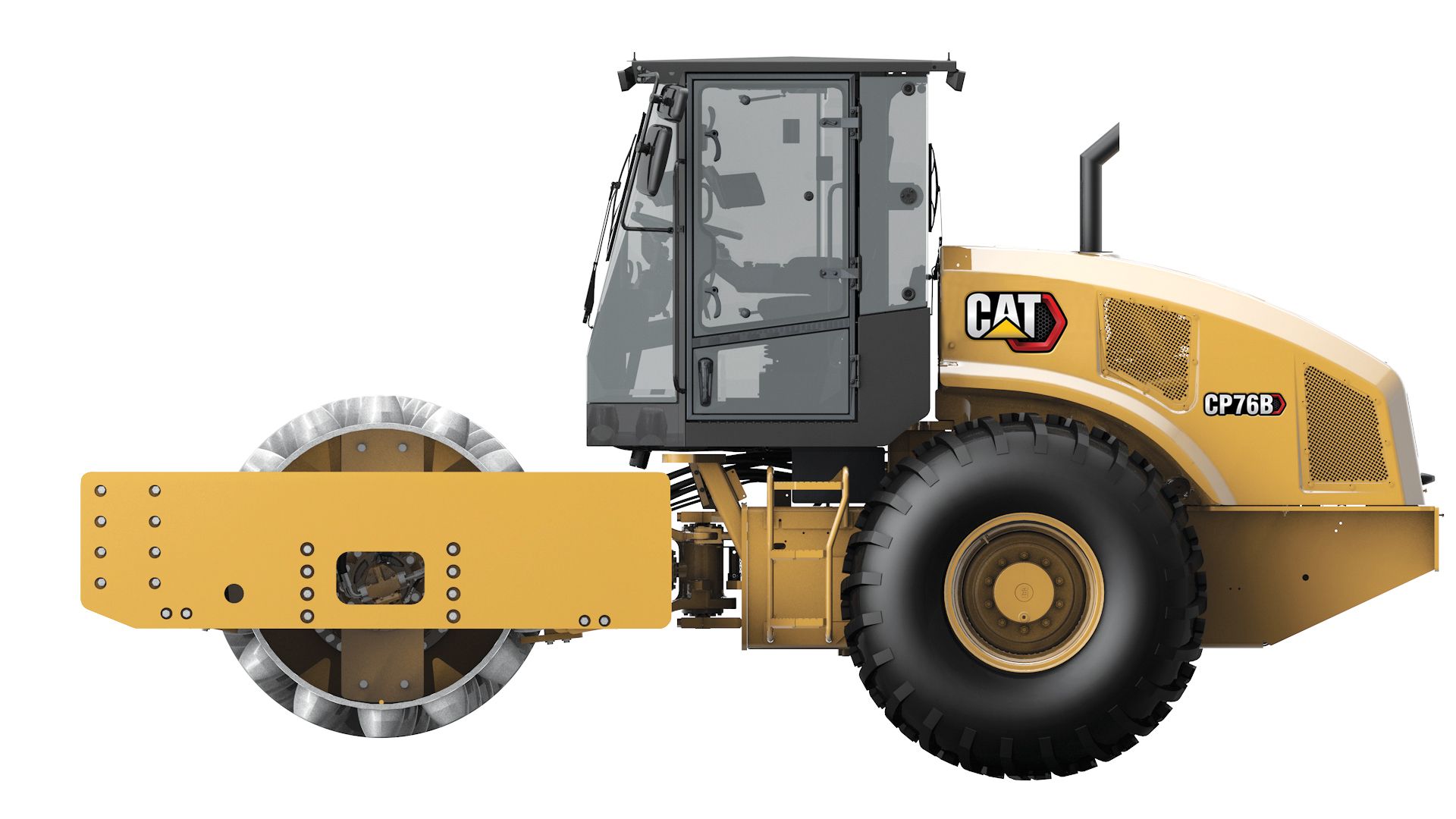

The CP76B Vibratory Soil Compactor combines world-class productivity with outstanding operator comfort while continuing the legacy of durability, reliability and ease-of-service that contractors worldwide have come to expect from Cat® machines.

Weights

Units:
Operating Weight - With Cab 38971.0 lb 17677.0 kg Less
Weight - Drum with Cab 26288.0 lb 11924.0 kg Less
Operating Weight - With Open Platform 37670.0 lb 17087.0 kg Less
Operating Weight - With ROPS/FOPS Canopy 38266.0 lb 17357.0 kg Less
Operating Weight - With Steel Sun Canopy 37879.0 lb 17182.0 kg Less
Weight - Drum with ROPS/FOPS Canopy 26010.0 lb 11789.0 kg Less
Weight at Drum with Open Platform 25781.0 lb 11694.0 kg Less
Weight at Drum with Steel Sun Canopy 25869.0 lb 11734.0 kg Less

Operating Specifications

Compaction Width 84.0 in 2134.0 mm Less
Ground Clearance 17.5 in 445.0 mm Less
Travel Speed - Maximum 7.0 mile/h 11.4 km/h Less
Turning Radius - Inside Drum Edge 12.08 ft 3.68 m Less

Engine

Gross Power 173.7 HP 129.5 kW Less
Engine Model Cat C6.6 with ACERT Cat C6.6 with ACERT Less

Dimensions

Drum Diameter 51.0 in 1295.0 mm Less
Drum Diameter - Over Pads 61.0 in 1549.0 mm Less
Drum Width 84.0 in 2134.0 mm Less
Height - With ROPS/FOPS or Cab 10.25 ft 3.11 m Less
Overall Length 19.83 ft 6.05 m Less
Overall Width 7.67 ft 2.33 m Less
Wheel Base 9.58 ft 2.9 m Less

Vibratory System

Centrifugal Force - Maximum 74600.0 lb 332.0 kN Less
Centrifugal Force - Minimum 37300.0 lb 166.0 kN Less
Nominal Amplitude - High 0.083 in 2.1 mm Less
Nominal Amplitude - Low 0.039 in 0.98 mm Less
Variable Frequency Option Range 23.3 - 28 Hz (1400-1680 vpm) 23.3 - 28 Hz (1400-1680 vpm) Less
Vibratory Frequency - Standard 28 Hz (1680 vpm) 28 Hz (1680 vpm) Less

Tires

Tires 23.1 x 26 23.1 x 26 Less

Service Refill Capacities

Fuel Tank Capacity 88.0 gal (US) 332.0 l Less
