Weights
| Operating Weight - With Cab | 16471 lb 7471 kg |
| Weight - Drum with ROPS/FOPS | 7939 lb 3601 kg |
| Weight - Drum with Cab | 8181 lb 3711 kg |
| Operating Weight - With Sun Canopy | 15781 lb 7158 kg |
| Weight - Drum with Sun Canopy | 7862 lb 3566 kg |
My Account
Sign In
Welcome! Sign In to personalize your Cat.com experience
If you already have an existing account with another Cat App, you can use the same account to sign in here
Register Now
One Account. All of Cat.
Your Caterpillar account is the single account you use to log in to select services and applications we offer. Shop for parts and machines online, manage your fleet, go mobile, and more.
Welcome Back!
My Account Dashboard
Account Information
Site Settings
Security

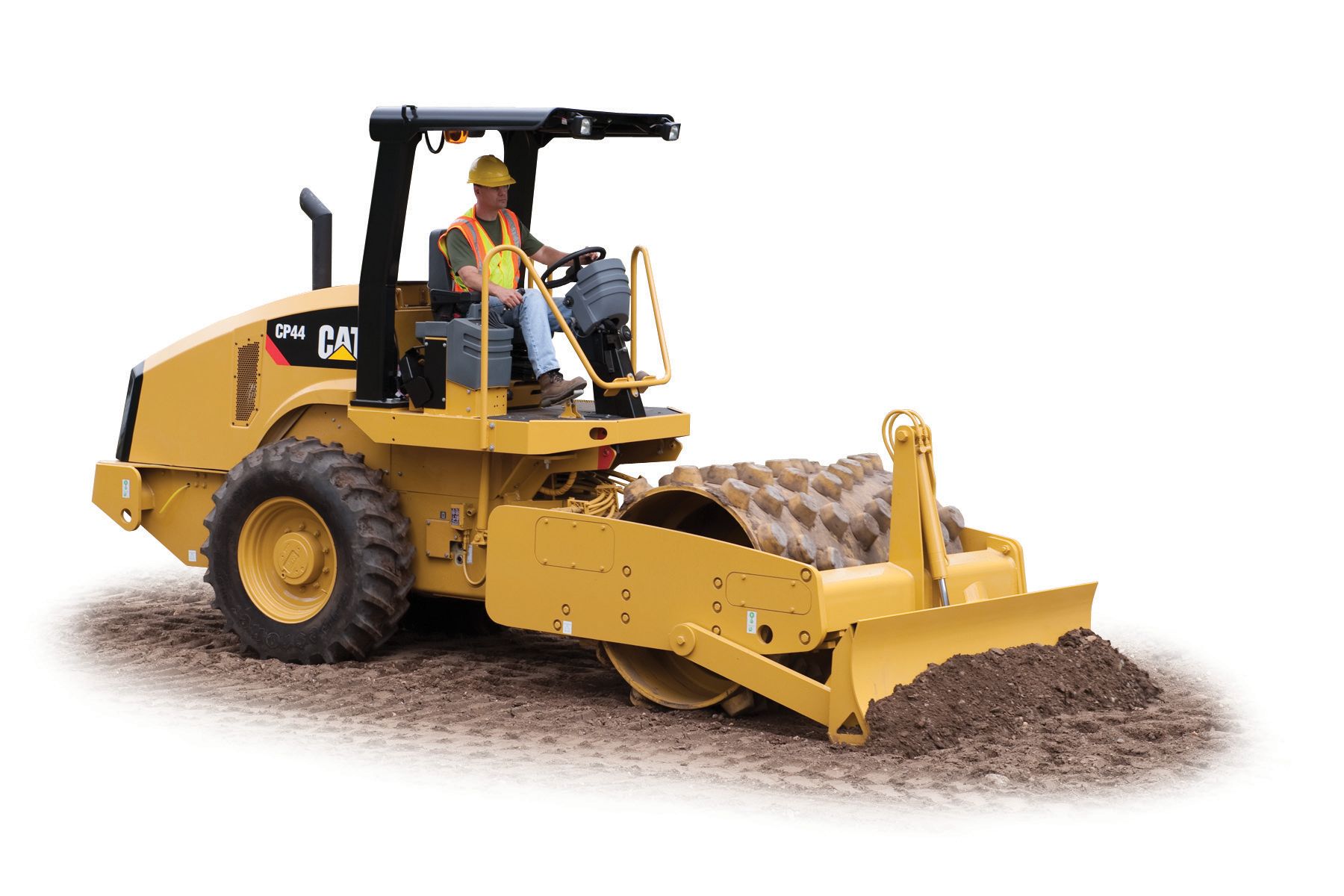

Vibratory Soil Compactors CP44B
Request A Price Find DealerKey Specs
- Operating Weight - With Cab
- 16471 lb
- 7471 kg
- Weight - Drum with ROPS/FOPS
- 7939 lb
- 3601 kg
- Weight - Drum with Cab
- 8181 lb
- 3711 kg
Overview
Dual Pump Propel System
The CP44B provides exceptional performance on flat or sloped terrain. This machine is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.
Features At A Glance
- The steering console features an LCD display. The display provides diagnostics and additional data to the operator. Machines that are equipped with Cat Compaction Control output compaction measurements to the display as well.
- A multi-position steering wheel adjusts for comfort. An adjustable vinyl seat with seat belt is comfortable and keeps controls and operating information within easy reach. The 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibrations. Cup holders are provided on the steering column. Large mirrors provide excellent views to the rear of the machine.
- The operator is provided with excellent visibility to the front, drum edges rear tire edges and rear of machine enhancing safety and production. Optional mirrors provide enhanced visibility to the rear.
- Design provides ground level access to all service and maintenance points.
- Long service intervals contribute to more productivity and lower owning and operating costs. The vibratory system scheduled oil change interval is 3 years/3,000 hours. The hydraulic oil service interval is 3,000 hours. Engine oil service is every 500 hours.
- The Vibratory Soil Compactor features a Cat engine that offers enhanced efficiency, better serviceability, ample power, and less noise.
- The vibratory soil compactors deliver excellent compaction performance due to high amplitude and static linear load.
- The vibratory soil compactor utilizes the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contamination common to conventional designs that employ metal weights. Providing unrivaled reliability and performance, the Cat pod-style vibratory system is virtually maintenance free, with the first scheduled maintenance period at 3 years or 3,000 hours.
- An automatic vibration function provides consistency for more uniform compaction. When vibration is engaged, vibration will cease as the compactor slows beneath a predetermined speed. When propel resumes, vibration recommences at a predetermined speed. This feature contributes to uniform, high-quality work.
Product Specifications for CP44B
Operating Specifications
| Ground Clearance | 16.1 in 408 mm |
| Compaction Width | 66 in 1676 mm |
| Turning Radius - Inside Drum Edge | 10 ft 3.05 m |
| Travel Speed - Maximum | 7 mile/h 11.4 km/h |
Engine
| Gross Power | 99.9 hp 45.5 kW |
| Engine Model | Cat C4.4 ACERT Cat C4.4 ACERT |
Dimensions
| Maximum Height | 9.35 ft 2.85 m |
| Drum Diameter - Over Pads | 48.2 in 1225 mm |
| Overall Width - With Blade Option | 6.95 ft 2.12 m |
| Wheel Base | 8.5 ft 2.6 m |
| Drum Width | 66 in 1676 mm |
| Overall Width | 5.91 ft 1.8 m |
| Optional Blade Height | 22.6 in 574 mm |
| Overall Length - With Blade Option | 18.41 ft 5.61 m |
| Overall Length | 16.7 ft 5.09 m |
Vibratory System
| Nominal Amplitude - Low | 0.031 in 0.8 mm |
| Centrifugal Force - Maximum | 29900 lb 133 kN |
| Variable Frequency Option Range | 23.3-31.9 Hz (1400-1914 vpm) 23.3-31.9 Hz (1400-1914 vpm) |
| Nominal Amplitude - High | 0.063 in 1.59 mm |
| Vibratory Frequency - Standard | 1914 V/m 31.9 Hz |
| Centrifugal Force - Minimum | 15000 lb 67 kN |
Tires
| Tires | 14.9 × 24 8-ply traction 14.9 × 24 8-ply traction |
Service Refill Capacities
| Fuel Tank Capacity | 37 gal (US) 140 l |
CP44B Standard Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
- Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
- Adjustable Tilting Steering Column with Integrated Cup Holders
- Rear Vision Camera System
- Seat Belt
- 12-volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Padfoot Drum
- Dual Amplitude, Single Frequency
- Pod-Style Eccentric Weight Housings
- Auto-vibe Function
- Dual Adjustable Steel Scraper
POWER TRAIN
- Cat C4.4 Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Tilting Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Two-speed Hydrostatic Transmission
ELECTRICAL
- 12 volt Electrical System
- 150 ampere Alternator
- 1000 Cold-cranking Amps Battery Capacity
OTHER
- Product LinkTM
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- S�O�SSM Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
CP44B Optional Equipment
OPERATOR ENVIRONMENT
- ROPS/FOPS Cab with Climate Control
- Sun Visor
VIBRATORY SYSTEM
- Leveling Blade
- Variable Frequency
- Dual Adjustable Steel Scrapers
POWER TRAIN
- Transmission Guard
OTHER
- Upgraded Halogen Light Package
- Rotating Amber Beacon
See how CP44B compares against frequently compared products.
Compactors
CP44B
Selected
- Operating Weight - With Cab
- 16471 lb
- 7471 kg
- Weight - Drum with ROPS/FOPS
- 7939 lb
- 3601 kg
- Weight - Drum with Cab
- 8181 lb
- 3711 kg
Compactors
CS20
- Operating Weight - With Cab
- 44577 lb
- 20220 kg
- Compaction Width
- 84 in
- 2134 mm
- Gross Power
- 174.6 hp
- 130.2 kW
Compactors
CS44B
- Operating Weight - With Cab
- 15895 lb
- 7210 kg
- Compaction Width
- 66 in
- 1676 mm
- Gross Power
- 99.9 hp
- 74.5 kW
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos

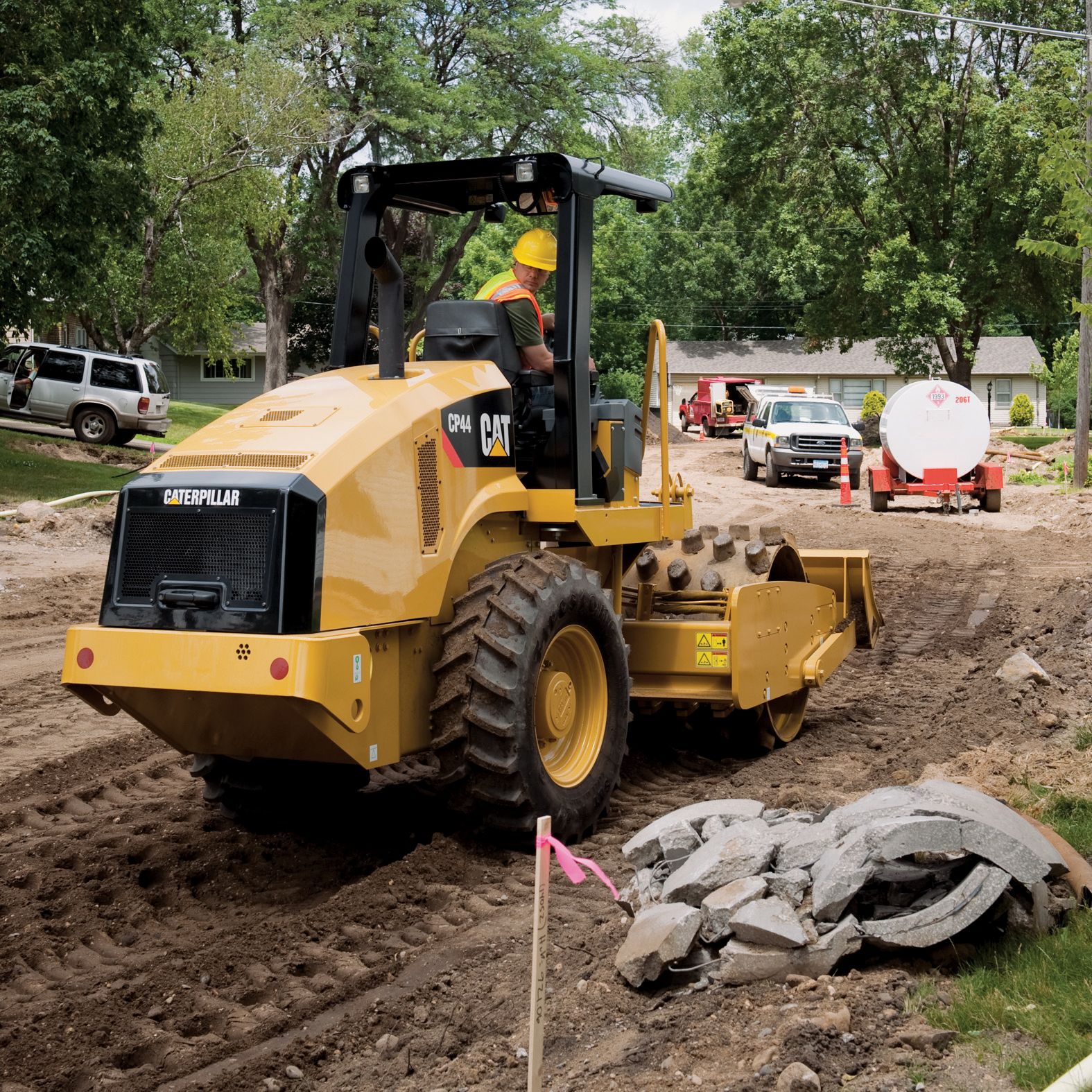

CP44 Vibratory Soil Compactor

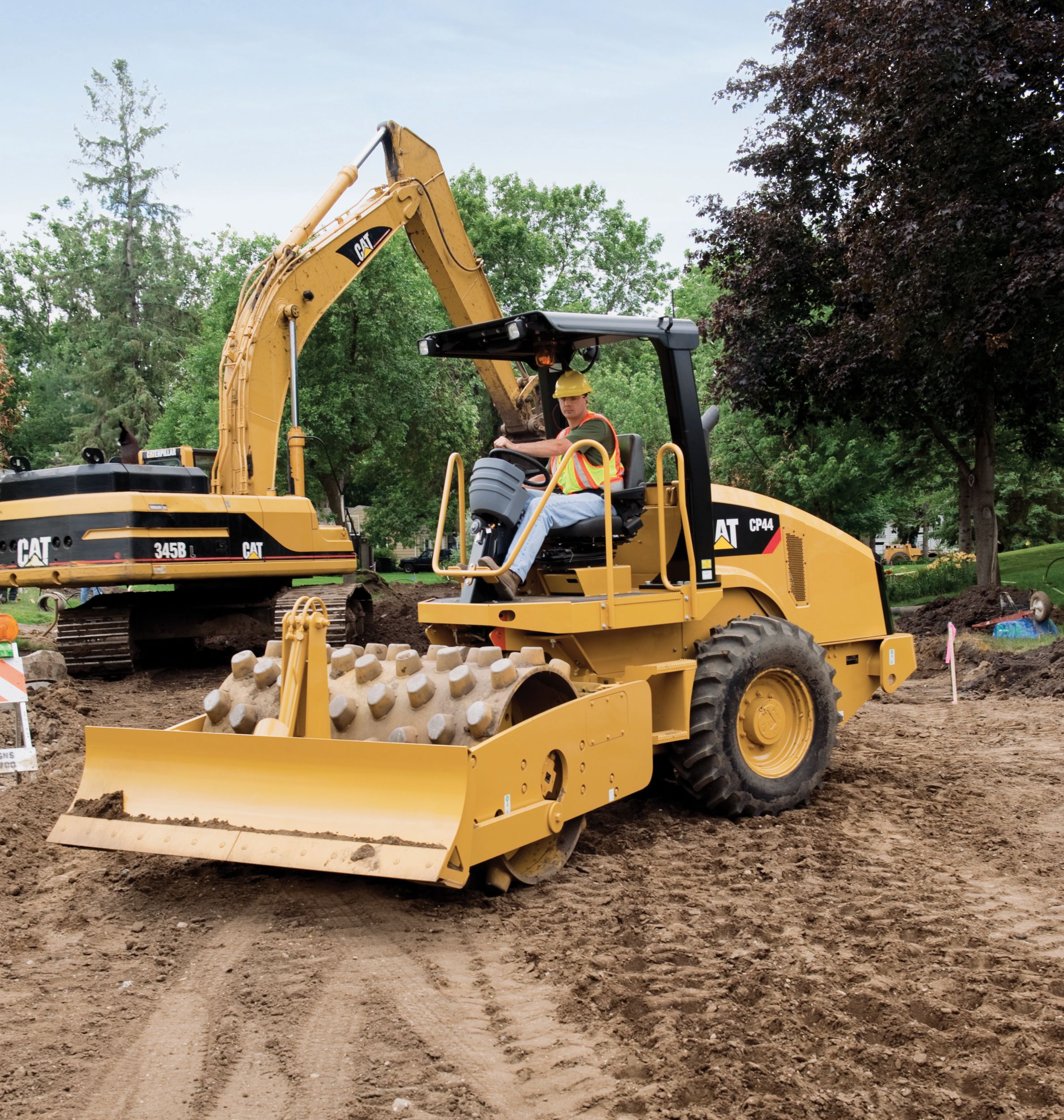

CP44 Vibratory Soil Compactor

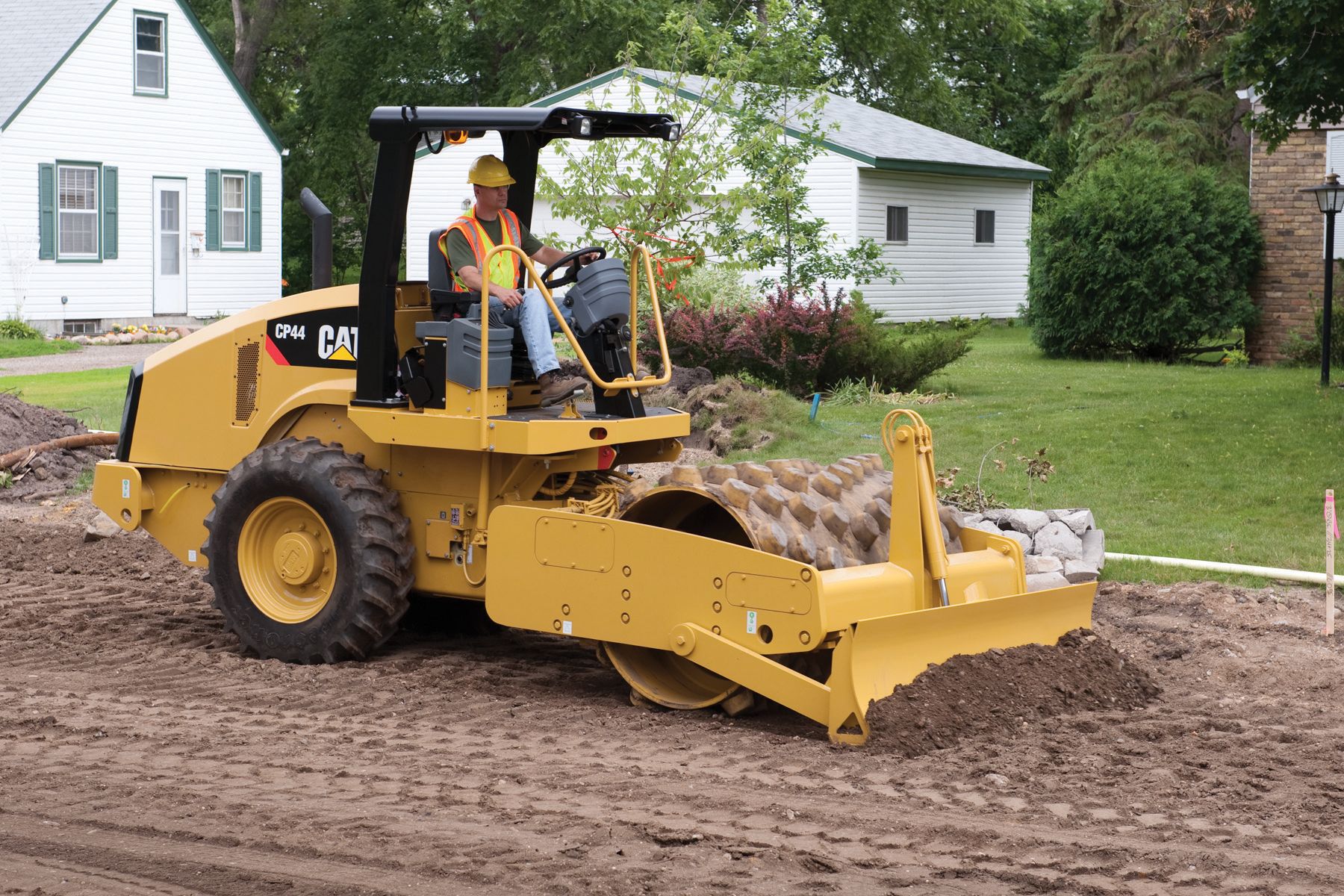

CP44 Vibratory Soil Compactor
