Tandem Vibratory Rollers CB1.8

Request A Price Find Dealer

Key Specs

Operating Weight
3825 lb
1735 kg
Standard Compaction Width
39 in
1000 mm
Gross Power
24.7 HP
18.4 kW

Overview

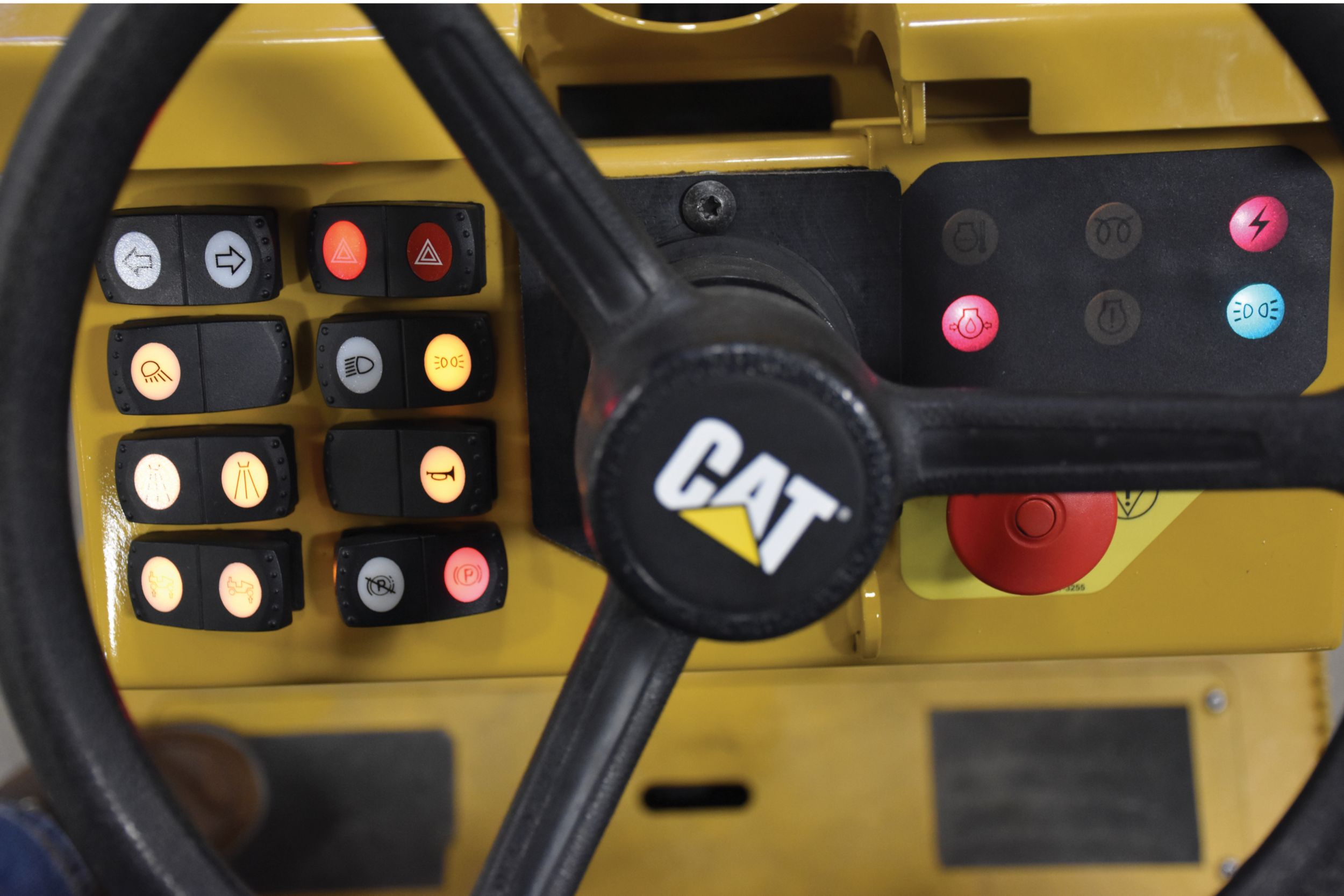

Simple Operation

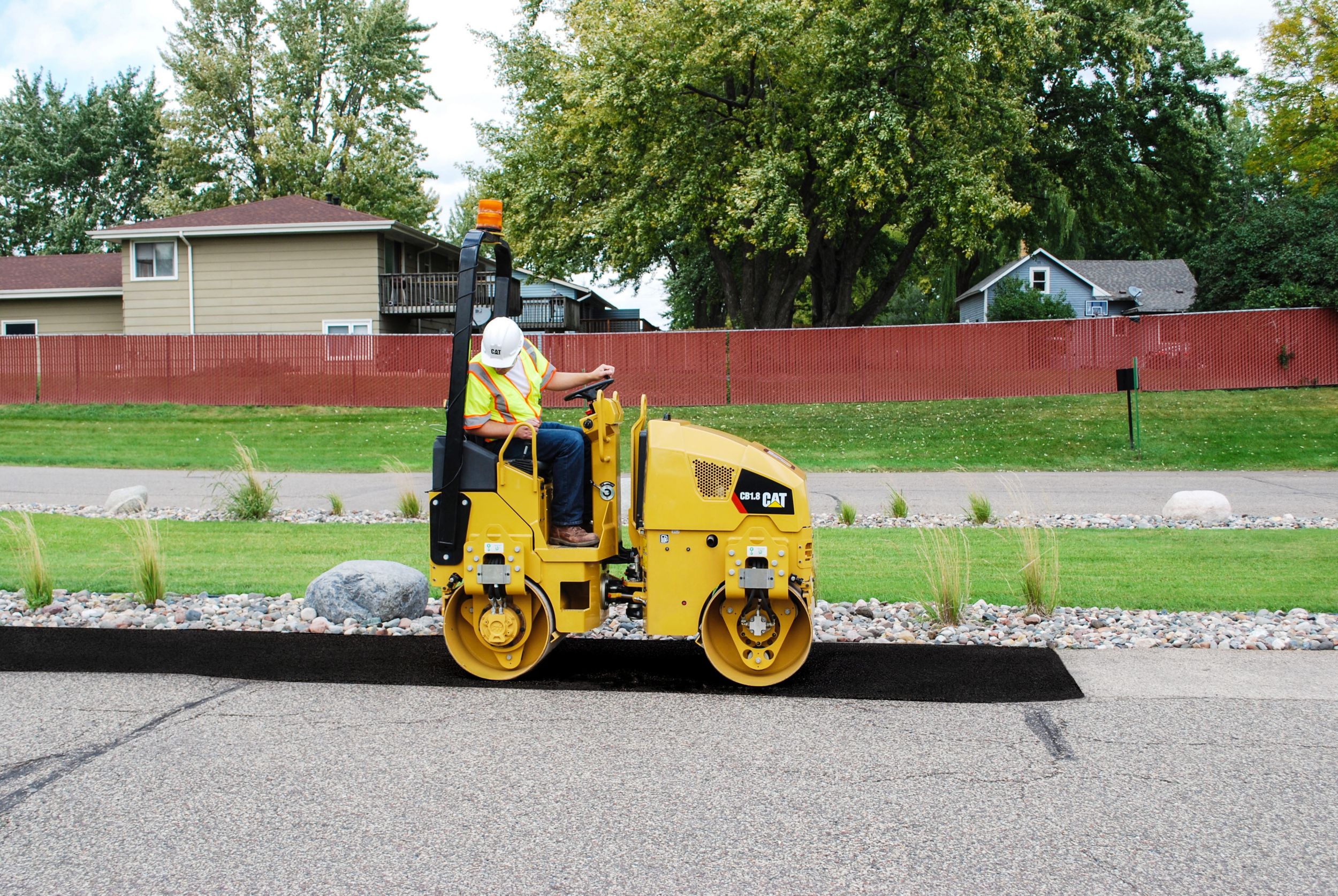

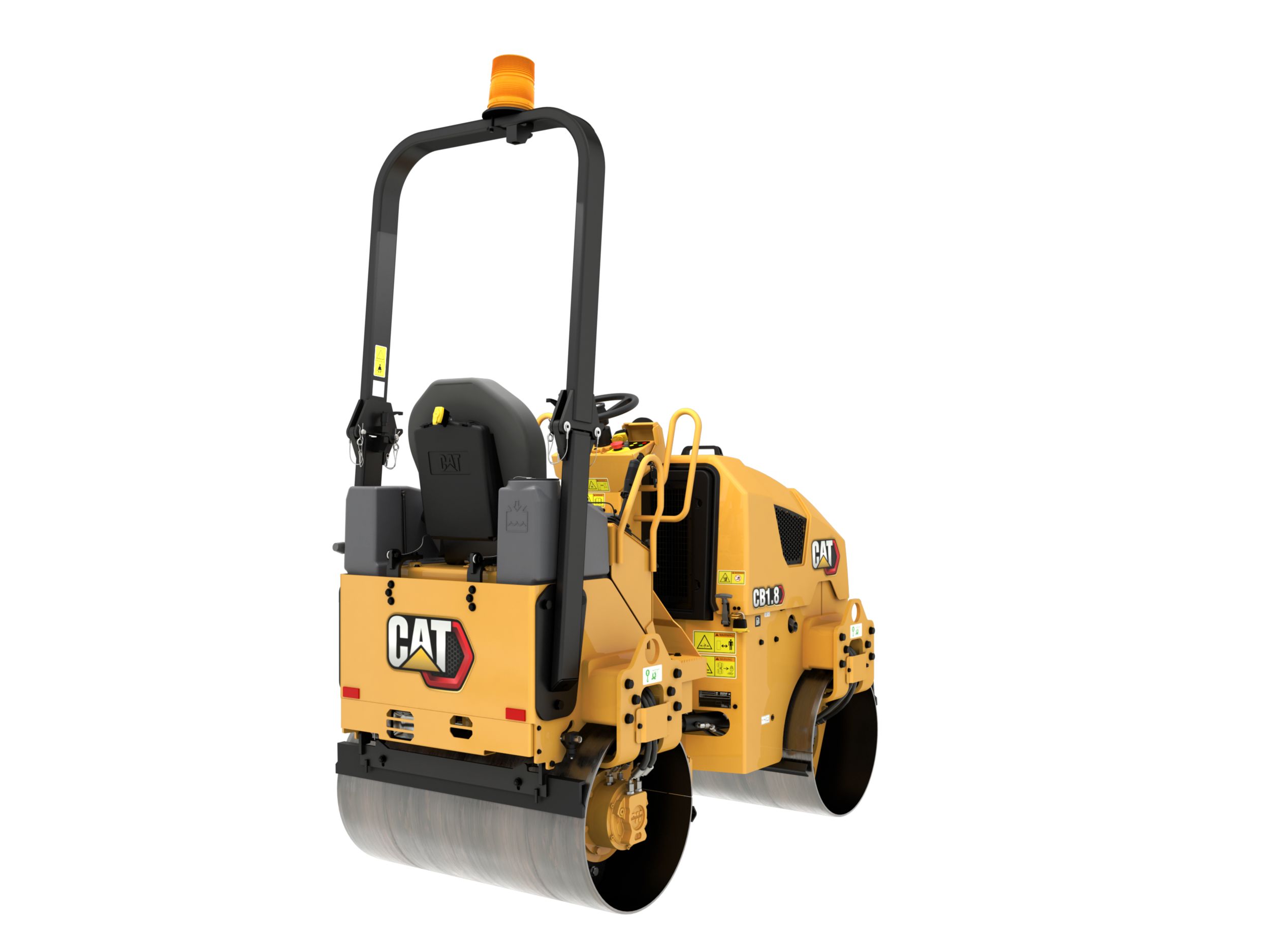

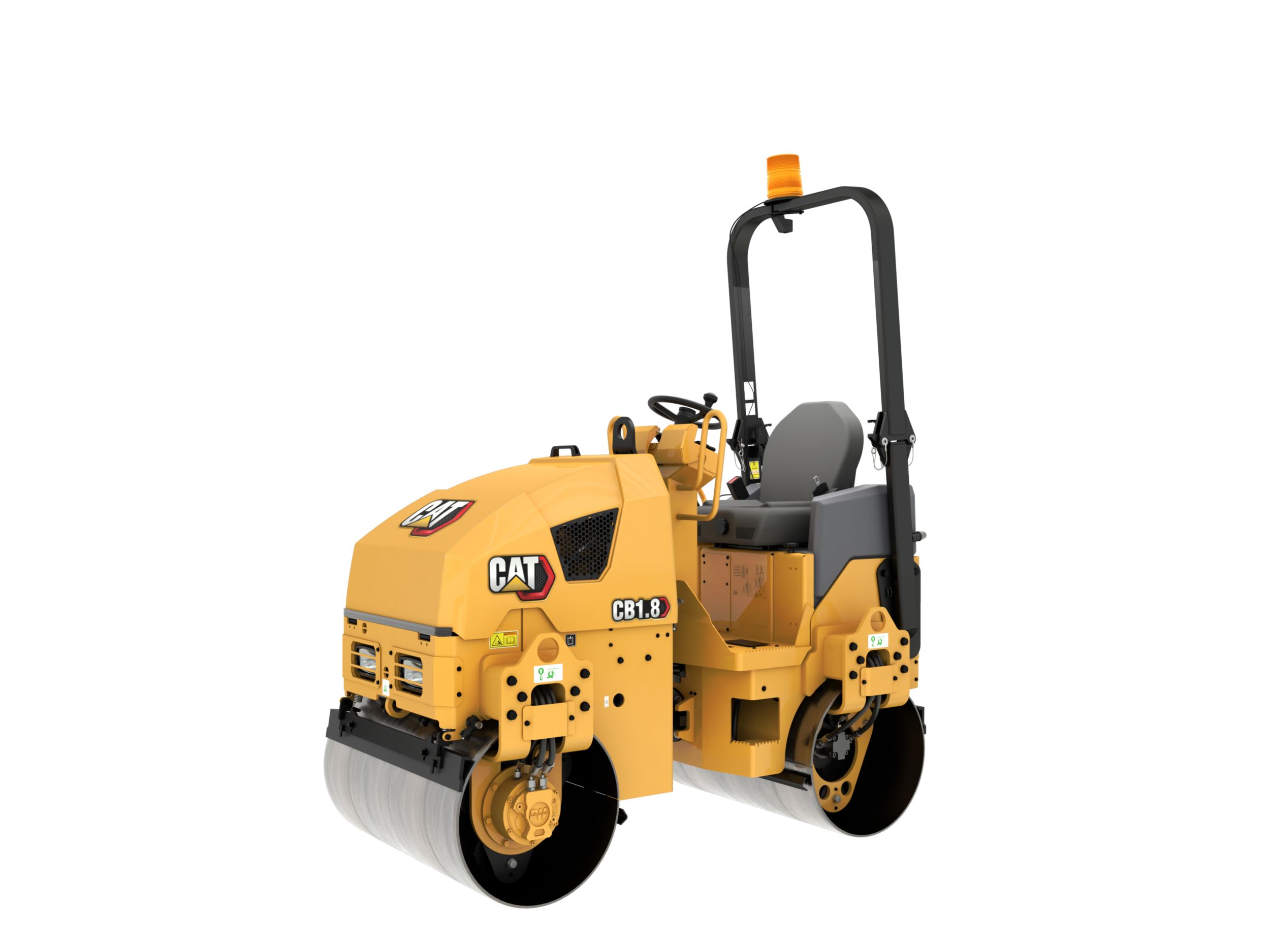

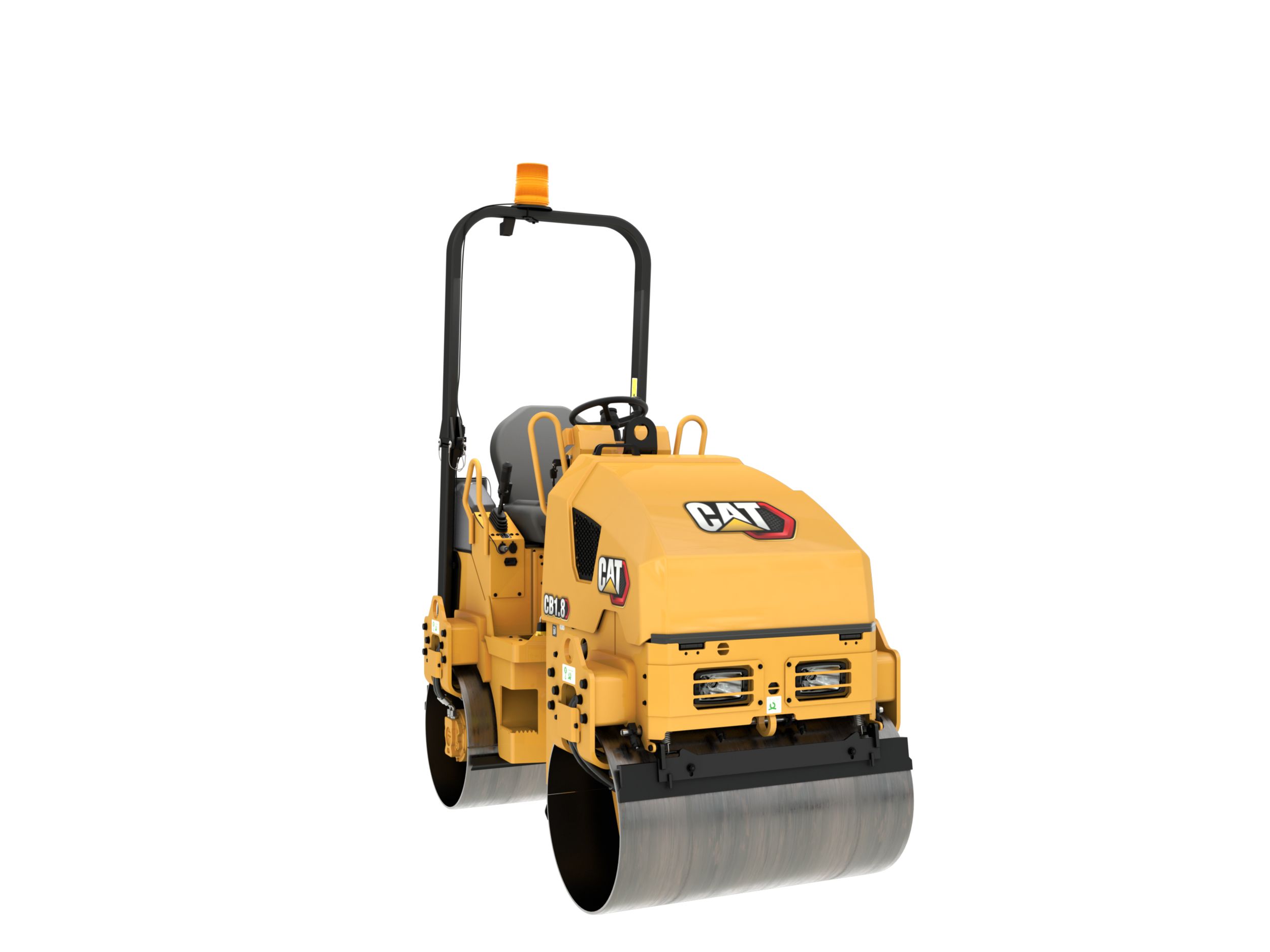

The CB1.8 is a 1.8 metric ton utility roller with 1000 mm (39 in) tandem vibratory drums.

Product Specifications for CB1.8

Operating Weight 3825 lb 1735 kg
Standard Compaction Width 39 in 1000 mm
Curb Clearance 16 in 403 mm
Ground Clearance 10 in 251 mm
Travel Speed - Maximum 5.3 mile/h 8.6 km/h
Static Linear Load 63 lb/in 9.1 kg/cm
Turning Radius - Inside Drum Edge 75 in 1900 mm
Gross Power 24.7 HP 18.4 kW
Engine Model Cat C1.1 Cat C1.1
Overall Length 80 in 2040 mm
Overall Width 44 in 1112 mm
Drum Diameter 22.5 in 575 mm
Drum Width 39 in 1000 mm
Maximum Machine Height 94.5 in 2400 mm
Frequency 3420 V/m 57 Hz
Nominal Amplitude - High 0.018 in 0.47 mm
Centrifugal Force per Drum - Maximum 3057 lb 13.6 kN
Fuel Tank Capacity 7.9 gal (US) 30 l
Water Spray Tank Capacity 38 gal (US) 145 l

CB1.8 Standard Equipment

Operator Environment

  • ROPS Folding
  • Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights
  • Dual 12-volt Power Outlet
  • Horn, Backup Alarm

Compaction System

  • Folding Scrapers
  • Vibe Selection - Front, Rear, or Both
  • Pressurized, Triple-Filtration Spray System

Powertrain

  • Air Cleaner, Dual Element
  • Engine Belt Guard

Technology

  • ProductLinkTM

Electrical

  • Working Lights

Other

  • Vandal Protection - Lockable Hood and Controls Cover
  • Machine Life and Tiedowns

CB1.8 Optional Equipment

Operator Environment

  • Adjustable Suspension Seat w/ Operator Presence Switch
  • ROPS Fixed

Electrical

  • Battery Disconnect
  • Roading Lights
  • Rotating Amber Beacon
  • Light Guards

Other

  • Single Point Lift
