Tandem Vibratory Rollers CB1.7

Request A Price Find Dealer

Key Specs

Operating Weight
3538 lb
1605 kg
Standard Compaction Width
35 in
900 mm
Gross Power
24.7 HP
18.4 kW

Overview

Compact Performance

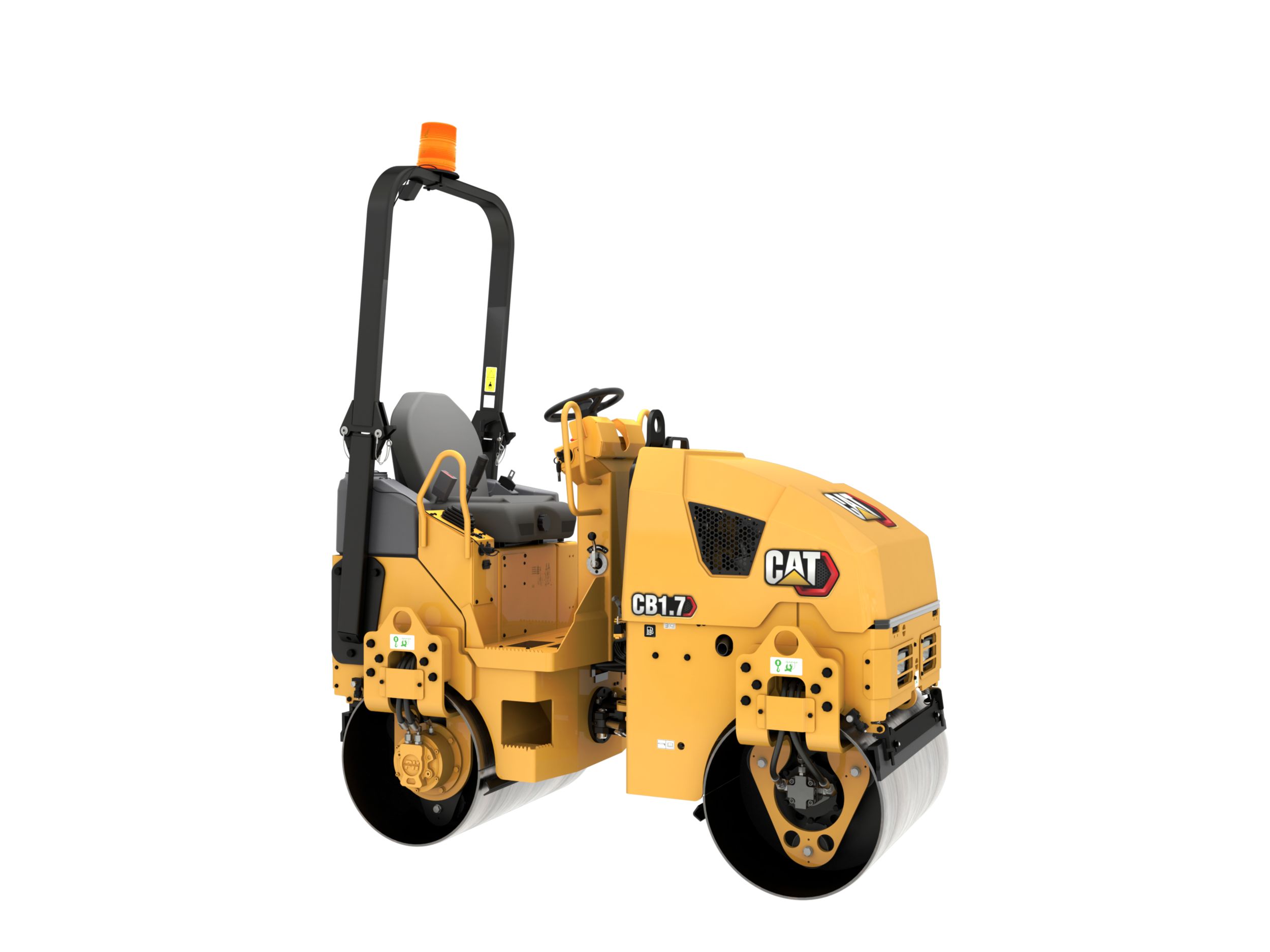

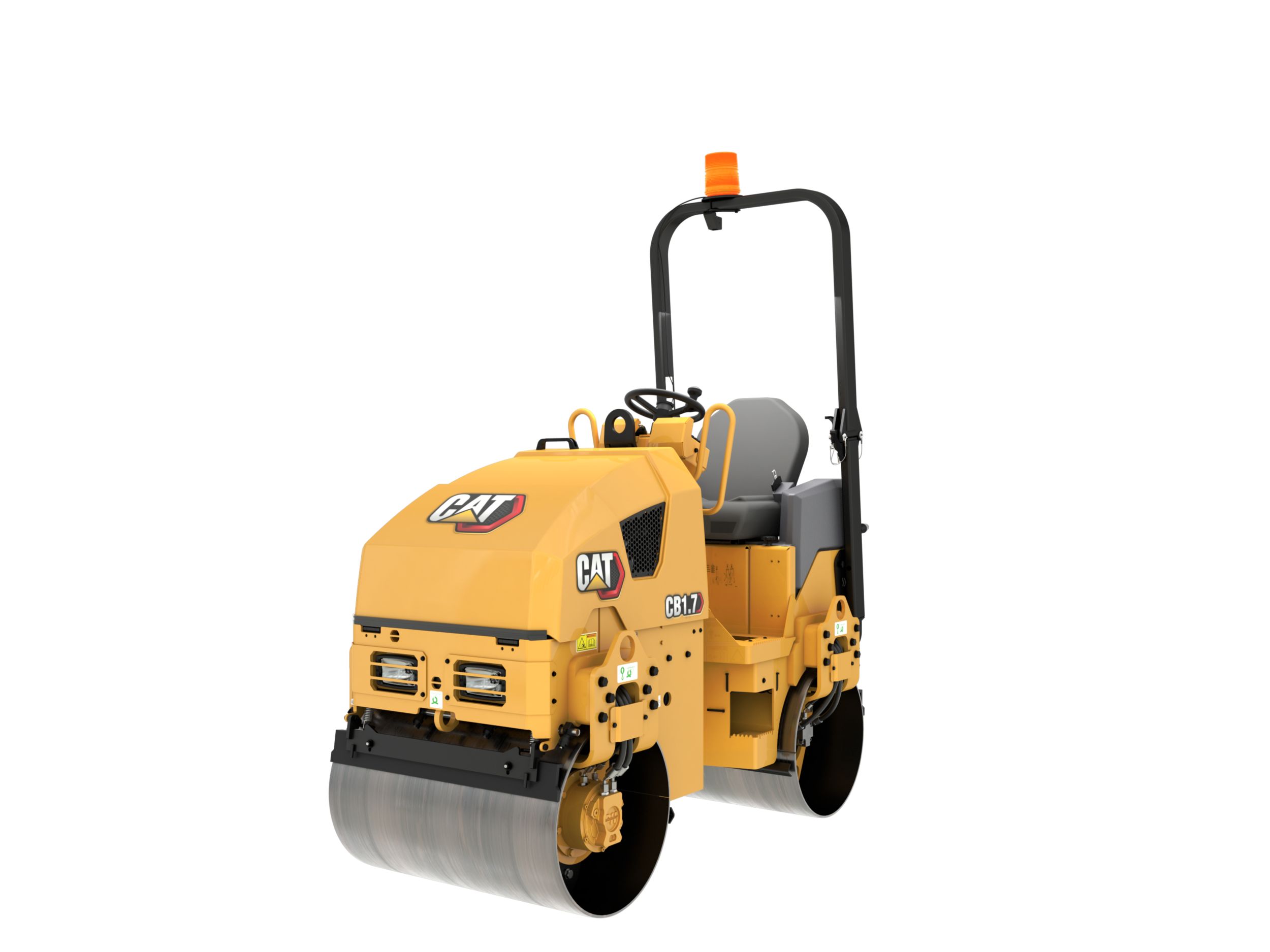

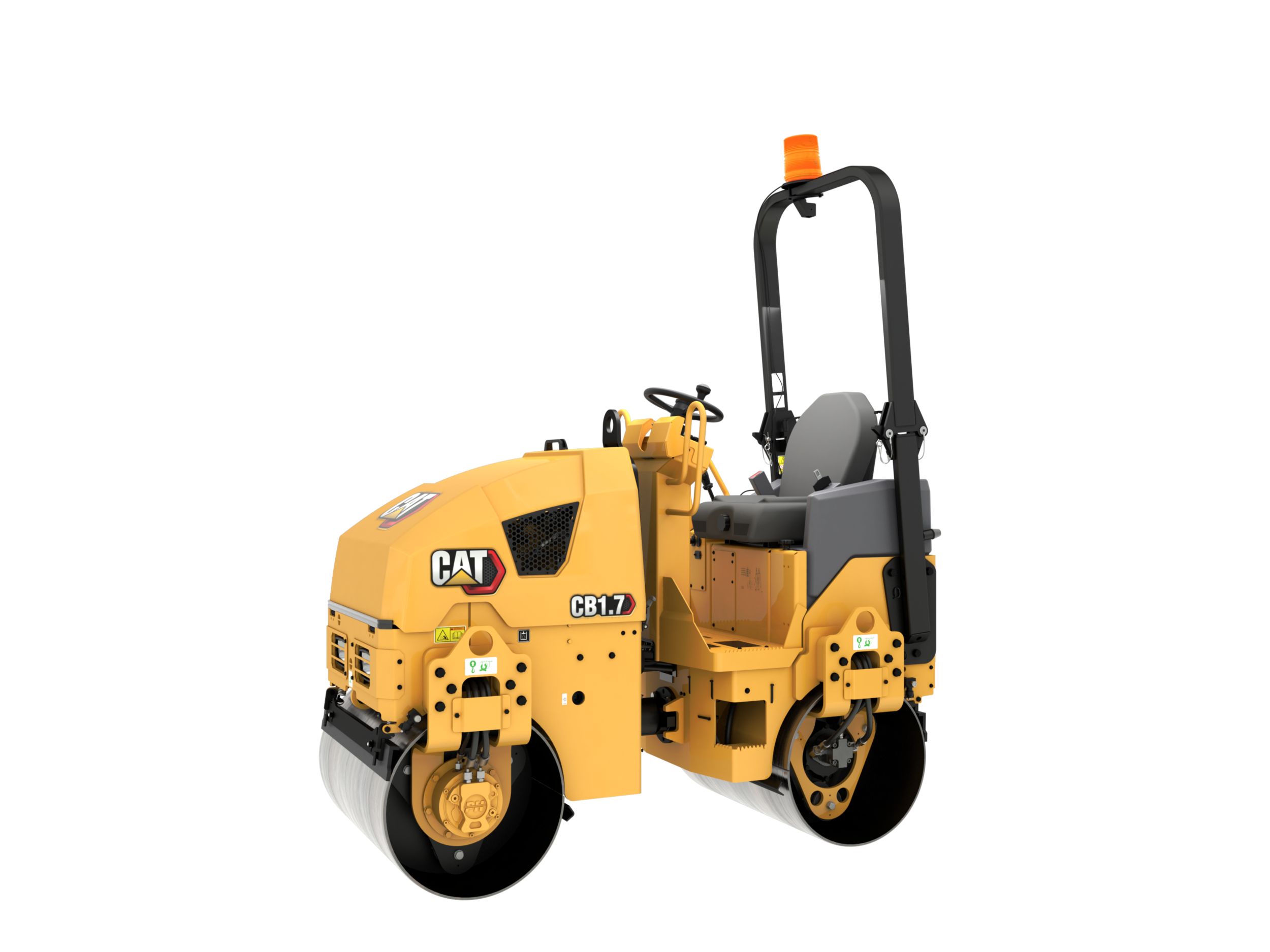

The CB1.7 is a 1.7 metric ton utility roller with 900 mm (35 in) tandem vibratory drums.

Product Specifications for CB1.7

Operating Weight 3538 lb 1605 kg
Standard Compaction Width 35 in 900 mm
Curb Clearance 16 in 403 mm
Ground Clearance 10 in 251 mm
Travel Speed - Maximum 5.3 mile/h 8.6 km/h
Static Linear Load 72 lb/in 9.4 kg/cm
Gross Power 24.7 HP 18.4 kW
Engine Model Cat C1.1 Cat C1.1
Overall Length 80 in 2040 mm
Overall Width 40 in 1012 mm
Maximum Machine Height 94.5 in 2400 mm
Drum Width 35 in 900 mm
Drum Diameter 22.5 in 575 mm
Frequency 3420 V/m 57 Hz
Nominal Amplitude - High 0.019 in 0.5 mm
Centrifugal Force per Drum - Maximum 3057 lb 13.6 kN
Fuel Tank Capacity 7.9 gal (US) 30 l
Water Spray Tank Capacity 38 gal (US) 145 l

CB1.7 Optional Equipment

Battery Disconnect Switch

Bio-hydraulic Oil

Lights, working, roading, IR

Light Guard

Non-suspension Seat

Product Link

ROPS, Fixed

ROPS, Folding

Single Point Lift

Suspension Seat

Warning Beacon
