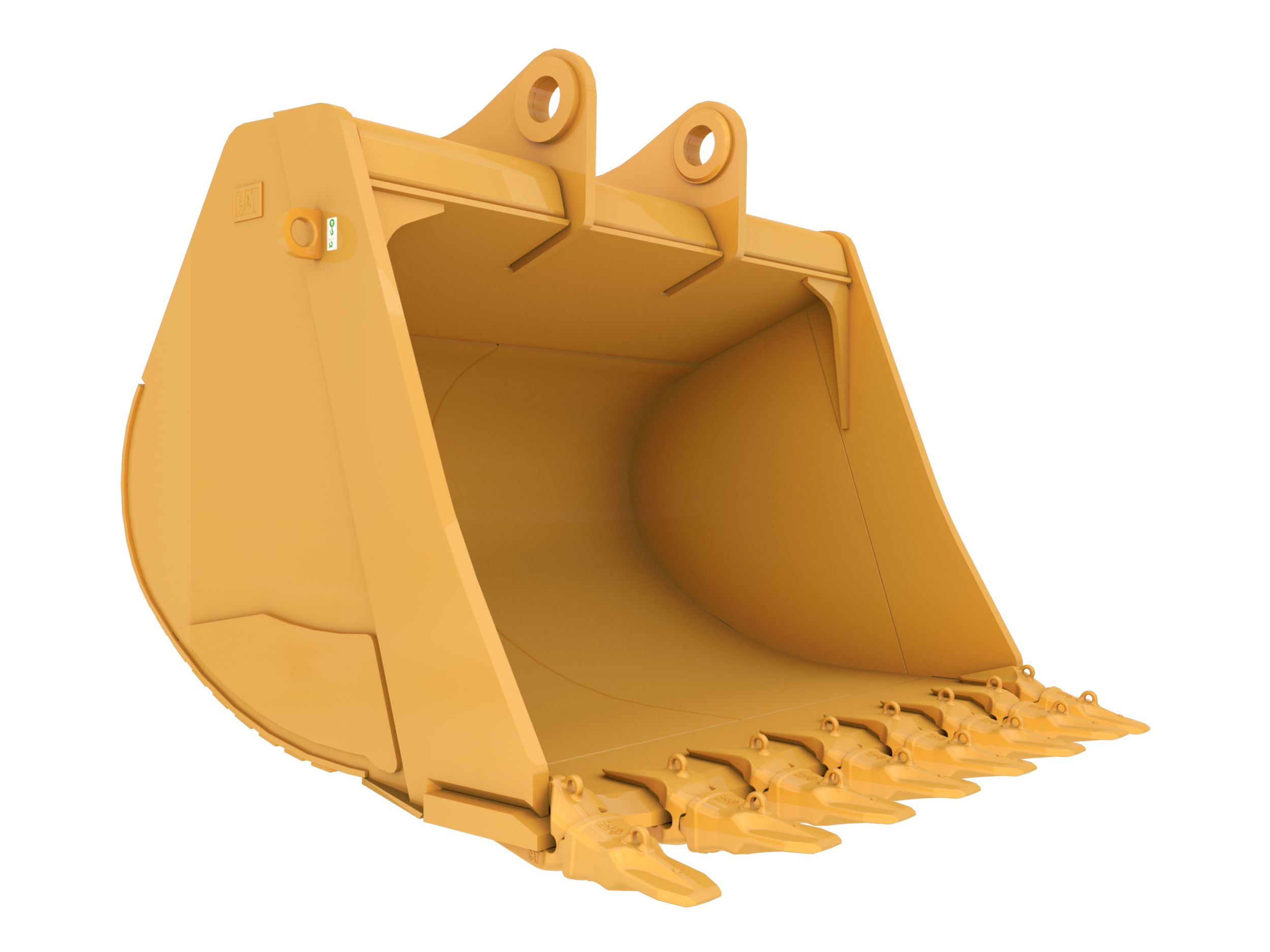

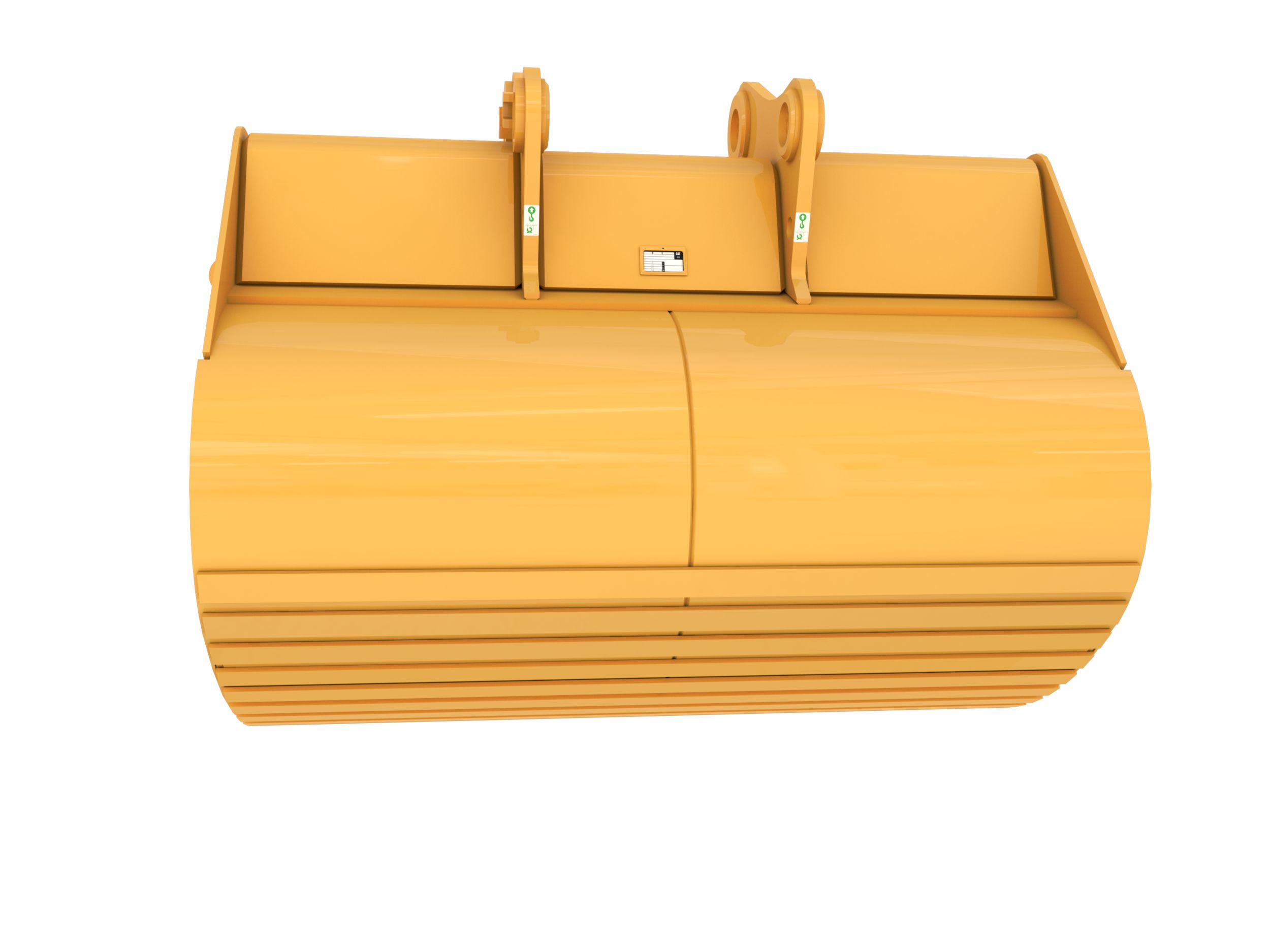

Coal Bucket 10.4 m³ (13.6 yd³) - 472-6127

Request A Price Shop Now

Key Specs

Material Density: 1686 lb/yd³; 1 t/m³

Wear Package: Light Duty - Coal; Light Duty - Coal

Ground Engaging Tool (GET) System: K150; K150

10.4 m³ (13.6 yd³) - 472-6127
Change model

Overview

Cat Coal buckets are high-capacity buckets designed for low density, high cohesion material, such as coal or sand. Light weight construction and straight lip design with small sized GET allow for maximum payload and material movement. Coal buckets have the Light Duty wear package. This package utilizes hardened plates on the exterior of the bucket in the highest wear areas and has optional coal breakers.

Benefits

Versatile

Coal buckets are designed for the density of coal or sand and optimum productivity for versatility class machines.

Hammerless GET

6015 coal buckets are fully supported with a variety of Cat K150 GET options.

Fully Rebuildable

Cat Coal buckets come equipped with our Light Duty wear package. Replaceable external wear bars are available as a kit or individually.

Product Specifications for 10.4 m³ (13.6 yd³) - 472-6127

Material Density	1686 lb/yd³ 1 t/m³
Wear Package	Light Duty - Coal Light Duty - Coal
Ground Engaging Tool (GET) System	K150 K150
Machine Model	6015 6015
Capacity	13.6 yd³ 10.4 m³
Weight	16543 lb 7504 kg
Outer Width	119.6 in 3040 mm
Inner Width	111.8 in 2841 mm

Product Specifications for 10.4 m³ (13.6 yd³) - 472-6127

Download Print

Material Density	1686 lb/yd³ 1 t/m³
Wear Package	Light Duty - Coal Light Duty - Coal
Ground Engaging Tool (GET) System	K150 K150
Machine Model	6015 6015
Capacity	13.6 yd³ 10.4 m³
Weight	16543 lb 7504 kg
Outer Width	119.6 in 3040 mm
Inner Width	111.8 in 2841 mm
