Key Specs
Cat Standard Rock buckets are production-oriented buckets designed for use in medium-density material, which can stick to the walls of other buckets. Standard Rock buckets come equipped with wear protection for the leading edges and heel. Wear plates are usually Quenched and Tempered for maximum durability in high-impact conditions.
Sized and designed to work as part of a machine loading system, for high productivity and the lowest cost per ton.
A wide variety of sizes and wear packages are available, so you can ideally match your bucket and GET to your application.
Cat mining buckets are fully supported by the Cat dealer network for round the clock support.
| Material Density | 2950 lb/yd³ 1.75 t/m³ |
| Wear Package | General Duty General Duty |
| Ground Engaging Tool (GET) System | Cat M75 Cat M75 |
| Machine Model | 6015 6015 |
| Capacity | 9.7 yd³ 7.4 m³ |
| Weight | 14138 lb 6413 kg |
| Outer Width | 90.8 in 2306 mm |
| Inner Width | 77.3 in 1964 mm |

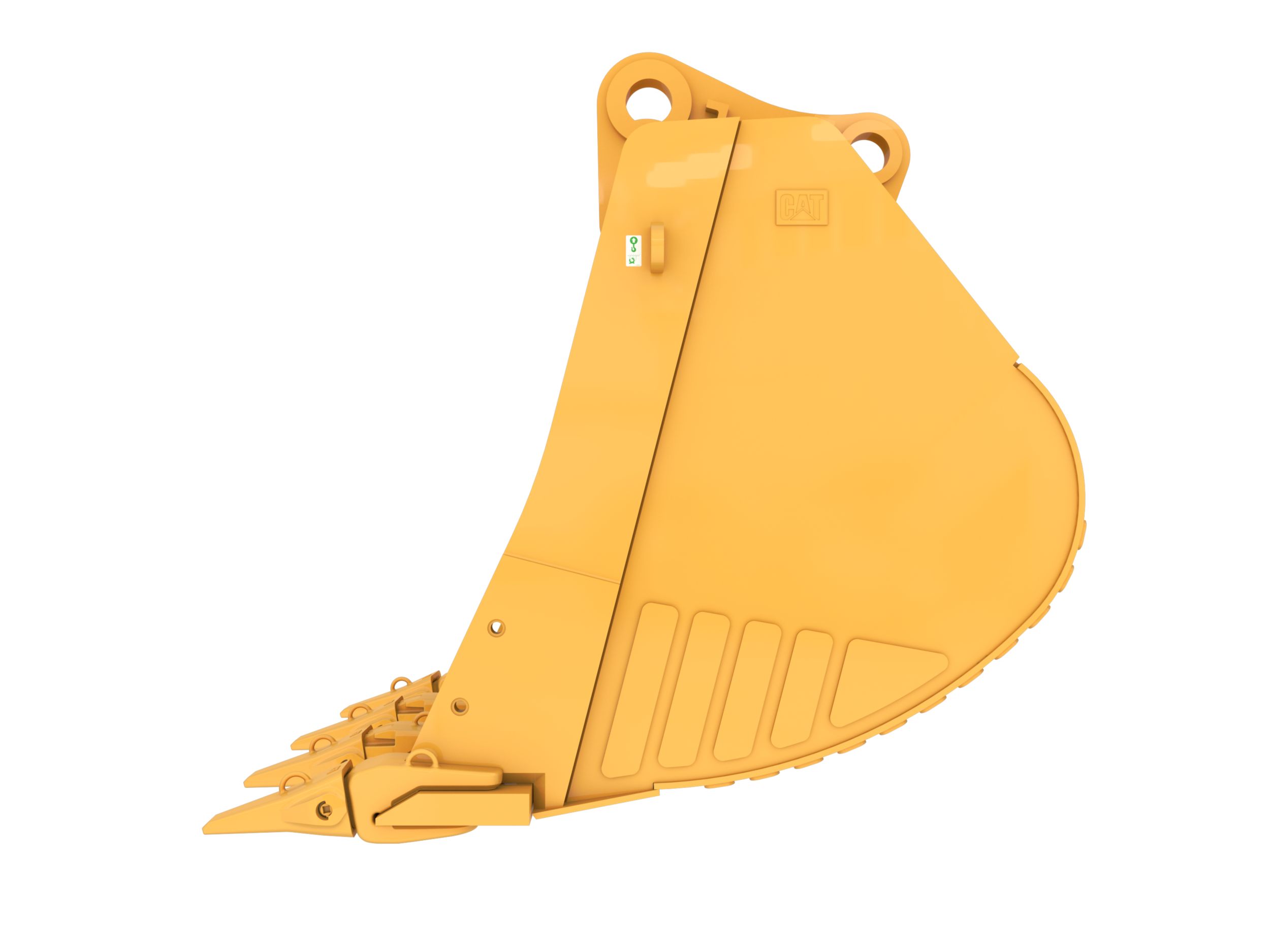

472-6080_7.4 m³ (9.7 yd³) Standard Rock Bucket

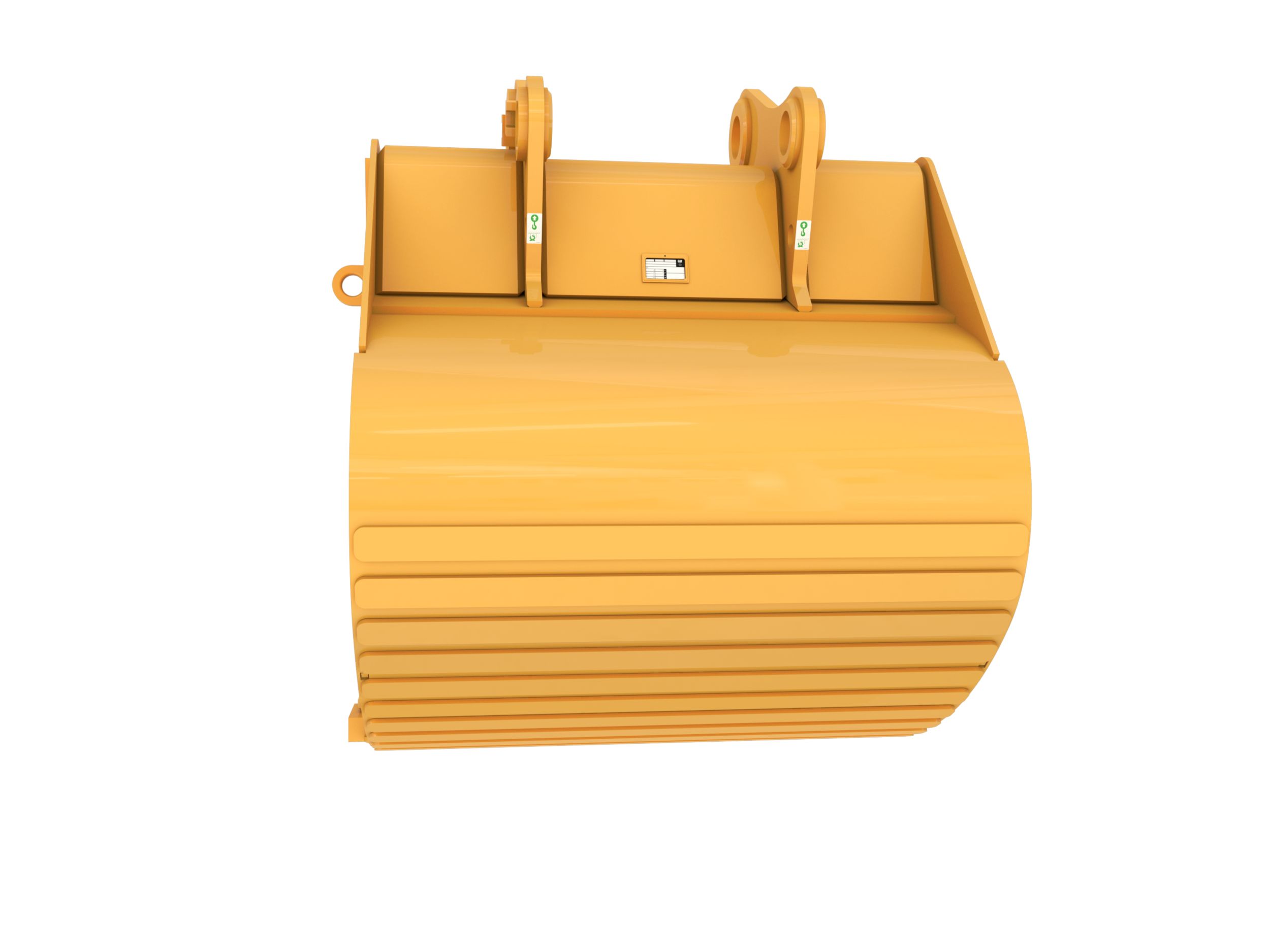

472-6080_7.4 m³ (9.7 yd³) Standard Rock Bucket

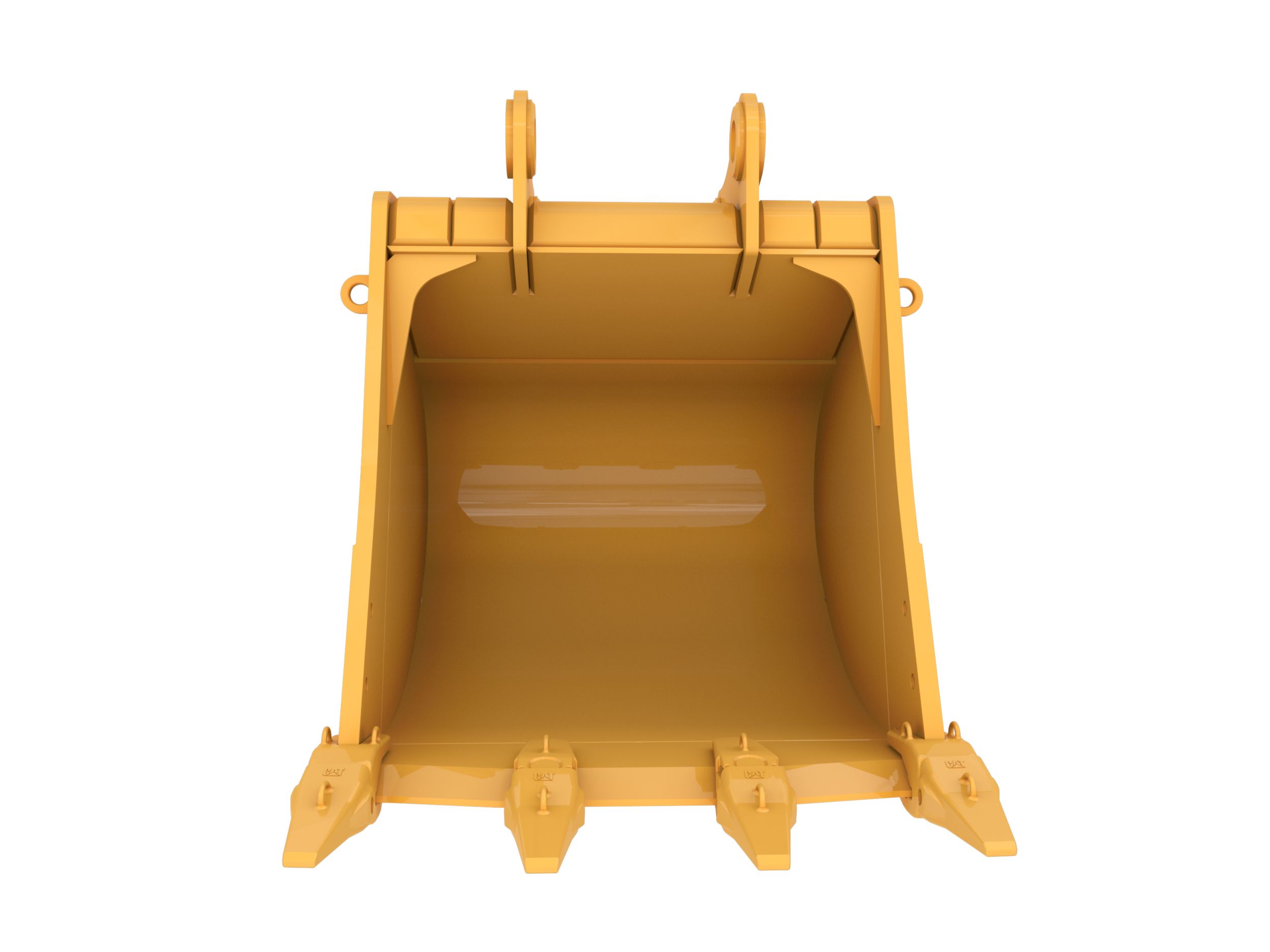

472-6080_7.4 m³ (9.7 yd³) Standard Rock Bucket

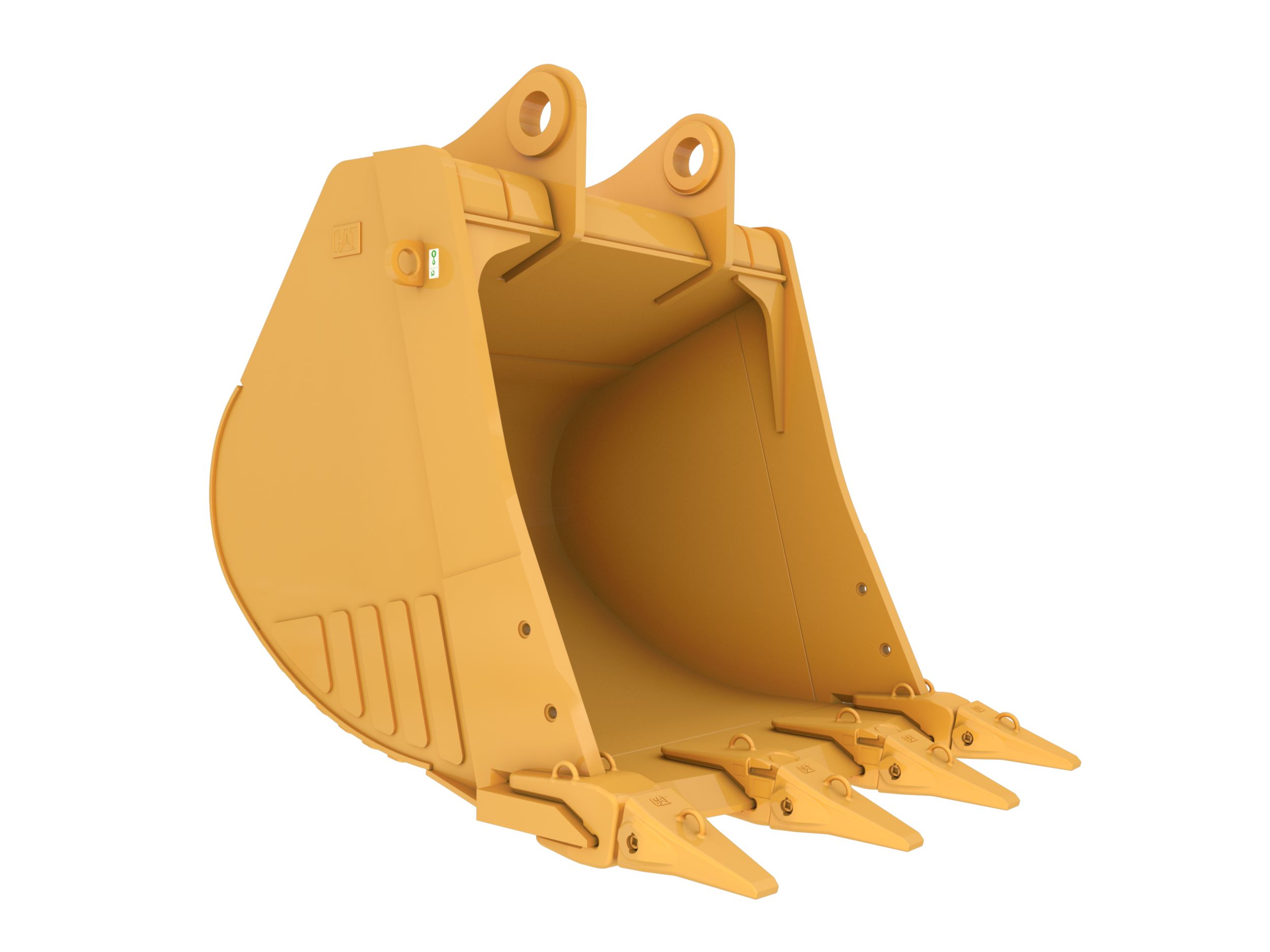

472-6080_7.4 m³ (9.7 yd³) Standard Rock Bucket
472-6080_7.4 m³ (9.7 yd³) Standard Rock Bucket
Loading System
