Heavy Rock Bucket 15 m³ (19.6 yd³) - 462-8887

Request A Price Find Dealer

Key Specs

Material Density: 3371 lb/yd³; 2 t/m³

Wear Package: Heavy Duty - Abrasion; Heavy Duty - Abrasion

Ground Engaging Tool (GET) System: Cat C85; Cat C85

15 m³ (19.6 yd³) - 462-8887
Change model

Overview

15 m³ (19.6 yd³) Heavy Rock bucket for the 6030 Hydraulic Mining Shovel

Features At A Glance

Displaying 1-6 of 4

Optimum Productivity

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Efficient

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Max Payload

Rated with ISO 7451 payload standards with a 1:1 heap ratio

The Support You Need

Cat buckets are fully covered by the Cat dealer network for round the clock support.

A perfect match to the Cat Hydraulic Mining Shovels. Designed to give excellent payload and matched to the power of Cat machines for a long service life.

Pass matched to Cat and Unit Rig trucks for an efficient system at your mine site.

Rated with ISO 7451 payload standards with a 1:1 heap ratio

Cat buckets are fully covered by the Cat dealer network for round the clock support.

Product Specifications for 15 m³ (19.6 yd³) - 462-8887

Material Density	3371 lb/yd³ 2 t/m³
Wear Package	Heavy Duty - Abrasion Heavy Duty - Abrasion
Ground Engaging Tool (GET) System	Cat C85 Cat C85
Machine Model	6030 6030
Capacity	19.6 yd³ 15 m³
Weight	37,908 lb 17 195 kg
Outer Width	155.5 in 3950 mm
Inner Width	135 in 3430 mm

Product Specifications for 15 m³ (19.6 yd³) - 462-8887

Download Print

Material Density	3371 lb/yd³ 2 t/m³
Wear Package	Heavy Duty - Abrasion Heavy Duty - Abrasion
Ground Engaging Tool (GET) System	Cat C85 Cat C85
Machine Model	6030 6030
Capacity	19.6 yd³ 15 m³
Weight	37,908 lb 17 195 kg
Outer Width	155.5 in 3950 mm
Inner Width	135 in 3430 mm

See how 15 m³ (19.6 yd³) - 462-8887 compares against frequently compared products.

Buckets - Mining Shovels

Selected

15 m³ (19.6 yd³) - 462-8887

Material Density: 3371 lb/yd³; 2 t/m³
Wear Package: Heavy Duty - Abrasion; Heavy Duty - Abrasion
Ground Engaging Tool (GET) System: Cat C85; Cat C85

Buckets - Mining Shovels

15 m³ (19.6 yd³) - 456-3021

Material Density: 3371 lb/yd³; 2 t/m³
Wear Package: Extreme Duty - Abrasion; Extreme Duty - Abrasion
Ground Engaging Tool (GET) System: Cat C85; Cat C85

View Details

Buckets - Mining Shovels

13.5 m³ (17.7 yd³) - 463-3779

Material Density: 3708 lb/yd³; 2.2 t/m³
Wear Package: Heavy Duty - Abrasion; Heavy Duty - Abrasion
Ground Engaging Tool (GET) System: Cat C95; Cat C95

View Details

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

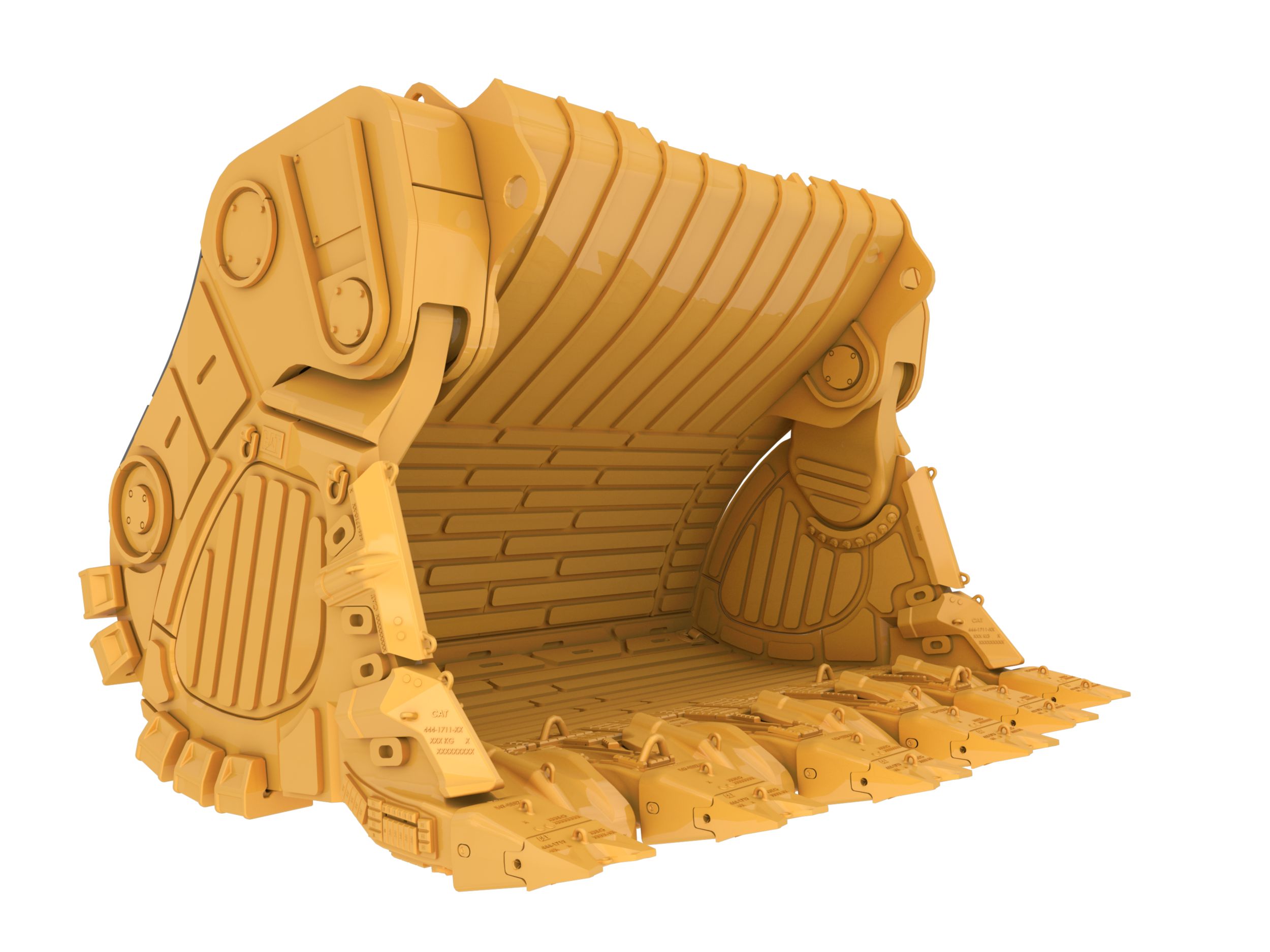

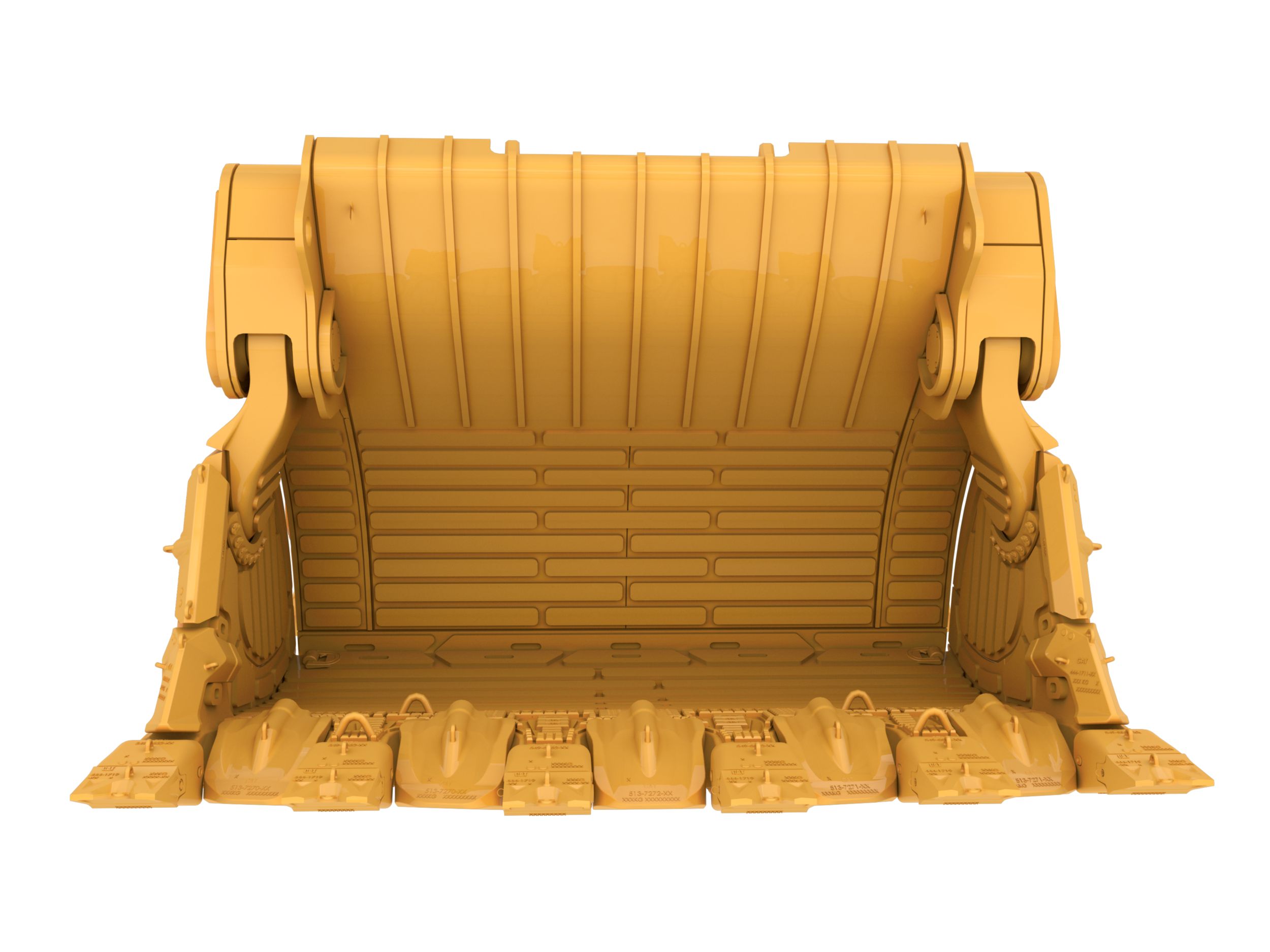

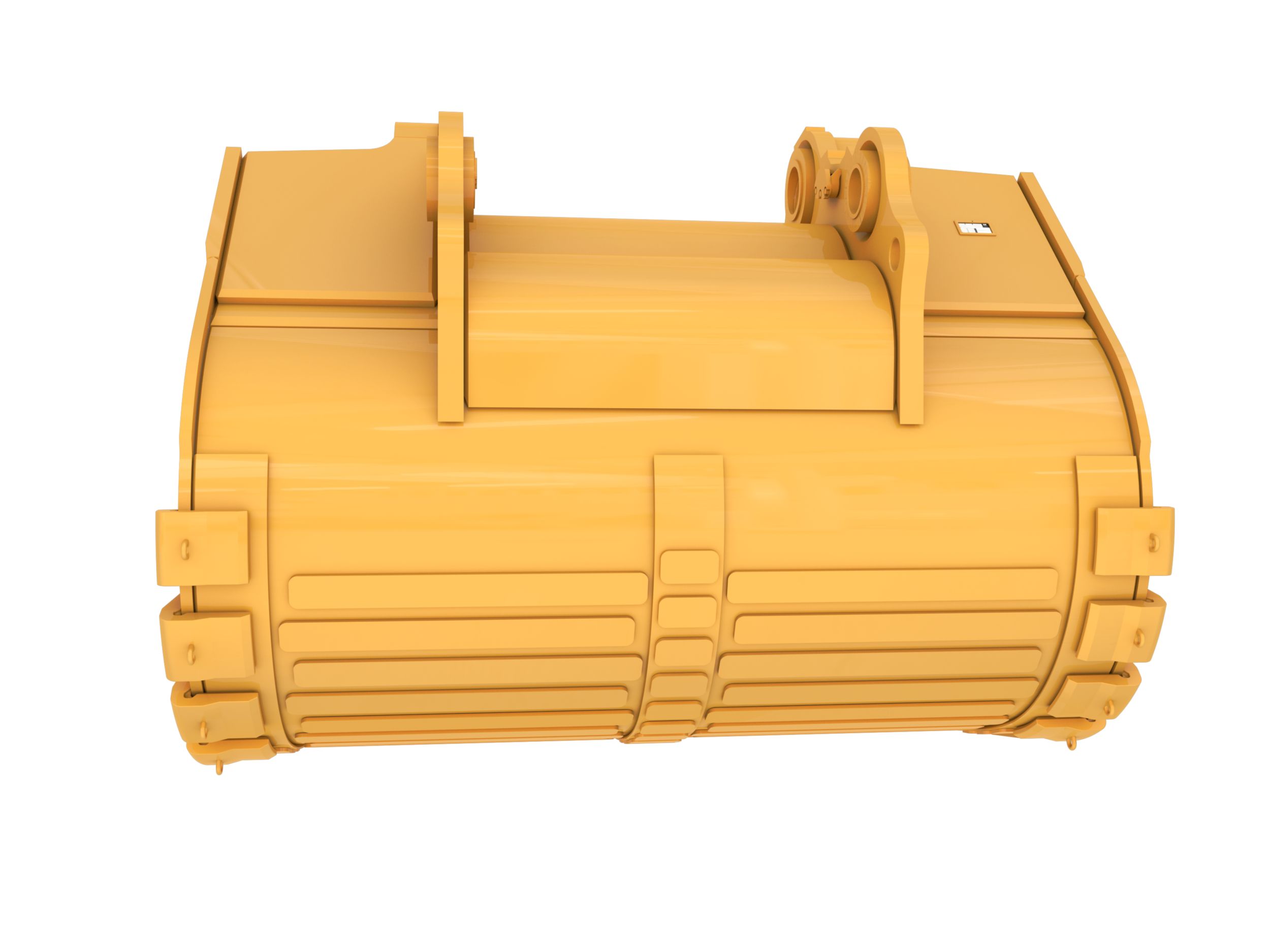

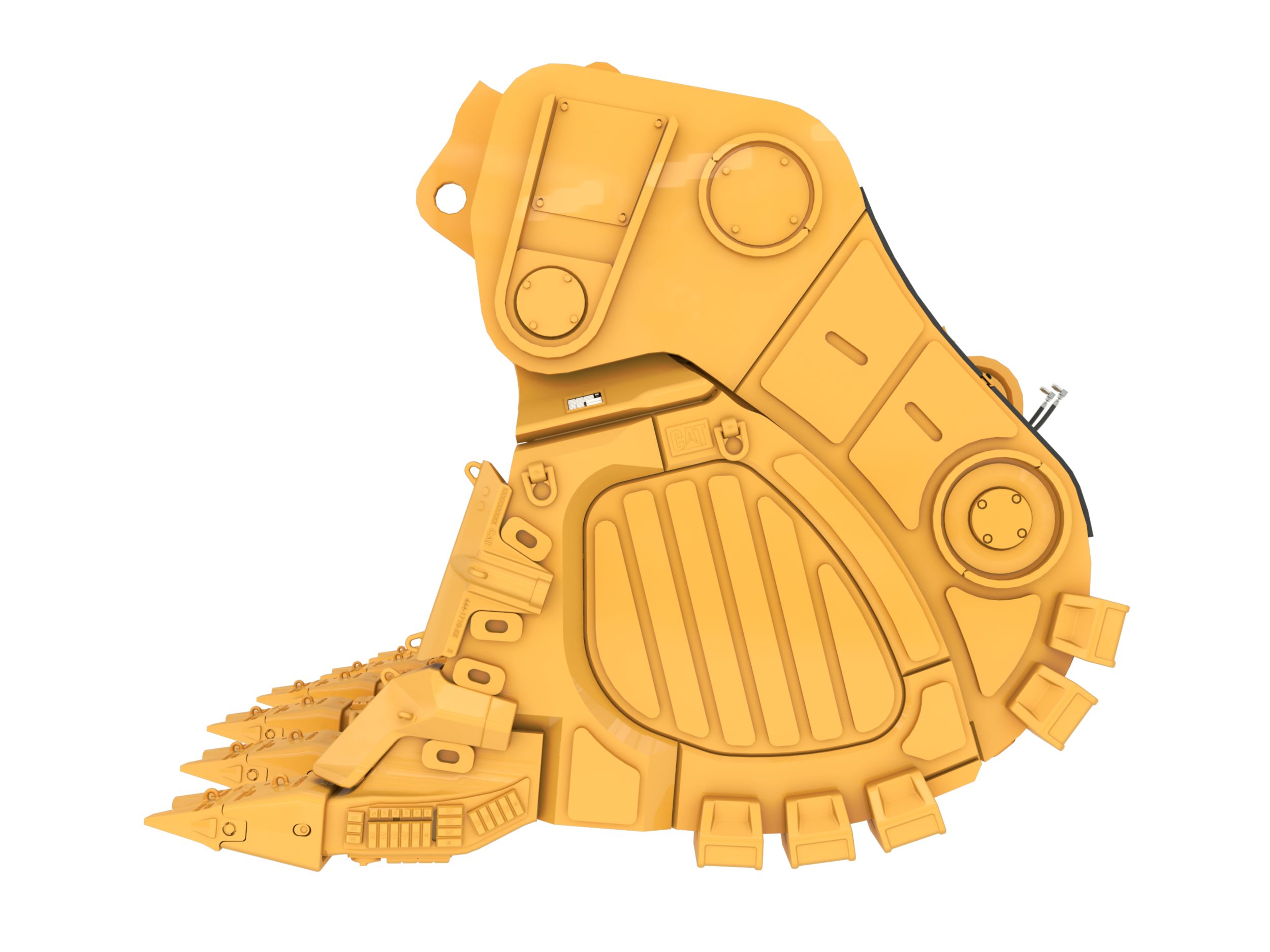

462-8887_15 m³ (19.6 yd³) Heavy Rock backhoe bucket
